Imaging polarimetry of comets C/2013 V1 (Boattini) and 290P/Jager before and after perihelion Free

Abstract

1 INTRODUCTION

Comets are small icy Solar system body, spend most of their lifetime far away from the Sun, hence the material on their subsurface is assumed to be primordial. Linear polarization measurements of the scattered solar radiation is a primary tool to study atmosphere less celestial bodies and comets. The main objective behind the polarimetric study of comets C/2013 V1 (Boattini) and 290P/Jager is to understand the physical properties of dust grains present in the cometary coma.

Michael Jager discovered the Jupiter Family Comet (JFC) 290P/Jager with a 0.25-m f/2.8 Schmidt camera on 1988 October 25. Recently, non-periodic comet C/2013 V1 (Boattini) was discovered by A. Boattini with the Catalina Sky Survey's 0.68-m Schmidt telescope on 2013 November 6. The orbital elements of the comet C/2013 V1 (Boattini) indicate a perihelion passage on 2014 April 21 at a distance of 1.66 au and that of comet 290P/Jager suggests its perihelion date to be 2014 March 12 at a distance of 2.16 au, respectively, from the Sun. The orbital plane of comets C/2013 V1 (Boattini) and 290P/Jager inclined at an angle of 65|$_{.}^{\circ}$|3 and 19|$_{.}^{\circ}$|1, respectively, with the ecliptic plane.

An extensive study of cometary dust grains has been done by various researchers, but the ambiguity over their exact nature and composition still prevails. Hence to clear this enigma, several investigators prefer linear polarization measurements and theoretical modelling in order to reveal the true characteristics of cometary dust grains (Das, Sen & Kaul 2004, Jockers et al. 2005; Das & Sen 2006, 2011; Kimura, Kolokolova & Mann 2006; Levasseur-Regourd et al. 2007; Das et al. 2008a; Das, Das & Sen 2008b, 2010, 2011; Lasue et al. 2009; Hadamcik et al. 2010; Kiselev et al. 2013, etc.).

In the past, we conducted CCD polarimetric observations of comet C/2009 P1 (Garradd) (Das et al. 2013) and comet C/2012 L2 (LINEAR) (Deb Roy, Das & Medhi 2015) at lower phase angles to study the dust evolution in the extended coma around the nucleus. Both the comets showed a noticeable variation in the intensity and polarization profile in all considered direction with a prominent jet ejection in the solar and antisolar direction, respectively. However, a negative polarization of (−1 ± 0.7) per cent was observed at phase angle of about 21|$_{.}^{\circ}$|6 for comet C/2009 P1 (Garradd). Recent observation of comet C/2012 L2 (LINEAR) showed a change in the direction of jet extension in both the intensity and polarization map between two consecutive nights of observation which might be due to the rotation of the nucleus with a whole coma polarization of (+2.8 ± 0.3) per cent at 31|$_{.}^{\circ}$|1 phase angle.

The cometary dust grains present in the coma of a comet undergoes continuous evolution with distance from the nucleus during the entire period of cometary activity. Polarimetric studies of comets reveal the evolutionary characteristics of comet dust grains in the coma. The observations of both the comets were conducted at lower phase angles. Actually, the polarimetric data of comets at large phase angles are numerous, but there is a lack of observations made at small phase angles. Observation of comet at lower phase angle is a typical task as comet is expected to be far off in the sky and appears as faint object at such phase angle. But the polarimetric study at lower phase angle helps to explore the polarimetric behaviour of comets especially in the negative branch of polarization-phase curve.

In the present study, we report observations in both the pre- and post-perihelion passage of comets C/2013 V1 (Boattini) and 290P/Jager; and the results obtained from the polarimetric analysis of both comets to explore the observed variation in both the brightness and polarization distribution across the coma during the phase 2013 December and 2014 April when the phase angle varies from 13° to 27°.

2 OBSERVATIONS AND REDUCTION OF THE POLARIMETRIC DATA

The Aryabhatta Research Institute of observational sciencES (ARIES) near Nainital in India is located at 79°27′E, 29°22′N at an altitude of 1951 m. The polarimetric observations were performed with the 1.04-m Sampurnanand telescope of ARIES on 2013 December 4 and 5, and on 2014 April 24. The observations were carried out covering both pre- and post-perihelion passage of comets C/2013 V1 (Boattini) and 290P/Jager. The observational data are delimitated in Table 1. Both the comets were located at almost same phase angles in the months of 2013 December and 2014 April. The 1.04-m ARIES Sampurnanand Telescope (AST) is equipped with ARIES Imaging Polarimeter (AIMPOL) as a focal plane instrument. AIMPOL makes use of a Wollaston prism and a half-wave plate (HWP). The incident beam gets split by Wollaston prism into an ordinary and an extraordinary component. A CCD camera of 1024 × 1024 pixels is used to record the images. Broad-band red filter (λ = 630 nm, Δλ = 120 nm) is used during all the phase of observation which is more frequent to observe the fainter objects. The resolution of each pixel of the CCD is 1.73 arcsec with an effective field of view of about 8 arcmin diameter on the sky. The gain and read-out noise of the CCD used for observation are 11.98 e⁻/ADU and 7.0 e⁻, respectively. The effective seeing radius is ∼ 3 arcsec during December and ∼ 4 arcsec in April month of observation. The detailed description of the instrument is given in Medhi et al. (2010), Das et al. (2013) and references there in.

The CCD recorded images were processed with standard scientific procedures which includes bias subtraction, flat-field correction and the determination of instrumental polarization parameters. All the bias subtracted images used for polarimetric analysis are divided by the master flat-field obtained from all the sky flats observed at twilight. Sky background is a serious task in comet analysis since the dusty coma of comet extends over a large distance. For proper subtraction of sky counts, we subtracted a constant value that was estimated at the edge of each frame far from the comet photocentre free from faint stars where the contribution from cometary coma was negligible. The photocentre of each polarized image of both the comets was found with a precision of 0.1 pixel. The alignment of subimages with different angles of rotation of HWP during a particular night of observation have been done and then co-added which enhanced the sensitivity to coma detection and finally constructed the intensity and polarization map with the properly aligned images.

Four standard stars with high and three stars with low degree of polarization were observed to determine the instrumental polarization and the zero-point of the position angle of polarization plane. The standard stars for null polarization and zero-point of the polarization position angle were taken from Schmidt, Elston & Lupie (1992), Turnshek et al. (1990) and HPOL,¹ respectively. After the instrumental polarization correction, the computed polarization degree of the standard stars differs from the literature values by 0.1 per cent and the offset in position angle of plane of polarization (θ₀ = θ − θ_obs) by −7°. The polarization details of the standard stars are depicted in Table 2.

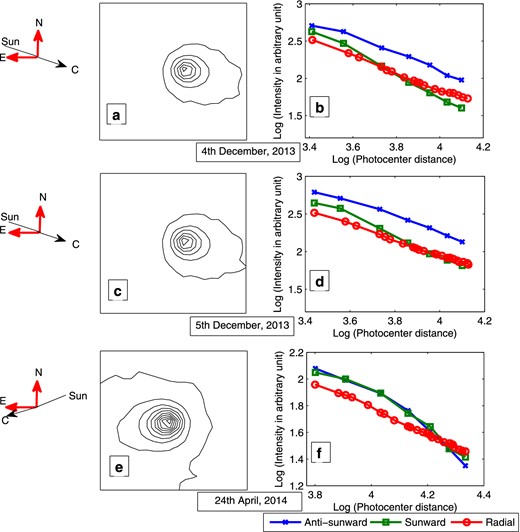

Figure 2.

(a), (c) and (e): intensity map of comet 290P/Jager with contours on 2013 December 4, 5 and 2014 April 24; (b), (d) and (f): the cuts through the coma sunwards, antisunwards and radial profile for the corresponding periods of observations. The first column of the plot shows the position angle of the Sun–comet radius vector which is 244|$_{.}^{\circ}$|5, 243|$_{.}^{\circ}$|4 and 100|$_{.}^{\circ}$|6, respectively. The field of view is about 45 000 × 45 000 km.

Open in new tabDownload slide

3 RESULTS AND ANALYSIS

3.1 Brightness profile

The surface brightness profile of the cometary coma falls with the photocentric distance. The azimuthally integrated profile along with the profiles in other specified direction explores the various physical evolutions influencing the cometary coma. Figs 1 and 2 illustrate the brightness profile for comets C/2013 V1 (Boattini) and 290P/Jager during December and April, respectively.

The seeing radius for both the comets in the month of 2013 December and 2014 April is 2700 km and 6700 km, respectively. The brightness profile of non-periodic comet C/2013 V1 (Boattini) shows almost opposite trend to that of JFC 290P/Jager in all phase of observation. The average radial profile of comets C/2013 V1 (Boattini) and 290P/Jager falls off as a function of photocentric distance with a slope of (−1.0 ± 0.08), a typical feature of the expanding dusty coma around the nucleus of the comet. The slopes for sunward and antisunward directions in the month of December and April are shown in Table 3. The fall in intensity is higher in the antisunward direction for comet C/2013 V1 (Boattini) on 2013 December 4 when distance to the photocentre (d) is ≲8000 km. This fall is almost similar for both the directions when d is more than 8000 km. On December 5, a higher fall in intensity in sunward direction is noticed for the same comet when d is between 6000 and 8000 km. Comet 290P/Jager shows almost reverse trend where the fall in intensity is found to be higher in the sunward direction during the observation on December 4 and 5. An identical profile is being observed in April phase of observation for both the comets where a highly steep fall in the intensity is detected in the antisunward direction as compared to the sunward direction mainly at a distance between 15 000 km and 21 000 km. The deviation of the brightness profile in the sunward and antisunward direction from the standard canonical nature confirms the time variable dust outflow. Different evolutionary processes such as solar radiation pressure, sublimation of icy grains, modulation of dust production rate and the change in the optical properties of dust grains could be the main reason behind the steepen or flattening out the brightness profile.

3.2 Polarization profile

3.2.1 Aperture polarization

The aperture polarization values over the whole coma of comets C/2013 V1 (Boattini) and 290P/Jager during all the cycles of observation are depicted in Table 4. The observed polarization for comet C/2013 V1 (Boattini) is found to be (−1.4 ± 0.3) per cent at 12|$_{.}^{\circ}$|8 phase angle, whereas 290P/Jager shows (−1.6 ± 0.3) per cent polarization at phase angle 13° on the first night. The two comets show almost identical polarization on the second night of observation during December. Both the comet shows high positive polarization at phase angle of about 27° in the April cycle of observation.

3.2.2 Polarization map

The polarization map is being built up with the properly aligned polarized components corresponds to four angles of rotation of HWP. The map derived by CCD imaging polarimetric technique offers a spatial resolution to the inner coma of the comets. Figs 3 and 4 demonstrate the polarization maps for comets C/2013 V1 (Boattini) and 290P/Jager on December 4 and April 24, respectively.

The comet C/2013 V1 (Boattini) shows high negative polarization of about −3 per cent at the centre as compared to the whole coma polarization of about (−1.4 ± 0.3) per cent. The polarization is highly negative for comet 290P/Jager of about −4.5 per cent at its centre, while the circumnucleus halo possesses −3 to −2 per cent polarization which is found to extend in the antisolar direction. But positive polarization of the order of 0–1.5 per cent is found to be dominated in the outer comae of the comets suggests the presence of smaller grains in the extended coma of the comet as compared to the existence of more submicronic absorbing grains of complex texture in the circumnucleus region of the comet which is responsible for the observed negative polarization. The negative polarization region is found to be extended over a distance of ∼10 000 km from the photocentre in the antisolar direction for comet 290P/Jager, where any such special feature is quite absent in comet C/2013 V1 (Boattini) during the observation in December.

In April, the polarization map shows a completely opposite trend where both the comets possesses a high positive polarization near the photocentre of about 3 per cent while it is found to vary between 2 and 1 per cent in the outer coma of the comet as compared to the whole coma polarization of about (2.8 ± 0.5) per cent for comet C/2013 V1 (Boattini) and (2.5 ± 0.5) per cent for comet 290P/Jager. The observed variation in polarization over the whole coma for both the comets is due to the change in the physical properties of the dust grains in different regions of the coma.

To summarize, the polarization is highly negative in the circumnucleus halo of comet 290P/Jager as compared to that of comet C/2013 V1 (Boattini) during December observation, while a high positive polarization is being observed at the near nucleus region of both the comets in April observation.

Figure 3.

The polarization maps of (a) comet C/2013 V1 (Boattini) at 12|$_{.}^{\circ}$|8 and (b) comet 290P/Jager at 13|$_{.}^{\circ}$|1 phase angle. The ‘+’ mark denotes the photocentre of the comet. The field of view is about 23 000 × 23 000 km.

Open in new tabDownload slide

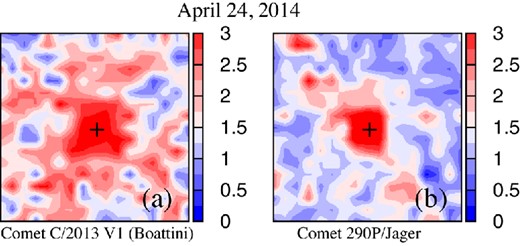

Figure 4.

The polarization maps of (a) comet C/2013 V1 (Boattini) at 26|$_{.}^{\circ}$|1 and (b) comet 290P/Jager at 26|$_{.}^{\circ}$|9 phase angle. The ‘+’ mark denotes the photocentre of the comet. The field of view is about 45 000 × 45 000 km.

Open in new tabDownload slide

3.2.3 Polarimetric phase curves

In Fig. 5, we combine the polarimetric phase curve for various comets with our observed data for comets C/2013 V1 (Boattini) and 290P/Jager at similar phase angle and we found good agreement of our computed polarization value with those reported by other investigators for different comets at such phase angles. Typically, phase angle dependence of polarization contains a negative branch at lower phase angles (below 20°) and a positive branch at higher phase angles. We found negative polarization for both the comets in the month of December at phase angle near 13° before their perihelion passage.

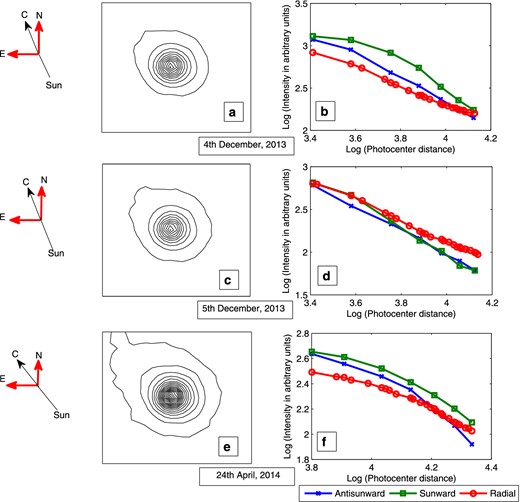

Figure 1.

(a), (c) and (e): intensity map of comet C/2013 V1 (Boattini) with contours on 2013 December 4, 5 and 2014 April 24; (b), (d) and (f): the cuts through the coma sunwards, antisunwards and radial profile for the corresponding periods of observations. The first column of the plot shows the position angle of the Sun–comet radius vector which is 15|$_{.}^{\circ}$|9, 18|$_{.}^{\circ}$|6 and 40|$_{.}^{\circ}$|3, respectively. The field of view is about 45 000 × 45 000 km.

Open in new tabDownload slide

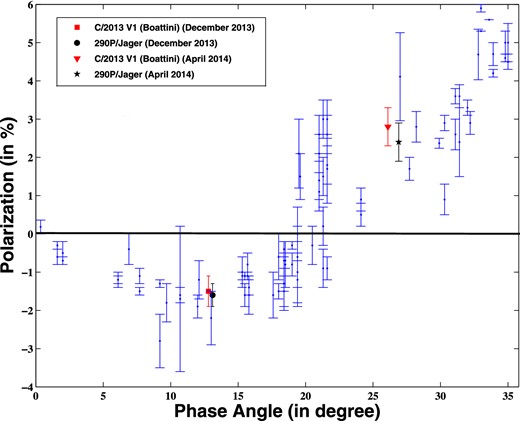

Figure 5.

Polarization versus phase angle plot for different observed comets at R filter. The linear polarization data of different comets are taken from the Database of Comet Polarimetry by Kiselev et al. (2006).

Open in new tabDownload slide

4 DISCUSSION

Cometary dust grains evolve with the nucleocentric distance and are not bound to be the same in the regular extended coma as in other specific cometary feature like jets, fans etc. The CCD imaging polarimetry is an important tool to reveal the existence of different grains population in the cometary coma and also explores the physical evolutions of the dust grains in the inner and outer coma of the comet. This tool derives the realistic characteristics of the dust population of any specific comet. The variation in the brightness and the polarization distribution over the entire coma indicates change in the physical properties of dust grains in different regions of the coma.

The intensity of a comet is found to be higher in the near nucleus region due to high dust concentration. The azimuthally integrated brightness profile of comets C/2013 V1 (Boattini) and 290P/Jager follows a standard (−1.0 ± 0.08) slope variation with the increase of projected diameter suggests the proper subtraction of background sky counts which is a typical task in the study of comets. The fall in the brightness profile in sunward and antisunward directions is being observed for both the comets in all observational run which suggests the variation of physical properties of dust grains in due time. The decrease in intensity is slightly higher in the antisolar direction for comet C/2013 V1 (Boattini) at small photocentric distance on 2013 December 4 whereas a higher fall in intensity is being noticed on December 5 in the solar direction at an intermediate distance. Comet 290P/Jager shows higher fall in intensity in the solar direction during both the nights of December. In the month of April, the steep fall in the intensity is being noticed in the antisolar direction for both the comets. This fall is observed mainly in the outer coma. The solar radiation pressure changes the velocity outflow of the dust particles depending on their size pronounced in the outer coma of the comet which is the quite obvious reason for the steep fall in the intensity (Tozzi et al. 2004). The variation in the brightness profile in the considered direction is mainly due to the variation in the relative dust concentration at different regions of the cometary coma since the brightness strongly depend on the dust concentration in an optically thin coma of the comet. Modulation of dust production rate, sublimation of high albedo icy grains due to the solar radiation pressure and variation in the dust physical properties might also cause the variation (Farnham 2009).

To enhance the special structure in the comet, we treated the intensity images of both the comets C/2013 V1 (Boattini) and 290P/Jager using Larson-Sekanina's rotational gradient technique (Larson & Sekanina 1984) but no such special feature is being detected during both the periods. At lower phase angles, the ejections mainly take place in front of the observer in the direction of sun (Hadamcik & Levasseur-Regourd 2003). So it is very difficult to detect such feature in the comet with the spatial resolution of AST provides, as the jets usually have a reduced surface on the images.

The integrated aperture polarization value is found to be almost uniform with the increase of projected diameter for both the comets during the two phase of observations. It has been observed that comets C/2013 V1 (Boattini) and 290P/Jager show high negative polarization of −3 and −4.5 per cent, respectively, in the near-nucleus region as compared to the whole coma polarization of (−1.4 ± 0.3) and (−1.6 ± 0.3) per cent in 2013 December at a phase angle of about 13°. Ebisawa & Dollfus (1993) proposed that the presence of submicronic size particles can explain this abnormal high negative polarization. The positive polarization observed in the outer coma of the comets 290P/Jager and C/2013 V1 (Boattini) in December is due to the presence of Rayleigh particles characterized by small scattering cross-section at optical wavelengths. It is to be noted that the dust grains of small sizes are expected to be accelerated at higher expansion speed as compared to the large compact particles due to their strong dynamical coupling to the gas outflow.

5 SUMMARY

The polarimetric observations of comets C/2013 V1 (Boattini) and 290P/Jager were carried out with the AST during two periods: (i) 2013 December 4 and 5: before perihelion passage and (ii) 2014 April 24: just after their perihelion passage. The intensity profile of comets C/2013 V1 (Boattini) and 290P/Jager shows the asymmetric nature of the cometary coma. The variation of slopes along sunward and antisunward direction explores the various physical evolutions going in the cometary coma. The deviation of the brightness profile in the solar and antisolar direction from the standard canonical nature confirms the time variable dust outflow which is mainly due to the modulation of dust production rate, sublimation of high albedo icy grains due to the solar radiation pressure and variation in the dust physical properties.

The degree of polarization of comets C/2013 V1 (Boattini) and 290P/Jager is found to be −1.4 ± 0.3 and −1.6 ± 0.3 per cent at about 13° phase angle; and +2.8 ± 0.5 and +2.5 ± 0.5 per cent at 27° phase angle. The polarization maps showed good agreement with the computed polarization value. It has been noticed from polarization maps that the polarization is highly negative in the circumnucleus halo of comet 290P/Jager as compared to that of comet C/2013 V1 (Boattini) during December observation, while a high positive polarization is being observed at the near nucleus region of both the comets in April observation.

Through this acknowledgment, we express our sincere gratitude to ARIES, Nainital, India, for allocation of observation time. The reviewer of this paper Dr. Alan Fitzsimmons is highly acknowledged for constructive comments which definitely helped to improve the quality of the paper. This work is supported by the Science and Engineering Research Board (SERB), a statutory body under Department of Science and Technology (DST), Government of India, under Fast Track scheme for Young Scientist (SR/FTP/PS-092/2011). PDR wants to acknowledge DST INSPIRE scheme for the fellowship.
