Surface photometry and metallicity of the polar ring galaxy A0136-0801 Free

Abstract

INTRODUCTION

In the latest decade, several studies focused on the morphology and kinematics of polar structures in galaxies, i.e. polar ring/disc galaxies (PRGs). These are multispin systems, where stars and gas in the polar structure rotate in a perpendicular plane with respect to the stars in the central galaxy. The two decoupled components with orthogonal angular momenta are explained as the consequence of a ‘second event’ in their formation history (see Iodice 2014, for a review). Thus, PRGs are among the ideal galaxies to study the physics of accretion/interaction mechanisms, the disc formation and the dark halo shape. Whitmore et al. (1990) compiled the first PRGs catalogue (PRC), with emphasis on the early-type nature of the host galaxy (HG), because of its morphology, and on appearance of the polar structure and its relative extension with respect to the mean radius of the HG. Later studies on the prototype of PRGs, NGC 4650A, showed that the polar structure is a disc, rather than a ring (see Arnaboldi et al. 1997; Gallagher et al. 2002; Iodice et al. 2002a; Swaters & Rubin 2003). Both in the PRC and in the new SDSS-based Polar Ring Catalog (SPRC) made by Moiseev et al. (2011), there are other PRGs that show a wide disc-like morphology similar to NGC 4650A. They are UGC 7576 (PRC A-04), UGC 9796 (PRC A-06), SPRC-27, SPRC-59 and SPRC-69 in the SPRC, and the galaxy studied in this work A0136-0801 (A-01). Thus, the ‘PRG’ morphological type currently includes both narrow PRs and wide polar rings/discs. As reviewed by Iodice (2014), narrow/wide PRGs are characterized by different physical properties in addition to the radial extension of the polar structure. In particular, in both narrow and wide PRGs the HG has similar (spheroidal) morphology, colours and age, but a different kinematics, independent from the morphological type (narrow or wide PRGs). Contrary to the HGs, the polar structures in narrow and wide PRGs have different morphology, baryonic mass and kinematics, but, on average, similar oxygen abundance (see fig. 4 in Iodice 2014).

N-body and hydrodynamical simulations try to reproduce the different systems on the basis of different formation processes. The up-to-date formation scenarios proposed for PRGs are as follows: (i) major dissipative merger; (ii) tidal accretion of material (gas and/or stars) by a donor; (iii) cold accretion of pristine gas along a filament. In the merging scenario, the remnant is a PRG if two disc galaxies merge on a ‘polar’ orbit and have unequal masses (Bournaud, Jog & Combes 2005). In the tidal accretion scenario, a polar ring/disc can form around a pre-existing galaxy by the accretion of gas and stars from the outskirts of a disc galaxy during a parabolic encounter, or, alternatively, by the disruption of a dwarf companion galaxy (Reshetnikov & Sotnikova 1997; Bournaud & Combes 2003; Hancock et al. 2009). Both the two kinds of galaxy interactions described above (major merging and tidal accretion) are able to account for several morphologies and kinematics observed for PRGs, including wide and narrow rings, as well as helical rings and double rings. In the framework of disc formation, a polar disc galaxy, i.e. a galaxy having a polar disc-like structure, forms through the accretion of pristine gas along a filament (Macciò, Moore & Stadel 2006; Brook et al. 2008).

The discriminant physical parameters of the formation mechanisms for PRGs are the baryonic mass, the HG kinematics and the metallicity in the polar structure. These were derived in several works for a sample of PRGs (NGC 4650A, UGC 7576, UGC 9796; AM2020-504 and VGS31b). The viability of the cold accretion scenario to form wide polar disc is supported for the first time (Spavone et al. 2010). Moreover, it has been confirmed that the tidal accretion mechanism is able to form both narrow and wide PRs (Spavone et al. 2011; Freitas-Lemes et al. 2012; Spavone & Iodice 2013).

In this work we present a similar analysis on the wide PRG A0136-0801, by using both new near-infrared (NIR) photometry and spectroscopy, to constrain the formation history of this galaxy.

A0136-0801 was discovered by Schweizer, Whitmore & Rubin (1983) and classified as one of the best case of kinematically confirmed PRG (PRC A-01) by Whitmore et al. (1990). It is characterized by a wide polar structure (see Fig. 2), which is three times more extended than the optical radius of the central HG. The H-band images (Iodice et al. 2002b) showed that the polar structure is less luminous than the central galaxy, and the bulk of the light is concentrated at smaller radii. This object was mapped in H i by Cox & Sparke (2004), who showed that all H i emission is found within the PR, whose outer H i contours appear to warp away from the poles. The total H i mass for this object is about 1.6 × 10⁹ M_⊙; van Driel et al. (2000) also argued that the regular H i distribution and optical appearance suggest that the polar structure is quite old and possibly dynamically stable. Moreover, Sackett & Pogge (1995) found different H ii regions along the PR.

In the field around A0136-0801 (Fig. 1) there is a larger galaxy, PGC 6186, which is about 18 arcmin distant from A0136-0801, and their redshifts differ by 31 km s⁻¹ (Galletta, Sage & Sparke 1997).

Figure 1.

SAO-DSS image of the field around A0136-0801, including the nearby galaxy PGC 6186.

Open in new tabDownload slide

A0136-0801 has a heliocentric systemic velocity of V = 5500 km s⁻¹, which implies a distance of about 73 Mpc, based on H₀ = 75 km s⁻¹ Mpc⁻¹, which yields an image scale of 0.3 kpc arcsec⁻¹, adopted in this work. The main properties of A0136-0801 are listed in Table 1.

The paper is structured as follows: in Section 2 we present the observations and data reduction; in Section 3 and Section 4 we describe the morphology and structure of the HG and polar structure in A0136-0801, based on the photometry; in Section 5 we describe colour distribution and integrated magnitudes; in Section 6 we give the oxygen abundances and metallicity of the H ii regions in the polar structure. Results and conclusions are discussed in Section 7.

OBSERVATION AND DATA REDUCTION

Near-Infrared data for A0136-0801 – A0136-0801 was in a sample of PRGs observed in the J and K bands, with the SofI infrared camera at the ESO New Technology Telescope (NTT), in 2002 December. The camera has a 4.92 × 4.92 arcmin² field of view and a pixel scale of 0.292 arcsec pixel⁻¹. A detailed description of the observing strategy and data reduction is published by Spavone & Iodice (2013). In summary, images were acquired by adopting an ON–OFF mode where the OFF sky frames were used to estimate the background level. The total exposure time on the target in the J and K bands are 360 and 1080 s, respectively. The average seeing on the final image is Full Width at Half Maximum (FWHM) ≃1.1 arcsec.

The main steps of the data reduction included dark subtraction, flat-fielding correction, sky subtraction and rejection of bad pixels. The final science frames result from the stacking of the single pre-reduced exposures. The photometric zero-points for that observing run are Z_P(J) = 23.04 ± 0.02 mag arcsec⁻² and Z_P(K) = 22.35 ± 0.02 mag arcsec⁻² for the J and K bands, respectively.

The calibrated J-band image of A0136-0801 is shown in the right-hand panel of Fig. 2.

Figure 2.

Top panels – the PRG A0136-0801 in the R band (left-hand panel, the image size is 96 × 87 arcsec²) and in the J band (right-hand panel, the image size is 55 × 50 arcsec²). North is up and east is on the left. The low- and high level of the contours (green lines) correspond to |$\mu ^{R}_{\rm {low}}=23.87$| mag arcsec⁻² and |$\mu ^{R}_{\rm {high}}=15.52$| mag arcsec⁻², in the R band, and |$\mu ^{J}_{\rm {low}}=20.78$| mag arcsec⁻² and |$\mu ^{J}_{\rm {high}}=16.42$| mag arcsec⁻², in the J band. Bottom panels – enlargement of the high-frequency residual images in the R band (left) and J band (right). Darker colours correspond to brighter features. The image size is 71 arcsec × 65 arcsec for the R-band image and 41 arcsec × 37 arcsec for the J-band image.

Open in new tabDownload slide

Optical data – photometric observations for A0136-0801 in the optical bands (B₂ and R₂) adopted for this work were published by Godínez-Martínez et al. (2007). They were obtained in 2001 September on the 1.5 m telescope of the Observatorio Astrónomico Nacional on Sierra San Pedro Mártir (Baja California, México), equipped with a SITe1 1024 × 1024 CCD detector binned 2 × 2 to give a pixel scale of 0.51 arcsec pixel⁻¹ and a field of view of 4.3 arcmin. Reduction of the CCD frames was performed as described in Godínez-Martínez et al. (2007). The photometric calibration was made by using standard stars from the Landolt (1983) lists and after the transformations from the natural B₂ and R₂ to the standard B and R magnitudes (see Godínez-Martínez et al. 2007). We obtained the following photometric zero-points: Z_P(B) = 21.68 ± 0.01 mag arcsec⁻² and Z_P(R) = 20.33 ± 0.01 mag arcsec⁻², for the B and R bands, respectively. The calibrated R-band image of A0136-0801 is shown in the left-hand panel of Fig. 2.

Spectroscopic data – the spectra analysed in this work were obtained with the Andalucia Faint Object Spectrograph and Camera (ALFOSC) at the Nordic Optical Telescope (NOT) in La Palma, in visitor mode, during the observing run 48-002 (on 2013 October 28 and 29). The adopted slit was 1.3 arcsec wide and it was aligned along the major axis of polar structure of A0136-0801, at position angle (PA)=135°, in order to include the most luminous H ii regions. The total integration time is 3 h, with an average seeing of 1.15 arcsec.

We used the grism no. 4, which covers the wavelength range of 3738–6842 Å, has a dispersion of 2.3 Å pixel⁻¹ and a spectral resolution Δλ ∼ 10. We aim to detect the redshifted emission lines of |$[\mathrm{O\,\small {ii}}]\,\lambda 3727$|⁠, H γ(λ4340), |$[\mathrm{O\,\small {III}}]\,\lambda 4363$|⁠, |$[\mathrm{O\,\small {III}}]\,\lambda \lambda 4959,5007$|⁠, H β(λ4861) and H α(λ6563) in the polar structure of A0136-0801.

The data reduction and analysis is the same adopted and described by Spavone et al. (2010, 2011) and Spavone & Iodice (2013), to derive the chemical abundances and metallicity in PRGs. The main steps includes the CCD pre-reduction. The wavelength calibration of the spectra was obtained by comparing spectra of Hg+Ne lamps acquired for each observing night. The sky spectrum was extracted at the outer edges of the slit, for r ≥ 30 arcsec from the galaxy centre, where the surface brightness is fainter than 24 mag arcsec⁻², and subtracted off each row of the two-dimensional spectra. The uncertainty on the sky subtraction is better than 1 per cent. The final median-averaged 2D spectrum was obtained by co-adding the sky-subtracted frames.

Each 2D spectrum is flux calibrated by using the standard star HD192281 observed during the first night and HD19445 during the second night. The representative 1D spectrum relative to the major axis of the polar structure in A0136-0801 is shown in Fig. 3. It results by the sum of all 1D spectra along the spatial direction having emission lines with S/N ≥10. The integrated flux and the equivalent width of each emission line was obtained by integrating the line intensity over the local fitted continuum. The errors estimate on these quantities was calculated by using the relation published by Pérez-Montero & Díaz (2003).

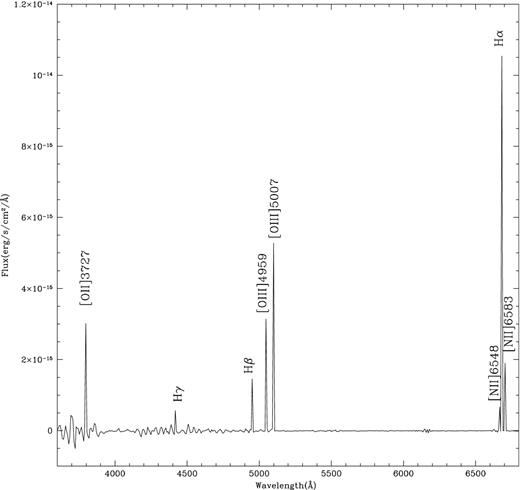

Figure 3.

Representative 1D spectrum for the major axis of the polar structure in A0136-0801 obtained by summing up all 1D spectra along the spatial direction in which emission lines had S/N ≥10.

Open in new tabDownload slide

According to Spavone & Iodice (2013, and reference therein), the intensity of each emission line was corrected for the reddening, which account both for the absorption intrinsic to the galaxy and to the Milky Way. Along the polar structure of A0136-0801, the colour excess is [E(B − V)] = 0.24 ± 0.30, and the optical extinction is A(V) = 0.76. This was obtained by comparing the observed and the intrinsic Balmer decrement H α/H β measured by summing up all 1D spectra along the spatial direction in which the observed Balmer decrement was greater than the intrinsic one.

By assuming the Cardelli's law (Cardelli, Clayton & Mathis 1989), [E(B − V)] is used to derive the extinction A_λ. The observed and dereddened mean emission line fluxes relative to H β are listed in Table 2.

HOST GALAXY AND POLAR STRUCTURE MORPHOLOGY

Both NIR and optical images show that the central spheroid of A0136-0801 is the dominant luminous component (Fig. 2, see also the left-hand panels of Fig. 5). The polar structure is more clearly visible in the optical bands, while it is fainter in the J and K bands. In the optical, it has a diameter of about 64 arcsec (∼22 kpc), which is three times more extended than the optical radius of the central galaxy (20 arcsec ∼ 7 kpc). This component hosts several star formation regions and dust that affect the light distribution (Iodice et al. 2002b).

To examine the inner structure of the central HG, we have derived the high-frequency residual images both in the optical and in the NIR bands. This is the ratio of the original reduced image with a smoothed¹ one, where each original pixel value is replaced with the median value in a rectangular window. The window size is 7 × 7 pixels in the R band and 11 × 11 pixels in the J band. The unsharp masked images in these bands are shown in the bottom panels of Fig. 2. Both in the optical R band as well as in the J band, this image shows a disc-like structure along the major axis of the HG. In the optical R-band high-frequency residual image of A0136-0801, the two arms of the polar structure are also clearly visible. On the SE side, the polar structure is in front of the HG, where the dust associated with this component is obscuring the light coming from the central galaxy. These features are not detectable in the J-band high-frequency residual image.

SURFACE PHOTOMETRY

In this section we describe the surface photometry and the two-dimensional model of the light distribution for A0136-0801. NIR images, in the J and K bands, where the dust absorption is very low, are used to study the structure of the central HG in A0136-0801. On the other hand, since the polar component is much more luminous and extended in the optical bands, B and R images are mainly used to study this component. The light and colour distributions are derived for the whole system in both optical and NIR bands.

Isophotal analysis

We used the iraf-ELLIPSE task on the whole imaging data set to perform the isophotal analysis and to derive the average surface brightness profiles, PA and ellipticity (ϵ). The limits of the surface photometry presented in this work are derived as the distance from the centre where the galaxy's light blends into the background level. These radii set the surface brightness limit of the optical and NIR photometry. Results for the B and K bands are shown in Fig. 4. The average surface brightness profiles extend out to 27.77 arcsec (∼8.3 kpc) in the K band and out to 37 arcsec (∼11 kpc) in the B band (see Fig. 4, left-hand panel). The limiting magnitudes corresponding to the radii given above are μ_K = 21 ± 1 mag arcsec⁻² for the K-band data, and μ_B = 27 ± 2 mag arcsec⁻² for the B-band image. The error estimates on the above quantities take the uncertainties on the photometric calibration (∼0.01–0.02 mag) and sky subtraction (∼0.3 per cent Analog-Digital Units (ADUs) in the B band and ∼8 per cent ADU in the K band) into account.

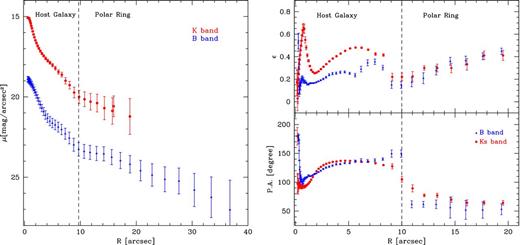

Figure 4.

Left-hand panel – azimuthally averaged surface brightness profiles as function of R, derived by the isophote fit. R is the isophote major axis. Data are for the B-band image (triangles, blue points) and K band (circles, red points). The dashed line delimit the regions where the main components of the galaxy structure are located. Right-hand panel – average profiles of PA (bottom panel) and ellipticity (top panel) plotted against the isophote major axis R.

Open in new tabDownload slide

The nucleus (for R ≤ 1 arcsec, ∼0.3 kpc) is very bright in the K band, while light is probably obscured by dust in the optical B-band image. In the K band, the HG extends out to 10 arcsec (∼3 kpc). While, in the optical B band, the contribution to the light by the polar structure is much more significant and the semimajor axis of this component is about 27 arcsec (∼8 kpc).

In the range 0 ≤ R ≤ 3 arcsec (≤1 kpc), a significant twisting (∼50°) is observed, where the PA increases from about 90° to 140°, and the ellipticity shows a peak (see Fig. 4, right-hand panel). This is more pronounced in the K band (ϵ ∼ 0.65) than in the B band (ϵ ∼ 0.2), where the perturbation by dust is stronger. For 3 ≤ R ≤ 10 arcsec (1 ≤ R ≤ 3 kpc), in the region where the HG dominates, the PA is almost constant to the value ∼145°, and ϵ increases up to 0.45 in the K image, and 0.3 in the optical image, and decreases afterwards to ∼0.2. At larger radii, for 10 ≤ R ≤ 20 arcsec (3 ≤ R ≤ 6 kpc), in the regions of the PR, PA changes and it is almost constant in the range of values ∼50°–60°. The ellipticity shows a linear increase from 0.2 up to 0.4.

The half-light radii of the whole galaxy are R_e = 9.3 arcsec (∼2.8 kpc) for the K band and R_e = 14.8 arcsec (∼4.4 kpc) for the B band. In Table 3 we give the total integrated magnitudes within two circular apertures centred on A0136-0801, derived in the K and B bands. The first aperture is within 14 arcsec, and it was chosen in order to make the comparison with the integrated magnitudes derived by the 2MASS data for A0136-0801. The second aperture corresponds to the outer limit of the surface photometry in the B and K bands given above.

Two-dimensional model of the light distribution

A0136-0801 has two main components, the central spheroid (the HG), with a bright nucleus, and the polar structure, which resembles a ring (see Fig. 2). In order to measure the structural parameters of the main galaxy components we adopted the following approach. In the K band, which is less perturbed by dust, we obtained the best two-dimensional (2D) model of the light distribution for the central HG, which is the dominant component at this wavelength, having masked the regions where the PR is still detectable. For the optical B-band image, both the HG and the PR light has been modelled.

The maximum symmetric 2D model is made by using the galfit package (Peng et al. 2002), where all the structural parameters listed above, including also the total magnitudes, axial ratios and PAs are left free. A summary of the best-fitting parameters for each component is listed in Table 4 and the results are shown in Fig. 5.

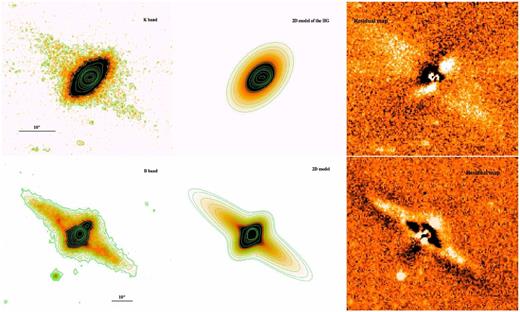

Figure 5.

Top: 2D model of A0136-0801 in the K band. Left-hand panel – K-band image of A0136-0801. Middle panel – 2D model of the HG. Right-hand panel – residual of the subtraction of the model to the K-band image. Bottom: 2D model of A0136-0801 in the B band. Left-hand panel – B-band image of A0136-0801. Middle panel – B-band model of the whole system (HG and PR). Right-hand panel – residual of the subtraction of the model to the B-band image.

Open in new tabDownload slide

The morphology of the HG is well reproduced by the 2D model in the K band (see top-middle panel of Fig. 5). The best fit to the light distribution is obtained by the superposition of two components: a very concentrated bulge-like structure, with an effective radius of 1.12 arcsec (∼0.34 kpc) and an exponential disc, with a scalelength of about 3 arcscec (∼0.9 kpc), see Table 4. The two components have similar flattening, but different PA, consistent with the results of the isophote analysis (see Fig. 4). A twisted bulge-like component, in the central regions of the HG, is a real feature as suggested by the isophotal contours shown in top-right panel of Fig. 5. This misaligned structure is well reproduced by the 2D model in the K band (see top-middle panel of Fig. 5). The residual map (see top-right panel of Fig. 5), obtained by subtracting the 2D model from the original image, shows a nuclear sub-structure having an ‘s-shape’, elongated towards the polar direction, and two regions on both sides along the major axis of the HG where the galaxy is brighter than the model. The 2D residuals also clearly point out the low emission by the PR, which has been masked in the fitted image. Even if the optical B-band image is much more affected by the dust absorption, the 2D model of the light distribution reproduces consistently the morphology of both the HG and PR (see bottom-middle panel of Fig. 5). The scale radii of the two components in the HG (bulge-like and disc) are comparable with those derived by the fit of the K-band image (see Table 4). One interesting result is that the PA of the bulge-like nucleus is consistent with the PA found for the PR. The residual map of the B-band 2D model (see bottom-right panel of Fig. 5) also shows the luminous ‘s-shape’ structure in the centre, as already found in the residual map of the K-band model. The optical residual map shows several bright bumps along the PR, which are due to the star-forming regions, and the loci where the two arms of the PR cross the HG, one on the SE side (behind the galaxy) and the other one on the NW side that passes in front of the HG, where the dust absorption is stronger. The comparison between the observed and fitted light profiles, in the B and in the K bands, along the HG major axis and along the PR, are shown in Fig. 6. The empirical laws for the main components observed in A0136-0801 are a good description of the average light distribution.

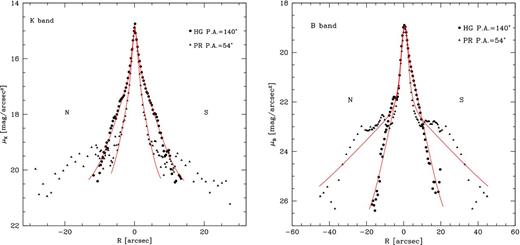

Figure 6.

Comparison between the observed light profile along the HG major axis (circles) and PR (triangles) and those derived by the 2D model (solid red lines) in the B and K bands.

Open in new tabDownload slide

The implications of this analysis on the structure of A0136-0801, in particular the nature and the origin of the sub-structures identified in the residual maps, will be discussed in Section 7.

COLOUR DISTRIBUTION AND INTEGRATED MAGNITUDES

We have derived the B − K colour profiles along the HG major axis, at |$\mathrm{{\rm PA}}=140^{\circ }$|⁠, and along the polar structure, at |$\mathrm{{\rm PA}}=54^{\circ }$|⁠, (see Fig. 7, left-hand panel). The B − K colour profiles show that nuclear regions of the galaxy, for R ≤ 3 arcsec, have the reddest colours, being B − K = 4.5 ± 0.03 mag in the centre. At larger radii, B − K decreases. Along the HG major axis (see Fig. 7, bottom-left panel), on the SE side, B − K colour profile is almost constant in the range 3.7–4 mag. On the NW side, for 3 ≤ R ≤ 6 arcsec, the red bump corresponds to the strong absorption by the dust in the polar structure that passes in front of the HG (see also Fig. 2). The polar structure (see Fig. 7, top-left panel) for R ≥ 5 arcsec is bluer than the HG, having 1.9≤B − K≤2.8 mag.

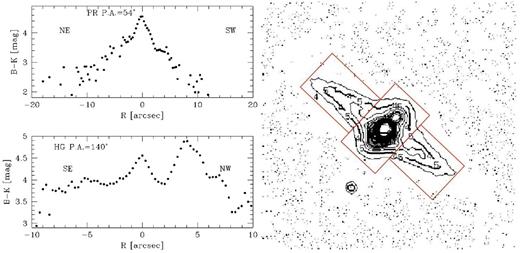

Figure 7.

Left-hand panel – B − K colour profiles along the HG major (bottom panel) and along the PR (top panel). The error bar (±0.03) is within the dimensions of data points. Right-hand panel – isophote contours of the B-band image of A0136-0801 with superimposed the three regions limiting the different areas where the integrated magnitudes have been computed. The north is up, while the east is on the left of the image.

Open in new tabDownload slide

We derived the integrated magnitudes and J − K and B − K colours in three areas,² as shown in Fig. 7 (right-hand panel): one including the central HG of A0136-0801 and two including the NE and the SW sides of the polar structure. The three regions are traced on the B-band image, where the PR is much more luminous and extended with respect to the NIR images. Same polygons are adopted for all the other images (J and K bands), after they were registered and scaled to the B-band image.

The difference between the intrinsic absorption A_V derived from the Balmer line ratios and the A_B, A_J values derived from the photometry may be related with the different regions of the polar structure. While the A_V is derived as an average quantity on both side of the major axis of the polar structure, A_B and A_J are computed locally in the obscured part of the HG where the PR passes in front of it.

Total magnitudes and colours and are listed in Table 5. The extinction-corrected B − K integrated colour for the HG derived in the area given above turns to be consistent with the same quantity estimated by the best-fitting 2D model of the light distribution for this component (see Section 4.2), which is B − K = 3.75 ± 0.04 mag.

Stellar population analysis

We aim to estimate the average (i.e. old plus the new bursts) stellar population ages of the HG and polar structure in A0136-0801, by using the integrated colours (optical versus NIR) measured for both components. Following the same approach of Iodice et al. (2002c) and Iodice et al. (2002b), we derived the B − K and J − K integrated colours (see Table 5). In the B − K versus J − K colour diagram (shown in Fig. 8) are added the evolutionary tracks to reproduce the integrated colours in the central component and in the ring-like structures for a sample of PRGs, by using the stellar population synthesis model gissel³ (Bruzual & Charlot 2003). The key input parameters adopted for gissel are the initial mass function , the star formation rate (SFR) and the metallicity. A detailed description of them is given by Iodice et al. (2002b).

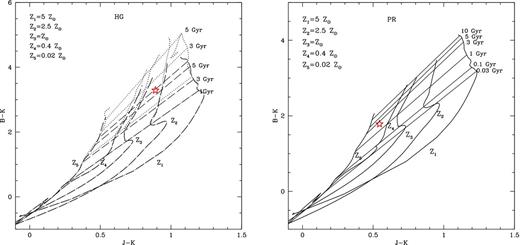

Figure 8.

B − K versus J − K colour diagram for the HG (left-hand panel) and PR (right-hand panel) in A0136-0801. The red star corresponds to the average value, between NE and SW regions, for the polar structure in A0136-0801. In both panels are drawn the evolutionary tracks derived by the stellar synthesis models optimized for the HG and PR in PRGs (see text for details). Left-hand panel – for the HG, the heavy dotted lines correspond to the SFR with a characteristic time-scale τ = 1 Gyr, and the heavy dashed line to the SFR with τ = 7 Gyr. They are derived for different metallicities reported on the figure. The loci of constant age for the different tracks are indicated by the light dotted and light dashed lines. Right-hand panel – for the polar structure, the heavy lines correspond to the models with a constant SFR computed for different metallicities. The loci of constant age for the different tracks are indicated by the light lines.

Open in new tabDownload slide

For the central HG was adopted a star formation history with an exponentially decreasing rate⁴ that produces a reasonable fit of the photometric properties of early-type galaxies in the local Universe. For the polar structure, which has usually bluer colours than the HG and presents H ii regions, a constant SFR, typically used for local spiral galaxies, is used. The evolutionary tracks for each model were derived for different metallicities (Z₁ = 5 Z_⊙, Z₂ = 2.5 Z_⊙, Z₃ = Z_⊙, Z₄ = 0.4 Z_⊙ and Z₅ = 0.02 Z_⊙), which were assumed constant with age.

The analysis of the B − K versus J − K colour diagram (see Fig. 8, left-hand panel) suggests that the stellar population in the HG in A0136-0801 could be dated from 3 to 5 Gyr, and has a metallicity in the range  Z_⊙ ≤ Z ≤ 2.5 Z_⊙. The PR has a younger age (from 1 to 3 Gyr) and a sub-solar metallicity, in the range 0.02 Z_⊙ ≤ Z ≤ 0.4 Z_⊙, with respect to the HG. These values are comparable with those observed for the HGs and the PRs in the sample of PRGs in Iodice et al. (2002c) and Iodice et al. (2002b).

From the above models, we can derive the stellar mass-to-light ratio (M/L) in the B band, for both HG and PR in A0136-0801, in order to estimate the total baryonic mass (stars plus gas) for each component. For the central HG, the models predict an M/L ≃ 2.98  M_⊙/L_⊙. From the total magnitude in the B band for the HG M_B = −19.26 mag (see Table 5), the total stellar mass is |$M_{\rm b}^{{\rm HG}} \sim 2.3 \times \ 10^{10}$| M_⊙. Given the absence of gas in this component, the baryonic mass coincides with the stellar mass. For the PR, the models predict an M/L ≃ 2.18 M_⊙/L_⊙. This component contains a large amount of gas (⁠|$M_{\rm H\,\small {I}} = 1.6 \times 10^9$| M_⊙ and |$M_{{\rm H}_2} = 1.8 \times 10^9$| M_⊙, see Table 1); thus, taking into account the total magnitude in the B band, M_B = −18.49 mag (see Table 5), the stellar mass is |$M_{\ast }^{{\rm PR}} \sim 8.4 \times \ 10^{9}$| M_⊙ and the total baryonic mass, stars plus gas, is |$M_{\rm b}^{{\rm PR}} \sim 1.18 \times \ 10^{10}$| M_⊙. The importance of these estimates on the formation history for A0136-0801 is discussed in Section 7.

OXYGEN ABUNDANCES AND SFR IN THE POLAR STRUCTURE OF A0136-0801

We have derived the oxygen abundance parameter|$R_{23} = ([\mathrm{O\,\small {ii}}]\,\lambda 3727 + [\mathrm{O\,\small {III}}]\,\lambda \lambda 4959 + 5007)/{\rm H}\, \beta$| (Pagel et al. 1979), by following the procedure outlined by Spavone et al. (2010, 2011) and Spavone & Iodice (2013). According to Spavone & Iodice (2013, and references therein), we used the Empirical method introduced by Pilyugin (2001). This allowed us to estimate the oxygen abundance 12 + log (O/H) and the metallicity of the H ii regions of the polar structure in A0136-0801. We found for this galaxy 12 + log (O/H) = 8.33 ± 0.43.

Assuming the oxygen abundance and metallicity of the Sun, 12 + log (O/H)_⊙ = 8.83 ± 0.20 = A_⊙ and  Z_⊙ = 0.02 (Grevesse & Sauval 1998), given that Z ≈ K Z_⊙, where |$K_{A0136} = 10^{[A_{A0136} - A_{{\odot }}]}$|⁠, we obtain a metallicity for the H ii regions in the polar structure of Z ≃ 0.32 Z_⊙. This value turns to be consistent with the range of metallicities derived for the stellar population (0.02 Z_⊙ ≤ Z ≤ 0.4 Z_⊙), given in Section 5 (see also Fig. 8).

In Fig. 9 we compare the mean value of the oxygen abundance along the polar structure of A0136-0801, with those measured for different late-type galaxies by Kobulnicky & Zaritsky (1999)⁵ (spirals, irregulars and H ii galaxies) and several PRGs, as a function of the total luminosity. The metallicity of the polar structure in A0136-0801 is comparable with that observed for both wide and narrow PRGs, which show a sub-solar value with respect to the mean metallicity of spiral galaxies with similar total luminosity. On average, taking into account the mean error of the oxygen abundances, PRGs are found in the region of low-luminosity spirals or/and bright irregulars.

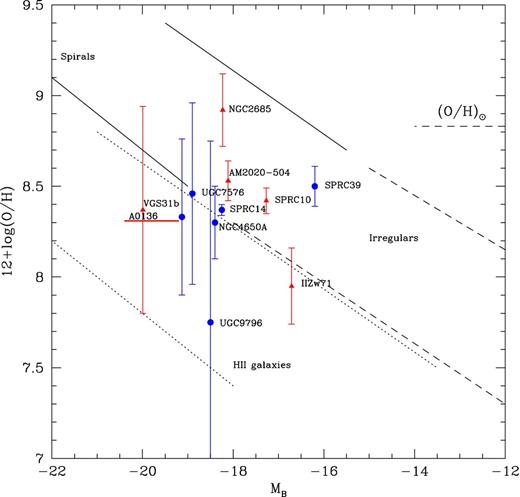

Figure 9.

Oxygen abundance versus absolute blue magnitude for A0136-0801 (from this work) and for other PRGs: VGS31b (Spavone & Iodice 2013), NGC4650A (Spavone et al. 2010), IIZw71 (Pérez-Montero et al. 2009), NGC2685 (Eskridge & Pogge 1997), AM2020-504 (Freitas-Lemes et al. 2012), UGC7576 and UGC9796 (Spavone et al. 2011), SPRC10-14-39 (Moiseev, Egorov & Smirnova 2014). Blue circles represent wide PRGs, while red triangles are for narrow PRGs. The sample of late-type disc galaxies are by Kobulnicky & Zaritsky (1999): spirals are in the region marked with continuous lines, irregulars are between dashed lines and H ii galaxies are between dotted lines. The horizontal dashed line indicates the solar oxygen abundance.

Open in new tabDownload slide

From the H α luminosity derived from emission lines with S/N > 10, using the expression given by Kennicutt (1998), we estimate the SFR for the polar structure of A0136-0801; this is SFR = 7.9 × 10⁻⁴² × L(H α). From the average value of L(H α) ≃ 1.11 × 10³⁸ erg s⁻¹ we have obtained an average SFR ∼ 9 × 10⁻⁴ M_⊙ yr⁻¹. This value of SFR has to be considered as a lower limit, since the long slit data give only lower limits to the H α luminosity, given that the slit usually covers only small area of the polar structure. A global estimate of the SFR in this component can be inferred from the Kron UV flux for A0136-801 from NED. We derive L(UV) = 3.8 × 10²⁶ erg s⁻¹, with E(B − V) = 0.026 (Seibert et al. 2012), and from the Kennicutt law (Kennicutt 1998) we obtain SFR = 1.4 × 10⁻²⁸ × L(UV) ∼ 0.05 M_⊙ yr⁻¹, which is a more reliable estimate for the SFR in the polar structure of A0136-0801.

As done in similar studies for other PRGs (Spavone et al. 2010, 2011; Spavone & Iodice 2013), we checked whether the present SFR, and even two and three times higher can give the inferred metallicity of Z = 0.32 Z_⊙. To this aim, we adopted the linearly declining SFR, SFR(t) = 2M_⋆τ⁻¹exp[1 − (t/τ)], where t is the lookback time (Bruzual & Charlot 2003). By using the mass–metallicity relation derived by Tremonti et al. (2004), we found that for A0136-0801 the expected metallicity is in the range 0.1 Z_⊙ ≤ Z ≤ 0.66 Z_⊙. The implications of this result will be discussed in detail in Section 7.

DISCUSSION AND CONCLUSIONS

We have carried out a detailed photometric study of the PRG A0136-0801, based on new NIR, in the J and K bands, and optical, B and R bands, observations. Moreover, by using new long slit spectra, we have studied the chemical abundances in the polar structure of this galaxy. In this section we summarize the main results and discuss their implications on the formation history of A0136-0801.

Summary of the main results

The morphological analysis performed in this work shows that A0136-0801 has two main components, the central spheroid (the HG), with a bright nucleus, and a wide polar structure (see Fig. 2).

• The HG dominates the light in the NIR images and its structure can be well traced at all radii since the dust absorption due to the PR is negligible (see Fig. 2, right-hand panel). In the optical images, the PR is much more luminous and it is at least two times more extended than the HG (see Fig. 2, left-hand panel).

• The 2D models of the light distribution performed in both B and K bands have shown that the HG is characterized by a very concentrated bulge-like structure, with an effective radius of 1.12 arcsec (∼0.34 kpc) and an exponential disc, with a scalelength of about 3 arcscec (∼0.9 kpc), see Table 4. The best fit to the light distribution of the polar structure has been obtained in the B band, with an exponential law, having a scalelength of 13.3 arcsec (∼4 kpc), which is four times larger than the scalelength of the disc in the HG. The residual map, both in the dust-free K-band and in the B-band images, have revealed the existence of a nuclear sub-structure having an ‘s-shape’ (see right-hand panels of Fig. 5), elongated towards the polar direction.

• From the B − K colour distribution, we found that the HG has redder colours with respect to the polar structure (see Fig. 7). In particular, the B − K colour profiles show that nuclear regions of the galaxy, for R ≤ 3 arcsec, have the reddest colours, being B − K = 4.5 ± 0.03 mag in the centre. On average, the HG has a B − K ∼ 3.7–4 mag. The polar structure (see Fig. 7, top-left panel), for R ≥ 5 arcsec is bluer than the HG, having B − K ≤3 mag.

• By using optical versus NIR colours (B − K versus J − K) and the stellar population synthesis models we estimated the age and metallicity of the stellar population in both components of A0136-0801. The constraints on the age and metallicity of the stellar population in the HG is within the range 3–5 Gyr, and  Z_⊙ ≤ Z ≤ 2.5 Z_⊙. The PR has a younger age (from 1 to 3 Gyr) and a sub-solar metallicity in the range 0.02 Z_⊙ ≤ Z ≤ 0.4 Z_⊙ (see Fig. 8). From the above models we estimate the total baryonic mass, for both HG and PR in A0136-0801 (see Section 5); values are listed in Table 6.

• We derived the oxygen abundance and the metallicity of the H ii regions of the polar structure in A0136-0801. We found 12 + log (O/H) = 8.33 ± 0.43 and Z ≃ 0.32 Z_⊙ (see Section 6). This value turns to be consistent with the range of metallicities derived for the stellar population (0.02 Z_⊙ ≤ Z ≤ 0.4 Z_⊙).

Comparison of A0136-0801 with other PRGs

We discuss the observed properties of A0136-0801 with known PRG systems. The morphology of A0136-0801 is very similar to those of other PRGs with a wide polar structure, like NGC 4650A, UGC 7576 and UGC 9796. A detailed photometric analysis has shown that in UGC 7576 and UGC 9796 (Reshetnikov & Sotnikova 1997; Godínez-Martínez et al. 2007) this component is a ring, while in NGC 4650A it is a disc (Iodice et al. 2002a). As discussed above, the residual map obtained for A0136-0801 by the 2D model of the light distribution, shows a nuclear ‘s-shaped’ structure, elongated towards the polar direction, which could be a sign of the polar structure reaching the HG centre, as that observed in NGC 4650A (Gallagher et al. 2002; Iodice et al. 2002a). Contrary to what the photometric analysis suggests, the integrated colours and metallicity of the stellar populations in the polar structure of A0136-0801 are quite different from those observed for the same component in NGC 4650A (Iodice et al. 2002a; Spavone et al. 2010), being older and with higher metallicity. In Table 6 are also included the key physical parameters available for the wide PRGs mentioned above and for the narrow PRG AM2020-504.

All PRGs are characterized by a large amount of H i gas. The H i mass measured in A0136-0801 is of the same order of magnitude as those found for other PRGs (∼10⁹ M_⊙), except NGC 4650A that is the PRG with the highest H i mass (∼10¹⁰ M_⊙). As found in A0136-0801 (see Section 5), the large baryonic mass in the HG with respect to that in the PR is an observed feature common to all PRGs, except for NGC 4650A, where the polar disc is twice as massive as the central spheroid. The HG in all wide PRGs, including A0136-0801, is supported by rotation, with v/σ > 1, while the HG in the narrow PRG AM2020-504 is dominated by random motions. Overall, the metallicity of the polar structure in A0136-0801 is comparable with that observed for most of the wide and narrow PRGs, which show lower, i.e. sub-solar, values with respect to the metallicity in spiral galaxies of similar total luminosity (see Fig. 9). In particular, the metallicity in the polar structure of A0136-0801 is comparable with that measured for the wide PRG UGC 7576, while it is two times larger with respect to those estimated for UGC 9796. The narrow PRG AM2020-504 is among the PRG with the highest value of Z, which is close to the solar metallicity. As already pointed out by Iodice (2014), the differences in these key parameters are probably related to different formation processes.

Implications on the formation history of A0136-0801

In order to address the most reliable formation scenario for A0136-0801, below we compare and discuss how the observed properties for this galaxy, outlined in this work, could compare with the predictions of different formation mechanisms for PRGs. In particular, we focus on the structure, i.e. the presence of a wide ring around a spheroidal object, on colours and ages for both HG and PR, on the observed kinematics and the gas content and metallicity in the polar structure.

As reviewed into Section 1, a PRG could form by (i) the disruption of a dwarf companion galaxy or of a gas-rich satellite, in the potential of an early-type system, or by the tidal accretion of gas stripped from the outskirts of a disc galaxy, (ii) a dissipative merging of two disc galaxies or (iii) the accretion of cold gas from cosmic web filaments.

The key physical parameters that can discriminate between the different formation scenarios are (i) the total baryonic mass (stars plus gas) observed in the polar structure with respect to the central spheroid, (ii) the kinematics along both the equatorial and meridian planes and (iii) the metallicity and SFR in the polar structure. For A0136-0801, all the above parameters are now available, obtained by the analysis performed in this work (i.e. the total baryonic mass and metallicity) and from literature (gas content and kinematics); they are listed in Table 6. The baryonic mass in the polar structure of A0136-0801 is less than that in the HG, being the ratio |$M_{\rm b}^{\rm {HG}}/M_{\rm b}^{\rm {PR}} \sim 1.95$|⁠. The central HG is supported by rotation, with v/σ ∼ 2.2. The polar structure has a sub-solar metallicity (Z ≃ 0.32 Z_⊙).

The tidal accretion scenario, in which the polar structure forms through the gas stripped from a gas-rich donor galaxy, in a high-inclined orbital configuration (Bournaud & Combes 2003), is able to produce a wide PR as observed in A0136-0801. During this kind of interaction, the central HG does not change its original morphology and kinematics. So, as observed in A0136-0801, the remnant is an S0-like system, supported by rotation, with a polar structure. In this framework, in the field around the newly formed PRG the gas-rich donor galaxy should be still present. In the case of A0136-0801, inside a radius of about five times its diameter, as suggested by Brocca, Bettoni & Galletta (1997), there is a late-type galaxy PGC 6186 at a comparable redshift (see Fig. 1). This object is very poorly studied and only the apparent magnitude in the B band is given, which is 15.20 mag (see NED). There is no information on the gas content. Anyway, since this object has a comparable luminosity to that observed for A0136-0801, and it is classified as spiral, we expect that it has at the least the same, or even larger, baryonic mass of A0136-0801 (see Table 6). Thus, taking also into account that the value of Z ≃ 0.32 Z_⊙ derived for A0136-0801 is consistent with the metallicity of the very outer regions of bright spiral galaxies, which is in the range 0.2 Z_⊙ ≤ Z ≤ 1.1 Z_⊙ (Bresolin et al. 2009), PGC 6186 could be considered a possible donor galaxy.

The gradual disruption of a dwarf satellite galaxy can be excluded as possible formation process for A0136-0801, because the baryonic mass estimated in the polar structure (1.18 × 10¹⁰ M_⊙, see Table 6) is at least three orders of magnitude larger than the typical mass observed in dwarf galaxies (10³ M_⊙ ≤ M ≤ 10⁷ M_⊙; Sawala et al. 2011). On the other hand, if in the past A0136-0801 had a gas-rich satellite, with a mass of ∼10⁹ M_⊙ (Kunkel, Demers & Irwin 1996), like the Large Magellanic Cloud, it could be disrupted by the potential of the massive HG to form the polar structure.

In the merging scenario, the morphology and kinematics of the merger remnants depend on the initial orbital parameters and the initial mass ratio of the two merging galaxies (Bournaud et al. 2005). For A0136-0801, this scenario is ruled out because, according to simulations (e.g. Bournaud et al. 2005), a high mass ratio of the two merging galaxies is required to form a massive and extended PR as observed in A0136-0801. This would convert the intruder into an elliptical-like, not rotationally supported, stellar system. This prediction is in contrast with the observed kinematics for the HG in A0136-0801.

Finally, we discuss whether the cold accretion scenario can be a reliable account for the observed properties of A0136-0801. This scenario predicts the formation of wide disc-like structures, characterized by a low, sub-solar metallicity. The open issue of this scenario concerns the nature of the polar structure: the simulations predict the formation of a polar disc, rather than annulus, around a puffed up disc (Macciò et al. 2006; Brook et al. 2008). The residual map, obtained for A0136-0801 by the 2D model of the light distribution, have revealed the existence of a nuclear sub-structure having an ‘s-shape’ (see right-hand panels of Fig. 5), elongated towards the polar direction. If this feature is linked to the polar structure that reaches the galaxy centre, this could be a hint for a polar disc in A0136-0801, but a definitive conclusion on the nature of the polar component in A0136-0801 cannot be reached on the basis of the photometry done. The kinematics mapping the inner regions⁶ is also necessary to unveil the structure of this galaxy. Thus, the available data for A0136-0801 cannot allow us to discriminate between a ring and a disc. Anyway, even if the polar structure in this galaxy was a disc, it is characterized by a higher metallicity (Z ≃ 0.32 Z_⊙) than that predicted by the cold accretion scenario, which is Z ≤ 0.2 Z_⊙ (Snaith et al. 2012). Moreover, the metallicity estimated by using element abundances falls in the range of those expected by the SFR, which is 0.1 Z_⊙ ≤ Z ≤ 0.66 Z_⊙ (Section 6). Given that these values could further increase the metallicity of ∼0.01 after 1 Gyr, we can rule out the cold accretion scenario for A0136-0801.

To conclude, even if the whole morphology of the PRG A0136-0801 is very similar to that observed for NGC 4650A, both are classified as ‘wide PRGs’, the two systems have a different formation history: the polar disc in NGC 4650A is reasonably formed by the cold accretion of gas along cosmic web filaments (Spavone et al. 2010), while for the PRG A0136-0801 the tidal accretion of material (gas and stars) from the outskirts of a donor galaxy, as well as the tidal disruption of a gas-rich satellite, are the most viable formation processes.

We are very grateful to the anonymous referee for his/her comments and suggestions, which helped us to improve and clarify our work. MS wishes to thank T. Pursimo for the support given during the data acquisition at NOT and D. Bettoni for many useful discussions and suggestions. EI wishes to thank E. Pompei for the support given during the data acquisition at NTT. This work is based on observations made with ESO Telescopes at the Paranal Observatories under the programme ID 70.B-0253(A) and 74.B-0626(A). The authors wish to thank A. Watson for providing optical images analysed in this work. The data presented here were obtained (in part) with ALFOSC, which is provided by the Instituto de Astrofisica de Andalucia (IAA) under a joint agreement with the University of Copenhagen and NOTSA. This research has made use of the NASA/IPAC Extragalactic Database (NED) which is operated by the Jet Propulsion Laboratory, California Institute of Technology, under contract with the National Aeronautics and Space Administration.
