The QPO states of 4U 1630−47 Free

Abstract

1 INTRODUCTION

Since its first observations from Uhuru followed by Ariel V in the early seventies, the X-ray binary source 4U 1630−47 (Jones et al. 1976) has exhibited regular outbursts with a gap of, typically, few hundred days (Priedhorsky 1986). The nature as well as the durations of these outbursts can vary greatly (see for example Abe et al. 2005; Tomsick et al. 2005), hence the study of spectral and the timing properties of the source can play a very important role in the fundamental understanding of the accretion process for the transient X-ray binary systems in general.

Neither the binary orbital period nor the nature or mass of the companion of 4U 1630−47 is known (see Augusteijn, Kuulkers & van Kerkwijk 2001, for a possible identification of the infrared counterpart). Nevertheless, based on the various observations in the X-rays from Einstein (Parmar et al. 1997), EXOSAT (Parmar, Stella & White 1986; Kuulkers, van der Klis & Parmar 1997b), Ginga (Parmar et al. 1997), BATSE/CGRO (Bloser et al. 1996), ROSAT (Parmar, Angelini & White 1995), Beppo-SAX (Oosterbroek et al. 1998), ASCA (Parmar et al. 1997) and RXTE (Kuulkers et al. 1998; Tomsick, Lapshov & Kaaret 1998; Hjellming et al. 1999; Dieters et al. 2000; Tomsick & Kaaret 2000; Trudolyubov, Borozdin & Priedhorsky 2001; Kalemci et al. 2004), McClintock & Remillard (2006) classified the source as a ‘category A’ black hole candidate, supporting the earlier classification by Tanaka & Lewin (1995).

Although the earlier observations of this source, including those till ROSAT studied mainly the outburst periodicity and the canonical state transitions, the power density spectra (PDS) obtained from the light curves as observed by EXOSAT did suggest some anomalous behaviour (Kuulkers et al. 1997b). Thereafter, the spectral observations from Beppo-SAX (Oosterbroek et al. 1998) suggested the inadequacy of the optically thick and geometrically thin disc models under certain circumstances. The RXTE/PCA observations of the outbursts in the early RXTE era, namely 1998 outburst (Hjellming et al. 1999) brought the quasi-periodic oscillations (QPOs) observed in this source to the fore-front of study and classification (Dieters et al. 2000; Tomsick & Kaaret 2000; Trudolyubov et al. 2001).

Among the nine outbursts exhibited by the source 4U 1630−47 during the RXTE era (Fig. 1), the fifth one starting from ∼MJD 52525 to ∼MJD 53344 (2002 September–2004 December) 4U 1630−47 exhibited the longest and brightest outburst phase observed till date. Abe et al. (2005) report the presence of three distinct spectral states including one anomalous state during the outbursts observed by RXTE from 1996 to 2004. Tomsick et al. (2005) report about the high-amplitude variability, spectral states and transitions and also state that QPOs were observed during the 2002–2004 outburst. Both Abe et al. (2005) and Tomsick et al. (2005) suggest the presence of geometrically thick accretion, i.e. slim disc to be present during some observations. Tomsick et al. (2005) also speculate that the unphysical low values of the inner accretion disc radius (as per the geometrically thin disc model) may be explained by the spectral hardening due to dominance of electron scattering in the inner region of the accretion disc giving rise to observed values of high temperature and luminosity.

Figure 1.

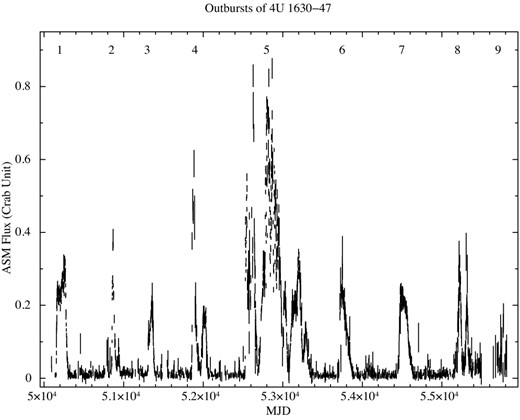

All the outbursts of the source 4U 1630−47 covered by the ASM during 1996–2011. The source shows a total of nine outbursts with a few outbursts exhibiting multiple flares, the longest being outburst 5 during 2002–2004 (see Abe et al. 2005).

Open in new tabDownload slide

Despite the extensive coverage of this source in the literature, a comprehensive correlated study of the timing features, namely the QPOs, and the spectral parameters has not been carried out. In this paper, we report the spectral properties of the source during the 2002–2004 outburst viz-a-viz the QPO features observed. The result is corroborated by the measured parameters reported by Trudolyubov et al. (2001) from the 1998 outburst. From the observational features of the spectral parameters and the QPO frequencies, we conclude that the presence of low-frequency QPOs occurs during a spectral state not classifiable by the present canonical black hole classification scheme (McClintock & Remillard 2006) and the possibility of the existence of a slim disc appears to be a viable alternative during the peak of at least a few of the outbursts of 4U 1630−47. Other alternatives may include non-standard Comptonization in the innermost region of accretion flow. Nevertheless, this source is the perhaps the only one reported so far to demonstrate significantly a different spectral state when the low-frequency QPOs appear.

2 DATA AND ANALYSIS

The All Sky Monitor (ASM; Levine et al. 1996) aboard the RXTE satellite observatory (Bradt, Rothschild & Swank 1993) monitored the source continuously throughout its existence, in the 1.5–12 keV range. In addition the narrow field of view instrument, the Proportional Counter Array (RXTE/PCA) has covered the source extensively, especially during the outburst phases. For the results reported in this paper, we have analysed 382 pointed observations of the RXTE/PCA (Fig. 2), including 24 observations with the telescope pointing away from the source (offset ≤1°), i.e. high-offset observations. The light curves were extracted from the event mode data for the 3–30 keV energy band and the complete band, at a time resolution of 2⁻⁸ s. The energy spectra for all observations were extracted from standard 2 mode data. To maintain uniformity only PCU 2 was used for the complete analysis, as it was the only common PCU available for all observations. All the procedures of data filtering, background and deadtime corrections were strictly adhered to during the analysis process, including the cases of high-offset observations. The data reduction and analysis was carried out using heasoft,¹ which consists of (chiefly) ftools, xronos and xspec (Arnaud 1996). The power density spectrum (PDS) were obtained from the event mode data for the complete energy band covered by the RXTE/PCA using the idl-based software package ghats.²

Figure 2.

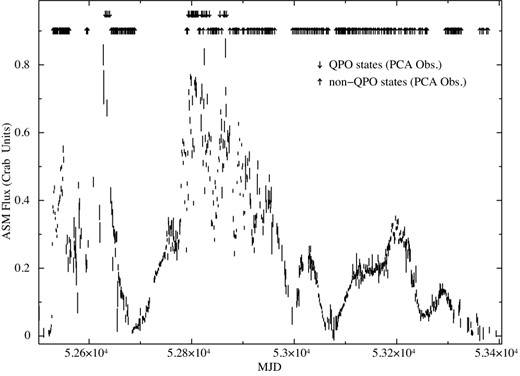

Outburst 5 (Abe et al. 2005) with multiple flaring episodes of 4U 1630−47 observed by the ASM. The rate is measured in the units of Crab emission rate (75 counts s⁻¹ of ASM). The arrows give the dates of PCA observations: the upward arrows represent observation for which no QPO is detected, and the downward arrows represent observations for which QPOs (one or more) are detected.

Open in new tabDownload slide

The PCA spectra were fitted for all the observations with a single three-component model consisting of multicoloured disc blackbody dominating at lower energies (diskbb), a power law at higher energies and an isotropic reflection component (reflect) of the power law emission from the accretion disc (along with the interstellar absorption), as well as a two-component model without the reflection component. Statistically good fits were obtained using the three component model for almost all the observations with the reduced |$\chi _{\nu }^2 \le 1.20$| (with a systematic error ≤1 per cent) while fitting the model to PCA spectra in the 3–30 keV band using the χ²-minimization algorithm of the xspec package. For the complete set of observations considered, the best-fitting values of disc temperature T_in varies in the region 0.7–3.2 keV, while the power law index Γ varies from 1.5 to a very steep value of 4.8. Although the possibility of any contamination from other sources in the energy range of our analysis is minimal despite the location of the source being in a crowded region (Tomsick et al. 2005), we report the spectral parameters for the observations with 3–30 keV flux >1.2 × 10⁻⁹ erg cm⁻² s⁻¹, just to ensure the removal of any effect on the spectral features due to contamination when the intrinsic flux from the source is weaker.

The reflection component (reflect) was used to account for the broad excess around 8–10 keV for some observations in order to better constrain the inner disc temperature T_in of the diskbb model (Makishima et al. 1986) in xspec. Although this reflection component did not constrain the high values of T_in for certain observations, the χ² value was better constrained using this component for such observations, hence for the sake of consistency all the results reported in this paper are with the reflection component for all observations. The lower limit of the column density parameter (N_H) was restricted to 6 × 10²² cm⁻², which is the lowest measured value for 4U 1630−47 (Parmar et al. 1997). Following the study of X-ray dips in the source (Kuulkers et al. 1998) the value of 60° was used for the inclination angle, although, admittedly, there is huge uncertainty in this value as none of the binary parameters nor the companion star properties are ascertained. Similarly, the distance of the source was assumed to be ∼10 kpc. Consequently, the conclusions of this paper remain a qualitative statement based on the long term trends of the parameters as observed in the source. In case the actual distance or the angle of inclination is greater then, in either case, the value of R_in will be systematically greater.

For certain high inner disc temperature T_in, the corresponding value of inner disc radius R_in is not always physical (Fig. 5, Section 5.1). For better constraint on the best-fitting values of these parameters, an attempt was made to use an empirical Comptonization model simpl which functions as a convolution with the diskbb component converting a fraction of the input seed photons into a power law (Steiner et al. 2009). This model failed to fit the data statistically and the addition of additional Comptonizing component (namely comptt; Titarchuk 1994) was needed to obtain an acceptable χ² value. But even this model failed to constrain the values of T_in and R_in within physically acceptable limits. Also, a model consisting of only diskbb and comptt failed to constrain the values of T_in and R_in. Hence these models were discarded in favour of the model described in the previous paragraphs to compare the current observations with the standard classification.

3 THE EXTENDED OUTBURST OF 4U 1630−47

During the RXTE era the source went into outburst phase multiple times, where some outbursts consisted of more than one flaring episode, including the 2002–2004 outburst which is referred to as outburst 5 (following the convention of Abe et al. 2005). A similar long outburst phase with more than one flaring episode probably occurred during 1988–1991 (total duration ∼2.4 yr) as observed by Ginga, when the source flux reached a peak value of ∼0.6 Crab (Kuulkers et al. 1997a). Furthermore, the source perhaps exhibited very bright outburst in 1977 (Chen, Shrader & Livio 1997) but the duration of the outburst is not ascertained due to the sparse coverage of the source in that era of X-ray observatories. In comparison RXTE provides a continuous monitoring, via the ASM, as well as wide band spectral coverage coupled with high resolution timing studies, via the PCA, from 1996 to 2011. Other than the 2002–2004 phase, the duration of the other outbursts is typically ∼100 d (give and take few tens of days). Also, these typical short duration outbursts emit at a peak flux of ∼0.4–0.5 Crab (Abe et al. 2005; Tomsick et al. 2005) (see Fig. 1).

The long outburst 5 comprised of five individual flaring episodes, each immediately following the previous one with a gap of few days (Fig. 2), with the individual flaring episodes being referred to alphabetically A, B, etc. The duration of flare 5A was from MJD 52525 to 52675, the flare 5B was during MJD 52686 to 52996, the flare 5C was during MJD 53004 to 53061, the flare 5D was during MJD 53077 to 53251, the flare 5E was during MJD 53252 to 53344. The flares 5A and 5B were evidently different from the other three flares as per the ASM data. The peak flux of these two flares reach a value ∼0.6 and ∼0.8 Crab, whereas the other three flares do not get brighter than ∼0.3–0.5 Crab. Also, the peak phase of the flares 5A and 5B show large and fast fluctuations, whereas the other three show more stable behaviour. The arrows of Fig. 2 are the days for which the pointed observation by PCA is available in the archives. The downward arrows indicate observations for which QPOs have been observed, while the upward arrows indicate observations with QPOs.

In Fig. 3, bottom panel the 3–30 keV flux (× 10⁻⁸ erg s⁻¹ cm⁻²) measured by the PCA during outburst 5 is plotted. The evolution of the inner disc radius and temperature, R_in and T_in, as obtained from the model component diskbb, are plotted in the middle and top panels, respectively. The data points of Fig. 3 are segregated as non-QPO (red mark) and QPO (green and blue marks) state.

Figure 3.

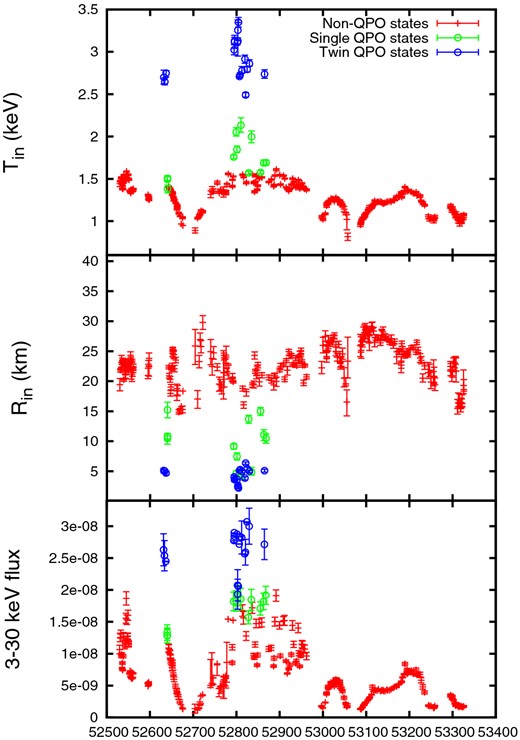

The outburst no. 5 (Abe et al. 2005) of 4U 1630−47 observed by the PCA. Bottom panel: 3–30 keV flux (× 10⁻⁸ erg cm⁻² s⁻¹) as a function of days for which the PCA observations exist. Middle panel: the inner radius R_in of the accretion disc obtained from the diskbb model (Makishima et al. 1986). Top panel: the inner disc temperature T_in as per the diskbb model. For all panels: the red marks indicate observations for which no QPO is present, the green and blue marks indicate observations with single and twin QPOs, respectively.

Open in new tabDownload slide

All the QPOs occur during the flares 5A and 5B, and that too only during the peak phase when the total flux as well as the spectral parameters show fast and drastic fluctuations. These fluctuations occur when, during the rising phase of the flare, the flux increases beyond ∼0.3–0.4 Crab flux. The fluctuations continue until there is a definite decay of the flare and the flux comes down below that same value, viz ∼0.4 Crab flux. In between, during the peak phase fluctuations, the flux can reach a value less than ∼0.4 Crab, and the parameter values of the inner disc is not discernible from the canonical black hole states. Hence, a more rigorous insight into the data is provided below to ascertain the behaviour of the accretion disc of the low flux phases during the peak phase fluctuations. In this paper, we have concerned our analyses only on averaged measurements of the different observational pointings.

4 DIFFERENT CLASSES OF QPOs

The observed PDS with QPOs are predominantly divided into two distinct classes, one with one QPO with the centroid frequency in the region of 11–14 Hz (henceforth referred to as ‘single QPO state’), and the other with two non-harmonically related QPOs with the centroid of the lower frequency lying in the region of 4–6 Hz while the higher frequency can vary in the region of 7–18 Hz (henceforth referred to as ‘twin QPO state’). A sample each of the single QPO and the twin QPO is given in Fig. 4. In addition, another class of lowest frequency QPO with a periodicity around 1 Hz is observed on a few occasions, and only once it appears alone in the absence of the other two classes of QPOs. Due to lack of statistically significant data, we will not include the lowest frequency QPO in our analysis. The details of the QPO parameters are given in Table 1. The significance of the QPO was obtained from the errors calculated from the best-fitting statistics for the normalization parameter of the corresponding Lorentzian function.

Figure 4.

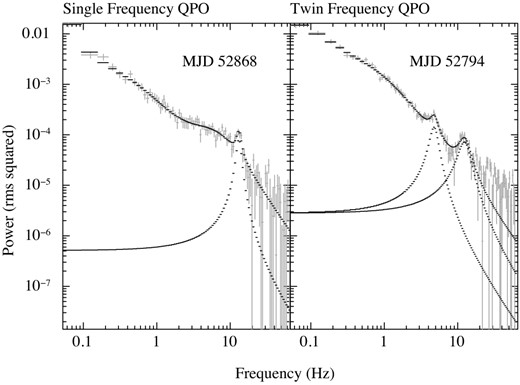

Examples of the single and twin QPO states.

Open in new tabDownload slide

For the single QPO states, the peak rms as well as the significance is relatively greater for lower frequencies (the peak rms ≥ 1 per cent for frequencies <12 Hz and the significance is highest for the lowest frequencies – Table 1). For the twin QPO states both the peak rms as well as the significance shows large variation, but in general the peak rms of the lower frequency is equivalent or more than that of the higher frequency. The total flux measured from the source is more for twin QPO state except for the occasions when the higher frequency is in the range of 7 Hz (Table 1).

In total there are 30 observations with QPO, 18 of them belong to the twin QPO state while 11 belong to the single QPO state, and once the lowest frequency QPO (≈0.84 Hz) appears alone. As per the prevalent ABC classification scheme for the QPOs (Casella, Belloni & Stella 2005), the single QPO may be loosely classified as class C, despite the obvious deviation of the parameters from the class C values, simply because the centroid frequency rules out the A and B class. For the twin QPO state, the higher frequency deviates from C-type classification. Even though the lower frequency is nearer to the B-type, the QPO parameters deviate significantly from the classification scheme.

5 THE SPECTRAL BEHAVIOUR OF THE QPO STATES

Most of the observations fall in the canonical black hole states, namely steep power law, thermal dominated and intermediate while few fall in the hard state: as classified by McClintock & Remillard (2006). The anomalous states pertain to the observations with QPO. Hence, for this source, the fundamental understanding of the evolution of the accretion process needs to be constructed by segregating the spectral parameters of the QPO and non-QPO observations.

5.1 The R_in–T_in relation and its consequences

The relation between the inner disc temperature, T_in and the inner disc radius R_in is plotted in Fig. 5. Pertaining to the five flares under study, flares 5A, 5B, 5C, 5D and 5E, the R_in–T_in plane has four branches. Two parallel branches (represented by red marks) correspond to the non-QPO observations from all the flares in the outburst. These two branches can be fitted by the empirical relation |$R_{\rm in} \propto T_{\rm in}^{-4/3}$|⁠. This is a clear signature of Shakura–Sunyaev disc (Shakura & Sunyaev 1973). The geometrically thin and optically thick disc approximation is not violated for these observations (Kubota et al. 1999). The other two parallel branches (represented by green and blue marks for QPO observations) correspond to high temperatures T_in and low inner-radius R_in and are best fit by a relation |$R_{\rm in} \propto T_{\rm in}^{-4}$|⁠. This is the anomalous state which cannot be modelled by a geometrically thin disc. Hence these observations provide the signature of the impending anomalous state which exists only along with the appearance of QPOs.

Figure 5.

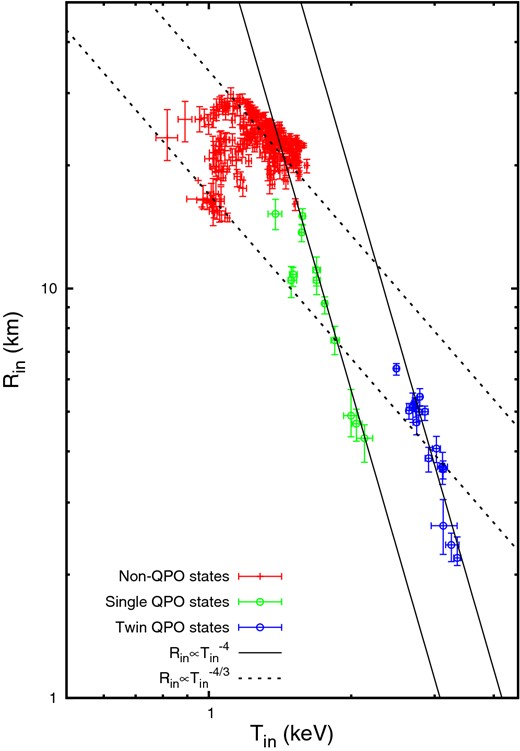

The plot of inner disc radius R_in versus inner disc temperature T_in for all the observations pertaining to flares 5A, 5B, 5C, 5D and 5E. The red marks represent the non-QPO states. The green marks represent the single QPO states and the blue marks represent the twin QPO states. The non-QPO observations obey the relationship |$R_{\rm in} \propto T_{\rm in}^{-4/3}$| (geometrically thin optically thick Shakura–Sunyaev disc). The QPO observations obey the relation |$R_{\rm in} \propto T_{\rm in}^{-4}$|⁠.

Open in new tabDownload slide

Nevertheless, the values of the inner disc radius for the high-temperature anomalous states, as obtained from the spectral fitting, are not physically acceptable. Although it is known that different physical mechanism causing the opacity of the disc can give rise to a different spectral shape (Shimura & Takahara 1995) which can cause an underestimation of the inner disc radius up to a factor of 5 (Merloni, Fabian & Ross 2000), the most likely cause of the breakdown of the diskbb model is the formation of geometrically thicker ‘slim’ accretion disc (Abramowicz et al. 1988). The R_in–T_in relation suggest that for a slim disc the emission at small radii can also produce a much flatter radial temperature profile due to more material in the disc (Watarai et al. 2000, refer to fig. 4).

Also, the departure from the standard multicolour disc may be attributed to effects of electron scattering and corresponding changes in radial temperature profile (Kubota & Makishima 2004). Both Tomsick et al. (2005) and Abe et al. (2005) report the deviation of the disc luminosity from the relation |$L_{\rm disc} \propto T_{\rm in}^{4}$|⁠. While Tomsick et al. (2005) speculates about electron scattering in the inner region of accretion disc causing the high temperature and hence deviation from the |$T_{\rm in}^{4}$| relation, Abe et al. (2005) is more convinced that this deviation is due to the slim disc. The presence of QPO suggest a rotational symmetry in the process that gives rise to the quasi-periodic phenomena, whereas higher electron scattering would result in more wide band noise, with the exception of a formation of a shock (Rao et al. 2000). The so-called anomalous state may be classified as the QPO state, for this source, as it is with the appearance of the quasi-periodicity in the PDS the parameters pertaining to the accretion disc show a discontinuous evolution.

The two branches of the T_in–R_in relation for the QPO states (Fig. 5) are resolved as two distinct QPO states, with the single QPO state giving rise to the branch with lower T_in and the twin QPO state giving rise to the parallel branch with higher T_in. The single QPO branch here includes the observation on MJD 52855.

5.2 The power law component

The two distinct QPO states, single and twin, suggest that the dynamics of the accretion geometry is extremely varied. The discontinuity of the T_in–R_in behaviour indicate distinct accretion features hinting at different physical origin of the single QPO and the twin QPO states, despite the similarity in the frequency and other parameters of the Lorentzian functions of these QPOs. The distinctness of the two QPO states is also seen in the plot of T_in as well as R_in w.r.t. the power law index Γ (Fig. 6). A significant feature is that in the bottom panel the three green marks embedded in the non-QPO states correspond to the flare 5A. This shows that the for the single QPO state, the T_in forms a parallel track as a function of Γ in different flaring episodes. The corresponding points on the top panel (R_in) also shows a parallel track for the green marks corresponding to the same flare 5A. The twin QPO states do not form parallel tracks despite being present during both the flares. Thus, it is clear that the evolution of emission from the accretion disc is more complex and depends on more than one physical origin, namely the accretion rate. The QPO states occur for a very narrow band of values of the power law index, Γ.

Figure 6.

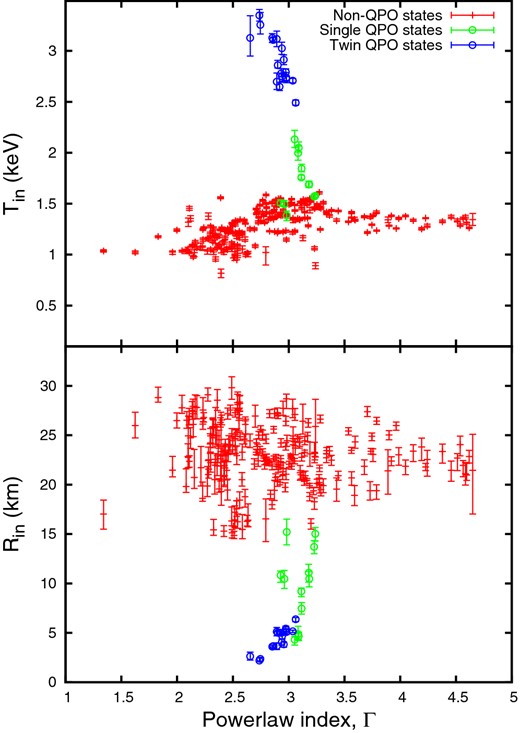

The plot of inner disc temperature T_in (top panel) and the inner disc radius R_in (bottom panel) versus the power law index Γ for the QPO states. The red marks represent the non-QPO states. The green marks represent the single QPO states and the blue marks represent the twin QPO states. The three green marks forming a parallel branch correspond to flare 5A while the rest green marks correspond to flare 5B. The blue marks do not show any such demarcations.

Open in new tabDownload slide

5.3 The fluxes of the spectral model components

In Fig. 7, the scatter plot of fluxes of the model components, namely diskbb (bottom row) and power law (middle row) along with the ratio of the diskbb flux to the power law flux (top row) is plotted with the model parameters (T_in, R_in and Γ). The red plus marks represent the non-QPO state, the green circled dots represent the single QPO states and the blue circled dots represent the twin QPO states. It is evident that the diskbb flux for the different QPO states form parallel branches for the single and twin QPO states, and furthermore, the single QPO data points also form parallel branches for the flare 5A and flare 5B (the three green circled dots forming a parallel branch w.r.t. the rest correspond to flare 5A, while the rest of the green circled dots correspond to flare 5B). The twin QPO state, in contrast, does not show any such demarcation despite being present during both the flares. This suggests that the emission from the thermal disc is very sensitive to the given local properties of flare in the case of the single QPO state in contrast to the twin QPO state. Furthermore, the power law flux shows a continuous evolution as a function of the inner accretion disc parameters as well as the power law index (middle row for Fig. 7). The power law index, Γ, does not play any role in the emission from the disc blackbody (bottom-right panel, Fig. 7), but even here the different flux values for the single QPO state of flares 5A and 5B form distinct parallel tracks.

Figure 7.

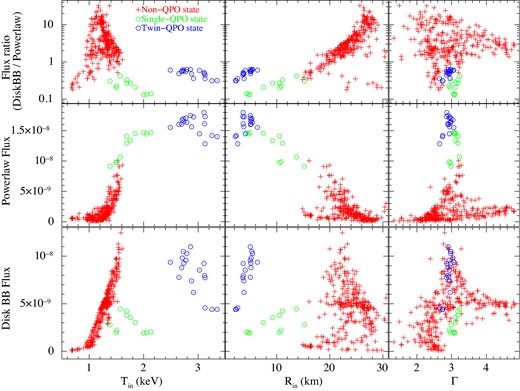

The plot of the fluxes of the different model components of the energy spectra versus the inner disc temperature T_in (left-hand column), the inner disc radius R_in (middle column) and the power law index Γ (right-hand column). The multicoloured disc blackbody (diskbb) flux is plotted on the bottom row, the power law flux on the middle row and the ratio of the two fluxes on the top row. The red marks represent the non-QPO states. The green circled dots represent the single QPO states, the blue circled dots represent the twin QPO states. The three green circles forming a parallel branch (distinctly for the diskbb flux and loosely for the total flux) correspond to flare 5A while the rest green circles correspond to flare 5B.

Open in new tabDownload slide

It is very significant from the figure that the power law flux is sensitive to the inner disc temperature, T_in, (Fig. 7 middle row) and not on the power law index, Γ. Thus, the power law flux is an excellent indicator of the presence of QPO state but not the power law index Γ.

From Fig. 7 it is evident, from its relation with the diskbb flux as well as the power law flux, that the deviation of the T_in from its continuous evolution occurs during the QPO states. Furthermore, the QPO state is characterized by less disc blackbody (diskbb) flux but more power law flux. Hence, the contribution of the standard geometrically thin disc appears to be minimal in the case of the QPOs seen in the source (top row, Fig. 7). One interesting inference from Fig. 7 is that the extreme steep power law observations do not correspond to the anomalous (QPO) state. Another important feature is that the disc blackbody flux evolves discontinuously as the source makes the transition from the non-QPO state to single QPO state to twin QPO state and back; whereas, the power law flux undergoes continuous (and monotonic) change as the state transits across the three states defined by the presence and absence of QPOs. Thus, it may be conjectured that saturated Comptonization and the appearance of slim disc might happen to be two opposing features, each competing to establish itself at the other's expense, and for this source the appearance of the QPO can be accepted as a signature of a geometrical evolution of the accretion disc.

5.4 Correlation among the spectral parameters and fluxes

To test for the correlation among the various model parameters (namely T_in, R_in, Γ) and the fluxes of the model components (diskbb and the power law), we have used the Spearman rank correlation (SRC) coefficient adapting the method prescribed by Macklin (1982). For each correlation test between two variables a set of three variables is chosen and the corresponding D-parameter is derived, which gives the confidence level, in terms of standard deviations, that the derived correlation between the first two variables is not due to the influence of the third parameter. If the D-parameter has a value >∣1∣, then the possibility of the correlation of the two parameters can be ruled out as due to the third parameter. The important and significant cases from the results of this correlation test is given in Table 2. The tests were performed separately for the single and the twin QPO states (excluding MJD 52855). The obvious reason for the separation of the two states is that the two states give rise to parallel branches in the parameter space, hence the same value of one parameter will give rise to discontinuous multiple values of the other parameter, killing the opportunity of gleaning any useful information from the correlation test. Given the paucity of data points for the QPO states, the values obtained for the SRC, and especially the D-parameter, is suggestive at its best, but nevertheless it provides important insight into physical scenario of the accretion process.

5.4.1 Single QPO state

From Table 2 it is evident that all the reported correlations are very strong when only individual flaring episode is considered (namely flare 5B; since flare 5A has only three data points its statistical parameters are not obtained, but a visual inspection of Figs 6 and 7 suggests a strong correlated behaviour of the various parameters) for the single QPO state. Since in flare 5B the T_in and R_in are perfectly anticorrelated, the SRC and the D-parameter involving them and any other parameter have the same value with different sign. For the individual flare 5B, the only pair of parameters that give inferior correlation as compared to the combined flaring episodes is T_in and power law flux. This is a statistical conundrum that requires more data, which is currently beyond the scope of the paper.

While the anticorrelation of T_in and R_in is obvious from the spectra (Figs 3 and 5), the anticorrelation of the T_in and the diskbb flux (or conversely, the correlation of the R_in and the diskbb flux) is a bit anti-intuitive, as it is expected that with the accretion disc extending further inwards the flux from the thermal disc component will increase in proportion, but just the opposite happens. In contrast, as the disc supposedly extends inwards, the power law flux increases (see values of T_in:power law flux and R_in:power law flux in Table 2, also see Fig. 7). Furthermore, the power law flux has a very strong anticorrelation with Γ, while the diskbb flux is very strongly correlated with Γ. This coincides with the fact that the power law index Γ is very strongly anticorrelated with the inner disc temperature T_in and positively correlated with the inner disc radius R_in, i.e. as the disc extends inwards the power law hardens and its emission increases. Conversely, the diskbb flux increases as the inner disc extends outwards and the power law index, Γ, steepens. Important point to be remembered is that the QPO states exist within a very narrow band of the values of Γ. Hence, in the QPO states, the power law index, Γ, is very sensitive to the accretion disc related properties and behaves in a very counter intuitive manner which is different from the normal behaviour seen in the non-QPO states (Figs 6 and 7 bottom-right and middle-right panels).

The D-parameter suggests that the spectral parameters (viz. T_in, R_in, Γ) are all independent, while the correlation of the power law flux with the power law index, Γ, is most likely caused by the inner disc parameters. This suggest that the extent of the disc is more important a player compared to the presence of the Compton cloud, during the single QPO state. Additionally, some significant change in the physical and/or geometrical state of the disc is being manifested in the inner disc parameters and their correlation with the model component fluxes.

5.4.2 Twin QPO state

During the twin QPO state, the one parameter that is completely different in values from the single QPO state is the inner disc temperature T_in (Fig. 7). In general, the data points in the scatter diagram of parameter values and the model component fluxes are more clustered than being correlated for the twin QPO state (Table 2 and Fig. 7), especially for the relation of flux values with T_in. Also, the clustering in different flaring episodes do not give rise to discernible branches in the scatter plots, nor are the correlation parameters significantly altered if the analysis is done separately for the individual flaring episodes. But, since the clustering of the data points happens in distinct regions, it is quite possible that the QPO states have different physical origins. Yet, the general trend suggests somewhat similar evolution of the disc and the Compton cloud and their emission as to the single QPO state.

The model parameters T_in, R_in and Γ show equally strong and independent correlation result as in the case of single QPO state. The significant difference of the SRC values from that of the single QPO state is that the power law flux is not correlated to any of the model parameters, while the diskbb flux has weaker correlation compared to the single QPO state. The D-parameter suggest that the Γ:diskBB flux correlation is due to the third parameter R_in (and independent of T_in).

Within the twin QPO state, the power law flux reaches a saturation w.r.t. T_in, while the diskbb flux falls with increasing T_in (Fig. 7). But, in comparison with the single QPO state, the flux of both the components (diskbb and power law) is higher for the twin QPO state. From the top row of Fig. 7, it is evident that during the twin QPO state the diskbb flux increases discontinuously. Hence, the twin QPO state, in a sense, depicts a more extreme version of the evolution of the accretion disc and the Compton cloud.

6 FREQUENCY DEPENDENCE OF SPECTRAL PARAMETERS

The QPO frequency dependence of the various parameters and flux values are essential for further insight to the accretion system. In Fig. 8, the scatter diagram of the various spectral parameters (T_in, R_in, Γ, Powerlaw norm) are plotted with the centroid frequencies of the various QPOs. In Fig. 9, the scatter diagram of the flux values of the spectral model components are plotted with the frequencies. In concordance with the results mentioned in the previous section, the spectral parameters as well as the flux values cluster in different regions for the different frequencies of the QPOs. The SRC coefficient is computed for the correlation between the centroid frequency of the various QPOs and the spectral parameters as well as the flux values. The SRC is computed using any dummy 3rd parameter as in this case the computation of the D-parameter is not helpful. The SRC coefficients are tabulated in Table 3.

Figure 8.

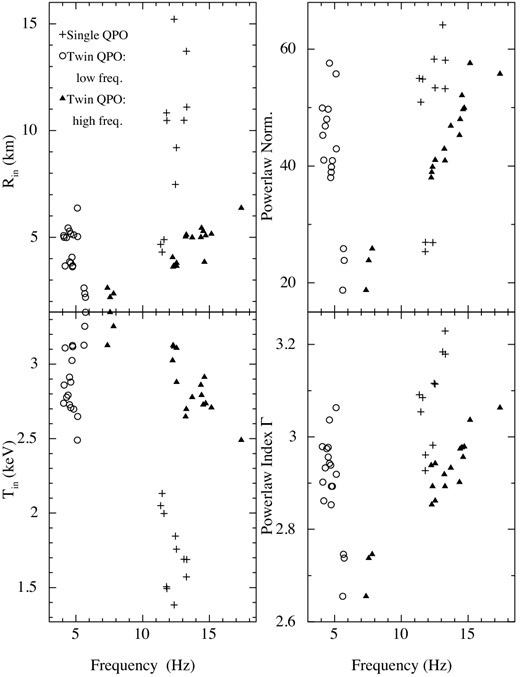

The various parameters of the model components that define the energy spectra for the QPO states versus the frequency of the QPO. Plus marks represent the single QPO state; filled triangles represent the higher frequency of twin QPO state; circles represent the lower frequency of the twin QPO state.

Open in new tabDownload slide

Figure 9.

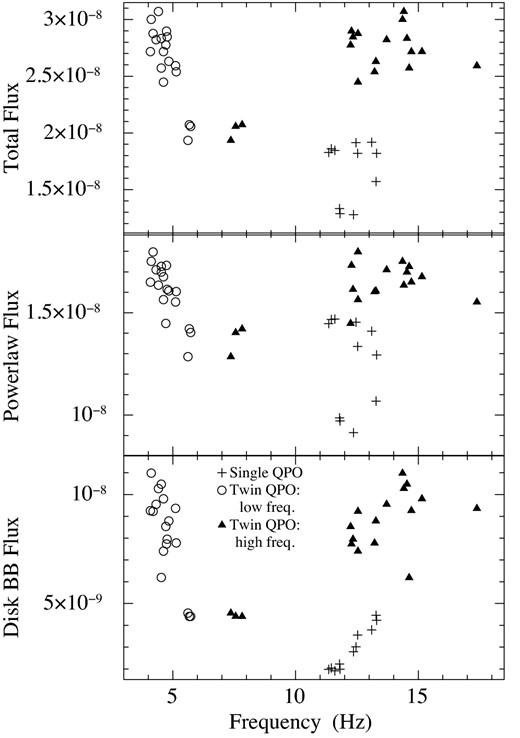

The flux values of the model components that define the energy spectra for the QPO states versus the frequency of the QPO. Plus marks represent the single QPO state; filled triangles represent the higher frequency of twin QPO state; circles represent the lower frequency of the twin QPO state.

Open in new tabDownload slide

6.1 Single QPO state

The correlation of the frequency with the various parameters in this state is much stronger when the individual flare 5B is considered (Table 3). The frequency scales very strongly with the R_in and inversely with the T_in. Therefore, in the course of the evolution of the disc, the QPO frequency decreases as the disc extends inwards and subsequently the inner disc temperature T_in rises. The correlation of the frequency with power law index, Γ, is very strong, but weaker in comparison to the correlation with the inner disc parameters. The frequency is also very strongly correlated to the diskbb flux and strongly anticorrelated to the power law flux.

6.2 Twin QPO state

The twin QPO state show very distinct behavioural features of the two frequencies. The two frequencies show a weak anticorrelation (SRC=−0.56) between themselves. The behaviour of the higher frequency (7–18 Hz) is somewhat similar to the single QPO frequency, with the SRC coefficient being less significant as the scatter of the parameters is more in the twin QPO state. None the less, the frequency scales with the inner disc radius R_in and inversely so with the inner disc temperature T_in. But, the correlation of the frequency is highest with the power law index, Γ. This is in contrast to the single QPO state. This frequency is also correlated with the diskbb flux, but with the power law flux the SRC coefficient value depicts a lack of correlation, hinting at a high scatter of this quantity w.r.t the frequency (but it is definitely not anticorrelated, as was the case for the single QPO state). The D-parameter suggest this frequency is correlated to the T_in and the diskbb flux by the parameter R_in.

The lower frequency (4–6 Hz) does not correlate with the model parameters (Table 3), although it forms a separate tight cluster in the scatter diagram (Fig. 8). Intriguingly, the flux of the model components, however, are strongly anticorrelated to this frequency.

7 EVOLUTION OF THE ACCRETION STATES

Given the results obtained in the previous sections, it is interesting to note the evolution of the structure of the accretion disc. Starting from the quiescent state, the steady build-up of both the flares 5A and 5B (Fig. 2) result in the standard Shakura–Sunyaev disc extending slowly inwards, along with the presence of the Comptonizing cloud (the power law component). The flares 5C, 5D and 5E also behave in the same manner. But for flares 5A and 5B the rise of the flare does not stop with the luminosity peaking at ∼0.4 Crab flux (like it does for flares 5C, 5D and 5E), but continues to increase. This most likely leads to the QPO states when the applicability of the geometrically thin disc model becomes entirely infeasible.

The temporal evolution may consist of the following stages. (1) The Shakura–Sunyaev disc extends inwards beyond a certain threshold with the fall in R_in and rise in T_in. The thin-disc emission reduces and the power law emission (which can be called a non-thin-disc emission) rises. The onset of single QPO state happens and as the R_in falls the value of the single QPO frequency also falls while the T_in rises along with the hardening of the power law component, and the diskbb flux correspondingly falls while there is a rise in the power law flux. (2) The process may undergo a turn around and start evolving in the opposite direction, with a rise in R_in and a corresponding fall in T_in, in addition to all the other correlated changes in the parameters of the model and the QPO, resulting in the corresponding increase in the diskbb flux and decrease of the power law flux. (3) With further change in the accretion and/or disc parameters in the single QPO state, the onset of the twin QPO state occurs. The spectral parameters behave similarly, albeit at a definite higher value of T_in and lower value of R_in, suggesting that the accretion disc extends further inwards. The power law index Γ remains within the narrow limit analogous to the single QPO state. But the power law flux does not depend on the spectral parameters, while the diskbb flux now anticorrelates with Γ, the likely cause being the inner disc radius R_in. Here the higher frequency of the two QPOs behaves somewhat similarly to the frequency of the single QPO state, i.e. it scales with the R_in and inversely with T_in, but the correlation of the frequency is highest with Γ. It is the lower frequency that causes the system to behave in an inexplicable manner. The value of the frequency is anticorrelated with both the thin-disc flux (diskbb) as well as the power law flux. (4) The system may fluctuate within the twin QPO state with corresponding changes in the parameters and fluxes, or it might transit down to the single QPO state. From the single QPO state it might again make a transition to the twin QPO state or it may make the transition back to the canonical state as the flare dies down.

Figs 2 and 3 (bottom panel) show very fast fluctuation of the X-ray emission during the peak phase of the flares 5A and 5B, and this feature is reflected in the spaced out data points of the QPO states in the R_in–T_in plane (Fig. 5). This fluctuation of the flux (Figs 2 and 3) occur independent of any change in the mass accretion rate as the slope of the log–log diagram of R_in–T_in (Fig. 5) remains constant (Watarai et al. 2000; Watarai, Mizuno & Mineshige 2001), provided a transition from the geometrically thin to geometrically slim disc has taken place. In this case the fluctuation of luminosity may suggest some instability in the accretion disc causing the drastic fluctuation of the R_in and T_in along with the onset of the QPOs, or else a fast physical mechanism is removing the mass from the inner disc close to the event horizon, resulting in the truncation of the disc and lowering of luminosity (Figs 7 bottom row). Even though the geometrically thin disc model is incapable of properly parametrizing the comparatively thicker slim disc parameters, but the total luminosity measured from the light curves (3–30 keV for PCA and 1.5–12 keV for ASM) is independent of the spectral model, suggesting that the fluctuation of the disc is a real phenomenon.

This evolution may perhaps indicate that the geometrically thin disc component is actually incapable of giving proper explanation of the spectral evolution, and the power law component of the total flux may contain the emission actually originating from the thicker part of the slim disc. This may also explain the rise of the power law flux with the rise in T_in and fall in R_in as well as the diskbb flux. The onset of the geometrically slim disc may also explain the residue around 8–10 keV that is seen in the QPO states (see Section 2).

7.1 Comparison with 1998 outburst

The 1998 outburst of 4U 1630−47 (outburst 2 as per Abe et al. 2005) is well reported in the literature (Hjellming et al. 1999; Dieters et al. 2000; Tomsick & Kaaret 2000). The duration of this outburst is around 100 d with one major flare with peak flux ∼0.4 Crab lasting for about 60 d and a very small follow up flare with peak flux ∼0.1 Crab flux, that lasted for about 40 d. Using the RXTE/PCA data Trudolyubov et al. (2001) reported the presence of QPOs during the peak phase of this outburst which lasted for about 30 d. They also reported the best-fitting energy spectral parameters of the same (see table 2 of Trudolyubov et al. 2001). The model used was essentially very similar to our model used here, the only difference being the addition of a cut-off power law to fit the 19–100 keV data obtained from RXTE/HEXTE; the RXTE/PCA was used to obtain the spectra in the range of 2–20 keV. From their best-fitting parameters we have calculated the inner disc radius, R_in for the QPO-observations of the 1998 outburst, assuming the source to be at distance of 10 kpc and the binary system inclined at an angle of 60°. The resultant T_in–R_in plot for the 1998 outburst is plotted in Fig. 10 where the data for the 2002–2004 outburst (erstwhile Fig. 5) is also plotted for comparison. The three parallel lines representing the QPO states stand out in Fig. 10, which suggest that the behaviour has extremely close resemblance (albeit qualitative) with the behaviour expected in the presence of a slim disc (Watarai et al. 2000, 2001). During this outburst the presence of harmonically unrelated multiple QPOs in individual observations is reported (see table 3 of Trudolyubov et al. 2001). Hence, the outburst 2 might be very similar to the outburst 5 (flares 5A and 5B) at a lower mass accretion rate.

Figure 10.

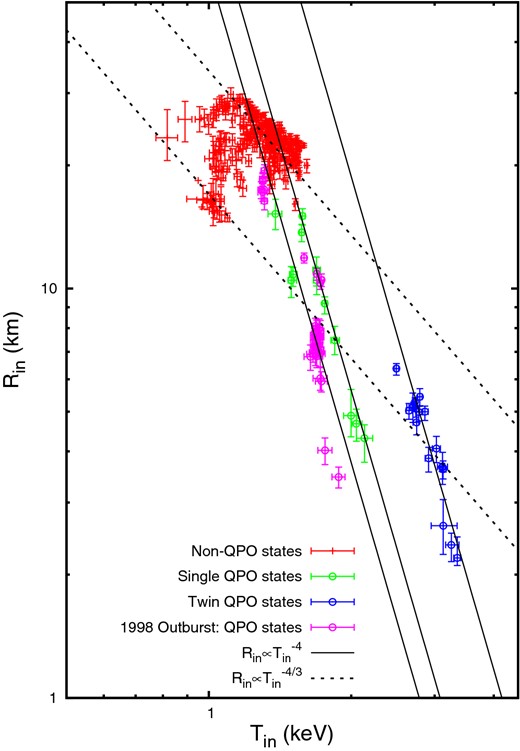

The plot of inner disc radius R_in versus inner disc temperature T_in for all the QPO observations of the 1998 outburst (peak phase) along with the 2002–2004 outburst (Fig. 5). The values of R_in and T_in are obtained from the spectral parameters reported by Trudolyubov et al. (2001) (see the text for details). The red marks represent the QPO states of the 2002–2004 outburst; the green and blue marks represent the QPO sates; the purple marks represent the QPO observations of the 1998 outburst. The non-QPO observations obey the relationship |$R_{\rm in} \propto T_{\rm in}^{-4/3}$| (geometrically thin optically thick Shakura–Sunyaev disc). The QPO observations obey the relation |$R_{\rm in} \propto T_{\rm in}^{-4}$|⁠.

Open in new tabDownload slide

Interestingly, the follow up flares (5C, 5D, 5E and also perhaps 2B) do not exhibit any quasi-periodic behaviour, while their energy spectral parameters also conform to the geometrically thin approximation. Perhaps outbursts with relatively strong mass accretion rate can only give rise to the quasi-periodic behaviour, which appears to be a strong indicator of the formation of slim disc.

8 DISCUSSION

The widely diverse nature of the emission from the Galactic black hole binaries require various classifications schemes to make sense of their radiation mechanism and the underlying physical mechanism (Done, Gierliński & Kubota 2007, and the references therein). The component based classification scheme classifies all the ‘possible’ spectral states of the black hole systems into five states (McClintock & Remillard 2006). On the other hand the model-independent classification scheme of Homan & Belloni (2005) pays more stress on the transition between the states (Fig. 11) and the related radio emission from the outflow from the system. The component-based classification scheme (McClintock & Remillard 2006) uses a multicoloured optically thick geometrically thin accretion disc model (best parametrized by the simplistic diskbb model) with a combination of a power law and/or cut-off power law. Hence the basic premise of the whole classification scheme is based on a geometrically thin disc. As a fallout, all the popular complex models used to fit the X-ray emission spectra are implicitly based on the assumption of the accretion disc being geometrically thin (see for eg. Kubota et al. 1998; Gierliński et al. 1999; Zimmerman et al. 2005; Gou et al. 2011). Although the classification of Homan & Belloni (2005) is based on the colour–intensity evolution during the state transition of the sources and hence independent of the specific physical model used to describe the spectra, the physical interpretation of these transitions have an implied assumption of geometrically thin disc (Belloni 2005; Belloni, Motta & Muñoz-Darias 2011). Comparatively, the attempt to fit observational data to the slim disc model has been sparse and few (namely Watarai et al. 2001).

Figure 11.

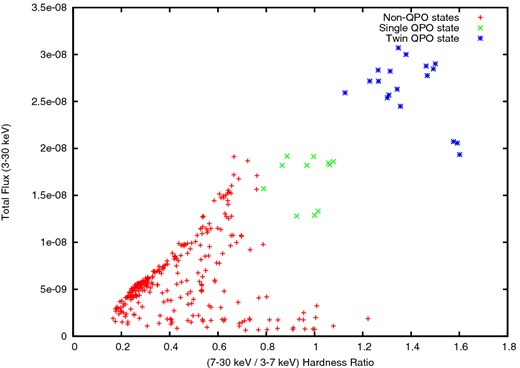

The intensity–hardness ratio plot for the source 4U 1630−47 during the outburst 5. The red plus marks represent the non-QPO state, the green crosses represent the single QPO state and the blue crosses represent the twin QPO state.

Open in new tabDownload slide

The classification of the low-frequency QPOs into three main types (Wijnands, Homan & van der Klis 1999; Homan et al. 2001) for the black hole binary system is quite established (Casella et al. 2005). This classification is helpful in providing greater depth to the understanding of the energy spectral component-based classifications described above. This A-B-C classification scheme normally requires the presence of one fundamental frequency along with its harmonic (or at times the subharmonic) (Casella et al. 2004). The presence of multiple QPOs with frequencies not harmonically related in the source 4U 1630−47 adds to the complexity of classification of these states. But, the observation of simultaneous non-harmonically related QPOs is not unique to the source (Motta et al. 2012). A complete understanding of all the QPO observations covering the various types of outbursts of the source continuously monitored by the RXTE is needed to properly classify the QPOs observed in this source.

Rao et al. (2000) do suggest that the low frequency QPO may occur due to the formation of shock in the transition region of the geometrically thin but optically thick accretion flow and the low angular momentum optically thin accretion flow. Thus the possibility of high inner disc temperature occurring due to electron scattering cannot be ruled out at the moment, with the seed photon of the Compton scattering originating at the optically thick geometrically thin disc and the Compton up scatter occurring in the optically thin cloud. Nevertheless, the failure of the Comptonzation models to fit the energy spectral data with physically meaningful parameters suggests that the T_in–R_in behavioural pattern in Figs 5 and 10 is qualitatively correct. The similarity between the T_in–R_in relationship and the model provided by Watarai et al. (2000) provide the formation of slim disc as a very attractive physical option hitherto not explored. Detailed physical mechanism of the thick accretion disc need to be modelled to explore the possible physical mechanisms that may give rise to the QPO phenomena (namely diskosiesmology; Wagoner 2012). The possibility of X-ray emissions from the jet during the anomalous state (Trigo et al. 2013) requires the explanation of the possibility of the QPO phenomenon occurring in the outflow.

The observed coincidence of the appearance of the QPOs and the onset of slim disc, with or without the outflow emitting in X-rays, opens up many new possibilities in the modelling of the accretion disc for this source in particular and other black hole binary systems in general. The need of the hour is to develop a generalized multicoloured accretion disc model that would enable a smooth transition from the geometrically thin to the geometrically ‘thicker’, i.e. slim, disc, along with the emission from the out flowing jets.

9 CONCLUSION

In this paper, we report the onset of an anomalous accretion state during at least two of the many outbursts exhibited by the black hole binary system 4U 1630−47. This anomalous state is very closely associated with the appearance of low-frequency QPOs. The source of the QPO during the unusual state needs to be explored theoretically. One possibility is the formation of shock in the transition region of the thermalized multicoloured geometrically thin and optically thick accretion disc and the Comptonizing plasma cloud which is geometrically thick and optically thin. The other option is the change in the physical and geometrical state of the accretion disc and the thin disc transforming into a thick disc with increase in accretion rate.

For this source the outburst may consist of more than one flaring events. During each flaring event, the mass accretion is perhaps the most legitimate cause of the peak value of the flux measured from the flare. From the two outbursts covered (1998 and 2002–2004), it appears that the onset of the slim disc, if it appears, happens if the flux approaches a value of ∼0.4 Crab and beyond. Otherwise the geometry of the disc remains thin and the non-thermal emission is best explained to originate from the optically thin Comptonizing cloud, and/or from the shock region at the boundary of the accretion disc and the Compton cloud. In such a scenario the formation of the slim disc and the existence of the Compton cloud might be competing events: but the last word in this cannot be claimed from the given data reported here. The T_in–R_in behavioural patterns qualitatively suggest that for each flare the mass accretion perhaps does not change much but the slim disc phase sees a lot of fluctuation in terms of R_in as well as T_in. This change in the inner disc temperature and the inner disc radius may be due to instability on the disc or the disappearance of matter from the inner part of the disc.
