Variable stars in two open clusters within the Kepler/K2-Campaign-0 field: M35 and NGC 2158^★† Free

Abstract

1 INTRODUCTION

We present the first report of the multiyear, multiwavelength photometric survey programme ‘The Asiago Pathfinder for HARPS-N’, aimed at characterizing variable stars and transiting-exoplanet candidates in five open clusters (OCs). This survey will also select promising targets for accurate HARPS-N@TNG follow-up spectroscopic observations, including exoplanet search programmes.

High-precision light curves are required for point-like source periodic variability searches, in particular for planetary transits. Although the chances of catching a transiting planet among the members of a typical sparse OC are rather small (van Saders & Gaudi 2011), one has to take into account that more than 50 000 stars are detected by our instrument in a typical low Galactic latitude field. This number has to be multiplied by the number of fields monitored during the survey.

Many of the clusters to be studied over the next four years are within the field to be observed by the Kepler-2 Mission (K2) campaigns¹ (Howell et al. 2014), following the huge success of the original Kepler mission (Koch et al. 2010). Therefore, the timing of our investigation is particularly important, as our observations will be useful extending the baseline of the K2 survey (K2 will observe a given field for only about two months). It will help to identify long-period variables (magnetic cycles, Mira oscillations, etc.) and refine the ephemeris of every transit-like signal which is detectable from the ground.

In this study, we focused on the search for photometric variable sources in one of our selected fields, a patch of sky covering ∼0.6 deg² and containing both the young, sparse and relatively nearby OC Messier 35 (M35 = NGC 2168; age 180 Myr; apparent distance modulus (m − M)_V ≃ 10.4; Kalirai et al. 2003) and the older, more distant, and more concentrated NGC 2158 (1.9 Gyr; (m − M)_V ≃ 14.3; Bedin et al. 2010).

There are several papers devoted to the search and study of variable stars in these two OCs. For example, Meibom, Mathieu & Stassun (2009) presented a detailed study of the period–colour relation of the rotating stars of M35, and Mochejska et al. (2004, 2006) studied the variability in a field centred on NGC 2158. In particular, they found a candidate transiting-exoplanet (TR1), that we are not able to confirm in this work.

The aim of this investigation is to discover new variable stars in the K2-Campaign-0 field containing the two target OCs, and refine the periods of the already catalogued variables. The paper is structured as follows: in Section 2, we report our data set; in Sections 3 and 4, the software for the extraction and detrending of light curves is presented; in Section 5, we show the tools used for finding variables stars; Section 6 is dedicated to the characterization of the variables found in the M35 and NGC 2158 field; in Section 7, we describe the available electronic material. Finally, Section 8 summarizes our work.

2 THE DATABASE

All data used in this work come from the Asiago 67/92 cm Schmidt Telescope, located at 1370 m on Mt Ekar (longitude 11| $_{.}^{\circ}$|5710 E, latitude 45| $_{.}^{\circ}$|8430 N); this facility belongs to the Astronomical Observatory of Padova (OAPD – Osservatorio Astronomico di Padova), which is part of the Istituto Nazionale di Astrofisica (INAF). The instrument mounted at the Schmidt focus is an SBIG STL-11000M camera, equipped with a 4050 × 2672 pixel Kodak KAI-11000M detector, having a pixel size of |$9\,\mu \textrm {m} \times 9\,\mu \textrm {m}$|⁠, a pixel scale of 862 mas pixel⁻¹ (resulting in a 58 × 38 arcmin² field of view), electronic gain of 0.92 e⁻ADU⁻¹, and a readout noise (RON) of 12 e⁻s⁻¹. The detector is cooled with a thermoelectric Peltier stage, coadiuvated by a radiator with glicole that keeps the operating temperature between −30 and −20°C.

Under the long-term observing programme ‘The Asiago Pathfinder for HARPS-N’ (PI: Bedin), four fields were awarded with 80 nights per year, during three observing campaigns. Taking into account the weather losses, the number of nights statistically guarantees a minimum of 10 nights per year in three observational campaigns.

The first observing season was a pilot programme. We aimed to have the highest number of stars collected with as many photons as possible. Therefore, data were collected in white light (hereafter indicated with filter N, for ‘None’). The unfiltered CCD throughput roughly peaks at ∼500 nm. The exposures were long 120 s, long enough to maximize the duty cycle, the cadence, and the dynamic range versus sky brightness; in this way, we were able to measure faint stars (down to V ∼ 20) and to monitor more stars in this relatively low Galactic-plane field. After analysing season-one data, we realized that the number of stars was adequate, and that we would be able to follow the same stars in a more thoughtful pass-band, filter R, at the cost of slightly increased exposure times (180 s). This would allow better comparison with stellar models and at the same time suppress noise due to larger chromatic and sky-brightness effects. It was also clear from the pilot data set that adding short exposures of 15 s would have extended the photometric monitoring to a non-negligible sample of saturated stars. There is an additional benefit in alternating short and long exposures besides the increased dynamic range. The use of short exposures means that unsaturated data will still result from the bulk of the stars in the case of extremely good seeing. Short exposures could not be shorter than 15 s because of the reliability on the shutter time. Therefore, when season two and three were accepted, we decided to alternate between these short and long exposures in filter R only.

Preliminary results from first two seasons shown that we were able to find many new variables in the field (and 21 variables were found in the photometric series from short exposures, Section 5). Once the variable stars are found, the natural follow-up is to collect information about their spectral energy distribution. Therefore, in the third season, we collected long exposures alternating both B and R and occasionally, we took exposures in V. Colour information is particularly important for the characterization of the components of binary systems, not only off-eclipse, but possibly also during the eclipses. Given the successful outcome of this project, additional observing time for follow-up observations in the I band has been allocated (unfortunately U is not doable from Asiago) for the M35 and NGC 2158 field.

During the first year, the fine pointing of the field was not optimal. There is an incomplete overlap between the N and B R V photometric series, resulting in an ∼10 per cent sky area not imaged through all the four filters.

Observations included standard calibration data (bias, dark, sky and dome flats) at the beginning and end of each night. In Table 1, we give a log of the observations. Fig. 1 shows the histograms of the number of images gathered each night for a given filter during the three seasons.

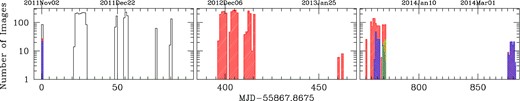

Figure 1.

Histogram of the number of images per night collected during the first three campaigns of our programme. The white histogram refers to the observations in white light, the red, blue, and green histograms refer to observations in the R, B, and V filters, respectively.

Open in new tabDownload slide

For the other clusters of this survey, we will adopt the following strategy: long + short R exposure in the first season, and multifilter characterization in the following seasons. With our instrumentation, this turns out to be a rather effective strategy, doubling the number of known variables in a relatively well-studied field such as that of M35 and NGC 2158.²

3 DATA REDUCTION

For all our reductions, we developed custom software tools written in fortran 77 or fortran 90/95, adapted from the same software described in previous papers by some of the co-authors of this work (we will give in the following brief descriptions and references).

3.1 Pre-reduction

The first stage of our pipeline produces master biases, master darks, and master flats for each night. Such master frames are clipped means of the individual calibration images gathered on each observing night. We almost always used dome flats, because they proved to be more accurate and stable than typical sky flats. Flats were bias-subtracted, while science images were dark-subtracted, the master dark being constructed from darks having the same exposure time as the photometric series. The dark-subtracted scientific images were then divided by the bias-subtracted flats of the corresponding filter. The correction was performed by using a custom master-flat field for each night.

3.2 Point spread functions

The point spread function (PSF) of the Asiago Schmidt camera is almost always well sampled, with the exception of a few images collected in the best-seeing conditions. In these cases, only the central part of the detector is affected by undersampled PSFs, in which the image quality, measured as the full width at half-maximum, is below 1.8 arcsec.

To compute the PSF models, we developed the software img2psf_Sch in which our PSF models are derived in a completely empirical fashion. This code follows a similar software developed for the Wide Field Imager (WFI) mounted at the European Southern Observatory (ESO)/Max-Planck-Gesellschaft (MPG) 2.2m data, and described in depth in Anderson et al. (2006). The Asiago Schmidt PSFs are modelled through an array of 201 × 201 grid points, which super-sample the PSF pixels by a factor of 4 with respect to the image pixels. A bicubic spline is then fitted to interpolate the value of the PSF in between these grid points. Furthermore, in order to model the considerable amount of spatial variations of the PSFs across the field of view (FOV) of each individual image, we divided the detector in 9 × 5 regions, and empirically derived the PSFs independently within each of these subregions. A bilinear interpolation is then applied to obtain the best PSF model at any specific location on the detector. This interpolation is performed for every individual star on each frame (Anderson et al. 2006).

3.3 Astrometry

During the first and the third observing seasons, 25 images with both large and small dithers were collected with the purpose of solving for the geometric distortion of the Schmidt camera. We carried out the same self-calibration procedure described in several of our previous works (for example, Anderson et al. 2006; Bellini & Bedin 2010; Bellini, Anderson & Bedin 2011; Libralato et al. 2014). The average geometric distortion is about 1 pixel from corner to the centre of the detector (i.e. ∼1 arcsec).

We applied this geometric distortion solution to the raw star positions obtained by fitting our empirical PSFs in each individual image. The distortion-corrected positions of each image were then transformed into a common distortion-corrected reference frame. We employed as reference frame the distortion-corrected positions of the image with the smallest airmass and the best seeing in R (the ID of this image is SC23779).

We considered the most-general linear transformations (six parameters, i.e. two shifts, rotation, a scale factor, two skew terms), and derived through a linear least-squares fit of the pairs of distortion-corrected coordinates of all (well-measured) stars in common between the two frames (the considered frame, and the reference frame). Such lists of pairs were saved in the so-called transformation files.

The consistency of positions on the reference frame tells us how well we are able to transform the coordinate system of one image into another image taken at a different epoch. For the best stars (below saturation, isolated and measured with a high signal-to-noise ratio), we found a consistency in position of about 20 mas (i.e. ∼0.02 pixels). Not enough to determine accurate proper motions for most stars with the available time baseline, but accurate enough to register time-series photometry.

3.4 Stacked images

The transformations from the distortion-corrected coordinates of each image into the reference frame were used to create a stacked, high-signal-to-noise image of the field for each filter. The ‘stack’ provides a deeper view of our FOV. The stack for the filter R is shown in Fig. 2. We edited the header of each of these stacked images, adding World Coordinate System keywords, where the absolute astrometric solution was computed matching the 2MASS (Skrutskie et al. 2006) point source catalogue with our sources. The absolute astrometric accuracy of 2MASS is estimated to be about 200 mas.

Figure 2.

Stacked R-filter image from our data. The blue circle marks the M35 region. The red circle marks the region of NGC 2158.

Open in new tabDownload slide

As part of the material provided in this paper, we make electronically available the astrometrized stacked images for each filter.

3.5 The master star list

Stacked images contain much more information than individual exposures, having essentially a much higher S/N. In the case of the R and N stacks, images have integrated exposure times thousands of times longer than that of a single image. The increased depth means that we could extract more complete and unbiased star lists. Using the same software described in Section 3.2, we derived improved star lists from the R- and N-stacked images, i.e. the deepest ones. Our finding algorithm takes all the local maxima above the local sky with an integrated flux of at least three digital numbers, and isolated by at least 3 pixels from the nearest peak. Positions and fluxes on the stacked images were obtained by simultaneous PSF fitting of the target star and all of its neighbours, in an iterative fashion. The program that performs the finding and simultaneous iterative PSF fit, img2xym_sch, is an adaptation of the code img2xym_wfi presented in Anderson et al. (2006) and thereby described in details. All the objects in the R-star list were then transformed to the astrometric and photometric system of the reference image (ID SC23779). For the N-star list, the photometric reference system of image SC25458 was adopted, but coordinates were kept in the R-astrometric reference frame.

The above-mentioned star lists initially contained a large number of false detections, such as PSF artefacts, warm pixels, etc. We purged the star lists from artefacts and non-stellar objects as follows. Most of the background galaxies were discriminated using the qfit parameter, a diagnostic related to the quality of the PSF fit and described in Anderson et al. (2008). The artefacts of the PSFs are identified using the procedures described in Libralato et al. (2014).

The final N+R combined and purged star list contains 66 486 objects and constitutes the catalogue that will be used for the extraction of light curves throughout the following sections. We refer to this catalogue as master star list (hereafter, MSL).

3.6 Photometry with and without neighbours

To extract light curves, we developed a parallel code written in fortran 90/95 which uses openmp, in order to run simultaneously on several CPU cores (32 on our workstation). The software takes as input (i) the MSL catalogue as defined in the previous section, (ii) the PSFs described in Section 3.2, and (iii) the lists of pairs of coordinates described in Section 3.3 (transformation files; stars in common between the MSL and each individual image). In this work, we extracted the raw fluxes of all point source detected in the field (i.e. in the MSL) using both PSF and aperture photometry, keeping for the final stage of the analysis only the photometric reduction that minimizes the scatter in the extracted light curves (as we describe in the next sections). We already described the local PSF technique in Section 3.2, while aperture photometry is computed through a traditional approach, by running a software pipeline originally developed for the TASTE project (The Asiago Search for Transit timing variations of Exoplanets; Nascimbeni et al. 2011). The underlying routines are explained in details in Nascimbeni et al. (2013).

For each target star in the MSL, light curves are extracted in two parallel versions. A first version from the original images, and a second one from images where the neighbours close to the target star were PSF-fitted and subtracted. The neighbour subtraction is done as follows. For each target star, we computed six-parameter local transformations between the MSL reference systems and the distortion-corrected coordinates of stars in the individual image, using the best measured bright, unsaturated and isolated stars located within 500 pixels of the target star. The magnitudes in the two reference systems are also used to register the fluxes in the two photometric systems. With these local transformations, magnitude shifts, and PSFs, the stars of the MSL located less than 35 pixels from the targets are modelled and subtracted from each individual image. Note that such modelling requires an inversion of the geometric distortion solution to obtain the coordinates on the raw image reference system. Fig. 3 compares a patch of sky around a typical target star: (1) on the stacked image, (2) in an individual image before the subtraction of the neighbours, and (3) after the neighbour subtraction. After the subtraction procedure, the software performs four parallel reductions: aperture and PSF-fitting photometry of the target star, both on the original frames and on the images where the nearby stars are subtracted. The centroid used for aperture photometry of the target star is computed using the same local six-parameter transformations described above.

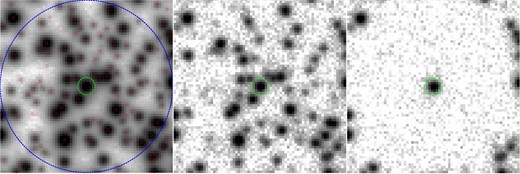

Figure 3.

An example of neighbour subtraction. The left-hand panel shows a typical subregion of the stacked image; all detected sources are marked with red circles. The middle panel shows the same for an individual image (SC23893); the target star is located at the centre of the panel (marked by a green circle). The right-hand panel shows the same region after the subtraction of neighbours within a radius of 35 pixels.

Open in new tabDownload slide

We found that adopting a dynamical aperture, i.e. adapting the radius r of the circular photometric aperture to each image, provides the best photometry. From theoretical computations, we know that in the case of a two-dimensional Gaussian PSF the optimum S/N ratio is provided by an aperture radius r ≈ 0.68 × FWHM (see for example: Mighell 1999). About 72 per cent of the total stellar flux is enclosed within this radius. However, we empirically found that larger apertures result in light curves of smaller scatter for objects at the bright end of our sample. As a compromise, we adopted r = 1 × FWHM, which improves aperture photometry for stars having instrumental magnitudes <−10.5, but at the cost of worsening the photometry of faintest stars.

The fitting radius of the PSFs was set to a constant value, equal to 2.65 pixels, as it proved to minimize the scatter of the light curves at all magnitudes.

For all the four reductions, we computed the local value of the sky background within a circular annulus of inner radius r_in = 7.5 σ and outer radius r_out = r_in + 8, where σ = FWHM/2.355 is the standard deviation of the best-fitting Gaussian PSF.

We found that photometry on images after neighbour subtraction performs – on average – better than that computed on original images. This is illustrated in Fig. 4: the top panels display the comparison between the photometric rms (left-hand panel in the case of aperture photometry, right-hand panel in the case of PSF photometry) obtained from original images (red) and the photometric rms after neighbour subtraction (blue); the lower panels show the improvement of the neighbour-subtracted algorithm regarding the photometric rms, averaged over 0.1-mag bins. Therefore, in the following (unless otherwise quoted) we will make use of light curves derived from aperture and PSF photometry obtained from neighbour-subtracted images.

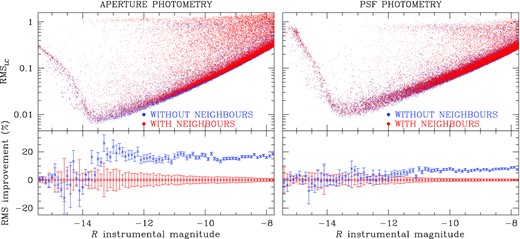

Figure 4.

Photometric rms derived from the original ‘long’ R images (in red) compared to the rms obtained from the same images after neighbour subtraction (blue), for both aperture photometry (left) and PSF photometry (right). The lower panels show the percentage improvement of the neighbour-subtracted algorithm on the rms, averaged over 0.1-mag bins. The error bars are given as the 68.27th percentile of the residuals around the median values.

Open in new tabDownload slide

4 DETRENDING OF LIGHT CURVES

To remove residual systematic errors from the light curves derived in the previous section, we followed the procedure described in detail by Nascimbeni et al. (2014). For each target star, we selected a group of reference stars, which are used to define the local photometric zero-point of each target in all the individual images. These reference stars were empirically and iteratively weighted to minimize the scatter on the final differential light curve. A first list of candidate reference stars is selected by computing the median photometric scatter σ of the raw light curves as a function of magnitude, then binning over magnitude bins and discarding every source with a rms 4σ larger than the median rms of the corresponding magnitude bin.

A short description of the detrending algorithm follows. Let us consider the kth target star, the jth reference star, and the ith epoch where both k and j stars are detected. First, we computed the differential light curve m_{i, k} − m_{i, j}, its median magnitude, and scatter σ_jk, which are then used to compute the initial weights |$w_{jk}=1/\sigma ^2_{jk}$| for each reference star. The final weights are obtained multiplying w_jk by two additional factors: |$W_{jk}=(1/\sigma ^2_{jk}) D_{jk} M_{jk}$|⁠. The factor D_jk is an analytic function of the relative on-sky position (ρ_jk) between the reference star and the target star: it is zero within a radius r₀ = 20 pixel to avoid blending and/or contamination, it is equal to the one between r₀ and r_in = 200 pixel, and decreases exponentially with ρ_jk from one to zero with a r_out − r_in scale radius, where r_out = 300 pixel. The weight M_jk is defined in a similar way, as a function of the magnitude difference ϕ_jk = ∣m_j − m_k∣ between the target and the reference star: it is equal to unity when this difference is less than f_in = 1.0 mag, otherwise it decreases exponentially with ϕ_jk with f_out − f_in scale radius and f_out = 1.75 mag. The D_jk and M_jk factors assign a larger weight to reference stars which are closer to the target and of similar brightness, minimizing flux- and position-dependent systematics.

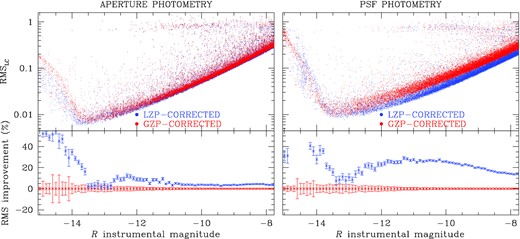

Figure 5.

Photometric rms, obtained from neighbours subtracted images, for GZP-corrected (red) and LZP-corrected light curves (blue). This is shown for both aperture photometry (left) and PSF photometry (right). As in Fig. 4, the bottom panels show the improvement of the LZP algorithm compared to the GZP one.

Open in new tabDownload slide

Finally, the rms of the neighbour-subtracted, LZP-detrended aperture versus PSF-fitting photometry is compared in Fig. 6, for long exposures in the R filter. It appears that aperture photometry performs on average better than PSF-fitting photometry on bright stars (with instrumental magnitude <−10.5), while PSF-fitting photometry gives best results on fainter stars, as expected (see Section 3.6). From here on, for each target star in the MSL, only the light curve that provides the smallest overall scatter goes through the next stages of analysis.

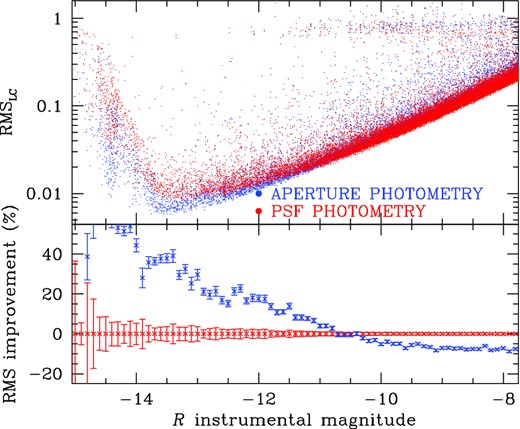

Figure 6.

Top panel: photometric rms as function of R instrumental magnitude for PSF photometry (red) and for aperture photometry (blue). Bottom panel: percentage variation with respect to PSF-fitting photometry. This shows that for bright stars (instrumental R < −10.5) aperture photometry is better than PSF photometry.

Open in new tabDownload slide

5 VARIABLE FINDING

We employed three different software tools to detect candidate variable stars in our data set of LZP-corrected, neighbour-subtracted light curves. These are the Lomb–Scargle (LS) periodogram (Lomb 1976; Scargle 1982), the Analysis of Variance (AoV) periodogram (Schwarzenberg-Czerny 1989), and the Box-fitting Least-Squares (BLS) periodogram (Kovács, Zucker & Mazeh 2002). All these tools are implemented within the code vartools v1.202, written by Hartman et al. (2008) and publicly available.³

The LS algorithm is most effective in detecting sinusoidal or pseudo-sinusoidal periodic variables. It provides the formal false alarm probability (FAP) as a quantitative diagnostic to select stars with the highest probability to be genuine variables. We searched for more general types of periodic variables through the AoV algorithm, as it is based on variance minimization with phase binning, which is a more flexible approach. As for the LS method, we used the AoV FAP metric Θ to select stars that have a high probability to be variables. The BLS algorithm is particularly effective when searching for box-like dips in an otherwise flat or nearly flat light curve, such as those caused by detached eclipsing binaries (EBs) and planetary transits. In order to select good candidates, we used the diagnostic parameter ‘signal-to-pink noise’ (Pont, Zucker & Queloz 2006), as defined by Hartman et al. (2009). Before running the periodograms, we converted the temporal axis of all light curves from Modified Julian Date to the Barycentric Julian Date reference frame and Barycentric Dynamical Time standard. This standard provides consistency and is much more reliable when comparing observations on very long baselines (Eastman, Siverd & Gaudi 2010).

We searched for variables independently on both the aperture- and the PSF-fitting light curves (LZP-detrended, from neighbour-subtracted images). These finding algorithms were also run independently on both the R and the N photometric series. On the R light curves, we employed LS and AoV to search for variables with periods between 0.01 and 881 d, with a sampling of 0.0005 times the Nyquist one in the frequency space. The period interval set for the BLS algorithm is between 0.5 and 881 d. On the unfiltered light curves (N), LS and AOV were set to periods between 0.01 and 85.5 d (frequency sampling of 0.0005 times the Nyquist one), while BLS between 0.5 and 85.5 d.

For all three finding methods (LS, AoV, BLS), we applied the procedure illustrated in Fig. 7 to identify the candidate variables. We first constructed the histogram of the detected periods for all the light curves (panel a of Fig. 7); spikes in the histogram at this stage are probably associated with spurious periods due to systematic errors, such as instrumental and atmospheric artefacts, which affect a significant fraction of light curves even after the LZP correction. We removed from our catalogue those stars close to the spikes as follows: for each period P₀ of the histogram of Fig. 7(a), we considered a region around it of radius equal to 50 × δP, where δP is the bin chosen to build the histogram. We computed the median of the counts of the considered bins, and we flagged P₀ as spike if the associated counts are 5σ above the median, where σ is the 68.27th percentile of the sorted residuals from the median value. For the periods associated with spikes, we kept the light curves with low FAP (or high AoV or signal-to-pink-noise), i.e. the light curves above the 99.5th percentile of the −FAP (or the AoV or signal-to-pink-noise – see panel b of Fig. 7). Panels (c) and (d) show the FAP as a function of the detected period, respectively, before and after the spike subtraction. As a last step to select candidate variables, we divided the distribution of panel (d) in 25 period bins and selected only stars above the 97th percentile of −FAP.

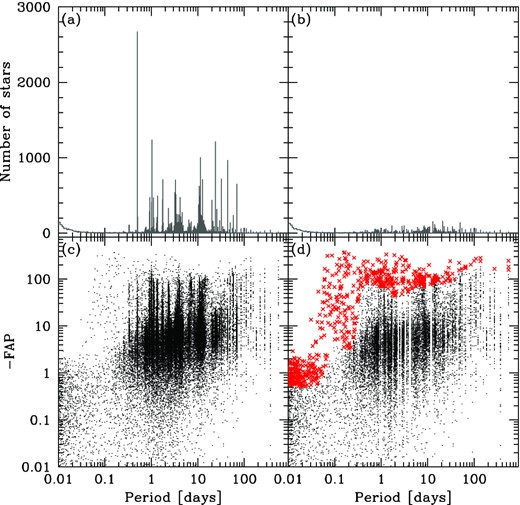

Figure 7.

Example of the procedure followed for the extraction of candidate variables from the data set of light curves in the case of LS algorithm. Panel (a): distribution of the periods obtained from all the light curves; panel (b): distribution of the periods after spikes suppression; panel (c): periods of light curves as a function of FAP for all the stars; panel (d): the same of panel (c) after spikes suppression. The suspected variables are displayed in red. See the text for details.

Open in new tabDownload slide

Finally, we combined the lists of candidates obtained with the three aforementioned methods, and visually inspected each of them. We identified 519 real variables: BVRN light curves are available for 442 of them, while for 37 objects only BVR light curves are available. 19 stars have only N light curves, and the remaining 21 have only short exposures in R. For the 442 variables in common between R and N, we refined their periods with the following recipe. For each star, we normalized the R and the N light curves to zero by subtracting the median magnitude. Then we merged the two light curves. In this way, we obtained a normalized light curve that spans three years. We ran the vartools algorithms LS, AoV, and BLS on this normalized light curve using the same parameters described above, to find the best period of the associated variable star. While no modelling can be carried out on such hybrid light curves, the uncertainty on the resulting period is clearly lowered.

6 VARIABLES AND LIGHT CURVES

Amongst the 66 486 stars we found 519 variables, which appear to be point-like sources in the R and N stacked images: 246 of them are already known variable stars and 273 are new ones. The list of all variables is given in Table 2: we provide our identification number, position, period, magnitudes (when available) in BVRJ_2MASSH_2MASSK_2MASS, variable type,⁴ and the cross identification with known variables.

Fig. 8 shows the folded light curves of all the variables listed in Table 2 (all figures are available in the electronic version of the journal): each panel shows, from top to bottom, the light curves in white light N (black), in R (red), B (blue), and V (green) filters. For each filter, the y-axis has the same extension in magnitude range. The identification number and the determined period are reported above each panel.

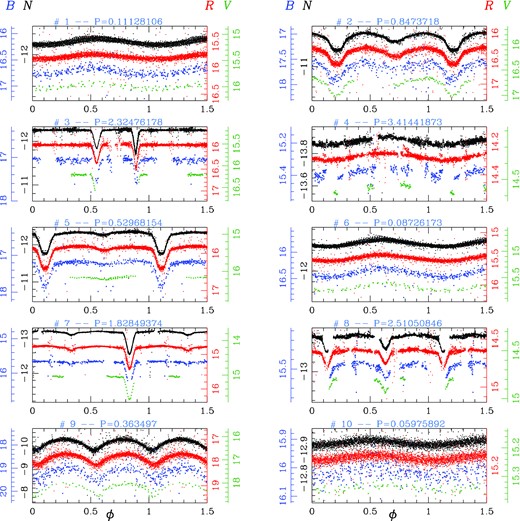

Figure 8.

Light curves of the first 10 variables. For each variable star, we show (when available) the N (black), R (red), B (blue) and V (green) light curves from top to bottom of each panel.

Open in new tabDownload slide

Fig. 2 shows the stacked image in the R filter. For illustrative purposes, we define two regions around the two clusters: the blue circle which should contain prevalently stars belonging to M35 inside an arbitrary radius of about 13.8 arcmin, while the red circle with a radius of 6.0 arcmin should include mainly NGC 2158 stars. The B versus (B − V) colour–magnitude diagram (CMD) of the stars within the blue circle is shown in the left-hand panel of Fig. 9. The central panel shows the CMD of the stars within the red circle and in the right-hand panel the CMD of the stars outside both regions. Clearly, the CMD of each region shows contamination by stars from the other two regions.

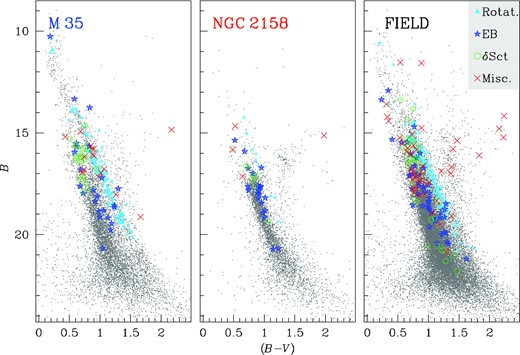

Figure 9.

Left-hand panel: stars inside the region delimited by the blue circle (M35) in Fig. 2. Central panel: stars inside the region delimited by the red circle (NGC 2158) in Fig. 2. Right-hand panel: stars outside the region delimited by the blue and red circles in Fig. 2. Different symbols represent different variable types: azure triangles for rotating stars, blue stars for EBs, green open circle for δ Scuti and red crosses for the other variables.

Open in new tabDownload slide

6.1 Membership

We used the membership probabilities given by Dias et al. (2014) to verify the membership of the identified variable stars. We found 248 common stars between our catalogue and their M35 catalogue; of these stars, 197 have a probability ≥50 per cent to belong to M35. By matching our catalogue of variable stars with the NGC 2158 catalogue of Dias et al. (2014), we found only nine stars in common, five of which have a membership probability ≥50 per cent.

The membership probabilities for the two clusters are tabulated in columns 13 and 14 of Table 2.

Fig. 10 shows two CMDs with the largest colour baseline, the CMD in the Johnson filters, B versus (B − R) (left-hand panel), and the CMD obtained combining the white light N (which peaks at ∼500 nm) and the 2MASS IR-filters, J_2MASS versus (N − K_2MASS) (right-hand panel). In both CMDs, we plot the variable stars we have identified, with different symbols and colours according to their type.

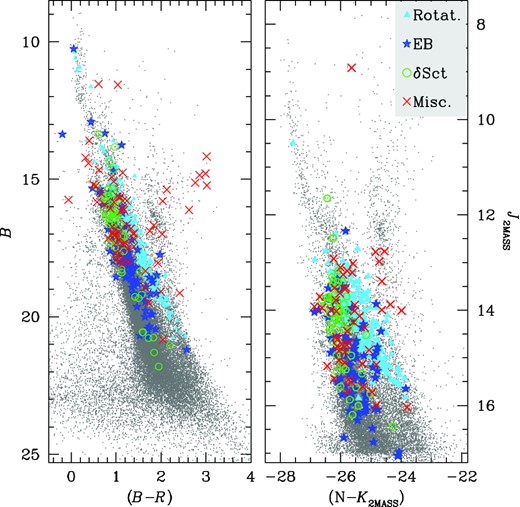

Figure 10.

B versus (B − R) (left-hand panel) and J_2MASS versus (N−K_2MASS) (right-hand panel) CMDs. The variable stars are displayed as follows: azure triangles are rotational stars, blue stars are EBs, green circles are δ Sct, and red crosses are other variables such as long period, non-periodic, etc.

Open in new tabDownload slide

6.2 Eclipsing binaries

We extracted 97 light curves of EBs: 41 of these were previously known, the others are new. Many of them are detached systems that, if cluster members, offer the potential for obtaining very precise cluster ages and distances and for testing stellar evolution models, e.g. along the lines of Brogaard et al. (2012). For nine of these new EBs, we have membership probabilities from Dias et al. (2014): we found that eight of them have a high probability (≥87 per cent) to be members of M35. They are V8, V149, V231, V271, V422, V513, V514, and V517. For NGC 2158, we have no membership information, but looking at Fig. 10, there is a good chance that a substantial fraction of the eclipsing systems in the field of NGC 2158 are members, since they are located along the cluster sequence in the CMD.

The period distribution of the identified EBs is likely to be significantly biased towards short periods and the periods for the longer period systems are uncertain as in common for ground based surveys (Rucinski, Kaluzny & Hilditch 1996). However, complementary observations from K2 should alleviate these issues once analysed.

6.3 Rotating stars

We classify 284 of our variables as rotating stars, of which 122 are new discoveries. Their light curves show sinusoidal light variations, mainly due to the star-spots that follow the surface rotation. We found that, for many of these stars, the shape of the light curves changes during the three years, but their period remained fairly unchanged (see V18 for an example). Other stars show a sinusoidal shape light curve in one observational run, but their light curve is flat in the other runs (for example V237). There are stars that changed their median magnitude from one year to another, such as V274 or V302.

Fig. 11 shows the relation between the period of the variable stars and their B − V (top panel) and B − K_2MASS (bottom panel) colours: the variable stars are in grey, red circles represent the variable stars identified as rotating stars, while blue dots are rotating stars with a probability ≥50 per cent to be M35 members.

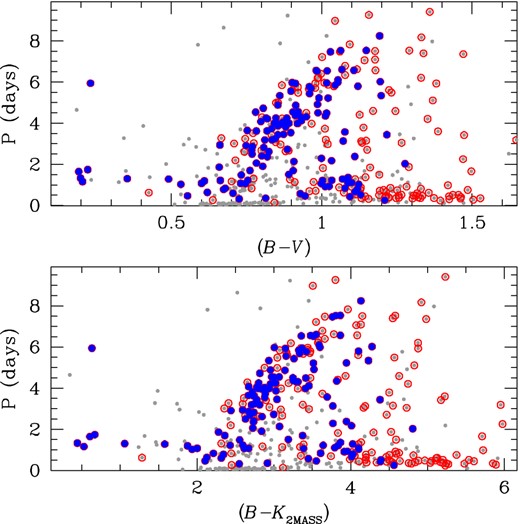

Figure 11.

Period versus (B − V) (top panel) and (B−K_2MASS) (bottom panel) for all the variables (grey dots). Red circles mark the rotating stars, that define the colour–period relation for the stars of M35. The rotating stars with a membership probability ≥50 per cent are displayed in blue.

Open in new tabDownload slide

Meibom et al. (2009) carried out a detailed analysis of the period–(B − V) colour index relation using 310 stars members of M35, of which 153 are in common with our catalogue.

6.4 δ Scuti and other variable stars

We identified 67 δ Scuti stars, 45 of which were previously unknown. In the CMDs, they are mainly located above the main-sequence turn-off of NGC 2158.

Finally, we found 69 variable stars that show long-period variations or non-periodic signals, 21 of these already known. We also found a δ Cep (V442, already known) and an RRLy (V492).

7 THE ELECTRONIC MATERIAL

The catalogue of all variable stars is available electronically (or upon request to the authors). The catalogue contains the following information: Col. (1) displays the identification number of the variable in this work; Cols (2) and (3) are the J2000 equatorial coordinates in decimal degrees; Col. (4) contains the period in days; Cols (5)–(11) are the calibrated BVR, instrumental N and calibrated J_2MASSH_2MASSK_2MASS magnitudes (when magnitudes are not available in a particular filter, they are denoted as 0.0); Col. (12) provides the variable type; Cols (13) and (14) give the membership probabilities for M35 and NGC 2158 stars from Dias et al. (2014) (when the membership probability is not available, it is denoted as −99.999); Cols (15)–(20) give the identification ID in other published catalogues, specifically Kim et al. (2004), Hu et al. (2005), Mochejska et al. (2006), Meibom et al. (2009), Jeon & Lee (2010) and GCVS (in Table 2, we combined Cols (15)–(20) to best fit the table in the manuscript).

For each star in the catalogue, we release an astrometrized 43.1 × 43.1 arcsec² finding chart for each available filter.

A catalogue of all sources detected in N and R filters is also electronically available. In this catalogue, Cols (1) and (2) are the J2000 equatorial coordinates in decimal degrees; Cols (3)–(9) are the calibrated BVRJ_2MASSH_2MASSK_2MASS magnitudes and the instrumental N magnitudes. As mentioned in Section 3.4, the astrometrized stacks in BVRN filters are also electronically available.

8 SUMMARY

We present the first results of a long-term photometric survey of OC stars conducted with the 67/92 cm Schmidt telescope at Cima Ekar, Asiago. In this paper, we focus on a field which includes the two OCs M35 and NGC 2158. A total of 6996, 58 × 38 arcmin² images in B, V, R, and white light (no filter) were collected over 2.4 years. We test four different approaches to the stellar photometry: aperture and PSF photometry on the original and neighbour-subtracted images. Aperture photometry on neighbour-subtracted images proves to be the most appropriate method to obtain light curves with the lowest photometric rms. We also test different approaches to correct our photometry for systematic errors. Our final data base includes 66 486 stars. We run different algorithms for the identification of variable stars: (i) the Lomb–Scargle periodogram, (ii) the AoV periodogram, and (iii) the BLS periodogram. We identify 519 variables: 97 EBs (56 are new identifications), 284 rotational variables (122 new), 67 δ Scuti variables (45 are new), 69 long-period or non-periodic variables (50 of them are new), 1 RRLy and 1 δ Cep. Finally, we cross-correlate our variable star catalogue with previously published catalogues to obtain membership probabilities, and for cross-identification with already know variables. The catalogue with coordinates, B, V, R, 2MASS magnitudes, membership, and cross-identification with known variables is made electronically available. The electronic material includes the B, V, R, and white light stacked images. For each variable, a 43.1 × 43.1 arcsec² finding chart is also made available. M35 and NGC 2158 are within the field of Campaign-0 of the Kepler 2 Mission. Our survey will therefore complement – and extend in time – the light curves of variable (and not variable) stars covered by K2.

DN, LRB, VN, ML, AC, GP, LB, VG, and LM acknowledge PRIN-INAF 2012 partial funding under the project entitled ‘The M4 Core Project with Hubble Space Telescope’. DN is supported by a grant ‘Borsa di studio per l'estero, bando 2013’ awarded by ‘Fondazione Ing. Aldo Gini’ in Padua (Italy). Some tasks of our data analysis have been carried out with the vartools (Hartman et al. 2008) and astrometry.net codes (Lang et al. 2010). This research made use of the International Variable Star Index (VSX) data base, operated at AAVSO, Cambridge, MA, USA.
