Mass and period limits on the ringed companion transiting the young star J1407 Free

ABSTRACT

The young (∼16 Myr) pre-main-sequence star in Sco–Cen 1SWASP J140747.93−394542.6, hereafter referred to as J1407, underwent a deep eclipse in 2007 April, bracketed by several shallower eclipses in the surrounding 54 d. This has been interpreted as the first detection of an eclipsing ring system circling a substellar object (dubbed J1407b). We report on a search for this companion with Sparse Aperture Mask imaging and direct imaging with both the UT4 VLT and Keck telescopes. Radial velocity measurements of J1407 provide additional constraints on J1407b and on short period companions to the central star. Follow-up photometric monitoring using the Panchromatic Robotic Optical Monitoring and Polarimetry Telescopes (PROMPT)-4 and ROAD observatories during 2012–2014 has not yielded any additional eclipses. Large regions of mass–period space are ruled out for the companion. For circular orbits the companion period is constrained to the range 3.5–13.8 yr (a ≃ 2.2–5.6 au), and stellar masses (>80M_Jup) are ruled out at 3σ significance over these periods. The complex ring system appears to occupy more than 0.15 of its Hill radius, much larger than its Roche radius and suggesting a ring structure in transition. Further, we demonstrate that the radial velocity of J1407 is consistent with membership in the Upper Cen–Lup subgroup of the Sco–Cen association, and constraints on the rotation period and projected rotational velocity of J1407 are consistent with a stellar inclination of i_⋆ ≃ 68° ± 10°.

1 INTRODUCTION

An otherwise unremarkable pre-main-sequence star in the nearby Sco–Cen OB Association, 1SWASP J140747.93−394542.6 (hereafter J1407) suddenly exhibited an extremely long, deep, and complex eclipse in mid-2007, lasting 54 d and achieving a maximum depth of >3 mag (Mamajek et al. 2012). This eclipse morphology is markedly different when compared with a typical eclipsing binary or exoplanet, but is very reminiscent of the light curves for stars such as ε Aurigae (Guinan & Dewarf 2002; Kloppenborg et al. 2010; Chadima et al. 2011), KH 15D (Winn et al. 2006), EE Cep (Mikolajewski & Graczyk 1999; Graczyk et al. 2003; Mikolajewski et al. 2005) that are periodically occulted by extended objects. Given its youth, J1407 is most likely being eclipsed by a low-mass object hosting a disc with significant substructure composed of thin dust debris belts, or ‘rings’. There is no evidence of flux from this companion, indicating that it is a very low mass star, brown dwarf, or perhaps even a gas giant planet (Mamajek et al. 2012).

J1407 was identified as a probable young star by virtue of its X-ray emission, a proper motion consistent with the motion of Sco–Cen, and its CMD position on the Sco–Cen stellar sequence (Mamajek et al. 2012; Pecaut 2013). Spectroscopic follow-up using the CTIO 1.5 m telescope confirmed the object to be a young, Li-rich K5 star, lacking any accretion indicators (Mamajek et al. 2012) or infrared excess at short (2MASS; Skrutskie et al. 2006) and long wavelengths (WISE photometry; Wright et al. 2010). The star therefore appears to be a weak-lined T Tauri star, not hosting its own circumstellar disc, and is a young (∼16 Myr) solar analogue (M ∼ 0.9 M_ȯ).

This star was observed by the Super Wide Angle Search for Planets (SuperWASP) survey (Pollacco et al. 2006; Butters et al. 2010) in 2007 as part of their wide-field search for transiting exoplanets. Simultaneously and independently, the field was also observed at much lower cadence by the All Sky Automated Survey (ASAS; Pojmanski 2002). Both surveys revealed a remarkably long, deep, and complex eclipse event centred on ut 2007 April 29. At least five multiday dimming events of >0.5 mag were identified, with a >3.3 mag deep eclipse bracketed by two pairs of ∼1 mag eclipses symmetrically occurring ±12 d and ±26 d before and after. Hence, significant dimming of the star was taking place on and off over at least a ∼54 d period in 2007, and a strong >3 mag dimming event occurring over a ∼12 d span. Mamajek et al. (2012) hypothesized that a complex ring system circling an unseen lower mass companion passed in front of J1407 over the span of several weeks.

The WASP pipeline is optimized for identifying transiting planets, which typically produce trough-like eclipses of 1 per cent depth lasting a few hours. In the case of J1407, it was located in the corner of the field of view of three of the WASP-South cameras, and the photometry from different cameras showed systematic relative offsets of up to 0.3 mag. A custom reduction pipeline was created for J1407 and these systematic effects, along with the rotational variability, were removed to produce a cleaned light curve (van Werkhoven, Kenworthy & Mamajek 2014).

For orbital periods of 20–100 yr (a > 7 au), the projected separation is in the range of ∼60 mas. Given the likely faintness of the companion, it falls well below the angular resolving limits of traditional adaptive optics imaging on 8–10 m class telescopes. Sparse aperture masking (SAM) or Non-Redundant Masking (NRM) delivers an increase in resolution within the Airy disc diffraction limit (e.g. Nakajima et al. 1989; Tuthill et al. 2006), and is now a well-established means of achieving the full diffraction limit of a single telescope (e.g. Ireland et al. 2008; Kraus & Hillenbrand 2009; Lacour et al. 2011).

Predicting when the next eclipse will happen is paramount to planning an extensive and detailed observing campaign. This object offers an unprecedented opportunity to spatially and spectrally resolve a disc with ring-like structure orbiting a likely substellar object at age ∼16 Myr. In this paper, we report on our search for the proposed companion J1407b. In Section 2, we describe the observations and data reduction. We do not detect any companion to J1407 with interferometric or direct imaging, and high spectral resolution radial velocity (RV) measurements show no companion in the system. Using these constraints, we provide a simple model for circular and elliptical orbital solutions (Section 4) and show which orbital periods can be ruled out. We discuss the consequences of these observations for the J1407 system in Section 5.

2 OBSERVATIONS AND DATA REDUCTION

J1407 has been observed with several different instruments, all providing different constraints on companions in the system. In the first three sections, we present interferometric and direct imaging observations from the VLT and Keck. The next two sections detail RV measurements from MIKE on the Magellan telescope and CORALIE on the Euler telescope. The last sections detail photometric monitoring with the Panchromatic Robotic Optical Monitoring and Polarimetry Telescopes (PROMPT)-4 and the Remote Observatory Atacama Desert (ROAD) observatory.

2.1 SAM at the VLT

Sparse Aperture Masking takes the filled single dish telescope pupil and selects several smaller apertures from it. The locations of these apertures are chosen so that all pairwise combinations form a set of unique baselines. The resultant point spread function (PSF) in the focal plane of the science camera then encodes spatial information about the science target that can be reconstructed to form a model of the source. Slow changing aberrations within the telescope and science instrument can be calibrated out by interleaving science observations with those of a similar brightness reference source. The outer size is set by the shortest baseline between two apertures and an inner size set by the interferometric limit (λ/2D). Complete baseline coverage is obtained thanks to the rotation of the target along the parallactic angle during the observation. Although there is a penalty in reduced throughput, SAM imaging can reach imaging scales that are not easily attainable with classical adaptive optics assisted direct imaging. This interferometric method is also referred to as NRM and this term can be interchangeably used with SAM imaging. We use SAM for the rest of this paper. For both Keck and VLT, maximizing throughput using the sparsest mask with the largest apertures is almost always better for detecting point source companions than maximizing baselines (using a denser mask with smaller apertures). As the target star is relatively faint for SAM imaging and the secondary companion is expected to be a point source, choosing as few baselines as possible helps optimize signal to noise(S/N).

Several SAM modes with different aperture configurations are implemented with the NaCo system at the VLT (Lacour et al. 2011). Observations were taken with VLT NaCo on ut 2013 March 27 and 28. We use the ‘7-hole’ mask for maximum throughput. The conditions for both nights were photometric with no cloud cover. The VLT seeing monitor reported 0.5–0.9 arcsec seeing on both nights, with coherence times of 4 ms over the whole observing run (see Table 1). J1407 has a visual magnitude V = 12.31 ± 0.03 (Mamajek et al. 2012) and K_s = 9.26 ± 0.02 (2MASS; Skrutskie et al. 2006). The properties of the star J1407 are detailed in van Werkhoven et al. (2014) and we use them for the rest of this paper – the distance is taken to be 133 ± 13 pc with an age of 16 Myr. We use the 90 per cent IR dichroic and the infrared wavefront sensor (WFS) so that the target star is used as a natural guide star for the adaptive optics system.

The telescope optics and instrument have a time-varying optical aberration associated with them, and so SAM observations of the science (SCI) target require known single star observations (CAL observations) to be interspersed between them. Moving between the science and calibration stars incurs an observing overhead, and so a balance must be found between remaining on the science target and the change in telescope aberrations that cannot be removed by sparse calibration observations. The time between SCI and CAL observations is determined from previous observing experience to be of the order of a few minutes. Observations are alternated between J1407 (SCI) and two calibration stars chosen from previous SAM observing runs 2MASS J14074401−3941140 and 2MASS J14072080−3948550. Even though these stars were used as calibrators in other previous observations by us, there is always the chance that a calibrator is a long period binary and that the data is rendered uncalibratable. To mitigate this, two calibration stars with similar magnitudes and colours to the science target are chosen. Between the first and second night it was discovered that the first night observations were photon noise limited and not calibration noise limited, and so the dwell time between SCI and CAL observations was increased from 50–300 s. Data for J1407 were taken in an eight-point dither pattern on the first night, and subsequently in a four-point dither pattern on the second night, resulting in an increase in S/N ratio. The observing parameters of both J1407 and the calibration stars are detailed in Table 2.

The VLT data were reduced by fitting the diffraction pattern on each one of the detector images. Each image of a data cube consists in a number of fringes of given spatial frequency (proportional to the baseline vector between each pair of holes), and given phase. The procedure is explained in more details in Lacour et al. (2011), but roughly, the phases and amplitudes are used to derive the uncalibrated visibilities, which are in turn used to compute the bispectrum. The data reduction is done similarly on the Keck data, but with a notable difference that the visibility measurements are obtained by fast Fourier transform. The bispectrum is then co-added over all the frames of one data cube, of which the argument is taken as the closure phase. The final step for the J1407 data is to correct for biases in the closure-phase measurement, by subtracting the closure-phase values of the two calibrators closest in time.

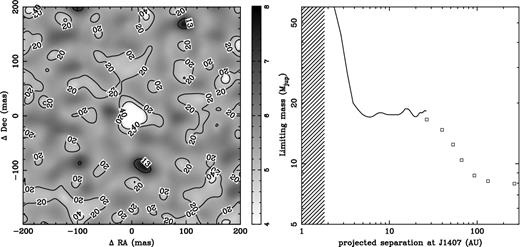

The results of the observations are shown in Fig. 1. We do not detect any point sources within the 400 mas region surrounding J1407. Due to the combination of observing conditions and sky rotation, the sensitivity for a 3σ detection varies by 1 mag at a given radius. The sensitivity map is shown in ΔK_s magnitudes as a grey-scale image. We use BT-SETTL models without irradiation and Caffau solar abundances (Caffau et al. 2011; Allard et al. 2012a) to estimate the limiting companion mass from the delta K_s magnitude, the distance to the star, and its apparent magnitude. The resultant mass limits are shown as the contour map in Fig. 1 in units of Jupiter mass (M_Jup). It can be seen that masses below 13M_Jup are reached in several regions around J1407, rising to 20M_Jup for radii of 28 mas (3 au) and smaller.

2.2 SAM at Keck

We observed J1407 on ut 2012 April 4 using the Keck-II 10 m telescope with natural guide star adaptive optics. All observations were conducted with the facility AO imager, Near Infrared Camera 2 (NIRC2), which has aperture masks installed in the cold filter wheel near the pupil stop. We used a 9-hole aperture mask, which yields 28 independent baseline triangles about which closure phases are measured. All SAM observations operate in a subarray mode of the narrow camera, and we conducted our observations using the broad-band K^′ filter. The observing sequence consisted of one set of 21 integrations of 20 s for J1407, preceded and followed by similar observations of independent calibrator stars. We summarize these observations in Table 3.

The analysis for the SAM data was identical to that used in previous papers (e.g. Ireland & Kraus 2008; Kraus et al. 2008, 2011), combined with the new calibration technique described in Kraus & Ireland (2012). To summarize, the images were flat fielded and bad pixels were removed by interpolating between neighbouring pixels. The image was then multiplied by a super-Gaussian window function of the form exp (−ar⁴), with r the radius in pixels from the centre of the interferogram. A two-dimensional Fourier transform was then made of each exposure in a visit, and this Fourier transform was point sampled at the positions corresponding to the baseline vectors in the aperture mask. For each visit we then computed the vector of mean uncalibrated closure phases and the standard error of the mean. Finally, we calibrated the closure phases for each visit using an optimal linear combination of the calibrators observed in the same sequence of events. Our analysis found no statistically significant signal in the calibrated closure phases for J1407, and hence that it is single to within the detection limits of the observations. Using the same procedures as in our previous SAM work mentioned above (i.e., a Monte Carlo method that simulates random closure-phase data sets of a point source with closure-phase errors and covariances that match those of the real data), we found the contrast limits summarized in Fig. 2.

2.3 Direct imaging with Keck

J1407 was also observed with standard AO imaging immediately preceding the SAM observations, obtaining six integrations of 10 s in the K^′ filter. These observations used the narrow camera in full-frame mode (FOV=10 arcsec) and were obtained in a diagonal two-point dither pattern. We analysed each frame of imaging data using two complementary methods of PSF subtraction. For wide separations (ρ > 600 mas), where read noise dominated the error budget for companion detection, we subtracted an azimuthally smoothed median PSF. For small separations (ρ ≤ 600 mas), where speckles from the primary star dominated the error budget, we searched the library of all single stars observed that night to find the best-fitting empirical template. We determined the best-fitting comparison star using the pixels at projected separations of 150 < ρ < 300 mas, scaling each comparison star to the same total flux and then computing the reduced χ² of the fit. We then subtracted the best-fitting template star for each frame [implicitly a Locally Optimized Combination of Images (LOCI; Lafreniere et al. 2007) subtraction with n = 1 and globally optimized]. Finally, we stacked the residual frames and measured the standard deviation of fluxes measured through 4-pixel apertures in radial bins. We found no candidate companions in the stacked residuals that were more significant than 6σ, and hence we report a null detection with the 6σ detection limits shown in Fig. 2. The direct imaging limits at large radii reach down to 8 M_Jup, rising to 18 M_Jup at 26 au.

2.4 RV measurements with Magellan/MIKE

We obtained high-resolution spectra for J1407 on three consecutive nights starting on ut 2013 Feb 02 using the Magellan Inamori Kyocera Echelle (MIKE) optical echelle spectrograph on the Clay telescope at Magellan Observatory. We used the 0.7 arcsec slit, which yields spectral resolution of R = 35 000 across a range of λ = 3350–9500 Å. The pixel scale oversamples the resolution with the 0.7 arcsec slit, so we observed with two times binning in the spatial and spectral directions to reduce readout overheads. The details of this observing campaign (such as selection of standards) can be found in Kraus et al. (2014).

We reduced the raw spectra using the carpy pipeline (Kelson 2003).¹ In order to correct for residual wavelength errors (due to flexure and uneven slit illumination), we then cross-correlated the 7600 Å telluric A band for each spectrum against a well-exposed spectrum of a telluric standard, solving for the shift that places each spectrum into a common wavelength system defined by the atmosphere. Finally, we used the procedures described in Kraus et al. (2014) to estimate the spectral type and measure v_rad, v sin (i_⋆), EW[Hα], and EW[Li₆₇₀₈]. We adopt v sin (i_⋆) = 14.6 ± 0.4 km s⁻¹, which we use later for a calculation of the minimum radius of the star J1407. In Table 4, we list the epochs and exposure times for our MIKE observations, the S/N measurement for each spectrum at 6600 Å, and the values measured from each spectrum.

2.5 RV measurements with CORALIE

J1407 was observed using the CORALIE spectrograph, mounted on to the 1.2 m Euler Telescope, installed at ESO's La Silla Observatory in Chile. This is a fibre-fed, thermally- stabilized, échelle spectrograph with a resolution ∼60 000. After a major upgrade in 2007 that improved its efficiency without comprising stability and precision, it has been routinely used in determining which of the candidate systems detected by SuperWASP are bona fide planets. Over seven years, it has detected over 100 transiting exoplanets (Wilson et al. 2008; Triaud et al. 2011; Hellier et al. 2014). J1407's brightness falls well within CORALIE's typical range of observation.

The spectra have been reduced using CORALIE's Data Reduction Software, which was built alongside those employed on High Accuracy Radial velocity Planet Searcher (HARPS), HARPS-South, and the Spectrographe pour l'Observation des Phénomènes des Intérieurs stellaires et des Exoplanètes (SOPHIE) and that have been shown to yield remarkable precision and accuracy (Dumusque et al. 2012; Molaro et al. 2013; Pepe et al. 2013). The spectra are wavelength-calibrated using a Thorium–Argon calibration lamp (Lovis & Pepe 2007). Each exposure is a simultaneous observation of the star and of a Th–Ar lamp. Calibration exposures throughout the night ensure that the instrumental drifts, mostly due to variations in pressure (for instance the solar-induced atmospheric tides), are corrected. The stellar spectra are cross-correlated using a weighted numerical K5-spectral mask, following the methods of Baranne et al. (1996). Radial velocities are computed from fitting a Gaussian profile on to the resulting cross-correlation function. Other parameters such as the span of the bisector slope and the full width at half-maximum (FWHM) of the cross-correlation function were measured as well. They provide good diagnostics for stellar activity (e.g. Queloz et al. 2001; Huélamo et al. 2008).

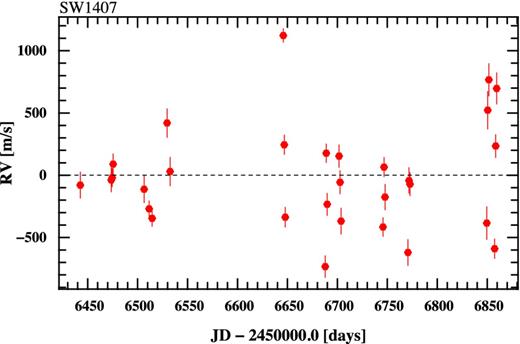

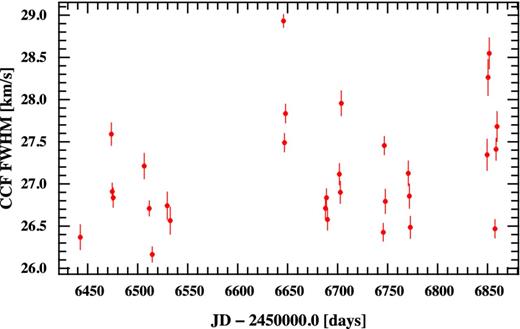

The first spectrum was obtained on ut 2013 May 30. It was a 3600 s exposure without simultaneous Th–Ar, to assess the observability of the target. We then follow the observing techniques devised in Dumusque et al. (2011) to mitigate stellar astrophysical noise: observations were scheduled by blocks of three spectra obtained on consecutive nights, to approximately match the rotation period of the star (Mamajek et al. 2012). 29 spectra with exposures ranging from 900 to 1800 s were obtained between ut 2013 June 30 and ut 2014 July 21 (Table 5). The observations in Fig. 3 show significant scatter in radial velocities, but also in the slope of the bisector (Fig. 4) and the width of the lines (Fig. 5). The variation in RV is strongly anti-correlated to the slope of the bisector, a sign that stellar activity is distorting the shape of absorption lines (see Fig. 6). The scatter in the bisector slope and FWHM has increased during the 2014 observing season compared to 2013.

The data were combined over each observing set, reducing the sample to nine individual measurements: the velocities were optimally averaged, with an associated error obtained from the rms within a set, and the corresponding mean date calculated. The results are graphically displayed in Fig. 7. Errors are larger in the seven epochs taken in the 2014 observing season, reflecting an increase in the activity of the star.

2.6 Photometric observations with PROMPT

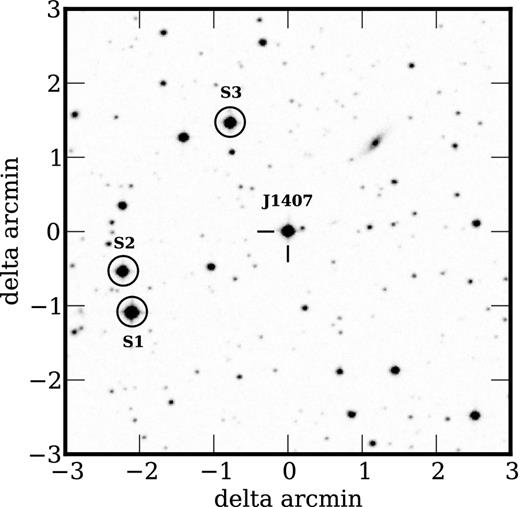

The brightness of J1407 has been monitored nearly nightly between 2012 June and 2014 June, when possible, with the PROMPT-4 telescope at CTIO (Reichart et al. 2005). Three exposures of 3 s each are taken per clear night in both V and I filters. We report the V-band photometry in this contribution, which are sufficient to determine that no long eclipses have been seen during 330 epochs during the 2012–2014 observing seasons listed in Table 6. Three neighbouring comparison stars (listed in Table 7) have mean Johnson V magnitudes observed by the AAVSO Photometric All-Sky Survey (APASS) accurate to ∼0.02 mag, and calibrated to Landolt fields (Data Release 7; Henden & Munari 2014). A finder chart for J1407 and the three comparison stars is provided in Fig. 8. From observations over 330 nights with PROMPT-4 during 2012–2014, we find that these comparison stars are photometrically quiet to <0.02 mag rms, and hence provide adequate comparison stars for assessing the variability of J1407. Fig. 9 shows the 2012 June to 2014 June V-band light curve for J1407 using calibrator star S1 for comparison. From comparison of J1407's brightness to the three APASS comparison stars, we find that the 2012–2014 average V magnitude for J1407 was V = 12.365, with a calibration-dominated uncertainty of ±0.02 mag. This compares well to the median V magnitudes estimated from previous time series photometry data sets (outside of eclipse): V = 12.29 (ASAS; Pojmanski 2002, 580 epochs), V = 12.34 (SuperWASP; Pollacco et al. 2006, 28 194 epochs, V_T converted to Johnson V), and V = 12.34 (APASS; Henden & Munari 2014, 8 epochs).

A sample of the photometry is shown in Table 8.

2.7 Photometric observations with ROAD

Nightly observations of J1407² have been taken at the ROAD (Hambsch 2012) observatory in Chile, using a commercially available CCD camera from Finger Lakes Instrumentation,³ an FLI ML16803 CCD, The Microline (ML) line of CCD cameras is a lightweight camera design which can hold a variety of CCD chips. We used a full frame Kodak KAF-16803 image sensor together with the 40 cm Optimized Dall Kirkham f/6.8 telescope from Orion Optics UK⁴ to give a field of view of nearly 48 arcmin × 48 arcmin, and the data were binned 3 × 3 for a plate scale of 2.09 arcsec pixel⁻¹ to keep the amount of data to a reasonable value. The download speed was 8 MHz, the preamplifier gain 1.4 e⁻/ADU. The camera was thermoelectrically cooled to a temperature of −25°C. All the measurements are made with a photometric V filter from Astrodon corporation. Dark and Flat frame correction is done in the CCD camera control program maxim/dl.⁵

Data reduction is done using software developed by P. de Ponthierre ⁶ based on comparison stars from the AAVSO sequence for J1407. 000−BKN−848 (RA 14^h08^m18|${^{\rm s}_{.}}$|78, Dec. −39°49^′54|${^{\prime\prime}_{.}}$|1, mag 12.051) is used as a reference star and 000−BKN−850 (RA 14^h07^m40|${^{\rm s}_{.}}$|73, Dec. −39°38^′53|${^{\prime\prime}_{.}}$|7, mag 13.102) as a comparison star. While no colour transformation was made, the median V magnitude of the observations (12.38; rms = 0.02 mag) is within 0.02 mag of the PROMPT observations, and hence can be considered sufficiently accurate to the other V-band observations for our eclipse search. The resultant photometry is seen in Fig. 9.

A sample of the photometry is shown in Table 9.

3 REVISED STELLAR PARAMETERS FOR J1407

We update the stellar parameters for J1407 and present them in Table 10, together with references.

3.1 Revised spectral energy distribution

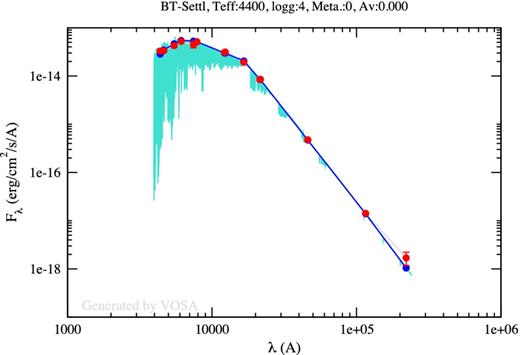

A new spectral energy distribution (SED) for J1407 was constructed using the Virtual Observatory SED Analyzer (VOSA).⁷ Photometry in 14 bands was used: B, g^′, r^′, and i^′ from APASS DR7 (Henden & Munari 2014), V from Section 2.6, I, J, K_s from DENIS (Epchtein et al. 1997), J, H, K_S from 2MASS (Skrutskie et al. 2006), and the W1, W2, W3, W4 bands from All-WISE (Wright et al. 2010). BT-SETTL models (Allard, Homeier & Freytag 2012b) with solar metallicity over range log(g) = 4–5 and extinction range A_V = 0–0.3 were fit to the photometric data. The best-fit SED (plotted in Fig. 10) has T_eff = 4400 K, log(g) = 4.0, [α/Fe] = 0.2, negligible extinction (A_V = 0.00). The T_eff inferred from the SED fit is consistent with previous estimates (Mamajek et al. 2012; van Werkhoven et al. 2014) and the spectral type estimate (K4.8) from the MIKE analysis (Section 2.4). The SED bolometric flux is (5.974 ± 0.020) × 10⁻¹¹ erg s cm⁻², or on the IAU scale an apparent bolometric magnitude of 11.577 ± 0.037 mag. At the revised kinematic distance of 133 ± 12 pc (van Werkhoven et al. 2014), the revised luminosity is log(L/L_ȯ) = −0.478 ± 0.077 dex (with the uncertainty dominated by the distance uncertainty).

3.2 Stellar equatorial velocity, stellar radius, and inclination

We can place some further constraints on the size and inclination of the star J1407. Adopting T_eff = 4400 ± 100 K from the SED fitting (consistent with previous estimates), the updated luminosity converts to a new stellar radius estimate of 0.99 ± 0.11 R_ȯ. With the revised T_eff and radius, and a period of 3.21 ± 0.01 d (van Werkhoven et al. 2014), we predict the star's equatorial rotation velocity to be v_eq = 15.7 ± 1.7 km s⁻¹.

A lower limit to the stellar radius of J1407 can be estimated directly from the projected rotational velocity (Section 2.4) and the stellar rotation period. Taking v sin i_⋆ = 14.6 ± 0.4 km s⁻¹ and P = 3.21 ± 0.01 d, we estimate a strong lower limit to the stellar radius of R_⋆ > 0.93 ± 0.02 R_ȯ.

Since we have estimates of the equatorial and projected rotational velocities, we can estimate the inclination of the star J1407. We ran a Monte Carlo simulation taking into account the stellar parameters and their uncertainties to estimate the probability distribution of the stellar inclination i_⋆. For 10⁶ simulations, 73.6 per cent resulted in physical solutions (i_⋆ < 90°). We estimate the stellar inclination to be i_⋆ = |${63.9^{\circ }}^{+10.5^{\circ }}_{-8.5^{\circ }}$| (68.3 per cent CL) or |$^{+19.9^{\circ }}_{-15.0^{\circ }}$| (95.5 per cent CL).

4 ANALYSIS

We determine the constraints that these null detections provide by modelling orbits for J1407b as a function of orbital period. We assume that J1407b is gravitationally bound to J1407 and follows Keplerian orbits parametrized by orbital elements a, e, i, P, T, ω, Ω. The centre of the J1407b transit was ut 2007 April 27, and in the absence of any other perturbing bodies in the system, we assume that it follows a closed elliptical orbit with inclination i = 90° and ellipticity e.

We determine the mass and period limits for the case of circular orbits, and for the more generalized case of elliptical orbits in Section 4.2. For the total mass function of the system M = 0.9 M_ȯ we investigate trial periods P from 2 to 1000 yr.

4.1 Circular orbits

4.1.1 Limits from ring geometry and orbital velocity for circular orbits

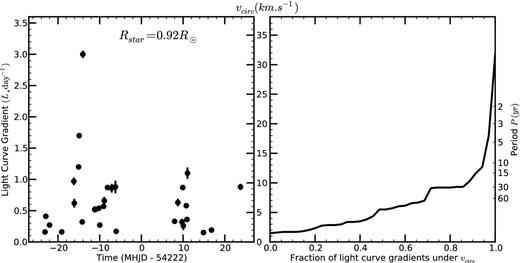

The companion is assumed to orbit J1407 with a circular orbital velocity v_circ which can bring a ring edge across the disc of the star, causing it to dim at a rate determined by the diameter of the star. In van Werkhoven et al. (2014), the light curve of J1407 is analysed and the minimum circular velocity required to match the observed gradients is determined. We recalculate the orbital velocities required for our determined minimum stellar radius from Section 3 and plot the results in Fig. 11 in the left-hand panel.

For increasing orbital period P, the circular orbital velocity becomes slower, and it is impossible to bring an opaque occulter across the disc of the star fast enough to explain the measured light-curve gradients seen in the J1407 data. The right-hand panel shows the fraction of measured gradients that can be explained by a dark or grey occulter moving a given circular orbital velocity, along with the corresponding orbital periods on the right-hand axis. It is clear, however, that decadal orbital periods are ruled out since they fail to explain many of the measured gradients. We consider that long-period solutions where the companion has orbital velocity v_orb < 12 km s⁻¹ (P ≳ 13.8 yr; a ≳ 5.5 au) are strongly rejected by the presence of the steep light-curve gradients discussed in van Werkhoven et al. (2014).

4.1.2 Limits from direct imaging

We calculate the projected angular separation in arcseconds as a function of orbital period for the epochs of our two direct imaging observations ut 2013 March 27 and ut 2012 April 04, and these are plotted in Fig. 12 in panel (a). For an observation at a specific epoch, the projected angular separation varies as a function of trial period. The largest angular separation occurs when a putative companion reaches quadrature, and is zero when Δt = nP/2, where P is the period, n is a positive integer, and Δt is time between the epoch of observation and the mid-point of the eclipse, which we take to be ut 2007 April 29.

We do not detect any point sources in either epoch. The resultant sensitivity maps are in delta magnitudes, which when combined with the distance and age of the stellar system, are converted using BT-SETTL models (Allard et al. 2012a) into upper mass limits as a function of position on the sky. Azimuthally averaging these limits results in a contrast curve of upper companion mass versus distance from the J1407 in astronomical units (see Figs 1 and 2). Projected angular separation is then converted into companion upper mass limit in Fig. 12(b). The upper mass limits are indicated by a dotted line for the Keck image and a dashed line for the VLT image. The black region represents the upper mass limit from either Keck or VLT, whichever one gives the lower mass sensitivity at a given period.

4.1.3 Limits from photometric monitoring

J1407 underwent a series of nearly time-symmetric eclipse events with the mid-point of the eclipses on HJD 2454220 during early 2007. No other eclipses of J1407 are observed over the nine-year span of data from WASP-South and ASAS as reported in Mamajek et al. (2012), with a period search excluding all periods P < 850 d. The incompleteness of the photometry of J1407 is discussed in Mamajek et al. (2012) and presents orbital periods that are not ruled out by the photometric data.

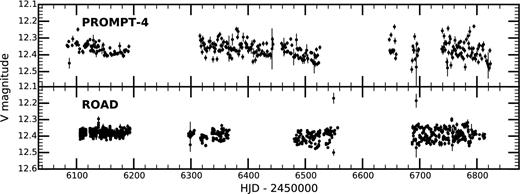

In the new 2012–2014 time series photometry data from PROMPT-4 and ROAD, we see no new deep eclipses analogous to that seen in 2007. However, the recent PROMPT and ROAD photometric monitoring has helped rule out a wide range of periods of duration ∼4 to ∼7 yr. The most recent photometry is now excluding orbital periods that are a half and a third of the latest and most recent baselines, notably the window at 3.5 yr. Periods that are ruled out are represented by the dark grey vertical bars on the left-hand side of Fig. 12 in panels (a) and (b).

4.1.4 Limits from RV measurements

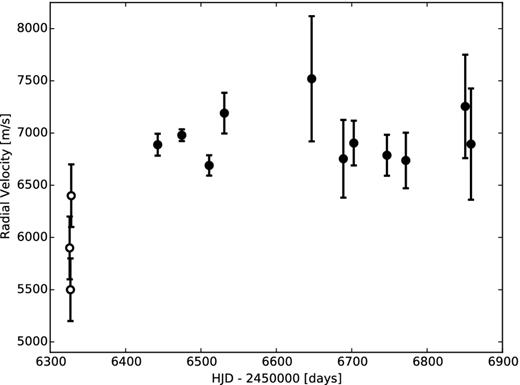

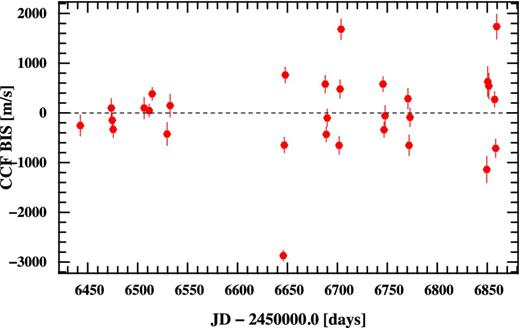

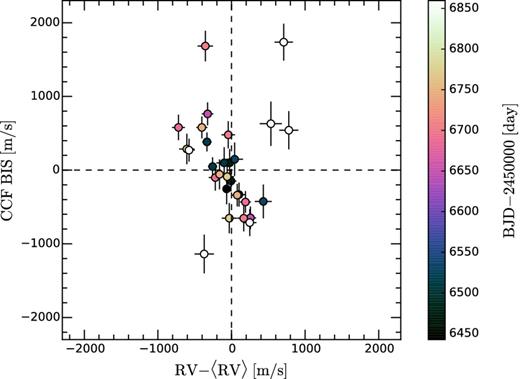

The RV measurements are shown in Fig. 7. These measurements are a combination of observations from both MIKE and CORALIE. The star is a rapid rotator as determined by photometric variability with a periodicity of 3.2 d (van Werkhoven et al. 2014). No known high-precision RV measurements of J1407 were taken at the time of the eclipse in 2007. We therefore construct an RV model f(P, M) for J1407b using circular edge-on orbits, assuming a trial period P and secondary companion mass M to calculate the expected RVs at the epochs of observation v_radial = f(P, M) + C, where C is constant offset that accounts for the unknown RV at the time of the 2007 transit. This model is then fit to the observed RVs with C as a free parameter that minimizes the χ² of the resultant model fit.

The MIKE observations have a time baseline of less than one week, and on their own do not produce significant constraints to our model. The combination of RV data from different telescopes with different instruments and RV data reduction pipelines introduces unknown systematic errors that are difficult to quantify. The CORALIE data covers a baseline of over one year and typically has precision better than, or similar to, the MIKE data. The velocity zero-points should agree at the <200 m s⁻¹ level, given the observed offsets seen between CORALIE velocities and those from the California Planet Search (those used in the MIKE analysis; e.g. Chubak et al. 2012). A larger effect is the velocity jitter introduced due to plage and star-spots, which could easily generate velocity variations at the tenths of km s⁻¹ for a star rotating as fast as J1407 (e.g. Jeffers et al. 2014). By restricting our analysis to the CORALIE data, we do not need to consider the absolute calibration of the RV (expressed in the constant C in our model) nor the systematic offsets between the two instruments.

No significant RV variation is detected for the star. A fit to a horizontal line produces a reduced |$\chi ^2_{\rm r} = 1.1 \pm 0.5$|⁠, and mean systemic velocity γ = 6.91 ± 0.04 km s⁻¹. A slope produced a worse |$\chi ^2_{\rm r}$|⁠. At 95 per cent confidence, |$|\,\dot{\gamma }\,| < 450$| m s⁻¹ yr⁻¹. The CORALIE data alone excludes additional companions with masses >12M_Jup on circular orbits shorter than one year (but longer than 3 d). The grid of |$\chi ^2_{\rm red}$| converted to goodness of fit in σ is shown in Fig. 12(c).

Using the Upper Cen–Lup (UCL) subgroup velocity vector from Chen et al. (2011, U, V, W =−5.1 ± 0.6, −19.7 ± 0.4, −4.6 ± 0.3 km s⁻¹), we predict the RV of an ideal UCL member at the position of J1407 to be γ = 7.0 km s⁻¹, with a predicted rms scatter amongst members of ±1.3 km s⁻¹. The measured RV is consistent with J1407's membership in the UCL subgroup of Sco–Cen, as proposed by Mamajek et al. (2012). Hence, the position, proper motion, excess lithium, strong X-ray emission, HR diagram position, and now RV, for J1407 are all consistent with UCL membership.

4.1.5 Limits from dynamical constraints of the ring system

The duration of the eclipse event in 2007 sets a dynamical constraint based on the stability of the ring system around J1407b. The longest transit time possible is one where the star J1407 passes through the middle of the disc and behind the secondary companion. The measured transit duration t_d therefore represents a lower limit on the total projected diameter of the ring system for non-zero impact parameters of primary star. Following the terminology of Mamajek et al. (2012), we define the radius of the disc system as measured from J1407b as r_d. The radius where the gravity of J1407b is dominant over the primary star is defined as the Hill radius r_H. Defining the ratio ξ = r_d/r_H so that we can express the disc radius in terms of Hill radius, we can then calculate the expected ξ for a given orbital period and mass of J1407b.

4.1.6 Combined mass–period limits for J1407b for circular orbits

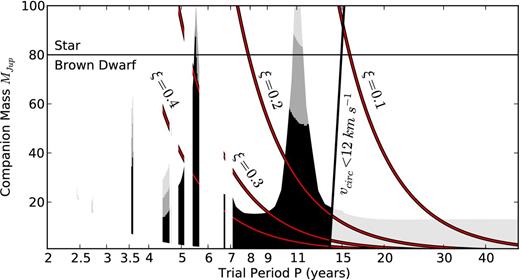

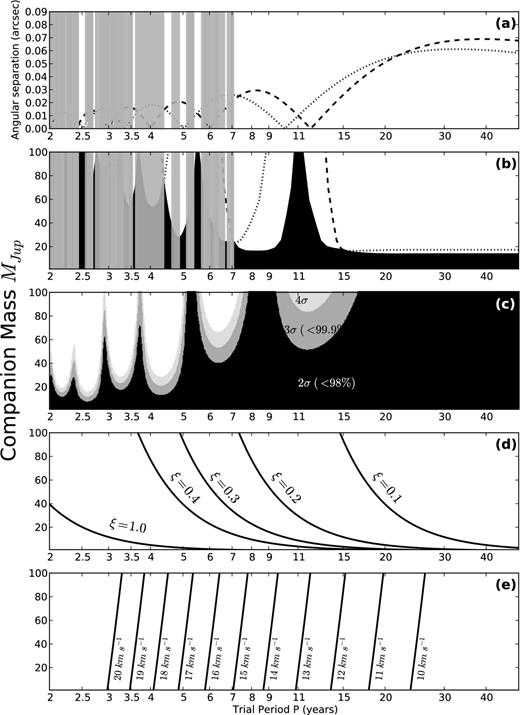

Combining the four sets of constraints listed previously, we show our limits on the possible mass and orbital period for circular orbits of J1407b in Fig. 13. Possible periods and masses are indicated by shaded regions in the figure. Overplotted are different values for ξ, the size of the ring system in units of the Hill sphere. Values of ξ > 1 are unstable and are ruled out. Simulations indicate that ξ > 0.4 are unlikely and that typical values are expected to be in the range of 0.1 < ξ < 0.3 (Quillen & Trilling 1998; Canup & Ward 2002; Magni & Coradini 2004; Ayliffe & Bate 2009; Ward & Canup 2010).

The figure shows that the mass of the secondary is substellar (below 80 M_Jup for solar composition; Saumon & Marley 2008)⁸ for many periods, with the exception of a region of stellar mass at 5.5 and 11 yr. The RV measurements strongly constrain masses at 11 yr, but only slightly constrain at the 5.5 yr period. We can estimate the probability that the companion is above the deuterium burning limit by using the χ² fit from the RV model and the constraints from the non-detections of the measurements presented in this paper. We evaluate the χ² of the RV model fit for a linear sampling in companion mass from 1–100 M_Jup, and a logarithmic sampling in period from 2–15 yr (corresponding to v_circ ≈ 12 km s⁻¹). The probability Prob at each sample point of mass and period is calculated using Prob(M, P) ∝ exp (−χ²/2), and then we normalize Prob(M, P) by summing over all masses and periods and setting this sum to unity.

By integrating this grid of probability over ranges of masses, we can determine how likely it will be that J1407b lies within a given mass range. Taking stellar (M > 80 M_Jup), brown dwarf (80 M_Jup > M > 13 M_Jup) and planetary (M < 13 M_Jup) masses and integrating over all periods, we calculate the normalized probabilities as listed in Table 11. We explore the probabilities for different values of the disc size in terms of Hill radius ξ. The probability that J1407b is a stellar mass object is less than 0.1 per cent for all values of ξ, corresponding to a 3.5σ likelihood. We can conclude that J1407b is therefore a substellar object. For all values of ξ greater than 0.3, J1407b is equally likely to be a brown dwarf or a planetary mass object.

4.2 Elliptical orbits

The light curve of J1407 shows rapid variation during the 2007 eclipse, and regardless of the detailed large-scale structure in orbit around J1407b, the largest gradients in the light curve imply a transverse velocity of 32 km s⁻¹ for the occulting material. If the occulting material is in orbit around J1407b itself and is not azimuthally symmetric about J1407b then it is possible that the velocity of this clumped material vectorially adds with the orbital velocity of J1407b to produce the resultant transverse velocity that we see in the light curve – see van Werkhoven et al. (2014, section 6.2) for a discussion. Here, we explore the limiting case for elliptical orbit solutions to J1407b where the transverse velocity is entirely due to the orbital velocity of J1407b. Together with the circular case in the previous section, these two models then bracket the whole possible range of orbital solutions for J1407b.

4.2.1 Limits from ring geometry and orbital velocity for elliptical orbits

As seen in the previous section, there are no possible circular orbits that have a high-enough orbital velocity to explain the highest light-curve gradients. Instead, we will assume that all transverse velocity is due to orbital motion of J1407b at periastron, setting ω and Ω appropriately for periastron at primary transit.

4.2.2 Limits from direct imaging for elliptical orbits

Using values of M, P, and e we calculate the expected angular separation of J1407b at the two epochs of direct imaging observations. The angular separation at the two epochs for each mass and period is then converted into a direct imaging minimum detectable mass. If this mass is greater than the companion mass M, then that specific mass M would have been detected at that period P. For a fixed period P, the companion mass is undetectable up to a critical mass, and any higher mass is then detectable. The upper mass limits of the two epochs of direct imaging are combined in a manner similar to Section 4.1.2, and the direct imaging limits for elliptical orbits is shown in panel (b) in Fig. 14. These mass limits are higher than those seen for circular orbits because we are assuming that these elliptical orbits are oriented with the semimajor axis pointing along the line of the sight to J1407. The projected angular separation of J1407b from the primary star is smaller than the separation for a circular orbit of the same orbital period, resulting in higher mass limits.

4.2.3 Limits from photometric monitoring for elliptical orbits

Photometric monitoring rules out any elliptical orbits with e < 0.3, and significantly limits orbital eccentricities with e < 0.6, as periods shorter than 850 d are ruled completely out. Longer orbital periods therefore need more eccentric orbits to raise the periastron velocity to the 32 km s⁻¹ required. This already presents a significant challenge as to how coherent dynamically long-lived structures can exist around a secondary companion.

4.2.4 Limits from RV measurements for elliptical orbits

We construct an RV model f(P, M, e) for J1407b assuming periastron at the time of the 2007 transit, resulting in elliptical orbits with their semimajor axis pointing towards the earth. We carry out the same procedure as detailed in Section 4.1.4 for determining the fit for these elliptical orbits and the resultant χ² is converted to a probability as seen in Fig. 14(c).

4.2.5 Limits from the Hill sphere for elliptical orbits

4.2.6 Combined mass–period limits for J1407b for elliptical orbits

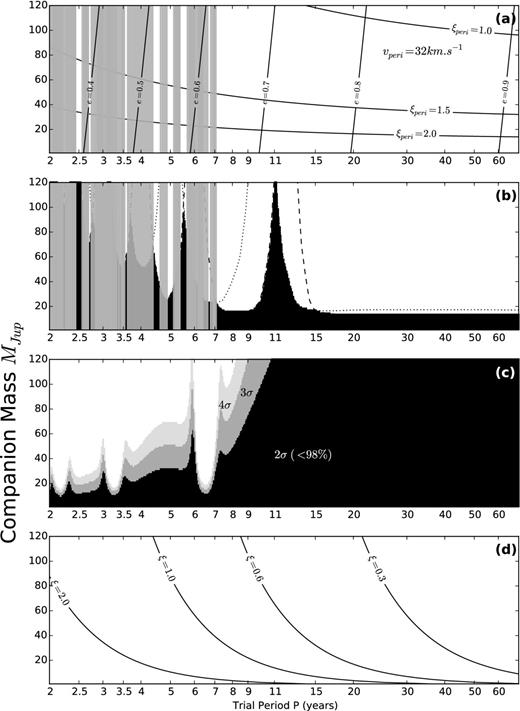

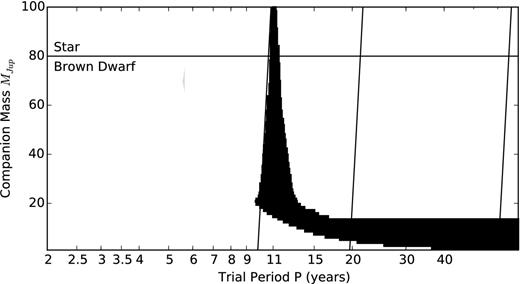

Combining the four sets of constraints listed previously, we show our limits on the possible mass and orbital period for elliptical orbits of J1407b in Fig. 15. Possible periods and masses are indicated by shaded regions in the figure. Overplotted are different values for e.

The mass limits for the elliptical orbits are higher than for the circular orbits. This is a result of choosing elliptical orbits with the constraint of having periastron occur at the time of the eclipse in 2007 – orbits of a given period P have smaller semiminor axes compared to circular orbits, and so the projected angular separation is correspondingly smaller. This also increases the mass limits derived from the RV measurements. After passage through periastron, the secondary companion spends most of its orbit at distances larger than the semimajor axis, with correspondingly much smaller radial velocities seen in the star, and much smaller corresponding accelerations.

A minimum eccentricity of 0.5 is required to keep the ring system within the Hill sphere, although this is dependent on the precise nature of the interaction of the secondary on such an eccentric orbit with the surrounding ring system. Instead of limits due to gradient velocities (as considered for circular orbits), we are now limited by the eccentricity of the orbit of J1407b. Table 12 shows the relative probabilities for the eccentric orbital solutions, computed in a similar manner to Table 11. The most significant result is that J1407b requires a highly eccentric (e > 0.7) orbit. This is seen in other young stellar systems with low-mass companions – PZ Tel B is a brown dwarf mass companion with eccentricity greater than 0.6 (Biller et al. 2010; Mugrauer et al. 2012). A more critical constraint is that the ring system will overflow the Hill radius during the periastron passage, potentially highly perturbing the system and ring structure seen in the J1407 light curve. An analysis of the effects of a periastron passage on a giant ring system is beyond the current scope of this paper.

5 CONCLUSIONS

The observations reported here explore the highest angular resolutions attainable on single dish optical telescopes, along with contrasts that are not attainable with classical image subtraction techniques at small inner working angles. We can place strong constraints on the nature of the companion detected in transit in Mamajek et al. (2012) for circular orbits. Additional constraints based on high spectral resolution and precision RV measurements, combined with orbital periods ruled out by photometric monitoring and dynamical arguments show that J1407b is a substellar object and likely to be a planetary mass or brown dwarf mass object. Stability arguments favour longer periods where ξ < 0.4, whilst observations of rapid changes in the light curve over the course of a few hours (van Werkhoven et al. 2014) strongly suggest that the orbital period must be short (P ≲ 15 yr). The ring system is also considerably larger than the Roche radius for the secondary companion, suggesting that we are seeing this ring system in a transitional state where exosatellites are in the process of formation.

Using elliptical orbital solutions to provide a large transverse velocity at periastron results in high orbital eccentricity solutions (e > 0.7), a large ring system that fills a significant fraction of the Hill sphere (ξ > 0.5) and an overflowing Hill sphere at periastron passage. These elliptical orbits provide significant challenges for ring structural stability, either requiring rapid dynamical settling within one orbital period or the stabilizing influence of exosatellites within the ring system.

All models imply a ring system for J1407b that fills at least 0.15 of the Hill sphere and is significantly larger than the Roche radius. These large rings are unstable on long time-scales and will ultimately accrete to form exosatellites, contrasting with Solar system models where moons are formed from gradual overflow over the Roche radius (Crida & Charnoz 2012).

For future observations, a detection of another eclipse is the most direct determination of the orbital period of J1407b. The observations presented in this paper will then give an upper and lower limit for the mass of the secondary companion and immediately constrain the nature of the system. Further RV observations will start to significantly rule out the largest masses at decade periods. An additional observation using SAM will also reduce the mass peaks at 5.5 and 11 yr periods.

Observations at longer wavelengths may be able to detect and possibly resolve the ring system around J1407b. Heating from the secondary companion combined with the large surface area of the ring system results in significant flux at submm wavelengths, detectable with the Atacama Large Millimeter Array (ALMA) or a large single dish submm telescope. When the full ALMA suite of telescopes is deployed, a high-precision astrometric detection can constrain the orbit of the secondary companion and measure the mass of the ring system.

Additional searches are now being carried out in archival photometric data to look for similar events that may have been overlooked or rejected by exoplanetary transit pipelines (e.g. Quillen et al. 2014). The ringed system around J1407b represents a unique laboratory to both spatially and spectrally resolve a young 16 Myr old disc around a likely substellar object and probe its structure to unprecedented spatial scales. Photometric monitoring is underway to look for the beginning of the next eclipse, and will signal the start of intensive observational campaigns over the subsequent weeks.
