New Galactic supernova remnants discovered with IPHAS Free

Abstract

As part of a systematic search programme of a 10° wide strip of the northern Galactic plane, we present preliminary evidence for the discovery of four (and possibly five) new supernova remnants (SNRs). The pilot search area covered the 19–20 h right ascension zone sampling from +20° to +55° in declination using binned mosaic images from the Isaac Newton Telescope Photometric Hα Survey (IPHAS). The optical identification of the candidate SNRs was based mainly on their filamentary and arc-like emission morphologies, their apparently coherent, even if fractured, structure and clear disconnection from any diffuse neighbouring H ii region type nebulosity. Follow-up optical spectroscopy was undertaken, sampling carefully across prominent features of these faint sources. The resulting spectra revealed typical emission-line ratios for shock-excited nebulae which are characteristic of SNRs, which, along with the latest diagnostic diagrams, strongly support the likely SNR nature of these sources: G038.7−1.3 (IPHASX J190640.5+042819), G067.6+0.9 (IPHASX J195744.9+305306), G066.0−0.0 (IPHASX J195749.2+290259) and G065.8−0.5 (IPHASX J195920.4+283740). A fifth possible younger, higher density nebula SNR candidate, G067.8+0.5 (IPHASX J200002.4+305035), was discovered ∼5 arcmin to the west of IPHASX J195744.9+305306, and it warrants further study. A multiwavelength cross-check from available archived data in the regions of these candidates was also performed with a focus on possible radio counterparts. A close positional match between previously unrecognized radio structures at several frequencies and across various components of the Hα optical image data was found for all SNR candidates. This lends further direct support for the SNR nature of these objects. Evolved SNRs may have very weak and/or highly fragmented radio emission which could explain why they had not been previously recognized, but the association becomes clear in combination with the optical emission.

INTRODUCTION

Supernova remnants (SNRs) are among the major contributors to the chemical regeneration of the Galaxy. Indeed, following the explosion of their high-mass progenitor stars in the case of core-collapse supernovae (∼80 per cent of all supernovae) or the Type Ia binary route (∼20–25 per cent of all supernovae; Bazin et al. 2009), they enrich the interstellar medium (ISM) in heavy elements (such as oxygen, iron and nickel) and other nucleosynthesis products. These ejecta play an important role in the observed chemical composition of the local ISM and the stellar systems that may subsequently be formed from it. SNRs are also responsible for the release of large amounts of energy, generating shock waves that highlight or ‘shape’ the surrounding inhomogeneous ISM with the concurrent production of hot, dense and bright ionized zones. The detection and study of those rapidly evolving remnants (a few thousand years old) are crucial for the understanding not only of stellar evolution of high-mass stars in the case of core-collapse supernova but also, more globally, for the understanding of Galactic abundance gradients, kinematics and chemistry.

The most recent and complete compilation of SNRs in the Galaxy has been assembled by Green (2009) which currently comprises 274 recognized and verified objects. However, according to Tammann, Loeffler & Schroeder (1994) we should expect around 1000 SNRs to be visible at any one time in our Galaxy. This discrepancy could be accounted for by the lack (and difficulty) of detection at both ends of SNR evolution when either the SNR is too compact/distant to be seen or when it is on the verge of completely dissipating into the ISM. The majority of the SNRs have been historically detected via radio observations and the subsequent determination of the non-thermal nature of the emission where the typically observed negative spectral index implies synchrotron emission. More recently optical detections of new Galactic SNRs have been possible (e.g. Stupar, Parker & Filipovi 2008) even in the absence of previous radio evidence due to the advent of high-resolution, high-sensitivity Hα surveys such as those described by Parker et al. (2005) and Drew et al. (2005).

Green (2004) highlighted the most important radio surveys traditionally used for uncovering SNRs. These include the Effelsberg 2.7 GHz survey (Furst et al. 1990) with a resolution of ≃4.3 arcmin, the Sydney University Molonglo Sky Survey at 843 MHz (Bock, Large & Sadler 1999) with a resolution of 43 × 43 arcsec cosec δ, the Parkes-MIT-NRAO (PMN) radio continuum survey at 4.85 GHz (Griffith & Wright 1993) with a resolution of ∼5 arcmin for the Southern survey and ∼3 arcmin for the northern counterpart undertaken at the same frequency on the Green Bank telescope (GB87; Condon et al. 1994) and finally the NRAO Very Large Array (VLA) Sky Survey (NVSS) at 1.4 GHz (Condon et al. 1998) with a resolution of 45 arcsec. These surveys are able to distinguish SNRs over a variety of angular scales depending on the respective beam sizes. For a review of SNRs in the PMN survey, see Stupar et al. (2007b).

Small, and therefore young (or distant), SNRs may not be optically recognized due to the presence of highly variable extinction at low Galactic latitudes where most SNRs are expected to reside. Other kinds of SNRs that are likely to be missed are those highly evolved SNRs with low-surface brightness and large angular size which are usually also highly fragmented. Indeed, radio surveys are generally not very sensitive to extremely evolved SNRs (e.g. Stupar et al. 2008; Stupar & Parker 2011) where the detected radio fragments are often unrecognized. Furthermore, in the optical regime, the typically low emission levels from Galactic SNRs make them difficult to identify while confusion with the ubiquitous H ii regions is also a problem. These selection effects have resulted in a serious bias in the global study of SNRs and their properties.

As part of a systematic effort to help address this, we are taking advantage of the recent, deep narrow-band Isaac Newton Telescope Photometric Hα Survey (IPHAS) of the northern Galactic plane (Drew et al. 2005, Gonzalez-Solares et al. 2008) to look for ‘previously hidden’ but optically detectable SNRs in a similar way to those uncovered by Stupar et al. (2008) in the south. IPHAS, which started in 2003, is now essentially complete. It used a wide-field CCD camera with r, i and Hα filters to provide an accurate photometric survey. IPHAS covers 1800 deg² of the northern plane across a ±5° latitude strip and was initiated as the direct counterpart to the AAO/United Kingdom Schmidt Telescope Hα survey of the southern Galactic plane (Parker et al. 2005). The survey has a nominal resolution of 0.33 arcsec pixel⁻¹ and the narrow-band component allows the detection of extended optical emission with an Hα surface brightness down to ≃2 × 10⁻¹⁷ erg cm⁻² s⁻¹ arcsec⁻² (≃3 Rayleighs). This makes the survey sensitive to evolved, low-surface-brightness nebulae such as planetary nebulae (PNe), including those interacting with the ISM (Wareing et al. 2006; Sabin et al. 2010), symbiotic stars (Corradi et al. 2010), Wolf–Rayet (WR) shells (Stock & Barlow 2010), Herbig–Haro objects, proplyd-like objects (Wright et al. 2012) and other kinds of resolved nebulae as well as SNRs.

This is not the first time a deep, narrow-band optical survey has been used to search for new SNRs as previously mentioned. Stupar et al. (2007a, 2008) and Stupar, Parker & Filipović (2011) presented the discovery of a significant number of new optically identified and confirmed SNRs based on data from the Southern Galactic plane Hα Survey (Parker et al. 2005). The authors also published a catalogue of newly uncovered optical counterparts for 24 known Galactic SNRs previously identified only from radio or X-ray observations (Stupar & Parker 2011). Boumis et al. (2005, 2008, 2009) also presented the first optical detections and spectroscopic confirmation for a number of SNRs based on CCD data. While also in the northern sky, Fesen & Milisavljevic (2010) discovered optical filaments for SNR G159.6+7.3 which had no previous radio detection.

In this paper we report the preliminary results of a systematic search for new SNRs from the IPHAS survey. Radio observations (across a large frequency range) are widely used to identify and image SNRs so in addition to the character of the ionized optical emission presented, the detection of radio emission from the expanding SNR shell is another important tracer, especially if it is possible to measure a negative spectral index to indicate synchrotron radiation. We examined archival data from the Westerbrock Northern Sky Survey at 325 MHz (Rengelink et al. 1997), the NVSS at 1.4 GHz (Condon et al. 1998) and the Green Bank (87 GB) 4.85 GHz survey (Gregory et al. 1996) to look for radio counterparts to our IPHAS targets. Furthermore, the high energy released by the initial supernova explosion (typically about 10⁵¹ erg following Burke & Graham-Smith 2002) results in the generation of X-ray emission which can be detected by X-ray space telescopes such as the previous ROSAT and current Chandra and XMM–Newton space observatories. Archival data from these surveys have also been interrogated to look for possible X-ray counterparts, both diffuse and compact. A search for infrared counterparts was also undertaken using most of the available IR surveys (e.g. WISE, GLIMPSE) but this did not return any convincing correspondence.

The paper is organized as follows. In Section 2, we present the new IPHAS optical detections of the SNR candidates. In Section 3, we present the spectroscopic follow-up of the candidates. In Section 4, some multiwavelength, principally radio counterparts to the optical images are discussed, while in Section 5 we present a discussion and our conclusions.

IPHAS DETECTIONS OF NEW SNR CANDIDATES

This initial search for new, optically detectable SNRs concentrated on the right ascension range from 19–20h. This is the first major IPHAS zone which has been systematically and carefully scanned for new emission nebulae of all kinds, including PNe and H ii regions. This search formed a major component of the thesis of Sabin 2008. A separate paper dedicated to the first 100 confirmed PNe resulting from this search is also in train (Sabin et al., in preparation). Note that the full IPHAS sky area (1800 deg²) has been divided into 2 deg² Hα-r (continuum removed) image mosaics that facilitate detection and recognition of extended emission nebulae. We used mosaic scale factors of 15 × 15 pixels (5 arcsec) and 5 × 5 pixels (1.7 arcsec). The first binning level was chosen to enable the detection of low-surface-brightness objects (down to the IPHAS limit) (Sabin et al. 2010) over large angular scales while the second was used to detect intermediate-size nebulae, i.e. smaller than ≃15–20 arcsec in diameter.

The SNR candidates were selected based on their optical morphological characteristics. They were considered as plausible candidates if they could be identified as detached but coherent filamentary structures or as discrete round shells or arcs in the IPHAS Hα-r mosaic images. The Hα Balmer emission line is an excellent tracer of ionized gas while the continuum-subtracted images enhance the contrast even further. Already catalogued sources, including known SNRs, are also scrutinized as additional, previously unrecognized emission components to these sources may become evident. For example, most known SNRs were uncovered only from radio data but we can now also reveal optical counterparts to many of these remnants for the first time (Stupar & Parker 2011).

Spectroscopic validation of newly identified optical components of perhaps widely dispersed SNR candidates is important for their proper identification but this can be difficult to realize in crowded zones such as the Galactic Centre where several SNRs (and H ii regions) can overlap (Green 2009, their fig. 3). Our careful search over the preliminary RA zone resulted in a set of four or possibly even five candidate SNRs being uncovered. These are described individually below with summary details presented in Table 1 and named according to the nomenclature adopted for all IPHAS extended objects (IPHASX JHHMMSS.s±DDMMSS).

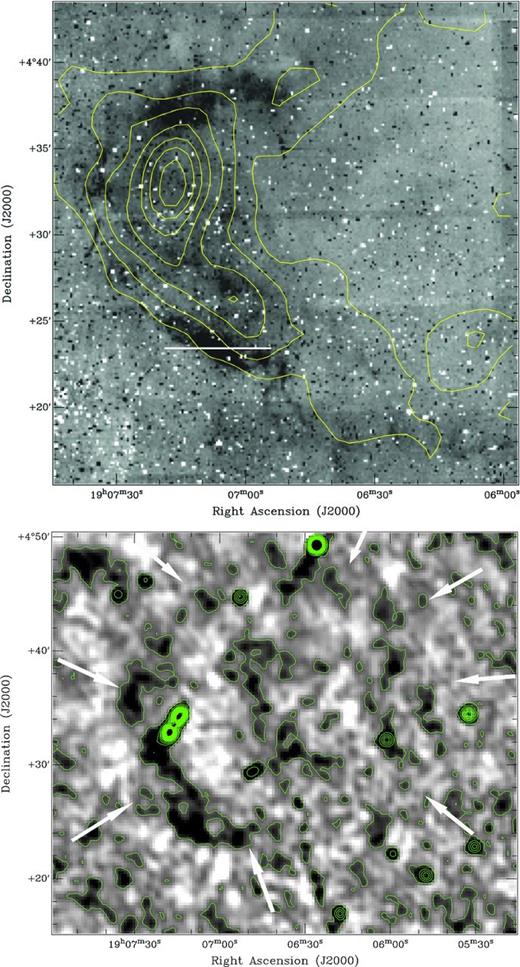

Our first candidate SNR IPHASX J190640.5+042819 was selected due to its well-defined semicircular emission of radius ∼9.3 arcmin × 15.9 arcmin together with some elongated tails of filamentary features particularly to the south. These morphological structures classified it as a good SNR candidate (Fig. 1, top).

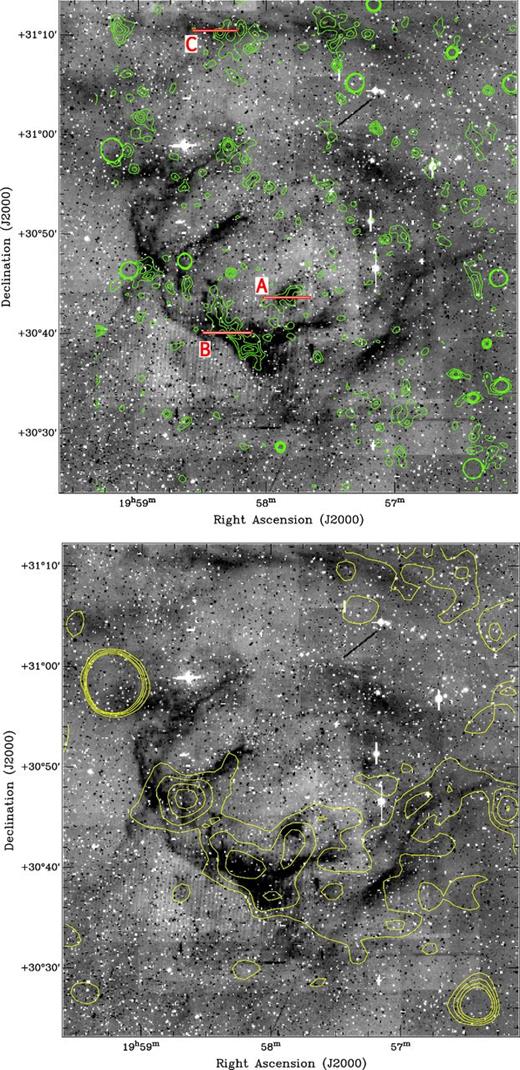

The second candidate is IPHASX J195744.9+305306 (Fig. 2, top) which has the appearance of a fractured oval ring with some internal emission spurs emanating from the eastern and northern edges. It has a projected angular radii of ∼22.6 arcmin × 24.6 arcmin. There are several H ii regions in the general vicinity of this candidate SNR, including Sh 2-98 and Sh 2-97 which are found within ∼0|${^{\circ}_{.}}$|5 but these are well separated from the SNR candidate. However, the most northerly faint rim of the SNR appears somewhat detached from the main shell and comes within 4 arcmin of the outer rim of the circular H ii region directly to the north so some overlapping of emission here cannot be completely ruled out. There is also a known SNR G067.7+01.8, located ∼1° west. Clearly, this general area hosts some large nebulae. Nevertheless, the main structure remains clearly detached from any of the surrounding H ii regions and we can consider IPHASX J195744.9+305306 as a single object.

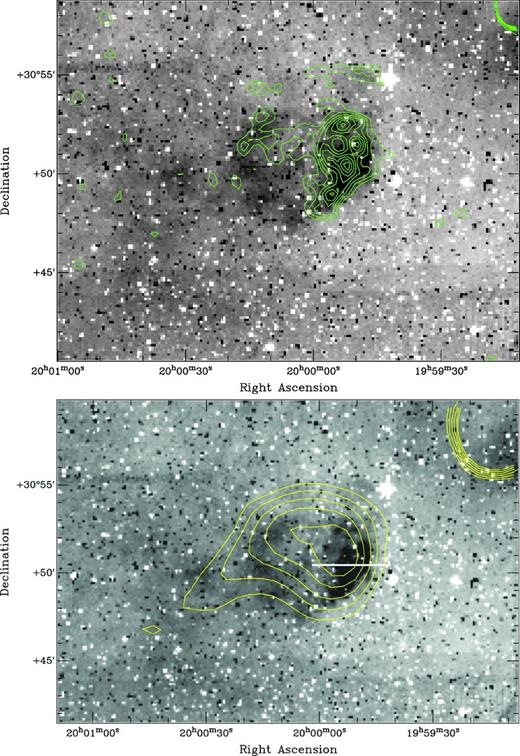

A coherent, completely separate, elliptical emission structure was also found ∼5 arcmin to the east of IPHASX J195744.9+305306 (Fig. 3, top) which we label IPHASX J200002.4+305035 and was included in our investigation as it could be a younger, more compact SNR or perhaps even an evolved PN.

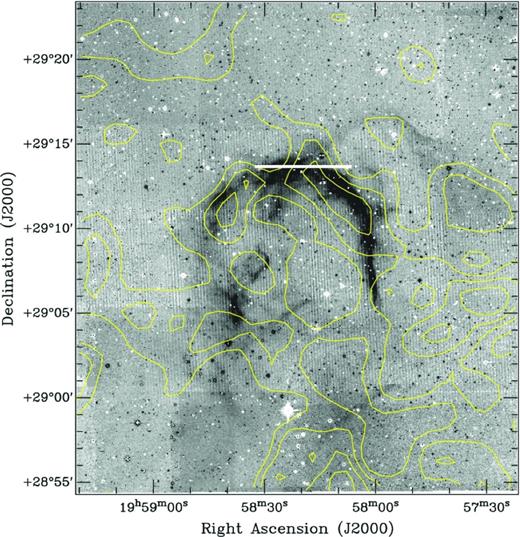

We also identified IPHASX J195749.2+290259 (Fig. 4), which has a filamentary partial shell morphology with a bright emission arc to the north. A fainter apparent morphological duplication of this structure ∼5 arcmin to the north-west is also evident which must be related given their strong similarity in appearance. Such similar morphological repetition is also seen in parts of the well-known Vela SNR. We cannot probe deeper into a detailed explanation at this stage as we lack the data to fully establish the nature of the ‘duplicated’ structure which may represent some evidence of symmetrical mass ejection. Further study is needed but this is beyond the scope of this paper. The structure of IPHASX J195749.2+290259 is again typical of optical (and radio) SNRs and we note the similarity between this object and the well-known SNR IC 443 which also exhibits faint filament (G189.1+3.0; see Fesen 1984).

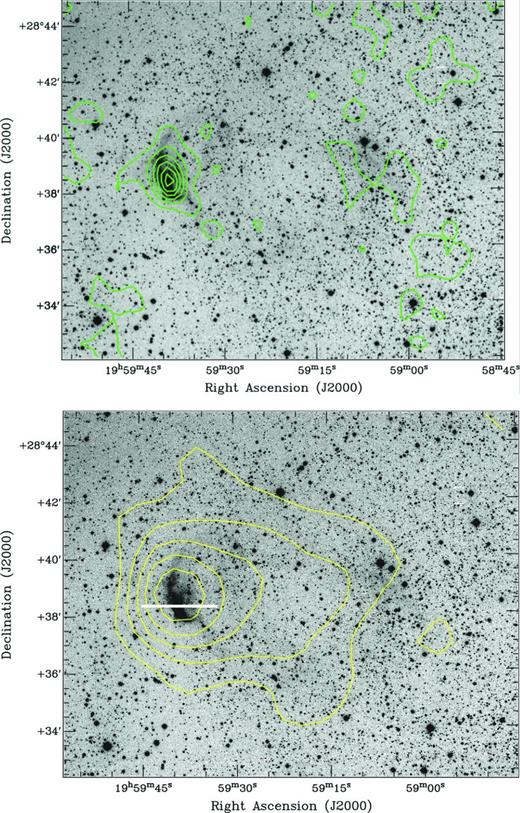

The last selected SNR candidate is IPHASX J195920.4+283740 which reveals an elongated and closed shell structure at faint isophotes over a region of radius 186 × 312 arcsec (Fig. 5, top). The nebula is globally very faint except for the enhanced edge seen on the eastern side.

SPECTROSCOPIC OBSERVATIONS AND CONFIRMATORY RESULTS

As part of our general programme of IPHAS follow-up spectroscopy, we obtained low-resolution confirmatory spectra of these candidate SNRs. Our first SNR spectrum was of IPHASX J195920.4+283740 taken on the 2.5 m Isaac Newton Telescope (INT) on La Palma (Canary Islands) in 2008 April, while the remaining candidates were observed using the 2.1 m telescope at the San Pedro Mártir Observatory (OAN-SPM¹) between 2010 June and 2011 August. A summary of these spectroscopic observations is given in Table 2 while the spectra are presented in Fig. 6 and the resulting emission-line measurements are shown in Table 3.

On the 2.5 m INT we used the low-resolution spectrograph IDs with the EEV10 detector and R300V grating. This covers the range ≃3500–8960 Å with a resolution of ≃1.8 Å though the data below 3600 Å are of no value due to the atmospheric cutoff. The slit length was 3.3 arcmin and the seeing during the observations varied between ∼1.8 and ∼2.2 arcsec. The exposure time for the observation of IPHASX J195920.4+283740, which is a relatively faint nebula, was set to 3 × 1200 s on a portion of its brighter eastern edge. We note that the data bluewards of Hβ in the spectrum did not show any emission lines due to the low signal-to-noise ratio (S/N).

For the remaining 2.1 m SPM telescope observations, we used a Boller & Chivens spectrograph and Thomson & Marconi CCDs (2048 × 2048 pixels of size 14 μm). An east–west slit orientation was adopted with the 5 arcmin length slit carefully positioned on the most prominent nebular arcs or filaments to give better S/N but also chosen to allow sufficient sky for background subtraction. In the cases where, despite our best efforts, it was not possible to extract sufficient decent sky, we also took background spectra in relatively ‘blank’ areas located in the immediate surroundings of the nebula. This was particularly the case for IPHASX J195744.9+305306 (B and C positions). The observations were obtained under varying seeing conditions typically around 2 arcsec and were made with the 400 line mm⁻¹ grating. This gave a spectral coverage of ≃4330–7530 Å with a resolution of ≃5 Å sufficient to encompass most optical emission lines of interest. The data bluewards of Hβ in these spectra did not exhibit any emission lines due to the low S/N and extinction. The data reduction of all spectra was done with the usual iraf routines. The extinction correction applied to our spectra was performed using the Fitzpatrick and Massa extinction curve (Fitzpatrick & Massa 2007) for R_V = 3.1.

In order to derive the errors on the measurements we consider mainly two sources of error. The first is related to the CCD readout noise and photon noise relative to the sky and objects. This error is derived via the estimation of the variance (σ²) at each point of the spectrum (i.e. at each wavelength). The ‘variance spectrum’ obtained is processed the same way as for regular data spectra in iraf assuming a non-correlated error approximation (Taylor 1997). Therefore, the statistical errors corresponding to each spectral line are extracted and registered. The second source of error we considered here is linked to the flux calibration and the data were processed following Viironen et al. (2011).

The usual Hα, [N ii]λλ6548, 6583 and [S ii]λλ6716, 6731 emission lines were used to identify the nature of the nebulae based on the criteria defined by Fesen, Blair & Kirshner (1985, hereafter F85) and refined most recently by Frew & Parker (2010). The most conspicuous optical features for the discrimination of SNRs are the relative strength of [S ii] lines compared to Hα. Indeed, a large ([S ii]6716+ [S ii]6731)/Hα ratio > 0.4–0.5 (see F85) is a key probe for the occurrence of the shock characteristics of the turbulent and energetic environment of SNRs which is not generally found in H ii regions or PNe.

The [S ii] ratio is used as a diagnostic to determine electron densities in ionized plasmas and for most SNRs this ratio is likely to be in the low-density limit with a ratio of ∼1.4. In addition, the presence of relatively strong [N ii] lines [with 0.5 <([N ii]6548+ [N ii]6583)/Hα < 1.5 following F85] as well as the presence of moderate [O i] emission (λλ6300, 6363) are also good indicators of likely SNR nature. However, the latter can cause problems in low-resolution spectra as these lines are also quite strong in the night sky making their deconvolution from their bright sky line equivalents very difficult unless there is a strong velocity component in the SNR [O i] lines. This is especially germane if the extended nebulosity extends along the entire length of the slit. Our main limitation though is the inherent faintness of the targets even in Hα, which also explains their non-detection in previous optical surveys. An immediate consequence of such faint nebulosity is the inability to easily detect other common diagnostic emission species such as the Fe lines (Fesen & Hurford 1996).

Another issue related to the faintness of our targets is the discrimination between true SNRs and other morphologically similar nebulae such as WR shells, symmetric H ii regions or even low-excitation zones in PNe, as these nebulae can exhibit similar emission-line ratios in some cases. An overall body of evidence is used to aid in the identification of likely SNRs and to remove contaminants. This comprises the optical morphology, spectroscopic signature, local environment, presence of X-ray sources internal to the nebulae and any corroborating radio emission. While other shock-excited nebulae such as supershells (Hunter 1994; Skelton et al. 1999) and giant outflows associated with Herbig–Haro objects (Reipurth, Bally & Devine 1997; Mader et al. 1999) can have similar emission-line ratios to SNRs, the small (less than the degree) angular sizes of our candidates, their filamentary morphologies and the lack of star-forming activity in their vicinities strongly militate against these alternative interpretations.

New emission-line diagnostic diagrams

The ability to separate out different classes of astrophysical object according to their observed emission-line ratios is well established, e.g. the well-known Sabbadin, Minello & Bianchini (1977) ‘SMB’ Hα/[N ii] versus Hα/[S ii] diagnostic diagram or the Baldwin, Phillips & Terlevich (1981) ‘BPT’ [O iii]λ5007/Hβ versus [S ii]/Hα diagnostic diagram. We have been refining and updating these diagnostic diagrams using carefully vetted spectroscopic data from the literature, supplemented with our own flux-calibrated spectroscopy for a significant sample of objects of various kinds. The new figures presented here for the first time are better populated versions of the diagrams presented by Frew & Parker (2010). These new plots include many more Galactic SNRs and other types of nebulae than previous efforts. By only utilizing the most reliable data and identifications, a clearer picture of the loci of different object types is established compared to what has been previously available.

In this paper we therefore base our SNR spectroscopic confirmations on their observed strong emission-line ratios used in conjunction with these powerful, updated diagnostic diagrams created by one of us (DJF), based on an extensive data base of spectroscopic measurements. The line-ratio data for the Galactic SNRs were taken from our own unpublished spectroscopy as well as numerous literature sources, with notable contributions from Fesen & Kirshner (1980), Fesen, Blair & Kirshner (1982), F85, Blair, Long & Vancura (1991) and Boumis et al. (2005, and references therein). The Large Magellanic Cloud SNR flux data are mostly from Payne, White & Filipović (2008, and references therein) and the line fluxes for Galactic PNe are taken from the sources summarized in Frew, Bojicic & Parker (2012). The H ii region data are mostly taken from the references given in Frew & Parker (2010), supplemented with unpublished data utilized by Boissay et al. (2012). The labelled domains include approximately 95 per cent of the objects of that class listed in our data base. A fuller description of the construction and content of these new diagnostic diagrams will be presented in their entirety in an upcoming paper (Frew et al., in preparation, F13 hereafter). Our new sources are overplotted on these figures which demonstrate clearly how they lie in the zones populated by confirmed SNRs (see Figs 7 and 8).

We emphasize that evolved Galactic SNRs have compositions dominated by swept-up ISM, and show a clear abundance gradient in the Galaxy (Binette et al. 1982; F85); the most metal-rich examples in the inner Galaxy tend to plot at the lower left of the SNR domain in the Hα/[N ii] versus Hα/[S ii] diagram (Fig. 7). Since the IPHAS candidates also plot here, this suggests that they are metal rich, which is consistent with the Galactic sightlines for these objects. At any plausible distance, they are located interior to the solar circle. This diagnostic plot also illustrates how the Galactic objects tend to plot separately from the Magellanic Cloud remnants, a consequence of the lower nitrogen abundance in the latter (Meaburn et al. 2010; Leonidaki, Boumis & Zezas 2013). We also note that many of the youngest core-collapse Galactic SNRs (e.g. Fesen & Kirshner 1982; Leibowitz & Danziger 1983; Winkler & Kirshner 1985) are chemically stratified, and show clear nitrogen overabundances in many of their filaments (Chevalier & Kirshner 1978, 1979; MacAlpine et al. 1994, 1996; Isensee et al. 2012).

The individual spectroscopic details of each IPHAS candidate are described in the following subsections.

IPHASX J190640.5+042819

For this candidate (refer to the images in Fig. 1) our new optical spectrum gives ratios of [N ii]/Hα = 1.48 (eliminating any possible confusion with an H ii region) and [S ii]/Hα = 1.15, clearly placing the ionized gas in the shock regime. Placing these emission-line ratios in the F13 and F85 diagnostic diagrams indicates that the source lies squarely in the region occupied by SNRs. The forbidden oxygen emission lines [O i] λλ6300, 6364 which are relatively strong in SNR (contrary to H ii regions and PNe) are also present and were measured with extinction-corrected fluxes of 34.1 and 34.5, respectively (for Hβ = 100 and Hα = 286). The [O i] λ6300 line flux should be three times the [O i] λ6364 flux according to the theoretical ratio of Einstein's A coefficients. The observed values betray sky subtraction problems due to the presence of the same oxygen lines in the sky background that makes them difficult to extract properly as the nebular emission filled most of the slit. Although we proceeded with great care when removing the sky, there is clearly significant uncertainty in the flux measurement of these lines. IPHASX J190640.5+042819 is our first confirmed SNR which can then be named according to the standard Galactic SNR nomenclature (GD.d±D.d) as SNR G038.7−1.3.

IPHASX J195744.9+305306

The large projected optical angular extent of IPHASX J195744.9+305306 (∼24.6 arcmin × 22.6 arcmin; see Fig. 2) led us to obtain several different pointings during the spectroscopic observations so as to obtain a more representative sample of spectra across different possible components of this large source. Those are noted as A, B and C in the top panel of Fig. 2. There is an additional pointing D which was made on the faint, oval-shaped, apparently detached nebula ∼5 arcmin to the east of the main structure and approximately 8 arcmin × 6 arcmin in diameter (Fig. 3). This turns out to be an interesting source in its own right and another possible SNR candidate (see below).

Fig. 7 indicates that the spectra from pointings B and particularly C provide line ratios compatible with an SNR origin with a clear signature of shock-heated emission with [S ii]/Hα ratios of 0.57 and 0.99, respectively (Fig. 8, Table 3) – see also the diagram by Phillips & Cuesta (1999). Pointing B also shows the [O i]λλ6300, 6364 emission lines with respective dereddened values of 41 and 11 (scaled to Hβ = 100), supporting the SNR classification (see Fig. 6 and Table 3). However, the observed line ratios from the spectra for pointing A are closer to those expected for an H ii region (Table 3). Note that pointing ‘A’ falls on a nebular condensation internal to the proposed main SNR shell and could simply be an unrelated compact H ii region, as, unlike the two internal emission spurs to the north, this blob does not appear connected to the main arcuate shell. Furthermore, the spectral characteristics of this region (slit position A) are different to those obtained from slit positions B and C with instead a rather low [S ii]/Hα ratio (0.24) which does not advocate for a shock regime and very different [N ii]/Hα ratios, adding further weight to its identification as a discrete H ii region. Nevertheless, given that we have no independent estimate of the distances of these components, we cannot categorically discard a link between this putative compact H ii region and the surrounding main SNR shell. Additional information such as distance estimations and the kinematics of both structures is required to fully establish any possible connection.

The information brought by the extinction data would position the filaments/structures related to pointings A and B at a relatively close distance from each other with respective c(Hβ) values of 0.82 and 0.86. Pointing C, with c(Hβ) = 1.26, would then appear as an independent element but we cannot discard a link to IPHASX J195744.9+305306 since pointings ‘B’ and ‘C’ share the same SNR spectroscopic classification.

In summary, SNR candidate IPHASX J195744.9+305306 falls in a general area of H ii regions including a probably compact H ii region (pointing A) superposed on the main SNR shell. H ii regions projected on SNRs are not unexpected and our combined imaging and spectroscopic data still provide strong evidence that IPHASX J195744.9+305306 (G067.6+0.9) is a true SNR.

IPHASX J200002.4+305035

The spectral characteristics exhibited from pointing D (object shown in Fig. 3) including from its location in the F13 diagram, and a quite high but not conclusive [S ii]/Hα ratio, that this apparently coherent, oval nebulae may be an additional compact SNR which we tentatively denote as IPHASX J200002.4+305035 or G067.8+0.5. It is located 5 arcmin to the east of the more extensive nebulosity linked to IPHASX J195744.9+305306 and is clearly detached from it. The spectrograph slit was placed E–W across the middle of the western enhanced edge of the optical nebula. The absence of the Hβ line prevents us from deriving the extinction. Note that it is unrelated to the nearby compact (full width at half-maximum ∼ 1.62 arcsec) PN candidate IPHAS J195956.42+304823.8 (2MASS J19595642+3048238) reported by Viironen et al. (2009). IPHASX J200002.4+305035 also shows the highest electron density of all the targets with |$n_{{\rm e}^{-}}$| = 620 ± 74 cm⁻³ which may be an indication of youth. Further study of this emission nebula is required to clarify its nature but an SNR identification is not unwarranted at this stage from the optical imagery and spectroscopy alone.

IPHASX J195749.2+290259

The spectroscopic analysis of this candidate shown in Fig. 4 indicates a likely SNR identification (in this case the nebula is named G066.0−0.0) either using the diagnostic diagrams from F13 (Fig. 7) or the conditions fixed by F85. The observed diagnostic emission-line ratios of [S ii]/Hα = 0.83 (clearly in the shock regime following F85), [N ii]/Hα = 1.9 (clearly eliminating an H ii region identification) and [S ii]6717/6731 = 1.4 indicating an electron density close to the low-density limit, all fit well within the definition of an SNR following F85. We notice that, similarly to G067.6+0.9 (IPHASX J195744.9+305306: pointings A and C), we did not detect any clear [O i] emission (see Fig. 6).

IPHASX J195920.4+283740

The nebula presented in Fig. 5 is well constrained spectroscopically to fall within the SNR regime using the criteria of F85 ([S ii]/Hα = 0.90 and [N ii]/Hα = 1.25) and F13 (see Fig. 7). However, a new helium-rich emission point source possibly related to a WR star has been identified close to the enhanced bow-shaped eastern emission component by Corradi et al. (2010), and denoted as IPHAS J195935.55+283830.3. Possible association of the nebulae with this unusual star would throw doubt on its SNR nature and might imply that the shell results, at least partly, to a past ejection from a massive star. We note that the elongated and asymmetric filamentary morphology of IPHASX J195920.4+283740 does not show the ring-like structure(s) generally displayed by WR nebulae (Marston 1995; Stock & Barlow 2010), which lends some support to an SNR classification. However, the IPHAS nebula does not display the typical SNR filamentary morphology either. The SMB log (Hα/[N ii]) versus log (Hα/[S ii]) diagnostic diagram after Frew & Parker (2010) is useful in discriminating SNR and WR shell emission-line signatures as they tend to occupy different loci in the diagram. In the case of IPHASX J195920.4+283740, the object plots well inside the SNR area and away from the WR shell/H ii region domain. Nevertheless, the presence of a helium-rich star so close to the enhanced eastern edge of the nebula is suspicious such that a non-SNR origin cannot be completely ruled out, despite the indicative emission-line ratios and corroborating radio signatures (see later).

MULTIWAVELENGTH DATA

G038.7−1.3 – IPHASX J190640.5+042819

The region of sky containing this SNR was covered by two radio telescopes, the 64 m Parkes telescope as part of the PMN 6 cm survey (Griffith & Wright 1993) and the 91 m NRAO Green Bank telescope and included within the 87 GB survey (Condon, Broderick & Seielstad 1989). Radio emission is clearly seen and follows quite well the optical nebular morphology as shown in the top panel of Fig. 1. The yellow contours overlay the Hα grey-scale image and show the 4.85 GHz (6 cm) radio flux from the 87 GB survey as the resolution of this telescope at this frequency (∼3.5 arcmin) is somewhat better than in the PMN survey (∼5 arcmin). The radio data seem to indicate a much larger extent to the SNR than is evident from the optical data alone. Note that this radio emission had not been previously recognized as being part of any coherent structure so we make the association here for the first time. The radio contours go from 0.01 to 0.14 Jy beam⁻¹ in intervals of 0.02 Jy beam⁻¹.

The SNR is also seen at 1.4 GHz (21 cm) within the NVSS survey (Condon et al. 1998) and shown in the bottom panel of Fig. 1. Comparison with the 87 GB and PMN data shows that both the 6 cm and 21 cm surveys exhibit strong emission peak(s) at the same location (RA = 19^h07^m20^s, Dec. = 4°32′). However, the NVSS image has much better resolution (45 arcsec) and resolves two compact emission peaks at the same location. The radio contours go from 0.001 to 0.05 Jy beam⁻¹ in intervals of 0.005 Jy beam⁻¹. The integrated flux for this region provides values of 90 mJy for 87 GB and 109.2 and 119.9 mJy (21 cm) for the two NVSS frequencies available. Unfortunately, it is problematic to conclude if these more compact NVSS emission peaks are related to the SNR or are from a separate Galactic mJy source or even a background extragalactic double-lobed radio source. Even if this double-peaked source is unrelated to the SNR, the NVSS image still shows a complete, though fragmented SNR shell of ∼25 arcmin in diameter. Arrows are added to the figure to facilitate recognition. This enables an updated SNR ID of G038.7−1.3 based on the new geometric centre of the shell (note that we retain the original IPHAS optical ID but the RA/Dec. of the shell centre is approximately 19^h06^m35^s + 04°35^′00^′′). Due to the low resolution at 6 cm from the 87 GB survey, we could not match emission with the NVSS shell at 21 cm apart from at the south-east edge. We also note that Reich et al. (1984) detected only one source (similar to the 6 cm 87 GB survey data) at the SNR location using the Effelsberg 100 m dish with a resolution ∼4.3 arcmin.

We emphasize, and this is also valid for the remaining radio analysis of the other objects, that measuring a valid spectral index for our SNR candidates (i.e. obtaining reliable radio fluxes at different frequencies) would be another clear proof to support their SNR status. However, this was not possible with the existing data due to the non-compatibility between the radio surveys (different resolutions/beam sizes) and because of the generally fragmented nature of the remnants. New and deeper radio observations are required to obtain decent integrated radio fluxes from which reliable spectral indices could be obtained and hence to demonstrate the existence of non-thermal radio emission. This is beyond the scope of this paper.

A single X-ray source is found within the confines of the SNR, ROSAT 1RXS J190709.4+043100. Similarly to pulsars, a connection could be made via the localization of X-ray sources in the central part of the SNR but this source is not located close to the geometric centre making any direct link unlikely. Furthermore, there is no indication of any extended X-ray emission internal to the shell which could indicate a Plerion.

G067.6+0.9 – IPHASX J195744.9+305306

The top panel in Fig. 2 shows the Hα-r image mosaic of IPHASX J195744.9+305306 with 15 pixel binning overlaid with NVSS radio contours ranging from 0.0008 to 0.0027 Jy beam⁻¹. This higher resolution NVSS 21 cm emission directly and clearly overlaps with the strongest optical emission to the SSE. The complex environment surrounding the nebula makes it harder to define the real limits of the new SNR in Hα. The red E–W bars indicate the location of the slits for the different spectral pointings A, B and C with lengths of 5 arcmin. The bottom panel of Fig. 2 is the same except with the 6 cm 87 GB radio emission overlaid as contours ranging from 0.004 to 0.02 Jy beam⁻¹. Here the radio emission appears coherently distributed along the southern rim of IPHASX J195744.9+305306. There are also some smaller, sparse emission blobs outside the nebula which are probably unrelated. Detection of radio emission at two frequencies across components of the optical emission lends strong support to a likely SNR identification when combined with the indicative spectroscopic signatures. A group of X-ray sources has been identified within the boundaries of the proposed new SNR. Except for one located in the north-east (detected with the ROSAT all-sky survey catalogue of optically bright OB-type stars; Berghoefer, Schmitt & Cassinelli 1996) and related to the double/multiple star HR 7640, the majority of these X-ray sources are concentrated at ∼11.5 arcmin west from the geometric centre of the SNR and are mostly ROSAT bright sources (Voges et al. 1999) unrelated to the SNR.

G067.8+0.5 – IPHASX J200002.4+305035

The possible new SNR PHASX J200002.4+305035 has clear radio detections in both the NVSS and 87 GB. We present the NVSS data overlaid as green contours ranging from 0.0015 to 0.0040 Jy beam⁻¹ on a grey-scale 15 pixel binned IPHAS 25 × 20 arcmin Hα image in the top panel of Fig. 3 due to its higher resolution. The bottom panel is as above with 87 GB data overlaid as yellow contours ranging from 0.015 to 0.05 Jy beam⁻¹. While the 6 cm 87 GB emission appears to entirely cover the optical nebula including a weak extension to the eastern side, the higher resolution NVSS data are more localized and coincide most closely with the western enhancement of the oval shell (a possible bow-shock ?).

G066.0−0.0 – IPHASX J195749.2+290259

A multiwavelength investigation of archival data reveals radio emission at 6 cm from the 87 GB survey. Fig. 4 shows the IPHAS Hα grey-scale image overlaid with yellow 6 cm contours ranging from 0.0014 to 0.14 Jy beam⁻¹ that appears to follow the edges of the SNR especially to the north-east and north-west though it is also somewhat fragmented. An interesting point is the location only ≃31 arcmin to the south-east of another of our new IPHAS identified SNRs G065.8−0.5 (IPHASX J195920.4+283740) further discussed below. The E–W slit position of the spectroscopic observation is indicated by the white horizontal bar.

G065.8-0.5 – IPHASX J195920.4+283740

For this SNR candidate an excellent match between the known NVSS radio source NVSS 195938+283832 (27.0 mJy at 1.4 GHz) and the bright eastern enhanced arcuate rim of this possible bow shock was found (see the top panel of Fig. 5). There is also a very good coincidence between the 4.85 GHz 6 cm 87 GB radio emission and the entire optical nebula extent including the fainter opposing rim to the west (see the bottom panel of Fig. 5). When taken together with the optical emission-line ratios, which place the nebula in the SNR regime of the various diagnostic diagrams, an SNR identification seems likely. However, the situation is complicated by possible association with a helium-enriched emission-line star (Corradi et al. 2010) close to but internal to the eastern arc traced by the optical and NVSS data. More investigation is needed to ascertain the true nature of this nebula.

DISCUSSION AND CONCLUSIONS

We report the discovery of four or possibly five new, likely SNRs following a systematic and careful visual search of the continuum-removed Hα mosaics of the IPHAS survey over the 19–20 h RA zone. These small-to-medium angular size Galactic nebulae and SNR candidates (i.e. with major axes in the range ∼6–50 arcmin) were selected primarily on the basis of their optical morphology. Plausible candidate SNRs need to exhibit coherent filamentary or shell-like characteristics which are common features of currently known optically identified SNRs. The relatively small angular size of these objects compared with the degree-size SNRs found for many Galactic remnants (e.g. refer to online catalogue of Green – http://www.mrao.cam.ac.uk/surveys/snrs/snrs.data.html) implies that these newly discovered nebulae could be more distant or perhaps younger, assuming that they have not had the time to expand to the dissipation phase. In the latter case, a connection between an SNR and a young pulsar might be realized if they originate from core-collapse events.

Our spectroscopic follow-up of these candidates allowed us to identify them all as likely SNRs using the standard diagnostic emission-line ratios defined by F85 and the new and more comprehensive diagrams presented first by Frew & Parker (2010) and with updated and improved versions of these figures presented here for the first time. A problem in this type of investigation lies in the generally faint optical emission and low surface brightness of such evolved SNRs which makes their spectroscopic investigation difficult on 2 m class telescopes. Nevertheless, in this preliminary study, the primary combination of optical imagery and spectroscopy and their locations in the emission-line diagnostic plots lend strong support to the SNR origin of the examined candidates. In several cases, this has been further corroborated by the recognition of previously un-catalogued radio emission usually at more than one frequency from archival data which is clearly associated with the optical nebulosities.

The spectroscopic data show typical SNR diagnostic lines exhibited by all candidates and indicate the presence of shocks with [S ii]/Hα line ratios greater than 0.4–0.5. The observed [N ii]/Hα line ratios are also generally high (>1.2) which rule out any possible confusion with H ii regions. There are two exceptions. The first is for pointing ‘A’ of IPHASX J195744.9+305306 which has [N ii]/Hα ∼0.62. However, we determine that this compact nebular region, which is located internal to the main nebula shell and targeted as pointing ‘A’, is likely to be an unrelated H ii region. The second is IPHASX J2000002.4+305035. In this case, the spectrum still displays an [N ii]/Hα >0.5 which is atypical of H ii regions. The [O i] 6300 and 6364 Å emission often seen in optical remnants are difficult to unambiguously identify in most cases due to low spectral resolutions employed meaning that these lines cannot be easily resolved or subtracted properly from the strong night sky lines of the same species due to the lack of significant line velocity difference. Consequently, among the group of likely SNRs, only three show [O i] 6300 Å and/or [O i] 6364 Å with any certainty though the line intensities themselves are only indicative and are not recorded in the canonical 3:1 ratio.

It is also important to emphasize that shock emission is not inherent solely to SNRs and can result from stellar winds and interactions such as those produced by young stellar objects and some PNe and WR stars. However, in general WR shells do not show strong [S ii] emission, and largely plot in separate regions of Sabbadin et al. (1977) (SMB) type diagnostic plots.

In order to further corroborate our results we also performed a multiwavelength investigation based on searches of online archives including all available radio data from the various current online surveys. Radio emission, mainly at 4.85 GHz (6 cm) from the 87 GB radio survey, was found in all cases with a decent positional and structural match to components of the optical morphology. In most cases, there were also detections from the higher resolution 1.44 GHz (21 cm) NVSS survey data which provides clearer and more direct associations. These radio matches are particularly good in the cases of G038.7−1.3 (IPHASX J190640.5+042819), G065.8−0.5 (IPHASX J195920.4+283740) and G067.8+0.5 (IPHASX J200002.4+305035) which supports the SNR nature of those objects. The remaining two SNRs display more discontinuous radio emission but still with components that follow the most intense regions of optical emission. Full overlap between the radio and optical data is not a necessary condition to demonstrate association, particularly in the case of faint nebulae and possible local dust and density variations can affect the visibility of optical emission across the true extent of the SNR.

Another source of confusion with possible SNR identifications of optical nebulae resides in the diffuse ionized gas (DIG) emission (or warm interstellar medium) as its morphology can be confused with our equally faint SNR candidates. Since the DIG is generally photoionized, as are H ii regions (Domgorgen & Mathis 1994), the separation of the DIG with shock-ionized objects such as SNRs can be easily done from our optical spectroscopy using the limiting conditions for both states: [S ii]λλ6716, 6731/Hα ≃0.4 and [N ii]λλ6548, 6583/Hα ≃0.5 (see for example Galarza, Walterbos & Braun 1999, their fig. 8). As mentioned previously, our line ratios clearly indicate that except for region ‘A’ in IPHASX J195744.9+305306 (which is indeed likely an unrelated H ii region) and the ambiguous IPHASX J2000002.4+305035, all the targets show shock-ionization characteristics of SNRs ([S ii]/Hα > ∼0.4 and [N ii]/Hα > ∼0.5). A DIG classification can therefore be confidently discarded for these sources.

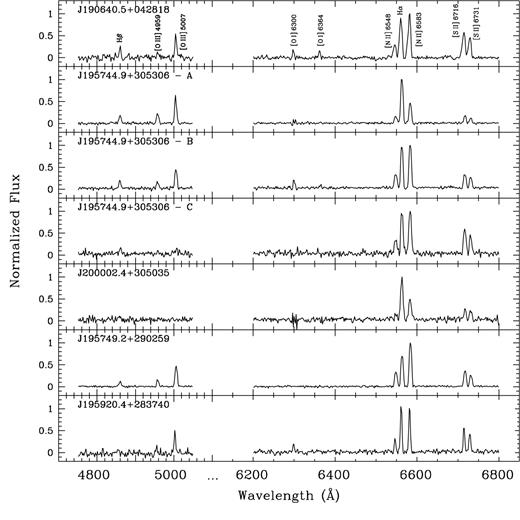

Fig. 6 and Table 3 indicate a relatively strong [O iii]5007 Å which is known to be a good indicator of higher shock speed. Raymond (1979) showed that the presence of this line is coincident with a shock speed greater than 80 km s⁻¹. This trend is confirmed when comparing our results with the theoretical models by Allen et al. (2008) which indicate shock speeds between 200 and 1000 km s⁻¹ in the SNR where [O iii]5007 Å is ‘well’ detected. This does not apply to the C slit position of J195744+305306 where the [O iii] 5007 Å line is hardly detectable and most probably mixed with noise. Those high values would help to constrain the evolutionary phase of the SNR observed, as although we are not dealing with SNRs in their ultimate phase of dissipation in the ISM we are not dealing with young ones either.

Our results on the first SNRs identified from IPHAS are preliminary, and each nebula warrants additional follow-up. Our ongoing search for new SNR candidates is based on a careful and systematic examination of the IPHAS survey image mosaics of the Galactic plane and is highly likely to provide many more SNR identifications in the future. Considering the return from a single 1 h IPHAS RA zone we might expect dozens of new Galactic SNR candidates to be uncovered based on their optical emission signatures. This would add significantly to the known Galactic population of evolved SNRs.

We thank both the anonymous referee and P. Boumis for valuable comments and suggestions that have contributed to significantly improving the quality of the paper. This project has been supported by PAPIIT-UNAM grant IN109509. This paper makes use of data obtained as part of the INT Photometric Hα Survey (IPHAS) of the northern Galactic plane carried out at the Isaac Newton Telescope (INT). The INT is operated on the island of La Palma by the Isaac Newton Group at the Spanish Observatorio del Roque de los Muchachos of the Instituto de Astrofisica de Canarias. All IPHAS data are processed by the Cambridge Astronomical Survey Unit, at the Institute of Astronomy in Cambridge. The investigation is based on observations collected at the 2.1 m telescope at the Observatorio Astronómico Nacional at San Pedro Mártir (Baja California, México) operated by the Instituto de Astronomía of the Universidad Nacional Autónoma de México and at the 2.5 m INT telescope operated on the island of La Palma by the Isaac Newton Group in the Spanish Observatorio del Roque de los Muchachos of the Instituto de Astrofísica de Canarias. Special thanks is given to the technical staff and night assistants of the San Pedro Mártir Observatory. This research has made use of the ALADIN data base operated at the CDS, Strasbourg (France) and the NASA/IPAC Infrared Science Archive, which is operated by the Jet Propulsion Laboratory, California Institute of Technology, under contract with the National Aeronautics and Space Administration. This research also made use of Montage, funded by the National Aeronautics and Space Administration's Earth Science Technology Office, Computation Technologies Project, under Cooperative Agreement Number NCC5-626 between NASA and the California Institute of Technology. Montage is maintained by the NASA/IPAC Infrared Science Archive. MS thanks the ARC for provision of Discovery project funding while DJF thanks Macquarie University for a university research fellowship.
