Abstract
We report the first detection of a radio continuum and molecular jet associated with a dominant blue-shifted maser source, G353.273+0.641. A radio jet is extended 3000 au along the north-west–south-east (NW–SE) direction. H2O masers are found to be clustered in the root of a bipolar radio jet. A molecular jet is detected by thermal SiO (| $\upsilon $| = 0, J = 2–1) emission. The SiO spectrum is extremely wide ( − 120 to +87 km s− 1) and significantly blue-shift dominated, similar to the maser emission. The observed geometry and remarkable spectral similarity between H2O maser and SiO strongly suggest the existence of a maser-scale ( ∼ 340 au) molecular jet that is enclosed by the extended radio jet. We propose a disc-masking scenario as the origin of the strong blue-shift dominance, where an optically thick disc obscures a red-shifted lobe of a compact jet.
1 INTRODUCTION
The dominant blue-shifted maser (DBSM) is a class of 22 GHz H2O maser sources that shows a highly asymmetric spectrum, where almost all flux is concentrated in blue-shifted emission, with a broad velocity range (up to ± 100 km s− 1) with respect to the systemic velocity (Caswell & Phillips 2008; hereafter CP08). It is a candidate of high-mass protostellar object (HMPO) with a pole-on jet, and often observed in the earliest evolutional phase accompanied by the class II CH3OH masers (Breen et al. 2010).
The target source G353.273+0.641 (hereafter G353) is the archetypal DBSM at a distance of 1.7 kpc (CP08). Motogi et al. (2011) (hereafter MO11) have found highly intermittent maser flare activities in G353 based on a long-term very long baseline interferometry (VLBI) + single-dish monitoring studies. Observed maser flares were accompanied by systematic changes of a maser distribution, indicating recurrent shock propagations. Therefore, MO11 have concluded that the time-dependent maser activities are caused by an episodic high-mass protostellar jet.
In this paper, we report new detections of a radio continuum and molecular jet in G353 with the Australia Telescope Compact Array (ATCA) and the Nobeyama Radio Observatory (NRO) 45 m telescope. An additional VLBI data set of the H2O maser taken by the VLBI Exploration of Radio Astrometry (VERA) is also used for a comparison between the radio jet and the maser. These new observations intend to confirm whether G353 is really excited by a jet or not. This is the first detection of a host protostellar jet associated with a known DBSM, supporting a previous ‘pole-on jet’ hypothesis in CP08 and MO11.
2 OBSERVATIONS AND DATA REDUCTION
2.1 Australia Telescope Compact Array
The ATCA radio continuum observation was made on 2012 Jan. 12 with the array configuration of 6A. Since there was a receiver trouble in CA05, in total five antennas were used for 10 h synthesis. We observed two 2 GHz bands centred on 18 and 22 GHz simultaneously, using the compact array broad-band backend (Wilson et al. 2011) in the 2048 channel mode. The H2O maser emission is also contained in the 22 GHz band. The phase centre of the array was | $(\alpha ,\delta )_{\rm {J2000.0}} = (17^{\rm h}26^{\rm m}01{.\!\!\!\!\!\!^{\rm s}}59 -34^{\circ}15^{\prime}10{.\!\!\!\!\!\!^{\prime\prime}}00)$|. This is slightly ( ∼ 5 arcsec) north from the maser position reported in MO11, in order to avoid an effect of any artefact that can be caused by instrumental errors. Observation was done in the fast-switching mode using the nearby bright ( ∼ 1 Jy) calibrator 1713-336 (1| ${.\!\!\!\!\!\!^{\circ}}$|8 from G353). The cycle time was set to ∼ 200 s, where we spent 150 s for G353 and 50 s for 1713-336 including slew time. The pointing accuracy was checked every hour using 1713-336.
Data reduction was performed with the miriad package. Bandpass calibration was performed using 1921-293. The primary flux calibrator 1934-638 was used for absolute flux calibration. Estimated fluxes of 1.10 Jy (18 GHz) and 0.83 Jy (22 GHz) are well consistent with the previous records in the ATCA Calibrator Database, and hence, we conclude that our flux calibration is better than nominal 10 per cent accuracy. After the standard calibration procedures, we successfully imaged a radio jet in G353 with a robust weighting (robust = 0.5 in the task ‘invert’). The synthesized beam sizes (full width athalf-maximum: FWHM) are 0.84 arcsec × 0.45 arcsec and 0.69 arcsec × 0.36 arcsec at 18 and 22 GHz, respectively, with a beam position angle of 8| ${.\!\!\!\!\!\!^{\circ}}$|7.
We finally performed a self-calibration to maximize image dynamic ranges. Since the target source is too weak to be detected in individual scan, all target scans were integrated over, in order to correct a residual gain offset between each antennas. This increased image dynamic range by about 16 and 8 per cent for 18 and 22 GHz, respectively. The 1σ noise levels achieved in final images are 19 and 37 μJy beam− 1 at 18 and 22 GHz, respectively. We also imaged an H2O maser spot at the intensity peak, which was strong enough to be detected in our coarse spectral resolution ( ∼ 13 km s− 1). It was used for an evaluation of our astrometric accuracy by comparing the maser position derived from a new VLBI data set (see Sections 2.3 and 3.1).
2.2 NRO 45 m
High-sensitivity single-dish observations with the NRO 45 m telescope were carried out on 2012 March 12–14 and 2012 April 16–17. We observed SiO (| $\upsilon $| = 0, J = 2 − 1) transition at 86.846 96 GHz in a single pointing towards G353, searching for a molecular jet. We also conducted mapping observation of the natal molecular core and it will be reported in a forthcoming paper (Motogi et al. in preparation).
We used a waveguide-type dual-polarization sideband-separating SIS receivers, T100 V/H (Nakajima et al. 2010). The beam size (FWHM) is ∼ 19 arcsec (19.2 arcsec for T100 V and 18.9 arcsec for T100 H), corresponding a linear scale of 0.16 pc at 1.7 kpc. The backend system was the spectral analysis machine for the 45 m telescope (SAM45: e.g. Iono et al. 2012). It provides total 16-array outputs (e.g. 2 polarizations × 2 sidebands × 4 spectral windows), each with 4096 spectral channels. A bandwidth per array is selectable between 16 MHz and 2 GHz, and we adopted 1 GHz bandwidth mode (244.14 kHz per spectral channel).
The observations were made in the position-switching method. The absolute pointing accuracy was checked every hour with a strong SiO maser source using a 43 GHz SIS receiver (S40). It was within ± 4 arcsec throughout the observations. The system noise temperature (Tsys) was typically 200–300 K in a single sideband. The intensity scale was calibrated by the standard chopper-wheel method.
Data were reduced with the newstar software package developed at NRO. The observed antenna temperature was converted into the main beam brightness temperature (Tmb) scale, assuming the main beam efficiency of 40 per cent and 43 per cent for T100 V and T100 H, respectively. Two distinct polarizations were averaged in the Tmb scale for sensitivity. The initial 4096 channels were smoothed every eight channels, resulting in the final spectral resolution of 6.8 km s− 1. The total integration time was about 1 h per polarization and a rms noise level of 6.4 mK in the Tmb scale was achieved.
2.3 VLBI Exploration of Radio Astrometry
New VLBI observation of the H2O maser was done on 2012 January 13 (a day after the ATCA observation) using the VERA. Typical Tsys was 300–500 K in the 6 h observation, except for initial 2 h where we observed rather high Tsys of 1000 K at the Ishigaki station. The detailed observing method and data reduction procedures have already been described in MO11. The position of the peak maser spot ( − 60.7 km s− 1) is determined with the astrometric accuracy of 0.10 and 0.34 milli-arcseconds (mas) in RA and Dec., respectively.
3 RESULTS
3.1 Radio continuum: jet plus disc?
Fig. 1 shows contour images of the radio continuum at 18 and 22 GHz, revealing elongation along the NW–SE direction with a total extent of ∼ 3000 au (3σ threshold). Estimated flux and spectral index α between these frequencies are listed in Table 1. Although it still contains large error, the α that is estimated from the total fluxes is clearly positive. This can be a signature of an optically thick free–free emission, which is a typical case for a radio jet in both of high- and low-mass star-forming regions (e.g. Anglada 1996). However, because of the limited angular resolution, we cannot exclude any sub-structure of the apparent radio lobes at present. We interpret the emission as a jet, and also consider the possibility of an optically thick disc around the host HMPO (see Section 4).
The spatial relation between the maser and the radio continuum is also shown in Fig. 1, where all maser spots detected in MO11 are superposed. As mentioned above, we directly checked our absolute astrometric accuracy at 22 GHz using the H2O maser. Table 2 contains the positions of the peak maser spot measured in ATCA and VERA. The positional offset suggests that our astrometric accuracy is better than 30 mas at 22 GHz. We also directly evaluated the accuracy at 18 GHz from the rms phase (φrms) of cross power spectrum. The estimated φr.m.s is ∼ 25°, i.e. 7 per cent of the fringe spacing, and hence, we conclude that the positional uncertainty at 18 GHz is better than ∼ 60 mas (7 per cent of the synthesized beam).
Contour images of the radio jet in G353. Both contours are in steps of 37 μJy beam− 1 with the minimum level of 3σ (56 and 111 μJy beam− 1 at 18 and 22 GHz, respectively). The coordinate origin is | $(\alpha ,\delta )_{\rm {J2000.0}} = (17^{\rm h}26^{\rm m}01{.\!\!\!\!\!\!^{\rm s}}5883 -34^{\circ}15^{\prime}14{.\!\!\!\!\!\!^{\prime\prime}}905)$| that is the reference position in MO11. A synthesized beam is shown in the lower-left corner of each panel. Colour points show all H2O maser spots detected in MO11 with its line-of-sight (LOS) velocity (VLSR; see the colour scale at the bottom).
The compact ( ∼ 100 mas) maser cluster is clearly located at the root of the bipolar jet. The close location of the masers and continuum peaks implies that they have the same driving source, which is probably located within a few hundred mas. This kind of geometry is observed in several HMPOs and can naturally explain the high variability of the maser reported in MO11. In some cases, a maser seems to trace a rotating disc (e.g. IRAS 16547 − 4247; Franco-Hernández et al. 2009), but this cannot be the case in G353, since the masers velocities are too high to be explained by a disc rotation.
Properties of the radio jet.
| Frequency | Peak Flux | Total Flux |
|---|---|---|
| (GHz) | (mJy beam− 1) | (mJy) |
| 18 | 0.52 ± 0.02 | 0.83 ± 0.08a |
| 22 | 0.65 ± 0.04 | 1.41 ± 0.14a |
| Spectral Indexb | 2.6 ± 1.0 | |
| Frequency | Peak Flux | Total Flux |
|---|---|---|
| (GHz) | (mJy beam− 1) | (mJy) |
| 18 | 0.52 ± 0.02 | 0.83 ± 0.08a |
| 22 | 0.65 ± 0.04 | 1.41 ± 0.14a |
| Spectral Indexb | 2.6 ± 1.0 | |
aNominal 10 per cent error is adopted (see Section 2.1).
bThe index was calculated from the total flux.
Properties of the radio jet.
| Frequency | Peak Flux | Total Flux |
|---|---|---|
| (GHz) | (mJy beam− 1) | (mJy) |
| 18 | 0.52 ± 0.02 | 0.83 ± 0.08a |
| 22 | 0.65 ± 0.04 | 1.41 ± 0.14a |
| Spectral Indexb | 2.6 ± 1.0 | |
| Frequency | Peak Flux | Total Flux |
|---|---|---|
| (GHz) | (mJy beam− 1) | (mJy) |
| 18 | 0.52 ± 0.02 | 0.83 ± 0.08a |
| 22 | 0.65 ± 0.04 | 1.41 ± 0.14a |
| Spectral Indexb | 2.6 ± 1.0 | |
aNominal 10 per cent error is adopted (see Section 2.1).
bThe index was calculated from the total flux.
The positions of the peak maser spot.
| Array | RAJ2000.0 | Dec.J2000.0 |
|---|---|---|
| ATCA | | $17^{\rm {h}}26^{\rm {m}}01{.\!\!\!\!\!\!^{\rm s}}5885 (4)^{a}$| | − 34°15′14″ 908 (9) |
| VERA | | $17^{\rm {h}}26^{\rm {m}}01{.\!\!\!\!\!\!^{\rm s}}588469 (7)$| | − 34°15′14″ 8900 (3) |
| Offset | +7 mas | − 27 mas |
| Array | RAJ2000.0 | Dec.J2000.0 |
|---|---|---|
| ATCA | | $17^{\rm {h}}26^{\rm {m}}01{.\!\!\!\!\!\!^{\rm s}}5885 (4)^{a}$| | − 34°15′14″ 908 (9) |
| VERA | | $17^{\rm {h}}26^{\rm {m}}01{.\!\!\!\!\!\!^{\rm s}}588469 (7)$| | − 34°15′14″ 8900 (3) |
| Offset | +7 mas | − 27 mas |
aAll numbers in parentheses represent the errors in units of the last significant digit.
The positions of the peak maser spot.
| Array | RAJ2000.0 | Dec.J2000.0 |
|---|---|---|
| ATCA | | $17^{\rm {h}}26^{\rm {m}}01{.\!\!\!\!\!\!^{\rm s}}5885 (4)^{a}$| | − 34°15′14″ 908 (9) |
| VERA | | $17^{\rm {h}}26^{\rm {m}}01{.\!\!\!\!\!\!^{\rm s}}588469 (7)$| | − 34°15′14″ 8900 (3) |
| Offset | +7 mas | − 27 mas |
| Array | RAJ2000.0 | Dec.J2000.0 |
|---|---|---|
| ATCA | | $17^{\rm {h}}26^{\rm {m}}01{.\!\!\!\!\!\!^{\rm s}}5885 (4)^{a}$| | − 34°15′14″ 908 (9) |
| VERA | | $17^{\rm {h}}26^{\rm {m}}01{.\!\!\!\!\!\!^{\rm s}}588469 (7)$| | − 34°15′14″ 8900 (3) |
| Offset | +7 mas | − 27 mas |
aAll numbers in parentheses represent the errors in units of the last significant digit.
3.2 Molecular jet
Fig. 2 shows the detected extremely high-velocity (EHV) SiO spectrum. We detected an unusually flat and continuous blue-shifted emission (6σ) and isolated red-shifted emission at +87 km s− 1 (5σ). The latter is identified as the SiO emission because its frequency is not matched with a rest frequency of any known molecular transition, and also, it is within the range of the Doppler shift reported for the H2O maser emission (see below). The total velocity range (full width at zero intensity: FWZI) of 210 km s− 1 is one of the extreme cases compared to the previous SiO (2 − 1) survey towards high-mass star-forming regions (e.g. López-Sepulcre et al. 2011).

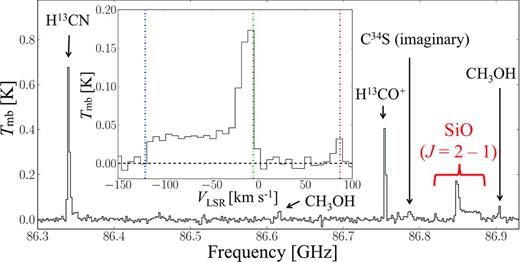

A part of the 1-GHz-wide spectrum taken by the NRO 45 m telescope. We marked all identified lines including the targeted SiO (| $\upsilon $| = 0, J = 2 − 1) transition. The subplot shows the magnified spectrum of the SiO line. The blue and red dotted lines indicate the most red (+87 km s− 1) and blue-shifted ( − 120 km s− 1) H2O maser component reported in MO11 and CP08, respectively. The systemic velocity of − 5 km s− 1 is also indicated by the green dotted line. The black horizontal line shows zero level determined by a linear baseline subtraction. The apparent emission at 86.78 GHz is a reflected image of C34S (J = 2–1) line at 96.412 9495 GHz in the upper sideband.
Surprisingly, the observed spectral features of the EHV SiO jet are very similar to that of the H2O maser in CP08 and MO11, i.e. very broad velocity range on the blue-shifted side ( − 120 to − 5 km s− 1), no emission on the red-shifted side (0 to + 80 km s− 1) and isolated emission at + 87 km s− 1. We note that the narrow peak at the systemic velocity seems to be an ambient shock or extended low-velocity outflow, since it was detected in all mapping points (4 × 4 Nyquist grid of 9 arcsec) of the NRO observation (Motogi et al. 2012, in preparation). It is probably independent of the SiO jet that is only detected at the position of the maser.
The remarkable spectral similarity strongly suggests that the SiO jet is directly related to the maser excitation. If this is the case, a scale of the SiO jet can be comparable with the maser distribution, i.e. only 200 mas ( ∼ 340 au). A dilution-corrected brightness temperature of the EHV component is ∼ 550 K in this case. This is consistent with a typical kinetic temperature Tkin of an SiO jet (e.g. Lee et al. 2010), indicating that the jet is almost thermalized.
4 DISCUSSION: ORIGIN OF THE BLUE-SHIFT-DOMINATED JET
The detection of the highly blue-shifted SiO jet manifests that the fundamental origin of the blue-shift dominance is not a matter of the radiative transfer of H2O masers that was discussed in CP08. The most simple explanation for the observed blue-shift dominance in the maser and the SiO emission is a highly asymmetric jet structure. However, this is an unlikely case, since the observed radio jet shows a clear bipolar structure. One important fact reported in Breen et al. (2010) is that the number of DBSMs is significantly larger than that of a red-shift-dominated source ( < 20–30 per cent; see also the data in Urquhart et al. 2011). Such a statistical anomaly requires some intrinsic mechanism to selectively cause blue-shift dominance.
Instead of an asymmetric jet, we propose a ‘disc-masking’ scenario, where red-shifted emission is masked by a disc which is optically thick at 22 and 86 GHz. The observational signatures of both the optically thick free–free and dusty disc are reported for several sources. The most famous example of an ionized disc is seen in the source I in Orion KL (Reid et al. 2007), where the compact ionized disc seems to be optically thick up to 86 GHz (e.g. Beuther et al. 2004). On the other hand, a dusty disc which is optically thick at 86 GHz is often detected in low-mass class 0 objects (e.g. Chandler et al. 2005; Hirano et al. 2010), and sometimes, in a high-mass object (e.g. Van der Tak & Menten 2005). The typical sizes of these optically thick discs ( ∼ a few hundred astronomical units) are actually comparable with the maser-scale molecular jet mentioned above.
Our scenario is a natural explanation from the view point of a core collapse and disc accretion, i.e. a younger object has a more massive and dense accretion disc. It can consistently explain why DBSMs are observed in the youngest evolutional phase of HMPOs (e.g. Breen et al. 2010). The expected pole-on geometry of DBSM is also suitable for the scenario, for example, the inclination angle of the jet in G353 estimated from the LOS velocity and maser proper motion is smaller than 30° (see MO11). This pole-on geometry can allow a disc to mask significant fraction of the red-shifted jet, although the detection of highly red-shifted component of +87 km s− 1 suggests that the masking effect is incomplete, possibly because of a relatively small disc size compared to the jet.
Fig. 3 shows a schematic view of the expected source geometry. If our scenario is true, the optically thick 22 GHz emission detected by the ATCA should be a combination of an unresolved optically thick disc and an extended radio jet. The apparent geometry, where blue-shifted masers are enclosed by the radio jet, may require that the radio jet itself is optically thin at 22 GHz. A direct imaging of the unusual SiO jet and cm–mm continuum in G353 with a 100 mas resolution is absolutely necessary to verify our scenario. It will be a first step of further statistical discussion about exact natures of DBSMs. A proper motion measurement of the jet is also important to understand the relation between the ionized and molecular component of the jet.

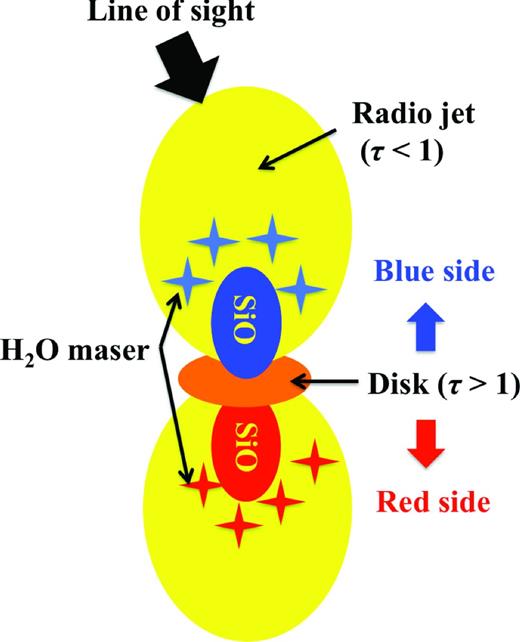

Schematic view of the source geometry in our ‘disc-masking’ scenario.
