Using the Bright Ultrahard XMM–Newton survey to define an IR selection of luminous AGN based on WISE colours

Abstract

1 Introduction

There is strong observational evidence that active galactic nuclei (AGN) play an important role in the formation and growth of galaxies (e.g. Magorrian et al. ). Most supermassive black hole growth takes place during an obscured quasar phase, as suggested by the integrated energy density of the cosmic X-ray background (Fabian & Iwasawa ). To understand the evolution of galaxies and to trace the energy output due to accretion and its cosmological evolution, it is critical to map the history of obscured accretion.

X-ray surveys with XMM–Newton and Chandra at energies <10 keV are sensitive to all but the most heavily obscured AGN (e.g. Della Ceca et al. ). In Compton-thick AGN (rest-frame column densities exceeding ) the observed flux below 10 keV can be as low as a few per cent of the intrinsic nuclear flux. In the Compton-thick regime the high-energy photons that survive the photoelectric absorption get scattered in the absorber losing part of their energy (Compton down-scattering). This is an important effect that can significantly suppress the transmitted continuum (Matt ; Murphy & Yaqoob ; Yaqoob et al. ). The ongoing Swift and INTEGRAL all-sky surveys at energies 15–200 keV are providing the least biased samples of absorbed AGN in the local Universe (e.g. Bird et al. ; Tueller et al. ; Winter et al. ; Burlon et al. ). However, even these surveys are biased against the most heavily absorbed Compton-thick AGN (Burlon et al. ).

Surveys at mid-infrared (hereafter MIR) wavelengths (>rsim5m) are much less affected by extinction since the obscuring dust re-emits the nuclear optical-to-X-ray radiation at infrared (IR) wavelengths. Clumpy torus models predict nearly isotropic emission in the MIR at wavelengths >rsim12m (Nenkova et al. ). Thus, MIR-based surveys (or the combination of MIR and data at shorter wavelengths) can potentially trace the elusive obscured accretion missed by hard X-ray surveys (e.g. Daddi et al. ; Fiore et al. , ; Georgantopoulos et al. ; Severgnini, Caccianiga & Della Ceca ). For example, it has been claimed that objects showing excess emission at ∼24m over that expected from star formation, termed ‘IR-excess galaxies’, might host heavily obscured and Compton-thick AGN (e.g. Fiore et al. , ). However, the exact contribution of heavily obscured AGN to the IR-excess galaxy population remains an open issue (e.g. Alexander et al. ). Several MIR-based AGN selection techniques have been developed with data from the Spitzer space telescope Infrared Array Camera (IRAC; Fazio et al. ) using colours and power-law selection (Lacy et al. ; Stern et al. ; Alonso-Herrero et al. ; Donley et al. , ). These techniques are very effective and reliable. Galaxies dominated by AGN emission typically exhibit a characteristic red power-law spectral energy distribution (SED) in the MIR (f_ν ∝ ν^α with α ≤ −0.5; Alonso-Herrero et al. ). Thus, MIR power-law selection provides the cleanest samples of luminous AGN (e.g. Donley et al. ). However, this technique is very sensitive to the reliability of the estimated photometric errors (Donley et al. ).

The Wide-field Infrared Survey Explorer (WISE) has now completed the first sensitive (∼100–1000× deeper than Infrared Astronomical Satellite) coverage of the entire sky in the MIR (Wright et al. ). Several colour-based regions, aimed at identifying luminous AGN, have already been proposed. These works have shown that WISE can robustly separate AGN from normal galaxies and stars (e.g. Assef et al. ; Jarrett et al. ; Stern et al. ). WISE will be extremely efficient in identifying the rare highly luminous AGN up to the crucial epoch when the accretion power of the Universe peaked (z ∼ 1–2). The all-sky WISE survey will complement the deep Spitzer surveys, aimed to characterize the accretion phenomenon in the distant Universe.

This paper presents a highly reliable and complete MIR-based colour selection of AGN with WISE. Our technique is designed to select objects with red MIR power-law SEDs and properly accounts for the estimated typical errors in the photometry and deviations of the MIR SEDs from a pure power-law. The AGN wedge is defined using the wide-angle bright ultrahard XMM–Newton survey (BUXS; Mateos et al., in preparation). This survey is one of the largest complete flux-limited samples of bright ‘ultrahard’ (4.5–10 keV) X-ray-selected AGN to date. Surveys such as BUXS are extremely efficient in selecting AGN bright enough for reliable optical identifications and for detailed studies of their properties and evolution (e.g. Caccianiga et al. ; Della Ceca et al. ). BUXS covers the region of the AGN redshift–luminosity parameter space that WISE will sample. Thus, BUXS offers a unique opportunity to define a highly complete and reliable MIR-based AGN selection with WISE. Thanks to the optical spectroscopic identifications available for ∼97 per cent of the BUXS objects, and the high-quality X-ray spectra, we have maximized the completeness of our MIR selection without compromising its reliability. In a forthcoming paper, we will present and discuss the main properties of the optical/near-IR/MIR SEDs of the AGN in BUXS (Mateos et al., in preparation).

This paper is organized as follows. Sections and briefly summarize the data sets. In Section , we present our MIR selection of AGN candidates using the three shorter wavelength bands of WISE and the complete four bands, respectively, and we discuss the completeness of the selection. We show the reliability of our AGN selection in Section . The results are summarized in Section . Throughout this paper errors are 90 per cent confidence for a single parameter, and we assume and H₀ = 70 km s⁻¹ Mpc⁻¹.

2 The WISE IR Survey

WISE observed the entire sky in the MIR, achieving 5σ point source sensitivities better than 0.08, 0.11, 1 and 6 mJy at 3.4, 4.6, 12 and 22m, respectively. The angular resolution is 6.1, 6.4, 6.5 and 12.0 arcsec (full width at half-maximum), respectively, and the astrometric precision for high signal-to-noise (hereafter SNR) sources is better than 0.15 arcsec (Wright et al. ). We use here the 2012 March publicly available all-sky data release that covers >99 per cent of the sky and incorporates the best-available calibrations and data reduction algorithms (Cutri et al. ).

In what follows, we compute flux densities in the WISE bands using profile fitting photometry and the magnitude zero-points of the Vega system: F_ν(iso) = 309.124, 171.641, 30.988 and 8.346 Jy for 3.4, 4.6, 12 and 22 μm, respectively. These values are computed with the flux correction factors that correspond to a power-law spectrum (f_ν ∝ ν^α) with spectral index α = −1 presented in Wright et al. (). We note that using the flux correction factors that correspond to constant power-law spectra the difference in the computed flux densities would be less than 0.2 per cent at 3.4, 4.6 and 22 μm and ∼2 per cent at 12 μm. We added a 1.5 per cent uncertainty to the catalogued flux errors in all bands to account for the overall systematic uncertainty from the Vega spectrum in the flux zero-points. To account for the existing discrepancy between the red and blue calibrators used for the conversion from magnitudes to Janskys, an additional 10 per cent uncertainty was added to the 12 and 22m fluxes (Wright et al. ). Throughout this paper we use monochromatic MIR flux densities (f_ν) in Janskys, unless otherwise specified.

3 The Bright Ultrahard XMM–Newton Survey

BUXS is one of the largest, amongst the existing XMM–Newton and Chandra surveys, complete flux-limited samples of bright () ‘ultrahard’ (4.5–10 keV) X-ray-selected sources to date. BUXS is based on a subset of 381 high Galactic latitude (|b| > 20°) observations from the second XMM–Newton serendipitous source catalogue (2XMM; Watson et al. ). The sample is drawn from European Photon Imaging Camera (EPIC) pn observations with clean exposure times >10 ks and having good quality for serendipitous source detection (i.e. free of bright and/or extended X-ray sources). These observations were used to derive extragalactic source count distributions at intermediate fluxes, and therefore, we have good knowledge of the survey completeness (Mateos et al. ). The total sky area of BUXS is 44.43 deg².

The selection of sources in the 4.5–10 keV energy band was motivated by the need to reduce the strong bias against heavily absorbed AGN affecting surveys conducted at softer energies. The BUXS bright flux limit was intended to include only objects for which a reliable classification and redshift could be derived from optical spectroscopy. This also ensures that we can derive accurate X-ray properties such as absorption and intrinsic luminosities from high-quality X-ray spectra (>few hundred counts). In this way we remove uncertainties associated with photometric redshifts and poor X-ray data quality (< a hundred counts). BUXS contains 258 sources after removal of Galactic stars (<2 per cent) and known BL Lacs (∼1 per cent). Optical spectroscopic identifications have been obtained from the Sloan Digital Sky Survey (Abazajian ), the literature and our ongoing follow-up campaign. At the time of writing, the spectroscopic identification completeness is 97.3 per cent. Of the 258 BUXS sources, 145 objects (56.2 per cent) are identified as type 1 AGN (UV/optical emission line velocity widths ≥1500 km s⁻¹) and 106 (41.1 per cent) as type 2 AGN (UV/optical emission line velocity widths <1500 km s⁻¹ or no emission lines). Seven sources (2.7 per cent) remain unidentified. BUXS covers four decades in X-ray luminosity (), where the luminosities are computed in the ‘standard’ 2–10 keV rest-frame energy band and are corrected for intrinsic absorption. BUXS identifies sources out to z ∼ 2. Type 1 and type 2 AGN have mean 2–10 keV luminosities of 1.5 × 10⁴⁴ and and mean redshifts of 0.7 and 0.3, respectively. Redshift and luminosity distributions are shown in Fig. ⁰⁰⁰¹. We note that BUXS samples absorbed AGN in the Compton-thin regime (rest-frame intrinsic absorption ).

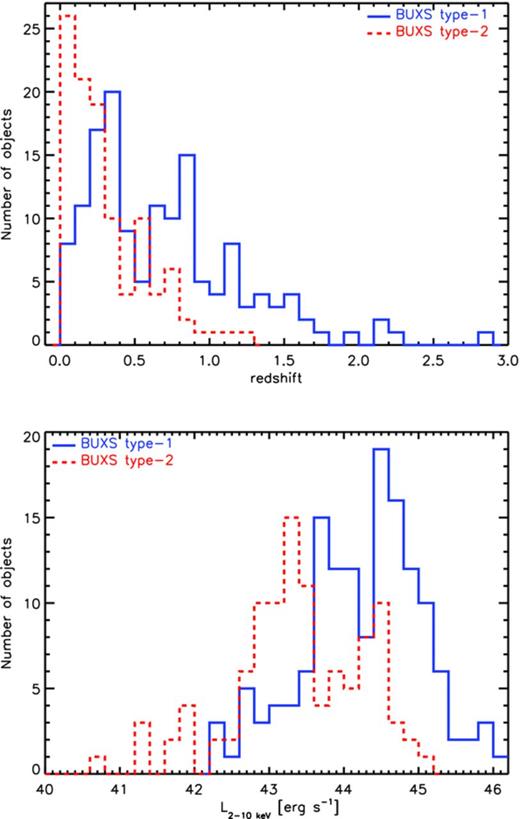

Figure 1

Redshift (top) and 2–10 keV luminosity (in logarithmic units, bottom) distributions of the BUXS type 1 and type 2 AGN. Luminosities are rest frame and are corrected for intrinsic absorption.

Open in new tabDownload slide

To find the MIR counterparts of the sources in BUXS we used the cross-matching algorithm of Pineau et al. (). The algorithm, which is based on the classical likelihood ratio, computes the probability of a spatial coincidence of the X-ray sources with their MIR candidate counterparts. MIR counterparts were found for 255 out of 258 (98.8 per cent) sources (detection with SNR ≥ 5 in at least one of the WISE bands). The mean X-ray–MIR separation is ≲2 arcsec. The three objects without detection in the MIR are type 1 AGN with z ∼ 0.6–0.8. For one of these sources a blend of two WISE objects prevents us from identifying a unique MIR counterpart. For the other two sources, the expected MIR fluxes, from analysis of their optical/near-IR SEDs, suggest that they are too faint to be detected with WISE.

In order to assess the completeness of our MIR selection technique with respect to the overall AGN population, we built a clean AGN parent sample by extracting all catalogued WISE sources in the BUXS area, and we identified the objects detected in the 2–10 keV band again using the cross-matching algorithm of Pineau et al. (). Here we assume that a detection in hard X-rays is a good tracer of unabsorbed and mildly absorbed AGN activity. We used the 2–10 keV source lists from Mateos et al. () that were derived with the source detection pipeline used in the 2XMM catalogue. The total number of objects in the BUXS area detected in the 2–10 keV X-ray band is 10 265. The faintest sources have 2–10 keV fluxes of .

We estimate a fraction of spurious matches of X-ray and MIR sources of <1 per cent from the cross-matching of X-ray and WISE sources using a large offset in MIR coordinates (3 arcmin in either RA or Dec.).

4 WISE selection of AGN candidates in the BUXS fields

To avoid spurious detections and objects with poorly constrained photometry, in what follows, we restrict ourselves to WISE sources detected with SNR ≥ 5 in all relevant bands (3.4, 4.6 and 12m in Section ; 3.4, 4.6, 12 and 22m in Section ).

4.1 WISE three-band AGN wedge

In the BUXS area there are 25 206 sources detected with SNR ≥ 5 in the three shorter wavelength bands of WISE, of which 1659 have X-ray detections (see Table ⁰⁰⁰¹). Out of the latter, 114 are associated with BUXS type 1 AGN and 81 with BUXS type 2 AGN (see Table ⁰⁰⁰²). Fig. ⁰⁰⁰² shows the MIR log(f_4.6/f_3.4) versus log(f₁₂/f_4.6) diagram for WISE objects with and without an X-ray counterpart as small cyan and grey symbols, respectively. We also marked with large blue and red symbols spectroscopically classified type 1 and type 2 AGN in BUXS. The dashed line illustrates the MIR power-law locus and the values for different spectral indices. Most BUXS objects, especially type 1 AGN, are clustered near the power-law locus, in a region in the MIR colour–colour plane well separated from the stellar locus (colours near zero magnitude) and the horizontal sequence of normal galaxies (lower-right part of the diagram). Furthermore, AGN have, on average, redder log(f_4.6/f_3.4) colours than a pure power-law. This suggests some curvature in the observed 3.4–12m SEDs (e.g. Elvis et al. ; Richards et al. ; Assef et al. ).

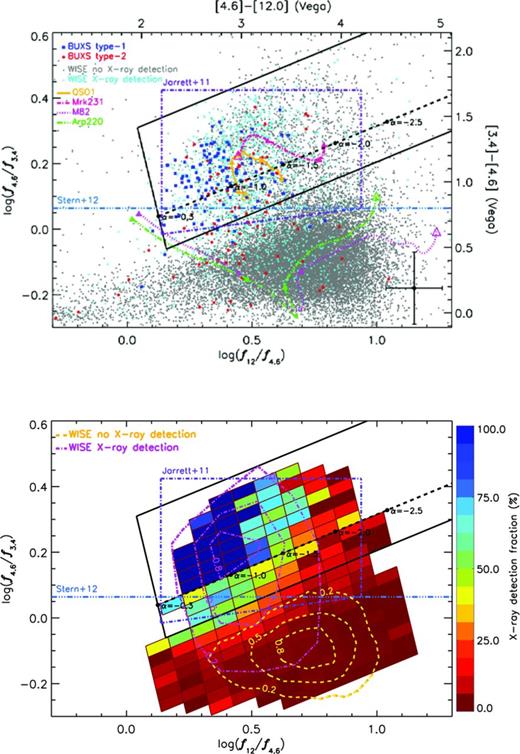

Figure 2

Top: MIR colours for sources detected with SNR ≥ 5 at 3.4, 4.6 and 12 μm. The large symbols represent spectroscopically identified BUXS AGN. The small cyan and grey symbols are WISE sources in the BUXS area with and without an X-ray detection at 2–10 keV, respectively. The 0 < z ≤ 1.5 (Δz = 0.5) star-forming tracks represent M82 and the ultraluminous infrared galaxy (ULIRG) Arp 220. The 0 < z ≤ 3 (Δz = 0.5) AGN tracks represent the IR luminous AGN Mrk 231 (Polletta et al. ) and a type 1 quasar template obtained by stitching together the 0.58–3.5m near-IR and 3.5–24m MIR quasar composite spectrum from Glikman, Helfand & White () and Hernán-Caballero & Hatziminaoglou (). The open symbols indicate z = 0. Our AGN selection wedge and power-law locus are the thick solid and dashed black lines, respectively. For comparison, we show the AGN criteria defined by Jarrett et al. () and Stern et al. (), respectively (dot–dashed purple and light blue lines). The error bars show the typical uncertainties in MIR colours at the SNR = 5 limit (see Section for details). Bottom: X-ray detection fraction of WISE objects across the colour–colour plane for bins containing at least 10 sources. The dot–dashed (magenta) and dashed (yellow) contours indicate the density of WISE sources (normalized to the peak value) with and without X-ray detection, respectively.

Open in new tabDownload slide

Fig. ⁰⁰⁰² (bottom) shows the fraction of WISE sources detected in X-rays across the colour–colour diagram and the distribution of objects with and without detection in X-rays (contours). There is a clear separation between these distributions. The bulk of the MIR population not detected in X-rays overlaps with the horizontal sequence of normal galaxies, while the great majority of X-ray detected objects cluster near the power-law locus.

Our MIR-based AGN selection technique is designed to identify objects with red MIR power-law SEDs. The AGN wedge is defined to include all objects with MIR colours expected for power-law SEDs with spectral index α ≤ −0.3, properly accounting for the typical errors in the photometry at the faintest MIR fluxes (error bars in Fig. ⁰⁰⁰², top). We then increase the size of the wedge towards red log(f_4.6/f_3.4) colours (upper boundary) to include all BUXS AGN and the X-ray detected WISE objects throughout the BUXS area with such colours. In this way we account for deviations of the 3.4–12m SEDs from a pure power-law. Our three-band AGN wedge is shown with the thick solid box in Fig. ⁰⁰⁰². The MIR power-law locus is defined by

1

where and . The top and bottom boundaries of the wedge are obtained by adding y-axis intercepts of +0.297 and −0.110, respectively. The MIR power-law α = −0.3 bottom-left limit corresponds to

2

These are the limits we have used throughout this paper. However, for most practical purposes using instead a bottom-left vertical limit, corresponding to x ≥ 0.120, produces very similar results.

In Vega magnitudes (in the WISE source catalogue magnitudes are reported in the Vega system), the AGN locus is defined by

3

where x′ and y′ . The top and bottom boundaries of the wedge are obtained by adding y-axis intercepts of +0.796 and −0.222, respectively. In this case, the MIR power-law α = −0.3 bottom-left limit corresponds to

4

The bottom-left vertical limit of the AGN wedge in magnitudes corresponds to x′ ≥ 2.157.

Our three-band AGN wedge identifies 2755 AGN candidates in the BUXS area, of which 1062 (38.5 per cent) are detected in X-rays (see Table ⁰⁰⁰¹). Out of the latter, 105 are associated with BUXS type 1 AGN and 38 with BUXS type 2 AGN (see Table ⁰⁰⁰²). We note that the X-ray detection fraction in the wedge increases with the depth of the X-ray observations as shown in Table ⁰⁰⁰³. For example, in the BUXS area where the X-ray observations have exposures >40 ks, the X-ray detection fraction rises to 49.8 per cent. For comparison, in the 1Ms Chandra Deep Field-South (CDF-S) survey the X-ray detection fraction of IRAC power-law AGN candidates was ∼50 per cent (Alonso-Herrero et al. ) while this fraction increased to ∼85 per cent in the deeper 2Ms Chandra Deep Field-North (CDF-N) survey (Donley et al. ). Furthermore, Donley et al. () found that the X-ray detection fraction of IRAC MIR AGN candidates in Cosmic Evolution Survey (COSMOS) increased from 38 to 52 per cent in the regions of deep Chandra coverage (X-ray exposures 50–160 ks). This is as expected, as long X-ray exposures are required to detect intrinsically less luminous and/or heavily obscured AGN (see e.g. Mateos et al. ; Tozzi et al. ; Comastri et al. ; Brightman & Ueda ). Still, a substantial fraction of our MIR AGN candidates are undetected at 2–10 keV energies with the typical exposures in the 2XMM catalogue. These objects that have the reddest overall log(f₁₂/f_4.6) colours in the AGN wedge are the best candidates to account for the most heavily obscured/absorbed luminous AGN missed by hard X-ray surveys. Lacy et al. () presented the optical spectroscopic follow-up of a sample of luminous AGN candidates selected on the basis of their IRAC MIR colours. They confirmed the AGN nature of 91 per cent of the sources, with the majority of the objects being identified as dust-reddened type 1 quasars and type 2 AGN. Furthermore, a detailed study of the WISE MIR SEDs of [O iii]5007 Å-selected type 2 quasars (Reyes et al. ) strongly supports our hypothesis that many of the X-ray undetected sources in the wedge are heavily obscured very luminous AGN (Mateos et al., in preparation).

4.2 WISE four-band AGN wedge

Due to the significantly shallower depth at 22m compared with the first three bands, a selection that uses the 22m survey will be restricted by necessity to the brightest MIR objects. We have investigated, however, whether we can gain any additional information on AGN selection by using the complete four WISE bands. The number of MIR sources detected with SNR ≥ 5 in all four WISE bands in the area of BUXS is 2476, of which 409 are detected in X-rays. Out of the latter, 63 are associated with BUXS type 1 AGN and 55 with BUXS type 2 AGN (see Tables ⁰⁰⁰¹ and ⁰⁰⁰²). Fig. ⁰⁰⁰³ (top) shows the distribution of log(f_4.6/f_3.4) versus log(f₂₂/f₁₂) colours. The solid lines illustrate the four-band AGN selection wedge as in Section . In this case we increase the size of the wedge that would be required to account for the typical photometric errors (error bars in Fig. ⁰⁰⁰³) towards both redder log(f₂₂/f₁₂) and log(f_4.6/f_3.4) colours. In this way we increase the completeness of the selection without compromising the reliability. The MIR power-law locus is defined by

5

where and . The top and bottom boundaries of the wedge are obtained by adding y-axis intercepts of +0.421 and −0.130, respectively. In this case we use an MIR power-law bottom-left limit of α = −0.5 that corresponds to

6

These are the limits we have used in Section . Using instead a bottom-left vertical limit, corresponding to x ≥ 0.13, produces very similar results.

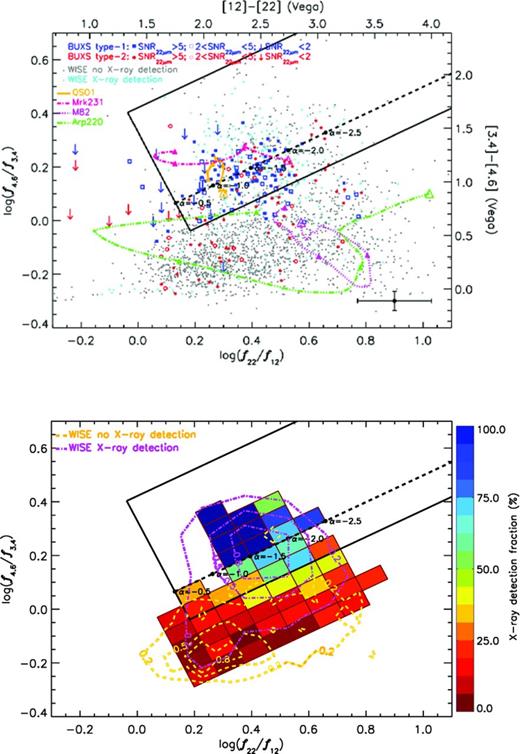

Figure 3

Equivalent to Fig. ⁰⁰⁰² for an MIR-based AGN selection using the complete four bands of WISE. Top: we include all objects with SNR ≥ 5 at 3.4, 4.6 and 12m and use different symbols depending on the 22m significance of detection. For SNR < 2 at 22m we use 1σ fluxes as upper limits. Symbols as in Fig. ⁰⁰⁰².

Open in new tabDownload slide

In Vega magnitudes the AGN locus is defined by

7

where x′ and y′ . The top and bottom boundaries of the wedge are obtained by adding y-axis intercepts of +0.979 and −0.405, respectively. In this case, the MIR power-law α = −0.5 bottom-left limit corresponds to

8

The bottom-left vertical limit of the AGN wedge in magnitudes corresponds to x′ ≥ 1.76.

Our four-band AGN wedge identifies 516 AGN candidates in the BUXS area detected with SNR ≥ 5 in all four WISE bands, of which 245 (47.5 per cent) are detected in X-rays. Out of the latter, 55 are associated with BUXS type 1 AGN and 21 with BUXS type 2 AGN (see Table ⁰⁰⁰²).

4.3 AGN selection completeness

Fig. ⁰⁰⁰⁴ (top) and Table ⁰⁰⁰⁴ show the fraction of BUXS AGN that meet our three-band MIR colour cuts as a function of their intrinsic 2–10 keV luminosity (filled symbols). The symbols indicate the mean luminosity of the sources in the bin. Rest-frame luminosities were derived from a detailed X-ray spectroscopic analysis and are corrected for Galactic and any intrinsic absorption. The completeness of our selection criteria is a strong function of luminosity for both type 1 and type 2 AGN. This result reflects the fact that objects with MIR colours not dominated by the thermal emission from the AGN will be missed by our selection. This effect is more important for low-luminosity AGN, especially if these sources are affected by large dust extinction at the shortest wavelengths of WISE. In these objects the starlight from the host galaxy will dominate their MIR emission. Thus, it should be emphasized that the comparison of an MIR colour selection completeness for different classes of objects is only meaningful if the objects span the same range of luminosities. Taking this into account, at L_2–10 keV <10⁴⁴   erg s^-1, and per cent of the type 1 and type 2 AGN, respectively, meet the selection. At the MIR selection efficiency increases to and per cent for type 1 and type 2 AGN, respectively. We estimated the most probable value for these fractions using a Bayesian approach and the binomial distribution from Wall & Jenkins (). The quoted errors are the narrowest interval that includes the mode and encompasses 90 per cent of the probability (Andreon, private communication). It is important to note that the significantly smaller value of the selection completeness obtained for type 2 AGN at L_2–10 keV <10⁴⁴   erg s^-1 compared to that for type 1 AGN is mainly due, as indicated above, to the different luminosity distributions of the two classes of AGN. The type 2 AGN population in BUXS is dominated by objects with (∼79 versus ∼39 per cent for type 1 AGN; see Fig. ⁰⁰⁰⁴, bottom). At such luminosities many AGN have relatively blue colours at the shortest WISE wavelengths (i.e. host dominated) and thus lie outside the MIR AGN wedge. We expect this effect to be more important for type 2 AGN, as this class of objects is expected to show a higher degree of extinction at the shortest wavelengths of WISE. For example, the clumpy torus models of Nenkova et al. () predict nearly isotropic emission at wavelengths >rsim12m. This could explain that even if we use the same luminosity range (as in Fig. ⁰⁰⁰⁴) we obtain a selection completeness that is, within the uncertainties, still marginally lower for type 2 AGN than for type 1 AGN. This result still holds at luminosities L_2–10 keV >10⁴⁴   erg s^-1, where the relative contribution of the host galaxy to the MIR emission should be small. However, as the number of type 2 AGN in BUXS at such luminosities is small (16 objects), the difference could be due in part to small number statistics. Thus, we conclude that our three-band AGN wedge is highly complete for both X-ray-selected luminous type 1 and type 2 AGN.

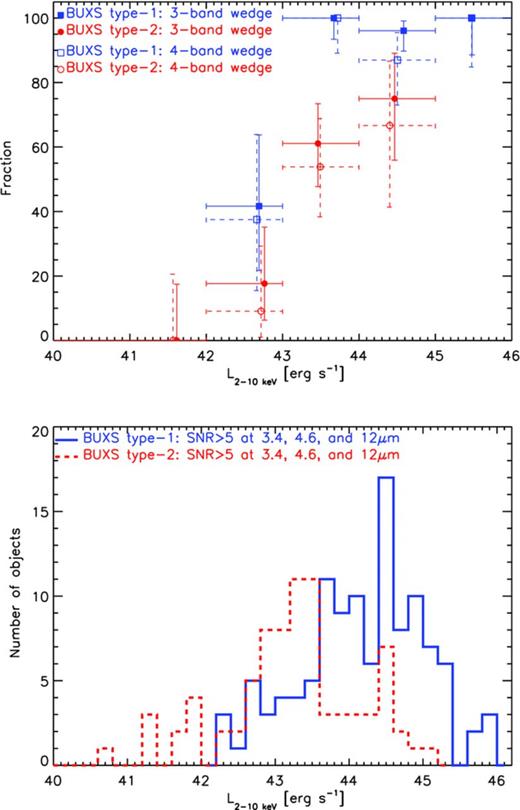

Figure 4

Top: fraction of BUXS AGN that meet our MIR selection as a function of their intrinsic 2–10 keV luminosity (in logarithmic units). The filled symbols show selection using the three shorter wavelength bands of WISE and the open symbols show selection using the complete four bands. The symbols indicate the mean luminosity of the sources in the bin. Bottom: distributions of 2–10 keV luminosity (in logarithmic units) for the BUXS type 1 and type 2 AGN detected with SNR ≥ 5 in the three shorter wavelength bands of WISE. The luminosity (and redshift) distributions of the BUXS AGN detected in the three shorter wavelength bands of WISE and the complete four bands are consistent with each other.

Open in new tabDownload slide

Table 4

Open in new tab

Dependence of the WISE three-band AGN wedge completeness on the luminosity of the BUXS AGN

log(L2–10 keV)	Ntype1	ftype1	Ntype2	ftype2
(1)	(2)	(3)	(4)	(5)
[40–42]	–	–	11
[42–43]	12		17
[43–44]	33		36
[44–45]	51		16
[45–46]	18		1	–
Total	114		81

log(L2–10 keV)	Ntype1	ftype1	Ntype2	ftype2
(1)	(2)	(3)	(4)	(5)
[40–42]	–	–	11
[42–43]	12		17
[43–44]	33		36
[44–45]	51		16
[45–46]	18		1	–
Total	114		81

Column 1: X-ray luminosity range in units of  erg s⁻¹ (logarithmic units, 2–10 keV in rest frame and corrected for any intrinsic absorption); column 2: number of BUXS type 1 AGN in luminosity bin; column 3: percentage of BUXS type 1 AGN in the WISE three-band AGN wedge; column 4: number of BUXS type 2 AGN in luminosity bin; column 5: percentage of BUXS type 2 AGN in the WISE three-band AGN wedge.

Table 4

Open in new tab

Dependence of the WISE three-band AGN wedge completeness on the luminosity of the BUXS AGN

log(L2–10 keV)	Ntype1	ftype1	Ntype2	ftype2
(1)	(2)	(3)	(4)	(5)
[40–42]	–	–	11
[42–43]	12		17
[43–44]	33		36
[44–45]	51		16
[45–46]	18		1	–
Total	114		81

log(L2–10 keV)	Ntype1	ftype1	Ntype2	ftype2
(1)	(2)	(3)	(4)	(5)
[40–42]	–	–	11
[42–43]	12		17
[43–44]	33		36
[44–45]	51		16
[45–46]	18		1	–
Total	114		81

Column 1: X-ray luminosity range in units of  erg s⁻¹ (logarithmic units, 2–10 keV in rest frame and corrected for any intrinsic absorption); column 2: number of BUXS type 1 AGN in luminosity bin; column 3: percentage of BUXS type 1 AGN in the WISE three-band AGN wedge; column 4: number of BUXS type 2 AGN in luminosity bin; column 5: percentage of BUXS type 2 AGN in the WISE three-band AGN wedge.

Fig. ⁰⁰⁰⁴ (top) and Table ⁰⁰⁰⁵ show the fraction of BUXS AGN that meet our four-band colour cuts as a function of their intrinsic 2–10 keV luminosity (open symbols). The completeness of the four-band wedge is somewhat smaller but comparable, within the uncertainties, to that achieved with the three-band selection for both type 1 and type 2 AGN. Indeed, 76 out of the 118 BUXS AGN detected in the four WISE bands meet the four-band selection, while this number increases to 88 if the three-band selection is used instead. All the 15 three-band selected BUXS AGN that miss the four-band selection have log(f₂₂/f₁₂) colours significantly redder than those expected for a pure power-law SED. These objects lie outside the four-band AGN wedge, in the region of the colour–colour plane occupied by normal star-forming galaxies. They likely miss the four-band selection because their 22m emission comes from both AGN activity and intense star formation. On the other hand, only three BUXS AGN from the four-band selection lie outside the three-band wedge. We note that we obtain the same result if we include all BUXS AGN with a lower significance of detection at 22m (open symbols and arrows in Fig. ⁰⁰⁰³, top). Therefore, by requiring 22m detections we are not biased against AGN with pure power-law SEDs (i.e. the faintest objects at 22m). Thus, by including the 22m WISE band to select AGN candidates neither the completeness nor the reliability of the selection improves.

Table 5

Open in new tab

Dependence of the WISE four-band AGN wedge completeness on the luminosity of the BUXS AGN

log(L2–10 keV)	Ntype1	ftype1	Ntype2	ftype2
(1)	(2)	(3)	(4)	(5)
[40–42]	–	–	9
[42–43]	8		11
[43–44]	19		26
[44–45]	23		9
[45–46]	13		–	–
Total	63		55

log(L2–10 keV)	Ntype1	ftype1	Ntype2	ftype2
(1)	(2)	(3)	(4)	(5)
[40–42]	–	–	9
[42–43]	8		11
[43–44]	19		26
[44–45]	23		9
[45–46]	13		–	–
Total	63		55

Column 1: X-ray luminosity range in units of  erg s⁻¹ (logarithmic units, 2–10 keV in rest frame and corrected for any intrinsic absorption); column 2: number of BUXS type 1 AGN in luminosity bin; column 3: percentage of BUXS type 1 AGN in the WISE four-band AGN wedge; column 4: number of BUXS type 2 AGN in luminosity bin; column 5: percentage of BUXS type 2 AGN in the WISE four-band AGN wedge.

Table 5

Open in new tab

Dependence of the WISE four-band AGN wedge completeness on the luminosity of the BUXS AGN

log(L2–10 keV)	Ntype1	ftype1	Ntype2	ftype2
(1)	(2)	(3)	(4)	(5)
[40–42]	–	–	9
[42–43]	8		11
[43–44]	19		26
[44–45]	23		9
[45–46]	13		–	–
Total	63		55

log(L2–10 keV)	Ntype1	ftype1	Ntype2	ftype2
(1)	(2)	(3)	(4)	(5)
[40–42]	–	–	9
[42–43]	8		11
[43–44]	19		26
[44–45]	23		9
[45–46]	13		–	–
Total	63		55

Column 1: X-ray luminosity range in units of  erg s⁻¹ (logarithmic units, 2–10 keV in rest frame and corrected for any intrinsic absorption); column 2: number of BUXS type 1 AGN in luminosity bin; column 3: percentage of BUXS type 1 AGN in the WISE four-band AGN wedge; column 4: number of BUXS type 2 AGN in luminosity bin; column 5: percentage of BUXS type 2 AGN in the WISE four-band AGN wedge.

We have checked that using non-contiguous bands to define the WISE MIR colours does not increase the completeness of a three-band or a four-band selection.

5 Reliability of the three-band AGN wedge

In the following we restrict ourselves to the three-band AGN wedge which, as shown in the previous section, provides the most complete selection of AGN candidates in the BUXS fields with WISE.

5.1 Comparison with templates

A known limitation of MIR selection techniques is the contamination from galaxies without AGN activity where the major contributor to the MIR emission is the stellar population or strong star formation (e.g. Lacy et al. ; Stern et al. , ; Jarrett et al. ; Donley et al. ). To assess the reliability of our three-band AGN wedge we show in Fig. ⁰⁰⁰⁵ the expected WISE colours of AGN with varying host-galaxy contributions following Donley et al. (). The composite SEDs were constructed using the library of Polletta et al. () and the normal star-forming spiral galaxy template from Dale et al. (). The solid and dashed lines illustrate the AGN wedge along with the power-law locus, respectively. We also applied additional extinctions of A_V = 0–2 and 0–20 to the star-forming and AGN components, respectively, using the Draine et al. () extinction curve. The colour tracks of pure star-forming galaxies would enter our selection wedge at z >rsim 1.3. At such redshifts, however, most galaxies are too faint to be detected at the relatively shallow WISE flux density limits (Wright et al. ; Jarrett et al. ). Indeed, in the region of the AGN wedge where we would expect contamination from normal star-forming galaxies, there is no clear excess of MIR X-ray undetected sources and the X-ray detection fraction remains high (see Fig. ⁰⁰⁰²). Thus, it seems that at the adopted SNR ≥ 5 limit our AGN selection suffers from minimal contamination from high-redshift pure star-forming galaxies. It is interesting to note that an important fraction of the X-ray detected WISE sources has log(f₁₂/f_4.6) colours bluer than those expected for a pure AGN SED. The WISE colour tracks of composite galaxies suggest that this is most likely due to both AGN and their host galaxies contributing to the observed emission in the WISE bands. On the other hand, we find a sharp decrease in the X-ray detection fraction of WISE objects at log(f₁₂/f_4.6)>rsim 0.7–0.8. At such red MIR colours we expect many objects to be heavily obscured AGN. However, the colour tracks of pure AGN indicate that there is a strong dependence of the observed log(f₁₂/f_4.6) colour with redshift. This suggests that the population of WISE objects with log(f₁₂/f_4.6)>rsim 0.7–0.8 could be a mixture of heavily absorbed AGN and objects at high redshifts (z >rsim 1–1.5).

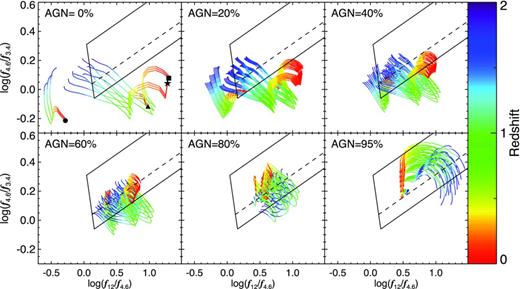

Figure 5

Predicted z = 0–2 WISE colours of AGN/galaxy composite SEDs for our three-band AGN wedge. The AGN fraction is defined between 1 and 10 μm. The star-forming templates represent the ULIRG IRAS 22 491 (square; Polletta et al. ), the starburst M82 (star; Polletta et al. ), a normal star-forming spiral galaxy (triangle; Dale et al. ) and an elliptical galaxy (circle; Polletta et al. ). The large symbols mark each family of purely star-forming templates at z = 0. The AGN template is the type 1 quasar template of Polletta et al. (). Additional extinctions of A_V =0 - 2 and 0 - 20 are applied to the star-forming and AGN components, respectively. Our MIR AGN selection wedge and power-law locus are the thick solid and dashed black lines, respectively. The power-law locus is defined from α = −0.3. The colour tracks of purely star-forming galaxies would enter our selection wedge at z >rsim 1.3. At such redshifts, however, most galaxies are too faint to be detected at the relatively shallow 12m flux density limits.

Open in new tabDownload slide

5.2 Comparison with other WISE selection techniques

Within the BUXS area our three-band MIR colour selection identifies 2755 AGN candidates, of which 1062 sources (38.5 per cent) are detected in X-rays. For comparison, the X-ray detection fraction of WISE objects that meet the Jarrett et al. () colour-based AGN selection (indicated in Fig. ⁰⁰⁰²) is 33.4 per cent (see Table ⁰⁰⁰⁶). At red MIR colours their selection enters the sequence of low-redshift normal galaxies increasing the expected number of contaminants.

Stern et al. () proposed an AGN selection using a [3.4]–[4.6] colour cut ([3.4]–[4.6] ≥ 0.8 or log(f_4.6/f_3.4)≳0.06) and a 4.6m flux threshold of 160Jy. Their argument was that the inclusion of the longer wavelength WISE data would increase the reliability of the AGN selection but at the cost of reducing the completeness. Figs ⁰⁰⁰² and ⁰⁰⁰⁵ show that the [3.4]–[4.6] colour cut proposed by Stern et al. () also enters the locus of low-redshift normal galaxies at red log(f₁₂/f_4.6) colours. This could reduce the reliability of their selection as suggested by the lower X-ray detection fraction of WISE sources in the BUXS area that meet their criteria (31.8 per cent; see Table ⁰⁰⁰⁶). On the other hand, using the deep (60–160 ks) Chandra data available in the COSMOS field, Stern et al. () find that 87 per cent of their WISE AGN candidates are detected at X-ray energies, suggesting minimal contamination from normal galaxies.

The XMM–Newton pointings used to build BUXS span a broad range of ecliptic latitudes, and thus, the depth of the WISE survey varies across the BUXS fields. The Stern et al. () AGN selection was defined using the COSMOS field located at low ecliptic latitude, and thus, the MIR data are close to the minimum depth of the WISE survey. At such shallow depths and using the Stern et al. () 160Jy flux threshold at 4.6 μm, many of the star-forming contaminants will be too faint to be detected, thereby increasing the reliability of the Stern et al. () selection. Although BUXS likely samples fainter objects than those best targeted at the shallow depth of WISE, we find that ∼98 per cent of the AGN have MIR detections with SNR ≥ 5 at 3.4 and 4.6m. This fraction only decreases to ∼77 per cent if we require 12m detections with SNR ≥ 5. In conclusion, over the range of MIR depths of the WISE survey in the BUXS fields, our proposed selection suffers less contamination from star-forming galaxies than provided by a simple [3.4]–[4.6] colour cut, while only marginally reducing completeness.

We have investigated the impact of increasing the MIR significance of detection of the AGN candidates. If we require 3.4 and 4.6m detections with SNR ≥ 10, 44 per cent of our MIR AGN candidates with log(f₁₂/f_4.6) ≥ 0.6 will be missed (21 per cent of the objects with an X-ray detection), while this fraction is only 0.7 per cent at log(f₁₂/f_4.6) ≤ 0.6 (and zero for objects with an X-ray detection). Therefore, the effect of increasing the threshold in SNR  of the detections is that the resulting MIR selection becomes increasingly similar to a hard X-ray selection. By selecting SNR ≥ 5 WISE sources, we gain in the identification of AGN candidates with the reddest MIR colours, while we do not reduce the reliability.

It is clear that our MIR colour selection is a good compromise between completeness and the crucial high reliability required to obtain a clean sample of powerful AGN at the different depths of the WISE survey. Furthermore, going down to detections with SNR ≥ 5, we reach a much higher efficiency of detection of the AGN population in the reddest MIR colours, many of which could be heavily obscured/extincted AGN.

5.3 Trends in the wedge with the AGN luminosity

In Section , we presented the WISE expected colours for AGN/star-forming galaxies derived from a library of templates. Here we investigate in more detail the colour trends in the three-band AGN wedge for the BUXS type 1 and type 2 AGN. Fig. ⁰⁰⁰⁶ shows the MIR colours of the AGN in BUXS as a function of their X-ray luminosity. As expected, there is a strong dependence of log(f_4.6/f_3.4) on the X-ray luminosity, with less luminous sources having the bluest MIR colours. For less powerful AGN the host galaxy can substantially contribute to the MIR emission (e.g. Buchanan et al. ; Alonso-Herrero et al. ). Host galaxy dilution is expected to be more important in type 2 AGN, especially at low luminosities, as type 2 AGN should show a higher degree of extinction at the shortest wavelength of WISE. These objects, with MIR colours consistent with normal galaxies, lie outside of the AGN wedge and thus, they are missed from a pure MIR selection. Figs ⁰⁰⁰² and ⁰⁰⁰⁶ both show that most AGN in BUXS missed by the three-band wedge are type 2 AGN. As noted in Section , in flux-limited X-ray surveys, such as BUXS, type 2 AGN are overall intrinsically less luminous than type 1 AGN (see Fig. ⁰⁰⁰¹, bottom). Thus, due to the strong dependence of the MIR selection completeness on the luminosity of the objects (see Fig. ⁰⁰⁰⁴, top), our AGN wedge will preferentially pick out BUXS type 1 AGN. However, at luminosities L_2–10 keV >10⁴⁴   erg s^-1, where the AGN is expected to dominate the MIR emission (unless it is heavily absorbed), the completeness of the selection of type 1 and type 2 AGN is comparable within the uncertainties. At such luminosities both type 1 and type 2 AGN are preferentially located above the power-law locus (see also Fig. ⁰⁰⁰⁵). This indicates that the observed 3.4–12m MIR SEDs of powerful AGN deviate from a pure power-law.

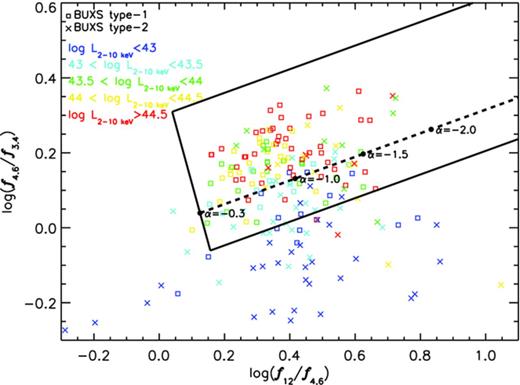

Figure 6

MIR colours of BUXS AGN as a function of the intrinsic 2–10 keV luminosity. The solid and dashed lines illustrate the AGN selection wedge and power-law locus, respectively. Most BUXS type 2 AGN are objects with (∼79 versus ∼39 per cent for type 1 AGN; see Fig. ⁰⁰⁰⁴). At such luminosities many AGN have relatively blue colours at the shortest WISE wavelengths (i.e. host dominated) and lie outside the AGN wedge.

Open in new tabDownload slide

We do not find a strong dependence of the log(f₁₂/f_4.6) colour on the X-ray luminosity. However, we find a large scatter in the distribution of log(f₁₂/f_4.6) colours, especially for objects at low luminosities, where the host galaxy significantly contributes to the MIR emission. A broad range of log(f₁₂/f_4.6) colours is expected for AGN with an important host galaxy contribution as the very wide 12m filter of WISE is very sensitive to both prominent polycyclic aromatic hydrocarbon emission features and silicate absorption (10m) in star-forming galaxies over a broad range of redshifts.

6 SUMMARY

We present an MIR power-law-based selection of luminous AGN candidates using the 3.4, 4.6 and 12 m bands of the WISE survey. We defined an AGN wedge in the log(f_4.6/f_3.4) versus log(f₁₂/f_4.6) colour–colour diagram using BUXS. This is one of the largest complete flux-limited samples of bright () ‘ultrahard’ (4.5–10 keV) X-ray-selected AGN to date. BUXS includes 258 objects detected over a total sky area of 44.43 deg²: 251 (97.3 per cent) are spectroscopically identified and classified, with 145 being type 1 AGN and 106 type 2 AGN. Our technique is based on an MIR power-law selection and properly accounts for the errors in the photometry and deviations of the MIR SEDs from a pure power-law. In flux-limited X-ray surveys, such as BUXS, type 2 AGN are intrinsically less luminous than type 1 AGN. Thus, due to the strong dependence of the MIR selection completeness on the luminosity of the objects, an MIR AGN wedge necessarily picks out BUXS type 1 AGN. However, at 2–10 keV luminosities above 10⁴⁴   erg s^-1 the completeness of our MIR selection of type 1 and type 2 AGN is high and comparable for both types within the uncertainties. Our selection is highly complete at luminosities L_2–10 keV >10⁴⁴   erg s^-1 where our MIR wedge recovers ∼97 and ∼77 per cent of the BUXS type 1 and type 2 AGN, respectively. We identify 2755 AGN candidates in the 44.43 deg² BUXS area of which 38.5 per cent have detection in X-rays. In the BUXS area where the X-ray observations have exposures >40 ks, the X-ray detection fraction rises to 49.8 per cent. This is reasonable, as long X-ray exposures are required to detect intrinsically less luminous and/or heavily obscured AGN. A substantial fraction of the MIR AGN candidates remain undetected at 2–10 keV energies with the typical exposures in the 2XMM catalogue. These objects are the best candidates to account for the most heavily obscured/absorbed luminous AGN missed by hard X-ray surveys. Assuming that a 2–10 keV X-ray detection is a good tracer of AGN activity we demonstrate that our WISE selection shows one of the highest reliability amongst those in the literature. This is crucial to obtain a clean MIR selection of powerful AGN. Furthermore, going down to a SNR ≥ 5 limit in the WISE flux densities, we substantially increase the efficiency of detection of AGN with the reddest MIR colours. We also investigate a WISE four-band AGN selection. We show, however, that by including the 22m WISE band neither the completeness nor the reliability of the selection improves. This is likely due to both the significantly shallower depth at 22m compared with the first three bands of WISE and star formation contributing to the 22m emission at the WISE 22m sensitivity.

This work is based on observations obtained with XMM–Newton, an ESA science mission with instruments and contributions directly funded by ESA Member States and NASA. It is also based on data from the Wide-field Infrared Survey Explorer, which is a joint project of the University of California, Los Angeles and the Jet Propulsion Laboratory/California Institute of Technology, funded by the National Aeronautics and Space Administration. Funding for the SDSS and SDSS-II has been provided by the Alfred P. Sloan Foundation, the Participating Institutions, the National Science Foundation, the U.S. Department of Energy, the National Aeronautics and Space Administration, the Japanese Monbukagakusho, the Max Planck Society and the Higher Education Funding Council for England. The SDSS website is http://www.sdss.org/. This work is based on observations collected at the European Organisation for Astronomical Research in the Southern hemisphere, Chile, programme IDs 084.A-0828, 086.A-0612, 087.A-0447. It is also based on observations made with the William Herschel Telescope – operated by the Isaac Newton Group, the Telescopio Nazionale Galileo – operated by the Centro Galileo Galilei and the Gran Telescopio de Canarias installed in the Spanish Observatorio del Roque de los Muchachos of the Instituto de Astrofsica de Canarias, in the island of La Palma. SM, FJC and XB acknowledge financial support by the Spanish Ministry of Economy and Competitiveness through grant AYA2010-21490-C02-01. AAH acknowledges support from the Universidad de Cantabria through the Augusto G. Linares program. AB acknowledges a Royal Society Wolfson Research Merit Award. JLD acknowledges support from the LANL Director's Fellowship. PS acknowledges financial support from ASI (grant No. I/009/10/0). The authors wish to thank the anonymous referee for constructive comments.
