WASP-25b: a 0.6 M_J planet in the Southern hemisphere Free

Abstract

1 INTRODUCTION

To date, over 440 exoplanets have been discovered, including more than 70 detected by the transit method.1 The transit method together with follow-up radial velocity observations allow measurement of both the mass and radius of the planet, leading to a value for the planet's bulk density (Charbonneau et al. 2000). The atmospheric composition of transiting exoplanets can also be investigated through high-precision photometric and spectroscopic measurements, see e.g. Charbonneau et al. (2002).

A wide range of transiting exoplanets radii has been found and there has been much investigation into the factors that may influence a planet's radius. For example, Guillot et al. (2006) propose a negative relationship between the metallicity of a host star and the radius of an orbiting planet, caused by an increase in the amount of heavy elements in the planet, leading to a more massive core and hence smaller radius for a given mass. Alternatively, Burrows et al. (2007) consider that increasing the metallicity may increase the opacity of an exoplanet's atmosphere, retarding cooling and leading to a larger radius for a given mass. Another influence on a planet's radius may be the equilibrium temperature of the planet (Guillot & Showman 2002), determined by the stellar irradiation and the planet's distance from its host star. Tidal heating due to the circularization of the orbits of close-in exoplanets may also play a role in inflating the planetary radius (Bodenheimer, Laughlin & Lin 2003; Jackson, Greenberg & Barnes 2008). One motivation of the SuperWASP project is to detect enough transiting exoplanets, with a wide range of orbital and compositional parameters, to allow analyses that may distinguish between such differing models.

In this paper, we report the discovery of a 0.6 M_J planet orbiting a solar mass star, WASP-25 (TYC6706-861-1, 1SWASP J130126.36-273120.0), in the Southern hemisphere. Analysis of photometric and spectroscopic data reveals WASP-25b to be another low-density planet, comparable to HD 209458b (Charbonneau et al. 2000). We also analyse the dependence of the radii of low-mass planets on host star metallicity and planetary equilibrium temperature, including WASP-25b and 18 other transiting planets, finding a relationship using singular value decomposition (SVD) analysis that gives an excellent agreement between observed and calibrated radii.

In Section 2 we describe the photometric and spectroscopic observations and data reduction procedures. In Section 3 we present the stellar and planetary parameters extracted from these data. Finally, in Section 4 we compare WASP-25b with the ensemble of known planets of similar mass, and examine the relationship between stellar metallicity, irradiating flux (via the planet's equilibrium temperature) and planet radius.

2 OBSERVATIONS

2.1 Photometric observations

The WASP-South observatory is located at South African Astronomical Observatory (SAAO) in South Africa, and consists of eight 11-cm telescopes of field of view each, on a single fork mount. The cameras scan repeatedly through 8–10 sets of fields, taking 30-s exposures. See Pollacco et al. (2006) for more details on the WASP project and the data reduction procedure, and Collier Cameron et al. (2007) and Pollacco et al. (2008) for an explanation of the candidate selection process.

WASP-25 was observed by WASP-South in 2006, 2007 and 2008, producing a total of 14 186 photometric data points. The 2007 data set showed the transit event most clearly, detected at a period of 3.76 d. Fig. 1 shows the WASP-South discovery light curve, using data from all seasons.

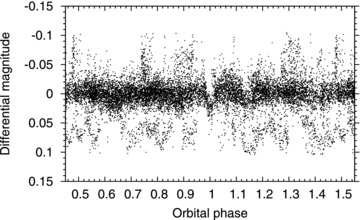

Figure 1

WASP discovery light curve folded on the orbital period of P = 3.765 d. Points with error above 3× median were clipped, where median = 0.012 mag.

Open in new tabDownload slide

Further photometric observations were subsequently obtained on 2010 April 3 using the LCOGT 2-m Faulkes Telescope South (FTS) at Siding Spring, Australia. Observations were obtained using the fs01 Spectral camera containing a 4096 × 4096 pixel Fairchild CCD which was binned 2 × 2 giving 0.303 arcsec pixel⁻¹ and a field of view of ∼10 × 10 arcmin². 285 data points were obtained through a Pan-STARRS z filter, capturing an entire transit.

The data were pre-processed through the WASP Pipeline (Pollacco et al. 2006) to perform masterbias/flat creation, debiasing and flat-field correction in the standard manner. Object detection and aperture photometry were performed using the daophot (Stetson 1987) package within the iraf environment2 with an aperture size of 18 binned pixels. Differential magnitudes of WASP-25 were formed by a weighted combination of the flux relative to 26 comparison stars within the field of view.

A second full transit was observed a week later on 2010 April 10 in the R band with EulerCam on the 1.2-m telescope at La Silla, Chile, comprising 204 data points. The resulting light curves are shown in Fig. 2.

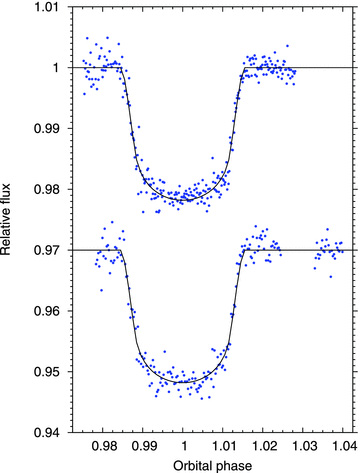

Figure 2

Top light curve: FTS follow-up photometry of WASP-25 on 2010 April 3. The central transit time is at HJD = 5290.056 17. Bottom light curve: Euler photometry on 2010 April 10 with central transit time at HJD = 5297.585 52.

Open in new tabDownload slide

2.2 Spectroscopic observations

WASP-25, a V_mag = 11.9 star, was observed 29 times with the CORALIE spectrograph on the 1.2-m Euler telescope, between 2008 December 29 and 2009 June 28. The spectra were processed using the standard data reduction pipeline for CORALIE (Baranne et al. 1996; Mayor et al. 2009), plus a correction for the blaze function (Triaud et al. 2010). These data are given in Table 1 and shown phase-folded in Fig. 3: the low-amplitude radial velocity variations and the lack of correlation between the bisector spans and radial velocity (Queloz et al. 2001), shown in Fig. 4, are consistent with a planet-mass object orbiting the host star.

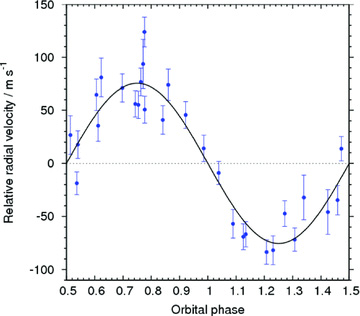

Figure 3

Radial velocity measurements. The solid line is the best-fitting MCMC solution. The centre-of-mass velocity, γ=− 2.6323 km s⁻¹, was subtracted.

Open in new tabDownload slide

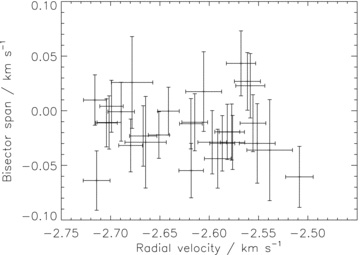

Figure 4

Bisector spans versus radial velocity, where bisector uncertainties are taken to be equal to twice the radial velocity uncertainties.

Open in new tabDownload slide

3 SYSTEM PARAMETERS

3.1 Stellar parameters

The CORALIE spectra were placed on a common wavelength scale and co-added to produce a higher signal-to-noise ratio spectrum, allowing an analysis of the host star and thus measurement of the stellar temperature, gravity, metallicity, v sin i and elemental abundances, given in Table 2, where η is microturbulence. The spectral data were analysed using the uclsyn spectral synthesis package (Smalley, Smith & Dworetsky 2001) and atlas models without convective overshooting (Castelli, Gratton & Kurucz 1997). The effective temperature and log g were determined using the Hα and Hβ lines, and the Na iD and Mg ib lines, respectively, while the Ca H&K lines provided a check on those values. Further details of the spectral analysis are given in West et al. (2009a). The analysis yielded T_eff = 5750 ± 100 K and [Fe/H]=− 0.05 ± 0.10.

3.2 System parameters

The WASP-South, FTS and Euler photometry were simultaneously analysed with the CORALIE radial velocity data in a Markov chain Monte Carlo (MCMC) analysis. This analysis is described in Collier Cameron et al. (2007), but is here modified as described in Enoch et al. (2010) to determine stellar mass using a calibration on T_eff, log ρ and [Fe/H][similar to the T_eff, log g and [Fe/H] calibration described in Torres, Andersen & Giménez (2009)]. The temperature and metallicity were obtained through spectral analysis (given in Table 2), and the density is determined directly from the photometry. Mass and radius values obtained for other WASP host stars via this method agree closely with values obtained through isochrone analysis.

An initial analysis was performed allowing the eccentricity value to float, producing a value of e = 0.123^+0.041_−0.046. This eccentricity value is consistent with 0 at the 3σ level, and was suspected to not be significant, as can occur from spurious asymmetries in quadrature fits due to noise (Laughlin et al. 2005), so a second analysis was performed with eccentricity fixed to 0. We performed an F-test on the radial velocity residuals from the circular and floating eccentricity fits, resulting in a value of 0.897 which shows that the eccentric fit is not significant.

The resulting circular model best-fitting parameters for the star–planet system are listed in Table 3, using the best-fitting parameters from the e = 0 fit and the uncertainties from the fit allowing eccentricity to float, to sufficiently account for uncertainty due to unknown eccentricity. The results show WASP-25 to be a solar analogue of one solar mass and 0.92 ± 0.04 solar radius, and WASP-25b to be a bloated hot Jupiter of 0.58 ± 0.04 M_J and 1.22 ± 0.06 R_J, giving a planet density of ρ = 0.32^+0.04_−0.03 ρ_J.

The stellar density of 1.29 ±−0.11 ρ_⊙ obtained from the MCMC analysis was used along with the determined stellar temperature and metallicity values in an interpolation of the Girardi et al. (2000) stellar evolution tracks, see Fig. 5. Using the best-fitting metallicity of −0.07 indicates that WASP-25 has a mass of 1.02^+0.03_−0.07 M_⊙, agreeing well with the calibrated MCMC result of 1.00 ± 0.03 M_⊙ and an age of 0.02^+3.96_−0.01 Gyr.

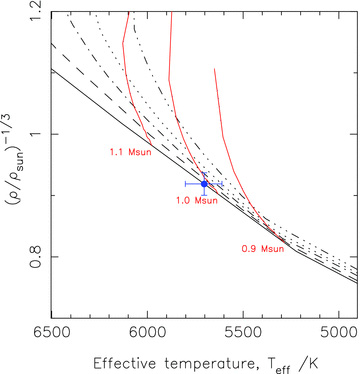

Figure 5

Isochrone tracks from Girardi et al. (2000) for WASP-25 using the best-fitting metallicity of −0.07 and stellar density 1.29 ρ_⊙. Isochrones are 0.019 95 Gyr (solid), 0.7943 Gyr (dashed), 1.99 Gyr (dot–dashed), 3.16 Gyr (dotted) and 5.01 Gyr (triple dot–dashed).

Open in new tabDownload slide

4 DISCUSSION

A density of 0.32^+0.04_−0.03 ρ_J places WASP-25b amongst the bloated hot Jupiters, with over 80 per cent of known transiting exoplanets being more dense.3Guillot et al. (2006) proposed a correlation between the metallicity of a host star and the amount of heavy elements present in the planet. A larger amount of heavy elements is likely to produce a more massive rocky core and hence would lead to larger planetary radii for lower metallicity stars, for a given planetary mass (Fressin et al. 2007). Alternatively, the heavy elements could increase the opacity of the planetary interior, potentially increasing the radius (Burrows et al. 2007).

WASP-25b has a mass close to the value above which the gravitational, potential energy begins to exceed the electrical binding energy of electrons in atoms as the main force opposing electron degeneracy pressure in the deep planetary interior (Lynden-Bell & O'Dwyer 2001). It is in this lower mass range that we see the greatest range of radii at a given mass. This suggests that environmental and compositional differences between individual planets have the greatest influence on their radii in this mass range.

To investigate this relationship, we calculated the correlation between radius and metallicity for all known transiting exoplanets for which metallicity data were available (67 planets), finding only a very weak relationship with a correlation coefficient of −0.17. However, splitting the planets into low-mass (0.1 –0.6 M_J) and higher mass (>0.6 M_J) sets resulted in correlation coefficients of −0.53 (with a probability of no correlation of 0.022) and 0.07, respectively, indicating that metallicity plays a role in determining the radii of low-mass planets but not those of higher mass. We plot the radii against host star metallicity of low-mass planets in Fig. 6. We concentrate on the set of 18 low-mass planets, of which nine are WASP planets, including WASP-25b, see Table 4), in further investigating planetary radii.

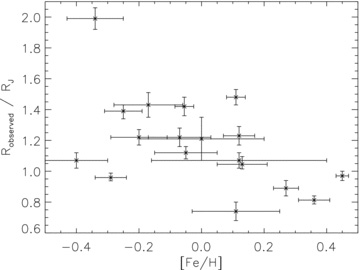

Figure 6

Radius versus metallicity of 18 planets of 0.1–0.6M_J.

Open in new tabDownload slide

A major influence on the radius of an exoplanet is likely to be the planet's equilibrium temperature (Fressin et al. 2007), T_eq, defined as

1

where T_*,eff is the host star's effective temperature, R_* is the stellar radius, a is the semimajor axis, A is the planetary Bond albedo and F is the fraction of the planet reradiating flux. Jupiter has a Bond albedo of 0.28 (Taylor 1965) but albedo values have not so far been determined for the majority of exoplanets, and Rowe et al. (2008) found a very low albedo for HD 209458b, at just 0.04 ± 0.05. We set A = 0 (F = 1) here to calculate the equilibrium temperatures. Not knowing the true albedo values for all the planets studied here produces an uncertainty in the values calculated for equilibrium temperature of (1 −A)^1/4. We find the correlation coefficient between the (approximate) equilibrium temperature and radius of all 18 planets to be 0.55, a moderate relationship, shown in Fig. 7. The correlation of radii and equilibrium temperature is stronger than this for the majority of planets – removing the two outliers, WASP-17b and HD 149026b, from the correlation produces a coefficient of 0.82 for the remaining 16 planets, a strong relationship. Accurate albedo values, and hence equilibrium temperatures, may produce an even stronger correlation than found here.

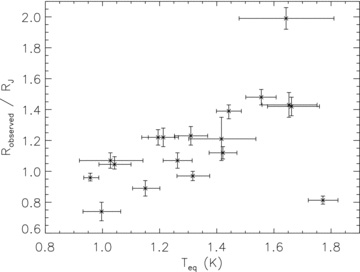

Figure 7

Radius versus equilibrium temperature of 18 planets of 0.1–0.6M_J.

Open in new tabDownload slide

Since both the host star metallicity and the planet's equilibrium temperature seem to explain the radii of low-mass planets in part, we performed a weighted SVD fit to fully quantify the relationship. This resulted in the equation

2

producing the fit to the planetary radii shown in Fig. 8. Removing the two outliers mentioned above, WASP-17b and HD 149026b, leads to a much better fit, shown in Fig. 9, implying that additional parameters particularly affect these two planets. The SVD fit for the 16 planets is

3

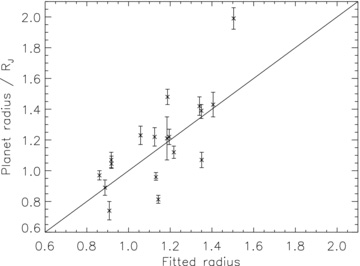

Figure 8

Results of SVD fit on the radii of 18 planets of 0.1–0.6M_J.

Open in new tabDownload slide

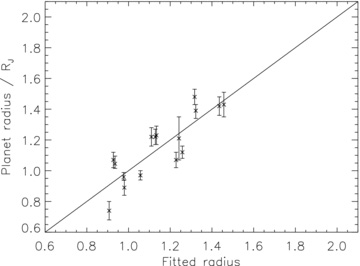

Figure 9

Results of SVD fit on the radii of planets of 0.1–0.6M_J, excluding WASP-17b and HD 149026b.

Open in new tabDownload slide

The negative slope of the metallicity correlation and of the SVD coefficient implies that the effect of a massive core (Guillot et al. 2006) outweighs the effect of increased opacity in the interior of the planet, i.e. increased metallicity leads to a smaller planetary radius.

5 CONCLUSIONS

We have reported the detection of a 0.58M_J planet, WASP-25b, transiting a slightly metal-poor solar-mass star in the Southern hemisphere with an orbital period of 3.76 d. WASP-25b has a low density, 0.29 ρ_J, and we investigate its bloated radius, R_p = 1.26 R_J. We find that the radii of most transiting exoplanets of a similar mass to WASP-25b can be explained well by a calibration to the host star metallicity and planetary equilibrium temperature.

WASP-South is hosted by the South African Astronomical Observatory and we are grateful for their ongoing support and assistance. Funding for the WASP comes from consortium universities and from the UK's Science and Technology Facilities Council.
