Deciphering the pulsations of G 29-38 with optical time series spectroscopy Free

Abstract

We present optical time series spectroscopy of the pulsating white dwarf star G 29-38 taken at the Very Large Telescope (VLT). By measuring the variations in brightness, Doppler shift and line shape of each spectrum, we explore the physics of pulsation and measure the spherical degree (ℓ) of each stellar pulsation mode. We measure the physical motion of the g modes correlated with the brightness variations for three of the eight pulsation modes in this data set. The varying line shape reveals the spherical degree of the pulsations, an important quantity for properly modelling the interior of the star with asteroseismology. Performing fits to the Hβ, Hγ and Hδ lines, we quantify the changing shape of the line and compare them to models and previous time series spectroscopy of G 29-38. These VLT data confirm several ℓ identifications and add four new values, including an additional ℓ= 2 and a possible ℓ= 4. In total, from both sets of spectroscopy of G 29-38, eleven modes now have known spherical degrees.

1 INTRODUCTION

DAVs, or ZZ Cetis, are variable white dwarf stars with hydrogen atmospheres. They are the coolest known white dwarf pulsators and reside in an instability strip near 12 000 K. Their pulsations are multi-periodic with amplitudes as high as 5 per cent and periods between 70 and 1100 s. In the past few years, the number of known DAVs has increased from a few dozen to more than one hundred (see Mukadam et al. 2004; Mullally et al. 2005; Castanheira et al. 2006; Voss et al. 2007). The pulsators at the hot end of the instability strip show lower amplitudes and more stable pulsations, while the others show more complex pulsations including variability of the excited modes, and an abundance of harmonic and combination modes.

The high gravity [log(g)∼8 cgs] of the DAVs favours gravity-mode type pulsations (Robinson et al. 1982), where motion along the surface of the star produces regions with varying temperatures. To describe the spatial distribution of these regions, each of the pulsations on the star is characterized by a spherical harmonic (Y_ℓ,m) and the radial order, n. The spherical degree, ℓ, and azimuthal order, m, describe the number of nodal lines across the surface of the star, and directly affect observations of the pulsations.

The pulsation's radial component allows asteroseismological models to determine the internal structure of the star. The DAVs have evaded unambiguous asteroseismological modelling in part because of the difficulty in measuring the spherical degree of their pulsation modes. Usually, a value of ℓ= 1 is assumed in these models. However, it is possible to fit modes with higher values of ℓ, and this can significantly change the parameters of the model. For example, Bradley (2006) showed that using the identification of ℓ= 4 (Thompson et al. 2004), instead of ℓ= 2 (Castanheira et al. 2004) for one mode, changes the modelled depth of the hydrogen layer in G 185-32 by a factor of 100.

One method of determining ℓ independent of asteroseismological modelling was introduced by Robinson et al. (1995). They showed that ℓ can be obtained from time series optical and ultraviolet (UV) spectroscopy. The effects of limb darkening increase in the blue wavelengths and decrease through the spectral lines, changing the fraction of integrated light coming from the limb. As such, the pulsation amplitude varies with both wavelength and the spherical degree of the mode. Clemens, van Kerkwijk & Wu (2000) (hereafter C00) measured chromatic amplitudes (pulsation amplitude at each wavelength bin) across the hydrogen Balmer lines and demonstrated that spectral variations can indeed be used to identify spherical degree. The same method was applied to the DAVs HS 0507+0434B, G 117-B15A and G 185-32 (Kotak, van Kerkwijk & Clemens 2002,2004; Thompson et al. 2004) and the DBV GD 358 (Kotak et al. 2003). Generally, the method worked well, although for one mode – the 272 s mode in G 117-B15A – the chromatic amplitudes are extremely puzzling (Kotak et al. 2004). Also, they found that the chromatic amplitudes provided unambiguous identifications only for the strongest modes; for weaker ones, noise obscured the expected visible differences. In order to improve the precision, Kotak et al. (2003) attempted to use the slope and curvature in selected wavelength ranges of the chromatic amplitudes as measures of spherical degree, with somewhat limited success. A different approach was demonstrated by Thompson et al. (2004) where they analysed fits to the spectral lines rather than the observed fluxes in each spectral bin. The chromatic amplitudes created from these fits did allow for mode identifications from lower signal-to-noise ratio data.

G 29-38 is one of the brightest DAVs with complex pulsations and some of the largest amplitudes, making it a prime candidate for time series spectroscopy. It has an abundance of modes, but they are not all excited simultaneously and many observation runs are necessary to measure them all. Kleinman et al. (1998) compiled 10 yr of photometric observations and found a possible series of ℓ= 1 modes on G 29-38. Time series spectroscopy taken at the Keck Observatory with the LRIS spectrograph provided chromatic amplitudes of G 29-38 that directly detected an ℓ= 2 mode at 776 s (C00) and gave strong evidence for another at 920 s (Kotak et al. 2002). Using the same data, van Kerkwijk, Clemens & Wu (2000) (hereafter VK00) measured the periodic line-of-sight velocities associated with the longitudinal motion of the gas. For the 776 s mode, they found relatively large motion as compared to the measured flux amplitude, again indicating that the mode is ℓ= 2 (Dziembowski 1982).

The measurements of the pulsation velocities were confirmed by Thompson et al. (2003) using a series of high-resolution spectra of G 29-38 and provided observational evidence regarding the convective driving theory proposed for DAVs (Brickhill 1983; Goldreich & Wu 1999). The velocities also hint at the nature of the many combination and harmonic modes present on these pulsators. These combinations and harmonics most likely result from non-linear mixing at the surface of the star and are not real modes that probe the interior (Wu 2001; Montgomery 2005). VK00 reinforced this idea by finding no velocity signature associated with the combinations and harmonics on G 29-38. However, Thompson et al. (2003) reported one combination mode with a significant velocity detection.

In this paper, we show the results of time series spectroscopy of G 29-38 taken at the Very Large Telescope (VLT) in 1999. We present the light and velocity curves measured from the series of spectra. We fit 13 modes in the light curve and find variations at the same period in the velocity curve for the largest amplitude pulsations. We then perform fits to the Balmer lines to quantify the changing line shape. Since we are using fits to the observed spectral lines, we can present the line shape variations in terms of the fitted values: the normalized equivalent width variations of the Gaussian and Lorentzian functions. We perform the same analysis on the 1996 Keck spectral series presented by VK00 and C00 as a check of our method and recover their results of an ℓ= 2 mode among a series of ℓ= 1 modes. Application of the same method to our VLT data adds four additional mode identifications to the G 29-38 pulsation spectrum.

2 OBSERVATIONS

We present a 6.14 h spectral series (604 spectral images) of G 29-38 from the VLT, observed with the FORS1 spectrograph (Moehler et al. 1995) on 1999 August 27 starting at 03:00:19.67 ut. The average exposure time on each image is 16.0 s with a readout time of 16.0 s. We perform a standard reduction on each image using routines in iraf. We subtract the bias measured from the overscan, divide by a normalized average flat taken at the beginning of the night and perform wavelength calibration from arc lamps taken at the end of the night. The average flat-field was insufficient to remove all the effects of erroneous pixels, thus small dips and peaks appear in the average spectrum. Overall, these are smaller than the average noise in the individual spectrum. Also, since we rely on relative fluxes, poor flat-fielding does not significantly change our results. No spectrophotometric standard was available to flux calibrate the spectra. Each extracted spectrum spans 3300 to 5700 Å, has a dispersion of 2.35 Å per binned pixel and a signal-to-noise ratio of 80. Because light entered through a wide slit, the resolution is set by the seeing, yielding ∼8 Å.

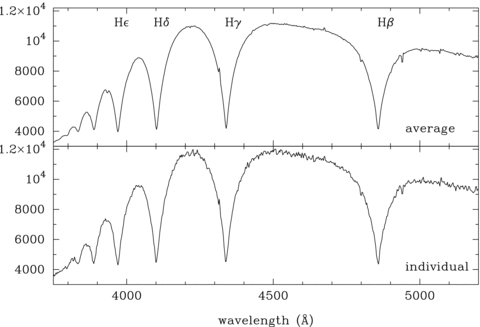

Fig. 1 depicts an example of an individual spectrum and the average of the 604 spectral images. Besides the hydrogen lines ranging from Hβ to H9, the Ca K line is evident at 3933 Å. von Hippel & Thompson (2007) use all known calcium line equivalent width measurements, including those presented here and in VK00, to show that the abundance of Ca on G 29-38 varies by as much as 70 per cent, though Debes & López-Morales (2008) have since seen no variations in the Ca of G 29-38. Measurements of changing Ca abundance will allow us to constrain the diffusion rate of calcium in the white dwarf atmosphere and the variable accretion from the debris disc surrounding G 29-38 (Zuckerman & Becklin 1987; Reach et al. 2005).

3 PERIODICITIES

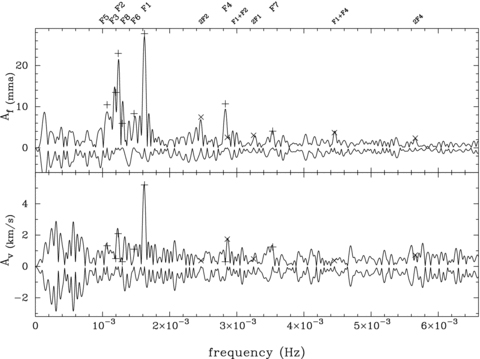

Time series spectroscopy of pulsating white dwarfs provides the opportunity to measure both the variations in brightness of the star and the radial velocity of the gas along the surface of the star. We find periodic variations in our measurements of both the light and velocity curves. We create a light curve by averaging the counts collected in the continuum redward of the Hβ line (5000–5647 Å). The average noise level of the light curve is 0.89 mma (0.089 per cent), measured from the high-frequency end of the Fourier transform (FT). The velocity curve is created from the weighted average of the Doppler shifts, found by individually fitting the Hβ–Hε lines with a combination of a Gaussian and Lorentzian function fixed to have the same central wavelength. The average noise level of the velocity FT is 0.56 km s⁻¹ (see Fig. 2).

We fit and remove individual sine waves to the light curve starting with the largest amplitude mode, the order is depicted in Table 1. We then fit modes that represent combinations of these larger modes. Overall, we find eight independent frequencies and five combination frequencies in the light curve. The final fit in Table 1 represents fitting all 13 modes simultaneously. The errors represent analytical estimates of the uncertainties calculated by period04 (Breger et al. 1999; Lenz & Breger 2005), a program that performs FTs and sine-wave fits to a given light curve. The reduced chi-square value for the fit to the light curve is 2.4, indicating that our 13 modes do not represent the entire signal in the light curve given the size of the error in each light-curve measurement. The remaining signal is dominated by low-frequency signals that are typical of variable seeing and are probably not inherent to the star. The non-linear light curve of G 29-38 also suggests that combination modes below the noise level are present providing further signal that we did not remove. The errors presented in Table 1 represent the reduced chi-square value of 2.4.

The strongest periodicity of the velocity curve corresponds to the strongest mode (F1) found in the light curve, giving us confidence that we have measured the motion of the gas on the surface. The light curve measures the period of each mode better than the velocity curve because of its lower noise level. We fit the velocity curve with sine waves, fixing the frequencies to the 13 modes measured in the light curve. The reduced chi-square for the fit of the 13 frequencies to the velocity curve is 1.6. The remaining signal in the velocity FT is at low frequencies and probably results from stellar wander in the wide slit. The lower reduced chi-square of the velocity fit as compared to the light curve fit is an indication that the velocity curve is more linear, i.e. no undetected combination frequencies. The amplitudes and frequencies found by fitting the velocity and light curves at the same frequencies are marked on the FTs in Fig. 2.

To determine the significance of a mode, we use the false alarm probability (Kepler 1993). In the light curve, to have less than 0.1 per cent chance of a peak being produced by noise alone it must have an amplitude of at least 3.2 mma. For the combination modes, where we know the frequency lies at the combination of the two dominant modes, the peak need only have an amplitude of 2.3 mma. Table 1 only includes peaks in the FT with amplitudes greater than these values. For the velocity FT, peaks need an amplitude of 2.04 km s⁻¹ to be detected independent of the light curve with the same 0.1 per cent confidence level. However, since the light curve fixes the frequency, for a velocity mode to have less than 0.1 per cent chance of being due to noise, it simply needs an amplitude greater than 1.47 km s⁻¹. Only the modes F1, F2 and the combination of F1+F2 have velocity amplitudes greater than this limit.

We compare the observed velocity and light amplitudes and phases with the values R_v=(A_v/ω)/A_f, relative amplitude and ΔΦ=Φ_v−Φ_f, relative phase in Table 1. The measured R_v values have been shown by Thompson et al. (2003) and VK00 to generally agree with the convective driving theories of Goldreich & Wu (1999). Our measurements of G 29-38 agree with the previous measurements with the Keck telescope. One mode present in all three data sets (615 s) consistently has the same relative amplitude: R_v is 17 ± 3, 12 ± 4 and 18 ± 2 Mm rad⁻¹ for VK00, Thompson et al. (2003) and this paper, respectively. These measurements are all near to the prediction by Wu & Goldreich (1999) of 16 Mm rad⁻¹ for an 800 s mode on a similar temperature star. The relative phases, ΔΦ, for those modes with a significant velocity detection all show the expected lag of the brightness behind the motion of the gas, predicted by Wu & Goldreich (1999) to be a 55° lag for an 800 s mode.

With the observation of several combination modes, we compare the combination amplitudes and phases with their parent modes according to VK00 and Wu (2001). Specifically, we show the combination amplitude ratio, R_c=A^i+j_f/n_ijAⁱ_fA^j_f, and the combination phase difference, ΔΦ_c=Φ^i+j_f− (Φⁱ_f+Φ^j_f), in Table 1. The R_c values for the first harmonics of our F1 and F2 agree within the errors with the same modes presented by VK00 on G 29-38. Since combination modes do not suffer from cancellation over the surface of the star in the same manner as their parent modes, the value of R_c can be an indication of ℓ (Wu 2001; Yeates et al. 2005). However, these values are dependent on the azimuthal order, m, and the inclination of the star. Since we have not resolved rotational splitting of our modes, the use of combination modes to determine ℓ is very uncertain. We only note that the first harmonic of F4 shows a larger value than the other harmonics.

One curious feature in these time series is the modestly significant peak in the velocity FT at 2858 μHz that matches the combination frequency F1+F2. While the combination of F1+F2 lies within 30 μHz of F4, it is impossible to satisfactorily fit the observed velocity peak with the same frequency as F4. While the 1.74 km s⁻¹ amplitude of this velocity curve is above the significance level, this criterion only applies if we can expect to find combination frequencies in the velocity curve. Otherwise, the false alarm probability is 1/26, i.e. a 3.8 per cent chance of the velocity peak being due to noise.

Most observations and theory insist that combination modes should have no motion corresponding to the flux variations (van Kerkwijk et al. 2000; Wu 2001). Combinations are believed to occur from the changing depth of the outer convection zone, attenuating, delaying and distorting the pulsations (Wu 2001; Montgomery 2005). Hence, we observe non-linear pulse shapes in the light curve and combination modes in the brightness FT. Since the combinations occur from non-linear mixing of the temperature variations, they do not require gas motions to be seen as a peak in the light FT. However, Thompson et al. (2003) previously found one instance of a significant velocity variation on G 29-38 that matches the sum of two large modes. So, despite the theoretical predictions, observations tell us that we can expect to find velocity combinations, and we conclude that F1+F2 is the second observed combination mode demonstrating an associated periodic velocity variation.

4 MODE IDENTIFICATION OF G 29-38

Due to differences in limb darkening across the spectral lines, the hydrogen spectral line shapes change according to the distribution of the pulsation across the surface of the star. As a result, chromatic amplitudes, wavelength-dependent amplitude variations across the Balmer lines, have characteristic shapes that reveal ℓ. This technique cannot reveal m because of the purely spherical harmonic treatment of the brightness variations (Robinson et al. 1995). Also, the motion of the gas, which is variable over the surface of the star and dependent on m, is too small to observe except for the average change of the line centre as shown in the previous section.

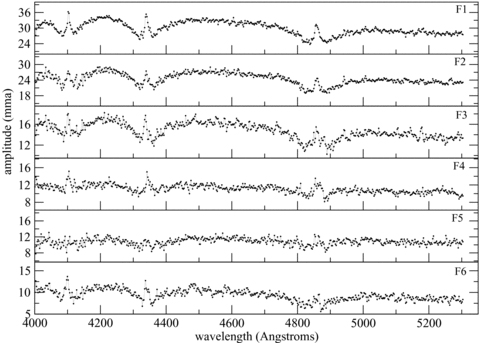

Using the technique of chromatic amplitudes, C00 show that one mode has ℓ= 2 while all others match ℓ= 1 on G 29-38. We present the chromatic amplitudes from the VLT data of the six largest pulsation modes in Fig. 3. As seen across the Hβ through Hδ lines, our data demonstrate the typical central peaks with side dips predicted by the atmospheric models for low values of ℓ. However, the noise, especially in the lower amplitude modes, prevents us from making specific mode identifications when we compare them to the models. One obvious feature is that the 353 s mode, F4, appears to have shallower dips on either side of its peaks, indicating that F4 is a different spherical degree from F1 or F2. F5 also seems to have somewhat shallower dips, though the increased noise makes the difference much less significant.

Since the introduction of chromatic amplitudes, fitting spectral lines has proven to be useful in extracting spherical degree from lower quality data (Thompson et al. 2004). As a result, we fit the spectral lines of our VLT data to measure the spherical degree of the largest amplitude pulsations. We apply the same technique to the previous Keck observation of G 29-38 (VK00, C00) to prove that our method produces the same results as the raw chromatic amplitudes and to be able to directly compare the measurements of the two data sets.

4.1 How to measure spherical degree

We follow the procedure outlined by Thompson et al. (2004) for fitting each spectral line with the combination of a Gaussian and a Lorentzian superimposed on a linear continuum. We fit each spectrum only allowing the area of the Gaussian and Lorentzian to vary along with the slope and intercept of the linear continuum. Prior to fitting, we establish the initial conditions of all the line parameters by fitting the average spectrum; this established the full width at half-maximum values of both functions and the central wavelength of the line.

As discussed previously, one method to present the line shape variations is to create chromatic amplitudes by measuring the amplitude of each pulsation mode for each wavelength bin. In this case, we use the fitted spectra to create the chromatic amplitudes. Fig. 4 shows the chromatic amplitudes for a temperature and gravity model consistent with G 29-38. The fits to the model spectral lines are over a limited wavelength range and do not measure the amplitudes between the spectral lines. As expected, each spherical degree has a different chromatic amplitude shape.

Alternatively, since we fit the spectra, we can reduce the problem of distinguishing ℓ to quantities measured from the varying fitted parameters. Specifically, we measure the fractional amplitudes of the fitted EWs for the Gaussian (G_EW) and the Lorentzian (L_EW) functions at the known periods of pulsation. We also measure the fractional light amplitude for each pulsation mode from the flux measured by the linear continuum of the fit at the central wavelength of the line (A_λ). These flux amplitudes agree within the errors with those measured directly from the spectra in Table 1. We normalize the EW amplitudes by this light amplitude for each mode and plot G_EW/A_λ against L_EW/A_λ for each spectral line in Fig. 4.

For the data and models considered here, we fit across 200 Å for the Hβ and Hγ lines and 100 Å for the Hδ line. All Doppler shifts of the spectral line have been removed prior to fitting the spectra to reduce the number of parameters in the fit, leaving the four previously mentioned fitted parameters. Generally, the Lorentzian fits the wide wings of the spectral lines while the Gaussian is limited to the central core. The Gaussian represents only about 3 per cent of the line area; however it also shows larger fractional variations than the Lorentzian.

Using the limb-darkened models of DA white dwarf stars (Weidemann & Koester 1984), we pulsate the models with a spherical harmonic according to ℓ= 1, 2, 3 and 4. Each model is Gaussian smoothed by σ= 2.9 Å to account for the seeing that reduces the resolution of the spectra, though this has only a small effect on the results. We force the fits of the model spectra and the observations to have the same ratio between the full width at half-maximum of the Gaussian and the Lorentzian functions. In this way, we further control the fit, providing consistent results between the observations and the model. We choose a model of T= 11 750 K and log(g) = 8.25 (cgs), appropriate given the temperature and gravity measured by VK00.

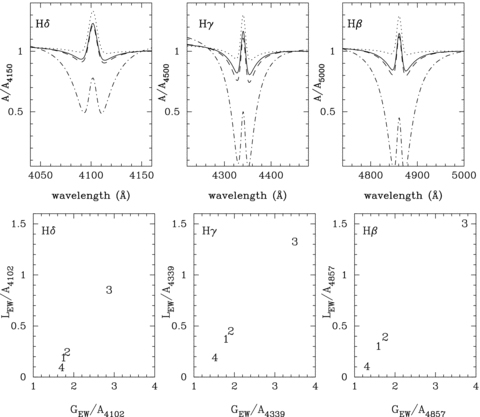

Fits to model spectra show that different values of ℓ will produce unique Gaussian and Lorentzian EW amplitudes. A comparison of the chromatic amplitudes and the EW variations in Fig. 4 shows the correlation between the two methods of presenting the periodic line shape variations. The amplitude of the Gaussian EW corresponds to the central bump seen in the chromatic amplitudes, while the Lorentzian EW corresponds to the wings of the chromatic amplitudes. With only two parameters, the EW variation plot simplifies the comparison between observed pulsations and the models. In this paper, we use the normalized EW variation plots to quantify the Keck, VLT and model line shape variations.

4.2 Measured EW variations

We measure the periodic changes in the normalized EWs for the six largest modes of the VLT observations and perform the same analysis on the Keck time series spectroscopy of G 29-38 (VK00). With a consistent analysis, we can compare the data sets to the models as well as to each other. Figs 5 and 6 show the analysis of both data sets; they are consistent but show some offset from the model. The presented error bars are the formal errors as measured from sine-wave fits at the stated period to the time series of the EWs and continuum fluxes (in the next section we describe Monte Carlo simulations that demonstrate these errors are reasonable).

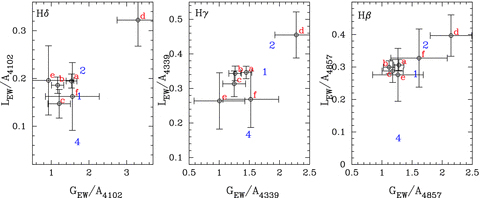

Using chromatic amplitudes measured straight from the data, C00 discovered five ℓ= 1 modes and one ℓ= 2 mode. Instead, we fit the spectra to create EW variation plots for the six largest, real modes they measured in their light curve. Our results from fitting the spectra agree with the previous conclusions of C00. Fig. 5 shows these results along with the model. While a small offset between the model and the Keck observations exists, the general trends between different spherical degree appear to be accurate. These trends are independent of the model temperature and gravity, and thus we can still determine ℓ because we can compare observed modes. Specifically, the mode labelled ‘d’ is the mode that C00 measured as ℓ= 2 (776 s). It has larger variations in the Lorentzian and Gaussian EW than the other observed modes, exactly as seen in the model.

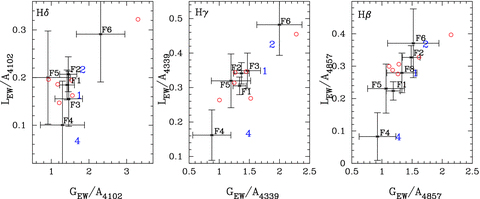

Our results from fits to the VLT spectral series taken of G 29-38 are shown in black in Fig. 6. Only the six modes with the largest light amplitudes are shown. The majority assuredly overlap with the cluster of modes observed with the Keck data (circles). Specifically, our F1 and F2 are the same period as ‘a’ and ‘b’ in Fig. 5, and they agree in value within the error bars. The majority of modes in G 29-38 are expected to be ℓ= 1 (Kleinman et al. 1998), and our observed cluster in the Keck and VLT observations agrees with this conclusion.

We note two interesting modes in the VLT data. One is the 681 s mode, labelled ‘F6’. It consistently shows larger EW amplitudes in all the spectral lines, just like the previously known ℓ= 2 mode (‘d’ in Fig. 5). The other feature is the 353 s mode, labelled ‘F4’. It consistently shows smaller EW variations, similar to what might be expected of an ℓ= 4 mode. We note that this mode lies very near to the combination of the two primary modes (F1+F2) and the small combination could be influencing our results. However, simulations that include nearby combination modes have no effect on the measured EW variations.

4.3 Noise simulations

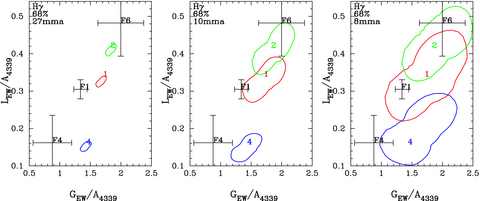

To better understand how noise affects our measurement of spherical degree, we perform Monte Carlo simulations of model spectral series. Gaussian noise was introduced to both the overall brightness of the spectra and across the individual wavelengths of the model spectrum to match the noise observed in the VLT data. The error produced in individual fits is equivalent to the error observed in the same amplitude mode in the VLT data, confirming that we are closely emulating the observations. We produce and fit the Hγ line of 500 simulated spectral series (with 604 spectra in each series) and plot regions containing the central 68 per cent of the points for each ℓ. We show this scatter in Fig. 7 for amplitudes of 27, 10 and 8 mma, consistent with modes F1, F4 and F6, respectively.

From the simulations for the VLT noise level, we expect to be able to distinguish ℓ= 1, 2 and 4 for the largest amplitude modes even if we only measured the gamma line. Given the simulated scatter, we would not be able to distinguish F6 from a single spectral line. However, the fact that we see the same trend in all three lines increases the probability that we correctly identified all our modes. The simulations show that the normalized Gaussian and Lorentzian EW amplitudes are correlated, but the size of the error bars is basically reflected by the 1σ error bars presented in Figs 5 and 6.

4.4 Discussion

Due to the limb-darkening variation across the spectral lines, periodic changes in the line shape reveal the distribution of the pulsation across the surface of the star. The observations of the line shape do not explicitly agree with the model, as seen in previous chromatic amplitudes (C00). However, the trends between different spherical degrees do agree and as a result, we have measured ℓ on G 29-38. The F1, F2, F3 and F5 are all ℓ= 1. F6 (681 s), with its larger EW amplitudes, is consistent with the ℓ=2 model and the previously identified ℓ= 2 mode at 776 s (C00). F4 shows decreased EW amplitudes in each spectral line, indicative of ℓ= 4.

We note two reasons to be cautious of F6's identification as ℓ= 2. First, F6 does not show the large R_v value seen by VK00 for their ℓ= 2. Considering the error on the flux and velocity amplitudes, this could simply be the result of noise. Second, the 2σ error bar of F6, as determined from the Monte Carlo simulations, includes the ℓ= 1 model. The observed increase in EW amplitudes of one spectral line could simply be due to the scatter. However, since we see the same trend in all the three spectral lines, it is likely that this is a real effect and we have correctly identified F6.

F4 (353 s) consistently has smaller EW variations in each spectral line than every other mode, similar to the models of ℓ= 4. Only one other ℓ= 4 mode has been measured on a DAV. In that case, the spectroscopic evidence was bolstered by UV observations and combination amplitudes (Thompson et al. 2004). Like our observations, this ℓ= 4 on G 185-32 shows reduced Gaussian and Lorentzian EW amplitudes as compared to the other modes (Thompson 2006). The similarity between our observations of F4 and this established ℓ= 4 mode gives strength to the claim that F4 is ℓ= 4.

Another indication of higher ℓ is the presence of large amplitude harmonics as compared to the parent modes. Yeates et al. (2005) use the theories of Wu (2001) along with the amplitudes of combination modes to show that G 185-32 does indeed have a higher ℓ mode, though their results better agree with ℓ= 3. Here, F4 has harmonic modes despite its low amplitude, while the larger amplitude mode, F3, shows no obvious harmonics. More specifically, R_c for 2F4 is significantly larger than 2F1 (the harmonic of an ℓ=1 mode). However, 2F4's R_c value is closer to what we would expect for an ℓ= 2 harmonic (Wu 2001). Analysis of the combination modes from the VLT data set is somewhat suspect since they all have low amplitudes and are easily influenced by noise. Plus, relative amplitudes of combination modes are influenced by azimuthal order. With such a short data set, we cannot measure either the azimuthal splitting (Kleinman et al. 1998) or its effects on the combination amplitudes. While the combinations enforce the idea of higher ℓ for F4, they leave some question to its actual identity.

Part of the ambiguity in the identification of F4 may be caused by our entirely linear treatment of pulsation. Ising & Koester (2001) show that pulsation modes can be distributed across the star in a manner significantly different from a simple spherical harmonic. From their simulations, they find that an ℓ= 3 with large amplitudes can have chromatic amplitudes more like ℓ= 1 or 4 than ℓ= 3. Higher ℓ modes must have larger amplitudes in order to be observed, and are more likely to suffer from these non-linear effects. This could be the reason we observe line shape variations similar to ℓ= 4 modes, but not ℓ= 3; non-linear mixing distorts the mode identification. In addition to our F4, these non-linearities may be responsible for the unusual chromatic amplitudes seen on G 117-B15A by Kotak et al. (2004). Luckily, knowing that the mode is high ℓ is enough to improve asteroseismological modelling. Given these considerations, we cautiously denote F4 as ℓ= 4 or 3.

Because F4 lies near to the combination of F1 and F2, it is worth considering the possibility that F4 is a naturally damped mode excited by resonance (Dziembowski 1982; Wu & Goldreich 2001). However, the three-mode coupling angular selection rules show that because F1 and F2 are both ℓ= 1, F4 could only be excited by this mechanism if it were ℓ= 2 (Wu & Goldreich 2001). Given our measurements of the line shape variations, resonance is unlikely in this instance.

In Table 2, we give a summary of all mode identifications from time series spectroscopy of G 29-38. We have 11 identifications, six from the Keck data made by C00, one from the Keck data inferred by Kotak et al. (2002) and four new identifications (plus two confirmations) from our VLT data. Note that we have identified modes to be the same if their frequencies matched to within ∼10 μHz, which is roughly the rotational splitting inferred by Kleinman et al. (1998).

5 CONCLUSIONS

Time series spectroscopy has proven to be a useful tool to measure white dwarf pulsation. For G 29-38, it has revealed the physical motion of the pulsation through Doppler shifts and ℓ through the variations of line shape. The three sets of spectroscopy on G 29-38, the VLT time series presented here, the Keck time series (VK00 and C00) and the high-resolution Keck observations (Thompson et al. 2003), have proven that this technique gives consistent results and allows us to measure aspects of the star's pulsation that cannot be obtained through photometry.

The convective driving theory (Brickhill 1983; Goldreich & Wu 1999) is now the favoured theory to produce pulsations on DAVs. The velocity modes that are measured here, in VK00 and in Thompson et al. (2003) show amplitudes as predicted by Wu & Goldreich (1999). However, we still lack the appropriate data to test the predictions at higher frequencies. R_v should increase at shorter periods, but G 29-38 sadly does not tend to drive pulsation modes shorter than 400 s as strongly as it does 800 s modes, making it hard to measure the trend without extensive time series spectroscopy. Further spectroscopic observations are also warranted because of the velocity combinations (our F1+F2 and Thompson et al. 2003) not anticipated by any theory. Further observations will determine the general properties of these velocity combinations whether they represent non-linearities in the velocity curve or are independent pulsations possibly driven by resonance.

The major achievement of time series spectroscopy is the measurement of ℓ, necessary for asteroseismology. This technique promises to reveal internal properties such as the hydrogen layer mass, helium layer mass, temperature, mass etc. (see e.g. Bradley 1998; Castanheira & Kepler 2008). Modelling white dwarf interiors requires knowledge of ℓ, otherwise more than one predicted mode could easily fit each observed period, and more than one solution exists for the star. Without any other information, ℓ= 1 is generally assumed for all modes, except for those not easily fit by ℓ= 1. As we have shown for G 29-38, that assumption is frequently incorrect; four of the 11 measured modes are ℓ≠ 1. Past attempts to model G 29-38 resulted in an abundance of possible solutions that could fit the complex set of pulsations (Kleinman 1995). Now that we have constrained ℓ for G 29-28, asteroseismic modelling is more likely to succeed. Though beyond the scope of this paper, by combining known photometry (Kleinman et al. 1998) with the ℓ values presented here, we expect that asteroseismological modelling will finally be able to determine the internal structure of the notorious G 29-38.

SET thanks the American Astronomical Society through the small research grant programme and the Crystal Trust for their contribution to the completion of this work. We also thank Dr Celeste Yeates for help analysing the combination frequencies.
