The Tully–Fisher relation for S0 galaxies Free

Abstract

We present a study of the local B- and K_s-band Tully–Fisher relation (TFR) between absolute magnitude and maximum circular speed in S0 galaxies. To make this study, we have combined kinematic data, including a new high-quality spectral data set from the Fornax cluster, with homogeneous photometry from the Third Reference Catalogue of Bright Galaxies and Two Micron All Sky Survey catalogues, to construct the largest sample of S0 galaxies ever used in a study of the TFR. Independent of environment, S0 galaxies are found to lie systematically below the TFR for nearby spirals in both optical and infrared bands. This offset can be crudely interpreted as arising from the luminosity evolution of spiral galaxies that have faded since ceasing star formation.

However, we also find a large scatter in the TFR. We show that most of this scatter is intrinsic, not due to the observational uncertainties. The presence of such a large scatter means that the population of S0 galaxies cannot have formed exclusively by the above simple fading mechanism after all transforming at a single epoch. To better understand the complexity of the transformation mechanism, we have searched for correlations between the offset from the TFR and other properties of the galaxies such as their structural properties, central velocity dispersions and ages (as estimated from line indices). For the Fornax cluster data, the offset from the TFR correlates with the estimated age of the stars in the individual galaxies, in the sense and of the magnitude expected if S0 galaxies had passively faded since being converted from spirals. This correlation implies that a significant part of the scatter in the TFR arises from the different times at which galaxies began their transformation.

1 INTRODUCTION

The Tully–Fisher relation (TFR; Tully & Fisher 1977) is one of the most important physically motivated correlations found in spiral galaxies. The correspondence between luminosity and maximum rotational velocity (V_max) is usually interpreted as a product of the close relation between the stellar and total masses of galaxies or, in other words, as the presence of a relatively constant mass-to-light ratio in the local spiral galaxy population (e.g. Gavazzi 1993; Zwaan et al. 1995). Such a general property in spirals puts strong constraints on galaxy formation scenarios (e.g. Mao, Mo & White 1998; van den Bosch 2000) and cosmological models (e.g. Giovanelli et al. 1997; Sakai et al. 2000). Also, the low scatter in the TFR (only ∼0.35 mag in the I-band, according to Giovanelli et al. 1997; Sakai et al. 2000; Tully & Pierce 2000 and Verheijen 2001) permits us to use this tool as a good distance estimator (e.g. Yasuda, Fukugita & Okamura 1997).

Attempts to ascertain whether S0 galaxies follow a similar TFR have two main motivations. First, if there is a TFR of S0s, it would prove useful for estimating distances in the nearby Universe, particularly in clusters where S0s are very prevalent (Dressler 1980). Secondly, and more related to this study, a possible scenario where S0 galaxies are the descendants of evolved spirals at higher redshifts (Dressler 1980; Dressler et al. 1997) could leave traces of this evolution in the observed TFR of S0s. Different mechanisms have been proposed as the channels for such evolution, like small mergers (Schweizer 1986), gas stripping in later types (Gunn & Gott 1972), halo stripping (Bekki, Shioya & Couch 2002) and galaxy harassment (Moore, Lake & Katz 1998). If this kind of picture is correct, it would be expected that S0s retain some memory of their past as spirals, in particular, through their TFR, and perhaps even some clues as to which of the channels they evolved down.

Only a few studies of the TFR for S0 galaxies can be found in the literature. The first effort, made by Dressler & Sangade (1983), found no evidence for the existence of a TFR for S0 galaxies. However, the limited spatial extent of their rotation curves, the inhomogeneous photographic photometry employed and the large uncertainties in the distances to their sample made it almost certain that any correlation between luminosity and rotational velocity would be lost in the observational uncertainties.

15 years later, Neistein et al. (1999) explored the existence of a TFR for S0s in the I-band, using a sample of 18 local S0s from the field. Although some evidence for a TFR was uncovered in this study, they also found a large scatter of 0.7 mag in the relation, suggesting the presence of more heterogeneous evolutionary histories for these galaxies when compared to spirals. Also, a systematic shift of 0.5 mag was found between their galaxies and the relation for local spirals.

In two papers Hinz, Rix & Bernstein (2001) and Hinz, Rieke & Caldwell (2003), explored the I- and H-band TFRs for 22 S0s in the Coma cluster and eight S0s in the Virgo cluster. By using cluster data, they avoided some of the errors that arise from the uncertainty in absolute distances estimation. The analysis of the I-band data from the Coma cluster revealed very similar results to the study by Neistein et al. (1999), implying that the larger scatter of the latter could not be attributed to distance errors or the heterogeneous nature of the data. In the H-band, an even larger scatter of 1.3 mag was found, but with a smaller offset from the corresponding spiral galaxy TFR of only 0.2 mag. Interestingly, there was no evidence for any systematic difference between the results for the Virgo and Coma clusters, despite their differences in richness and populations, implying that these factors could not be responsible for the scatter in the TFR. Given the large scatter and small shift in the H-band TFR for S0s compared to spirals, it was concluded that these galaxies' properties are not consistent with what would be expected for spiral galaxies whose star formation had been truncated; instead they suggested that other mechanisms such as minor mergers are responsible for the S0s' TFR.

In contrast, Mathieu, Merrifield & Kuijken (2002) found in their detailed dynamical modelling of six disk-dominated field S0s that these galaxies obey a tight I-band TFR with a scatter of only 0.3 mag, but offset from the spiral galaxy TFR by a massive 1.8 mag. The authors therefore concluded that these objects were consistent with being generated by passively fading spirals that had simply stopped producing stars. This result does not appear to be consistent with the previous studies, although it should be borne in mind that the galaxies in this study were selected to be disk dominated, so they morphologically resemble spiral galaxies more than those in other work. In addition, their field locations means that they are less likely to have had their evolution complicated by mergers. It is therefore possible that these S0s really are just passively fading spirals where those in clusters have led more complicated lives.

As can be seen, there is no general consensus as to either the scatter or the shift in the TFR for S0 galaxies when compared to spirals, and so no agreement as to their interpretation. We therefore revisit the TFR of S0 galaxies in this paper, adding our new spectral date set from the Fornax cluster to the existing results from literature. In addition to the new homogeneous spectral data set, we can also take advantage of the Two Micron All Sky Survey (2MASS) photometry for these galaxies (Jarret et al. 2003), to obtain consistent infrared magnitudes and structural parameters for all the galaxies. With this more systematic study of S0s, it is to be hoped that we can avoid any past problems that may have arisen due to the heterogeneous nature of the available data, to reveal the underlying physics that dictates the TFR in S0 galaxies.

The remainder of this paper is laid out as follows. In Section 2, we describe the different samples of S0s used in this study, and the data that we have adopted. Section 3 presents the main results and then discusses their implications. Finally, in Section 4 our conclusions are summarized.

2 THE DATA

2.1 Kinematics

To build the TFR of local S0 galaxies, we have collated the data on their kinematics from four previous studies. These works are: Neistein et al. (1999, hereafter N99), Hinz et al. (2001, 2003, hereafter H01 and H03, respectively) and Mathieu et al. (2002, hereafter M02). From the sample of N99, we exclude the galaxy NGC 4649 as it has a low degree of rotational support and it presents evidence of interaction with a neighbouring system. From H01, the Sab spiral galaxy IC 4088 was also excluded. To these data, we have added the observations that we have recently obtained using the VLT of S0 galaxies in the Fornax cluster (Bedregal et al. 2006, hereafter Paper I); of the galaxies observed in this cluster, seven are rotationally supported systems, so are suitable for this study. This combined data set provides us with 60 S0 galaxies with measured kinematics, the largest sample yet used in a study of the S0 TFR. The collated kinematic data values for the maximum rotation speed, V_max (for all the sample), and the central velocity dispersion, σ₀ (for 51 galaxies of the sample), are listed in Table A1.

2.2 Photometry

In this study, we have adopted K_s-band photometry from the 2MASS (Jarret et al. 2003) and B-band photometry from the Third Reference Catalogue of Bright Galaxies (RC3, De Vaucouleurs et al. 1991). Of the complete sample of 60 galaxies, photometry in the K_s-band is available for all objects, while 54 galaxies have photometry in the B-band.

In order to convert these data to absolute magnitudes, we need distances to all objects in the sample. In the clusters, we adopted distance moduli of 31.35 for members of the Fornax cluster (Madore et al. 1999), a redshift of 0.0036 for the Virgo cluster members (Ebeling et al. 1998), and a redshift of 0.0227 for Coma cluster galaxies (Smith et al. 2004). For the field galaxies from N99, the distance moduli of Tonry et al. (2001) were used. Finally, for the M02 sample, redshifts from the NASA/IPAC Extragalactic Database (NED) were used where available. For two of their galaxies (NGC 1611 and NGC 2612), an estimate of the distance was calculated by those authors, using the systemic velocity derived from their spectra. A Hubble constant of 70 km s⁻¹ Mpc⁻¹ was adopted in converting redshifts into distances. Galactic extinction corrections were calculated using the Schlegel, Finkbeiner & Davis (1998) reddening curve description, A^λ_b=R_λE(B−V), where R_λ= 4.32 and 0.37 for λ=B and K_s, respectively. In the B-band, we applied the k-corrections from Poggianti (1997); no correction was applied for the K_s-band, as it is negligible. No internal extinction correction was applied to the apparent magnitudes; there is no definitive study on the internal extinction of S0 galaxies, but the apparent lack of dust in these systems suggests that such a correction would be very small. The resulting absolute magnitudes in K_s- and B-bands are listed in Tables A1 and A2, respectively.

In addition to the absolute magnitudes, we derived structural parameters from the spatially extended photometry available for these galaxies. The data used were the publicly available ‘postage stamp’ images in the K_s-band from 2MASS. Bulge-plus-disk models were fitted directly to these images using gim2d (Simard et al. 2002), with a Sérsic law adopted for the bulge distribution, and an exponential for the disk. In this way, we derived values for the bulge effective radius, R_e, its Sérsic index, n, the disk scalelength, R_d, the half-light radius, R_half, the bulge-to-total fraction, B/T, and the galaxy inclination i. In a few cases, the derived bulge scale length was found to be smaller than the seeing (∼2.5 arcsec). In those cases, the structural parameters are not well constrained by the observations, so the values were excluded. The structural parameters derived for the remaining 48 galaxies are listed in Table A1.

2.3 Line indices, ages and metallicities

We have the full spectral data for seven Fornax cluster galaxies from which we extracted Lick indices. A detailed description of the line indices calculation is given in our forthcoming study of the stellar populations of these galaxies (Bedregal et al., in preparation, hereafter Paper III). Briefly, we convolved the spectral bins with appropriate Gaussians (including galactic and instrumental dispersions) in order to achieve the 3 Å resolution of Bruzual & Charlot (2003, hereafter BC03) simple stellar populations models. The indices Hβ, Mgb, Feλ5270 and Feλ5335 were measured within R_e/8 (‘Central’ values), between 0.75 and 1.25 R_e (‘1 R_e’ values) and between 1.5 and 2.5 R_e (‘2 R_e’ values).The resulting values are presented in Tables A2 and A3.

Central line indices for a handful of objects in our sample can be found in the literature (Fisher, Franx & Illingworth 1996; Terlevich & Forbes 2002; Denicoló et al. 2005) mainly corresponding to field S0s from the N99 subsample. Unfortunately, these data sets mainly include the brightest objects of the sample, so it is difficult to make meaningful comparisons with the fainter galaxies from Fornax. Also, differences between the two samples could arise because of the superior quality of Fornax data, effect which is difficult to quantify. In consequence, we will focus our analysis of the line indices, ages and metallicities on the data from the Fornax cluster only.

From Fornax galaxies' indices, one can derive measures of the luminosity-weighted ages and metallicities. To this end, we have used the simple single-age stellar population models of BC03 to translate the measured line indices into estimates of age and metallicity. As a check on the uncertainties inherent in this process, we have repeated the calculations using the Mgb index and the combined indices 〈Fe〉 (Gorgas, Efstathiou & Aragón-Salamanca 1990) and [MgFe]' (González 1993; Thomas, Maraston & Bender 2003) as the metallicity-sensitive index. Solar abundance ratios were assumed for the models. The resulting ages, metallicities and their uncertainties (which include the effects of covariance between the two parameters) are also shown in Tables A2 and A3.

3 RESULTS AND DISCUSSION

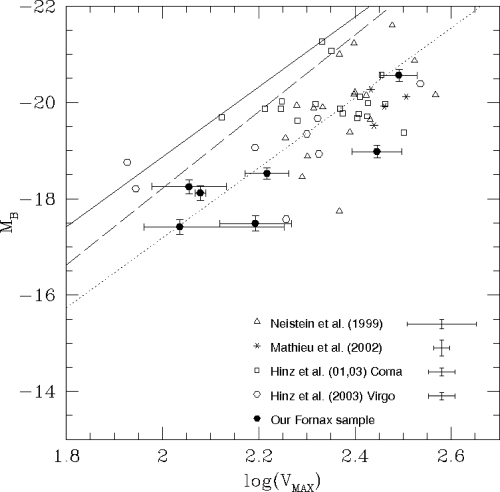

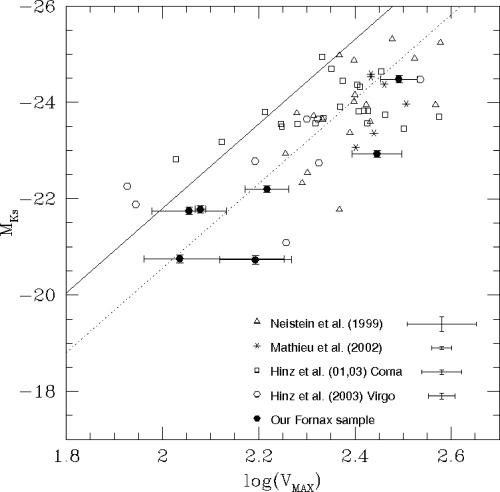

The basic result of this analysis is presented in the Tully–Fisher plots of rotation velocity versus absolute magnitude shown in Figs 1 and 2 (for the B- and K_s-band, respectively). In these plots, the solid line represents the TFR of spirals in local clusters found by Tully & Pierce (2000, hereafter TP00), shifted by −0.207 mag in order to be consistent with the adopted Hubble constant of H₀= 70 km s⁻¹ Mpc⁻¹. The long-dashed line in the B-band represents the TFR of cluster spirals by Sakai et al. (2000, hereafter Sak00). The difference between these lines give an indication of the remaining systematic uncertainty in the spiral galaxy TFR with which we seek to compare the S0s.

3.1 Shift between the spiral and S0 TFRs

The first point that is immediately clear from Figs 1 and 2 is that, as found by previous authors, whichever spiral galaxy TFR we adopt, the S0s lie systematically below it. It is also interesting to note that this result holds true for the S0 data from all environments, from the poorest field objects to fairly rich clusters, so it is clearly a very general phenomenon. We therefore now seek to quantify and model the possible origins of such an offset.

3.1.1 Observational results

These new estimates for the offset between spiral and S0 TFRs tend to lie toward the upper end of earlier estimates, mainly because of the more recent refinements in the calibration to the spiral galaxy TFR that we have included in this analysis. However, even neglecting these systematic changes, the values obtained here lie within the range of offsets in the TFR suggested by previous studies, implying that this quantity can be fairly reliably determined, particularly with the larger and more homogeneous data set presented here.

3.1.2 Interpretation

The most natural interpretation of the offset between the S0 and spiral TFRs is that it represents a simple fading as a spiral galaxy's star formation is truncated when it mutates into an S0. One complication in attempting to quantify this scenario is that one needs to know what luminosity the spiral galaxy started at in this evolution. However, observations out to redshifts beyond unity seem to show that there has been essentially (little or) no evolution in either the slope or zero point of the spiral galaxy TFR in optical or infrared wavebands over this period (Vogt et al. 1997; Conselice et al. 2005; Flores et al. 2006 although see Rix et al. 1997; Böhm et al. 2004; and Weiner et al. 2006 for alternative views). This lack of evolution means that the starting point for fading spirals is the same spiral galaxy TFR that we see today, and the offset between the nearby galaxy spiral and S0 TFRs does provide a measure of the degree to which the S0 galaxies must have faded if this picture is correct.

However, there is a limit to how far it is worth pursuing these simple models, as it is extremely unlikely that all S0 galaxies will have undergone the same star formation history. Indeed, the large scatter apparent in the points in Figs 1 and 2 indicates a relatively heterogeneous history for these systems: the average evolution may be as described above, but each galaxy has its own story to tell. We therefore now look in more detail at the scatter in the S0 TFR, in an attempt to quantify it and explore its origins.

3.2 The Scatter in TFR of S0 galaxies

3.2.1 Observational results

3.2.2 Interpretation

Perhaps the simplest possible explanation for the large value σ_int is that the errors in the observed quantities plotted in Figs 1 and 2 have been underestimated, and have been erroneously attributed to the intrinsic scatter. We therefore begin by considering possible additional sources of uncertainty in the data.

The adopted fluxes for the sample galaxies, particularly the infrared 2MASS data, form a uniformly measured reliable set, so it is unlikely that much of the scatter in the TFR could arise from errors in these data. However, their transformation into absolute magnitudes could introduce some uncertainty. For example, we have not applied any correction to the magnitudes due to the internal extinction of these systems. Although such corrections are believed to be small in the relatively dust-free environment of an S0, they might still be non-negligible. However, if such an effect were distorting the results, we would expect it to have a much stronger effect in the B-band than in the K_s-band; the very similar values for σ_int derived in both bands imply that extinction is not a significant issue. Similarly, it is possible that unaccounted errors in the adopted distances to the sample galaxies could contribute to the scatter in absolute magnitudes. However, although such an error could offset all the points derived from S0s in a single cluster, it would not increase their scatter. The lack of offsets between the Virgo, Coma and Fornax cluster data and their similar large scatters in Figs 1 and 2 imply that such errors are not significant.

The measurement of log(V_max) is more challenging. The measured Doppler shift in the stellar component is only indirectly related to this quantity. First, since we only measure the line-of-sight component of velocity, a correction must be applied for inclination. However, it is in the nature of identifying S0 galaxies that only those relatively close to edge-on are classified as such (Jorgensen & Franx 1994): as Table A1 confirms, the vast majority of galaxies in the sample are at inclinations close to 90°, so the corrections are relatively small. Secondly, the stars in S0s do not follow perfectly circular orbits, so the measured rotation velocity will differ from the circular speed by a quantity termed the ‘asymmetric drift’ (Binney & Tremaine 1987). For the Virgo, Coma and Fornax cluster data, we have adopted the approach of N99 that uses the measured random velocities to correct for the asymmetric drift; although this relatively simple correction may contain systematic uncertainties, it is unlikely to increase the scatter significantly. It is also notable that the new Fornax cluster kinematic data used here reach to larger radii than the earlier samples. Since the size of the asymmetric drift correction decreases with radius, we would expect any scatter induced by it to be smaller for these larger-radii data, but no differences are discernible. Finally, we note that M02 used a more sophisticated dynamical modelling technique that removed the need for any asymmetric drift correction. Although they claimed a resulting decrease in the scatter in the TFR, the better photometry presented in this paper suggests that this is only marginally the case. Irrespective of the way that log(V_max) is derived, there seems to be a sizeable residual scatter in the TFR.

We therefore now consider possible astrophysical origins for the scatter in the TFR. In this context, it is notable that the scatter that we derive, although much larger than that seen in the TFR of nearby spirals (∼0.4 mag; TP00, Sak00, Verheijen 2001), is similar to the scatter observed in the TFR of galaxies at higher redshift. Bamford et al. (2006) obtained similar values for σ_int for their sample of high-redshift spirals in the B-band, while Conselice et al. (2005) found a similar scatter in their K-band TFR of spirals at redshifts between 0.2 and 1.2. This larger scatter in the spiral TFR at higher redshift has been attributed to variations in the SFR in these systems due to more frequent interactions with other galaxies, gas clouds and cluster environment, as well as the less relaxed dynamical state of these systems (e.g. Shi et al. 2006; Flores et al. 2006). It is therefore possible that the scatter in the S0 TFR was in some sense imprinted into these systems while they were still ‘normal’ spiral galaxies at higher redshift, and that scatter has remained frozen into their TFR as they have evolved more gently to the present day. Alternatively, the scatter could be a signature of the transformation process itself. For example, if the transition from spiral to S0 began over a range of times, then different galaxies will have faded by different amounts, leading to the observed scatter in the relation. As we have seen in Section 3.1, the mean TFR will shift downward by more than a magnitude on billion-year time-scales, so a spread in start times could explain the ultimate scatter. As a further complication, subsequent minor mergers might induce extra late bursts of star formation, or they could kill off the galaxy's star formation a little sooner, further scattering the relation. In order to try to distinguish between these possibilities, we now investigate whether the offset of individual S0s from the spiral galaxy TFR correlates with any of their other astrophysical properties.

3.3 Correlations with other parameters

3.3.1 Structural parameters

In searching for correlations between the offset from the infrared TFR, ΔM$Ks$, and other structural parameters, one concern is that the offset may not be the driving variable.1 In particular, residual bias in the fitting of the TFR to Figs 1 and 2 could induce a correlation between ΔM$Ks$ and the absolute magnitude of the galaxies, M$Ks$. Since it is well know that other properties such as galaxies' sizes correlate with their magnitudes, then such a bias in the TFR fit would also induce correlations with ΔM$Ks$. In practice, Fig. 3 shows that there is only the slightest hint of an anticorrelation between the derived values ΔM$Ks$ and M$Ks$, so this potential source of bias has clearly been dealt with reasonably effectively.

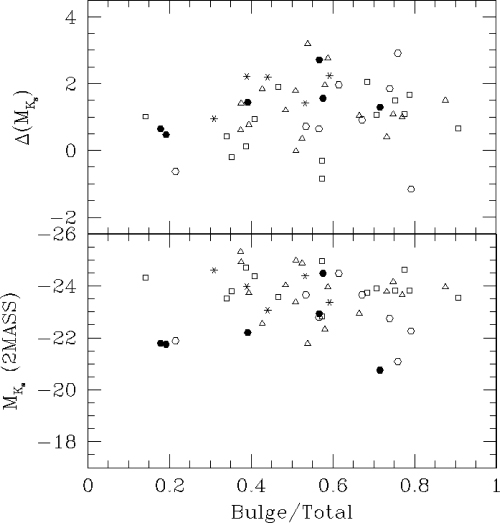

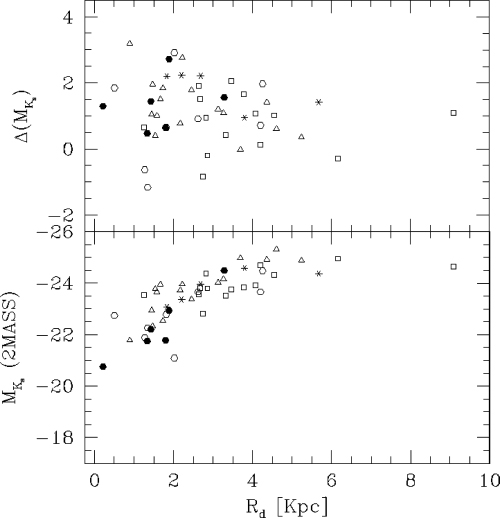

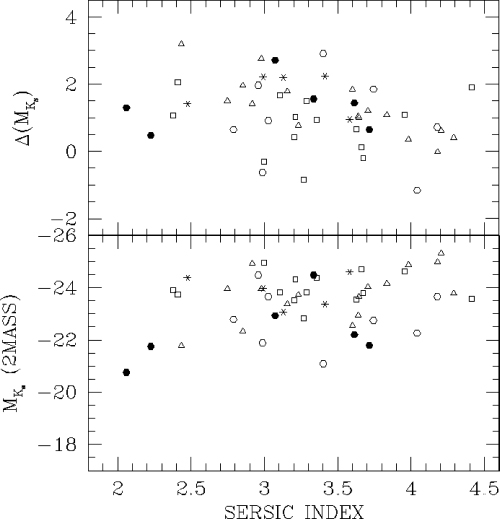

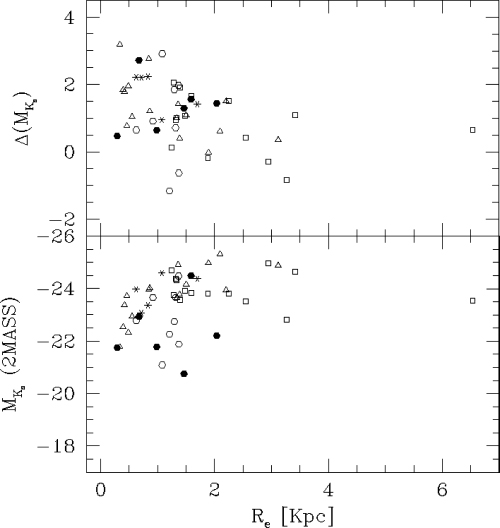

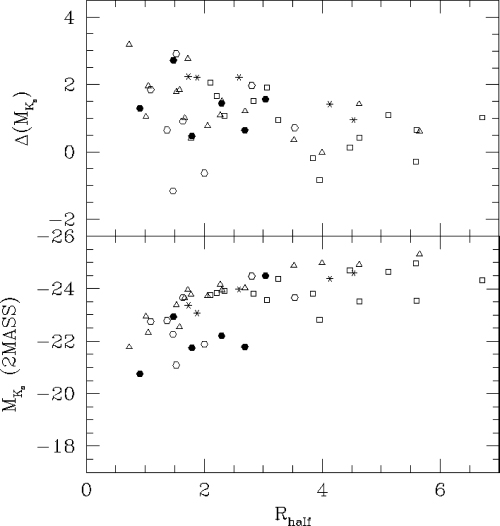

Figs 4–9 show the correlations between the various structural properties of the S0 galaxies (as presented in Table A1 in the appendices), and their absolute magnitudes and offset from the spiral galaxy TFR in the K_s-band. The symbols used in these figures are the same as in Figs 1 and 2. Some of the resulting correlations are fairly trivial. For example, the absolute magnitude correlates quite well with the size of the galaxy, as characterised by its half-light radius (see Fig. 4). It is, however, interesting to note that this correlation is mainly driven by the size of the disks in these systems (see Fig. 5), and is almost uncorrelated with the photometric properties of the bulge (see Figs 6 and 7). Similarly, as Fig. 8 shows, the magnitudes do not seem to be systematically affected by how much of the total luminosity is in the bulge or disk components. However, we also notice that cluster galaxies are mainly responsible of the scatter in Figs 4 and 6, while field S0s tend to follow tighter trends in both diagram. However, such a difference between cluster and field galaxies could be related to different selection criteria, so any further interpretation would be excessive.

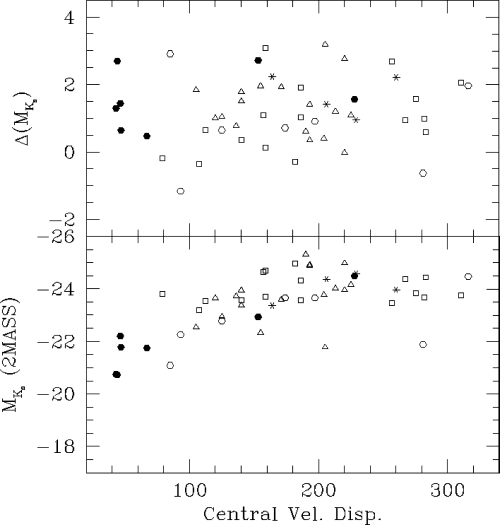

The lack of correlation with bulge photometric properties make it intriguing that the absolute magnitude does correlate with the central velocity dispersion, which is primarily a property of the galaxy's bulge (see Fig. 9). Presumably, this correlation is a manifestation of the well-known conspiracy by which rotation curves remain fairly flat across regions dominated by bulge, disk or halo: this conspiracy means that the bulge dispersion will be tightly related to the rotation speed in the disk, and, as we have seen above, disk properties do correlate with total luminosity (Whitmore et al. 1979; Ferrarese 2002; Baes et al. 2003; Pizzella et al. 2005; Courteau et al. 2006).

In our attempt to understand the origins of the offset from the spiral galaxy TFR, it is the correlation of parameters with this offset, ΔM$Ks$, that is of more immediate interest. For most plots, however, there are no significant correlations to be seen; where there is some hint of a correlation, it goes in the opposite sense to that seen with M$Ks$, suggesting that it may well be the kind of artefact discussed at the beginning of this section.

3.3.2 Spectral parameters

A further hint as to the origins of the scatter in the TFR can be found by considering line index measurements and the inferred luminosity-weighted ages from stellar populations synthesis models. For the reasons outlined in Section 2, from this point we focus our analysis on our Fornax sample only.

Giving the homogeneity of the Fornax date set, we feel confident to use the offset from the B-band TFR, ΔM_B, for the rest of the analysis. Despite the fact that uncertainties in RC3 B-band photometry are larger than in the 2MASS K_s-band counterpart, the total errors in ΔM_B are dominated by the uncertainties of the TFR from spirals. Also, the B-band data is more sensitive to recent changes in the star formation history than the infrared band, being more suitable for this kind of study. In fact, similar results are found if the analysis is performed using K_s-band data.

Fig. 10 shows ΔM_B plotted against different central indices (Hβ, Mgb) and the combined indices 〈Fe〉 and [MgFe]'. The only indication of a trend with the offset from the TFR comes from the H β index, where ΔM_B seems to get weaker as Hβ increases, and stronger as Hβ decreases. This correlation is interesting since it is in the sense expected if the degree of fading of S0s is driven by the time-scale since the last significant star formation.

This possibility can be examined more quantitatively if we use the age we derived from these spectral indices in Section 2. To ascertain whether the resulting ages have being significantly influenced by enhancement of α-elements via the well-known age-metallicity degeneracy, we consider the estimates derived using Mgb, 〈Fe〉 and [MgFe]' parameters as the metallicity-sensitive index; the results are shown in Fig. 11. The first column of this figure confirms the trend indicated by the central line indices alone: the fading of the Fornax cluster S0s seems to be accompanied by an ageing of their stellar population. Suggestively, the size of the effect is also of the amplitude expected for a passively fading stellar population: as we saw in Section 3.1.2, over ∼1.6 Gyr, we would expect a stellar population to fade by ∼1.7 mag in the B-band, just as seen with these data. The predictions from these models are overplotted in all the pertinent panels of Fig. 11. The second and third columns of this figure present similar data at 1 R_e and 2 R_e of the bulge. The correlations are stronger for central values than at larger galactocentric distances: a Spearman ranking correlation coefficient test shows that the correlation between central age and ΔM_B is significant at between the 90 to 97.5 per cent level, while at larger radii the confidence level decreases to a range between 85 and 90 per cent level only. Apart from the obvious increment in age uncertainties with signal-to-noise ratio (so with radius), there is another plausible explanation for the apparent radial dependence of the relation. If high redshift spirals simply swith-off their star formation in order to become local S0s, the age versus ΔM_B relation would be sensitive to the relative differences in luminosity-weighted age at the moment the passive fading starts. The importance of these differences will depend, among other factors, on the relative SFRs of the progenitor spirals and their radial SFR profile before truncation. This would introduce additional scatter to the discussed result. However, there is a possible mechanism which would diminish this effect in the inner regions: a central starburst. If a central starburst precedes the truncation of the star formation, the central ages would be ‘set to zero’ just before passive fading starts. In consequence, relative differences in central age are minimized and the age versus ΔM_B relation becomes tighter. A central starburst has been proposed in the past as a possible (even as a necessary) step in the morphological transformation of a spiral into a S0 galaxy (Christlein & Zabludoff 2004; Shioya, Bekki & Couch 2004) and there is observational evidence in favour of this scenario (Moss & Whittle 2000; Mehlert et al. 2000, 2003; Poggianti et al. 2001). The youngest galaxies of our Fornax sample seem to have clear positive gradients in age, in agreement with this hypothesis. However, it will be in Paper III where we will be able to address this issue in detail, when we perform a detailed study of the stellar populations of these systems. Also worthy of note in Fig. 11 is the absence of a similar correlation between age and M_B at all radii. First, this lack of correlation rules out the possibility that the correlation with ΔM_B could be spuriously driven by a correlation with M_B, as discussed above. Secondly and more interestingly, it implies that there is no compelling evidence for the ‘downsizing’ scenario (Gavazzi 1993; Boselli, Gavazzi & Scodeggio 2001; Scodeggio et al. 2002) in these S0s, which would predict that the faintest galaxies should have the youngest stellar populations.

Although suggestive, these results are not yet definitive. The significance level of the age versus ΔM_B relation is not strong enough to totally discard the null hypothesis, and in case of a positive correlation, many questions remain open: does this relation depends on local environment; do all S0s follow this trend or other properties, like luminosity, must be taken into account? Clearly, what is needed is a larger set of high-quality data across a wide range of luminosities and environments to finally disentangle the life histories of these surprisingly complex objects.

4 CONCLUSIONS

This paper presents the largest compilation of data-to-date in a study of the Tully–Fisher relation of nearby S0 galaxies in both B- and K_s-bands, using new and archival results for a sample of 60 galaxies in different environments. The principal results of this study are as follows.

• The local TFR of S0 galaxies presents a shift with respect to the local TFR of spirals. Interpreted as a shift in luminosity, it amounts to between −1.3 ± 0.1 and −1.7 ± 0.4 in the B-band and between −0.8 ± 0.4 and −1.2 ± 0.4 in the K_s-band, with the value depending on the calibration adopted for the spiral galaxy TFR.

• In a scenario where S0 galaxies are the descendants of spirals at higher redshifts which have simply passively faded, these offsets are consistent with a population that has been passively fading for somewhere between 1 and 6 Gyr (again depending on the adopted calibration for the spiral galaxy TFR). If we include a starburst before the truncation of the star formation, the upper end of the possible time-scale since transformation increases somewhat. However, the large scatter in the TFR means that such a simple model with a single epoch of formation cannot provide the whole story.

• The total scatter in the TFR of S0s is found to be 0.88 ± 0.06 mag in the B-band and 0.98 ± 0.06 in the K_s-band. Our fitting indicates that only ∼10 per cent of this scatter can be attributed to the observational errors, with ∼90 per cent arising from the intrinsic astrophysical spread in the TFR. Such a scatter could have been ‘imprinted’ by the larger scatter in the spiral galaxy TFR at high redshift, or it could have arisen through the subsequent somewhat stochastic evolution of these systems.

• To try to distinguish between these possibilities, we have looked for correlations between the offset from the TFR and other properties of these systems. Morphologically, a number of S0 properties correlate with their absolute magnitudes, as seen in other galaxies, but none seem to correlate strongly with the offset of this magnitude from the spiral galaxy TFR.

• By investigating line indices, we have been able to establish a reasonably strong correlation between the central ages of the Fornax cluster galaxies' stellar populations and their offsets from the TFR. This offset is in the sense and of the magnitude expected for a population of galaxies that transformed from spirals at various times in the past and has been passively fading ever since. A central starburst before the truncation of star formation would explain why the correlation is stronger with central age than at larger galactocentric distances.

The new data from the Fornax cluster show that we are finally in a position to use observations of nearby S0 galaxies to obtain important archaeological clues as to the mechanisms by which these systems form. However, the relatively small number of S0s in a single cluster will always limit the significance of the resulting measurements. Clearly, we need a still-larger homogeneous date set of the quality now attainable with telescopes like the VLT of S0 galaxies to finish off the work begun here.

Footnotes

We would like to thank Dr O. Nakamura, Dr S. Bamford, Dr M. Mouhcine, Dr N. Cardiel, Dr Jesús Falcón-Barroso and Dr Ignacio Trujillo for their help, suggestions and interesting discussion.

This work was based on observations made with ESO telescopes at Paranal Observatory under programme ID 070.A-0332. This publication makes use of data products from the Two Micron All Sky Survey, which is a joint project of the University of Massachusetts and the Infrared Processing and Analysis Center/California Institute of Technology, funded by the National Aeronautics and Space Administration and the National Science Foundation.

REFERENCES

Appendix

APPENDIX A: TABLES

In this appendix we include tables with different parameters for each galaxy of our combined sample.

Table A1 includes a compilation of absolute magnitudes (total K_s band from 2MASS) and shifts in magnitude from the K_s-band TFR of spiral galaxies, log(V_max) and central velocity dispersions. Also, in the same table we present different structural parameters estimated using K_s-band photometry and gim2d software (Simard et al. 2002).

In Table A2, we present absolute magnitudes (total B band from RC3) and shifts in magnitude from the B-band TFR of spiral galaxies, central line indices (Lick/IDS system, measured at 3 Å resolution within R_e/8) and luminosity-weighted ages and metallicities for our sample of seven S0 galaxies in Fornax cluster. Ages and metallicities were estimated using Bruzual & Charlot (2003) simple stellar population models. Similar data at 1 and 2 R_e of the bulge are presented in Table A3.
