The 2003 radio outburst of a new X-ray transient: XTE J1720-318 Free

Abstract

We present radio observations of the black hole X-ray transient XTE J1720-318, which was discovered in 2003 January as it entered an outburst. We analyse the radio data in the context of the X-ray outburst and the broad-band spectrum. An unresolved radio source was detected during the rising phase, reaching a peak of nearly 5 mJy approximately coincident with the peak of the X-ray light curve. A study of the spectral indices suggests that at least two ejection events took place, with the radio-emitting material expanding and becoming optically thin as it faded. The broad-band spectra suggested that the accretion disc dominated the emission, as expected for a source in a soft state. The radio emission decayed to below the sensitivity of the telescopes for ∼6 weeks but switched on again during the transition of the X-ray source to the low/hard state. At least one ‘glitch’ was superimposed on the otherwise exponential decay of the X-ray light curve, which was reminiscent of the multiple jet ejections of XTE J1859+226. We also present a K_s-band image of XTE J1720-318 and its surrounding field taken with the Very Large Telescope.

1 Introduction

X-ray transient sources are X-ray binary systems, typically with a low-mass companion star and a black hole for the compact object (although sometimes a neutron star). They are well known for dramatic outbursts caused by some form of instability within the accretion flow. There are now ∼40 observed sources, some of which are recurrent, although the majority have still only been observed in outburst once.

The canonical ‘soft’ X-ray transient outburst is one which displays a soft blackbody spectrum in low-energy X-rays and a ‘fast rise exponential decay’ light-curve morphology (e.g. Chen, Shrader & Livio 1997). With modern X-ray telescopes it has been possible to obtain the spectral and temporal coverage to show that the behaviour is more complicated than this. X-ray transients appear to enter the outburst from an initially hard spectral state (the low/hard state; see, e.g., van der Klis 1995). On a time-scale of days to weeks the X-ray source then softens in most cases (e.g. Brocksopp et al. 2002). Some X-ray transients, however, do not soften but remain in the low/hard state throughout the outburst (e.g. Brocksopp et al. 2001; Brocksopp, Bandyopadhyay & Fender 2004).

All black hole X-ray transient sources that have been observed at radio frequencies have been detected at some point during their outburst¹ (Brocksopp et al. 2002), although the relationship between the X-ray and radio light curves is not a simple correlation. In most of these a jet origin can be inferred, either from synthesis imaging or from study of the spectral index of the radio emission. Low/hard X-ray states are associated with a flat-spectrum compact jet, whereas the high/soft (now also known as thermal-dominant) state is not (Fender 2001, 2004; McClintock & Remillard 2004). Short-lived discrete ejections are also observed and appear to take place during the transition from the hard to the very high state (or steep power-law state). In particular, XTE J1859+226 was observed to make a series of five to six radio ejections, each of which was associated with a temporary epoch of X-ray hardening superimposed on a general softening during the decay (Brocksopp et al. 2002).

1.1 XTE J720-38

XTE J1720-318 was detected for the first time in 2003 January by the All Sky Monitor on-board the Rossi Timing X-ray Explorer (RXTE/ASM; Remillard et al. 2003). The average 2-12 keV flux was ∼130 mCrab initially, later rising to ∼430 mCrab. The source was hard at first but was later observed by the RXTE/PCA to have a soft spectrum and a low level of high-frequency variability, consistent with the high/soft state (Markwardt & Swank 2003; see also, e.g., van der Klis 1995). A later RXTE/PCA observation revealed an iron line at 6.2 keV with a FWHM of 2.5 keV and an equivalent width of 95 eV (Markwardt 2003).

The radio counterpart was discovered by Rupen et al. (2003) and was found to display variability on a time-scale of days; the flux density peaked at 4.9 mJy at 4.9 GHz. The infrared counterpart was discovered by Kato et al. (2003) with J-, H- and K_s-band magnitudes in the range 15-17. O'Brien et al. (2003) confirmed the K_s-band detection with Very Large Telescope (VLT) observations and also refined the radio position of the source to . Further infrared monitoring by Nagata et al. (2003) revealed a decaying light curve, superimposed by a secondary maximum ∼40 d after the outburst; the infrared light was interpreted as emission from an irradiated accretion disc.

Finally, XTE J1720-318 was observed towards the end of its decay from outburst by INTEGRAL (during pointed observations of H1743-322) and was found to be in the low/hard state (Cadolle Bel et al. 2004).

2 Observations

2.1 Radio

The Australia Telescope Compact Array (ATCA) observations of XTE J1720-318 took place in 2003 January and April when the array was in the 6B and EW352 configurations, respectively. The source was observed at 4.8 and 8.6 GHz with a bandwidth of 128 MHz. The flux calibrators were PKS 1934-638 and 0823-500 and the phase calibrator for all epochs was PMN J1733-3722. The data were reduced in the standard way with (minimal) flagging, flux and phase calibration and finally mapping using miriad. A point source was fitted to the detected emission and the flux density measured.

Additional radio observations at 4.9 and 8.5 GHz were obtained by the Very Large Array (VLA) and gave fluxes consistent with the ATCA data. Observations were made over an ∼8-month period, during which time the array was in a number of different configurations; all detections took place while the array was in the DnC or D configurations. Two different phase calibrators were used, IERS B1741-312 for the 4-cm observations and PKS J1700-2610 for 6 cm. The data were reduced in the standard way using aips.

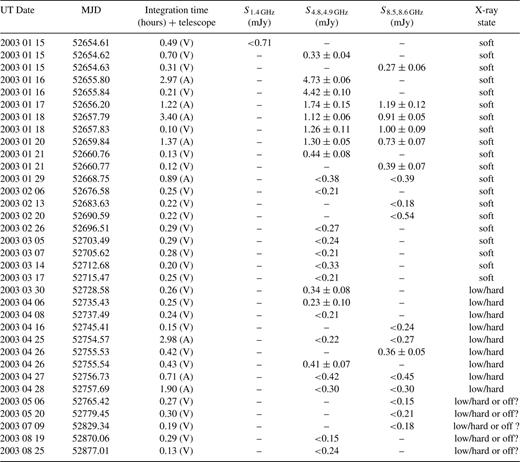

A variable radio source was detected within the X-ray error circle with position . Further details of the observations and the resultant flux densities are listed in Table 1.

2.2 Infrared

We have also obtained a high-resolution infrared (K_s-band) image of the field of XTE J1720-318 using the ISAAC instrument on the Very Large Telescope. The observation took place on 2003 January 21 and we show the resultant image in Fig. 1. North is up, east is to the left and the image has a limiting magnitude of ∼20.2 and a full width half maximum of 0.5 arcsec. The source was detected with a K_s-band magnitude of 15.31 ± 0.03, consistent with the results of Nagata et al. (2003). These authors obtained further monitoring and confirmed that the source was indeed the infrared counterpart to XTE J1720-318. There was no significant variability at the level of ±0.1 mag during the 30-min sequence of 60-s exposures. The infrared source coinciding with the best radio position is marked with a cross.

3 Results: Radio and X-Ray Light Curves

The radio counterpart to XTE J1720-318 was detected during 2003 January as an unresolved (the FWHM of the ATCA beam was 5.25 × 1.44 arcsec²) variable source with both the ATCA and the VLA. Its flux density was initially at a low value (<0.7 mJy) but then rose to nearly 5 mJy within a day, peaking on 2003 January 16 (MJD 526 55). The radio source was present for the following ∼ week before decaying to below the detection threshold of the telescopes. It was not detected significantly again until 2003 March 30. The radio fluxes and upper limits are listed in Table 1 and shown in the bottom panel of Fig. 2.

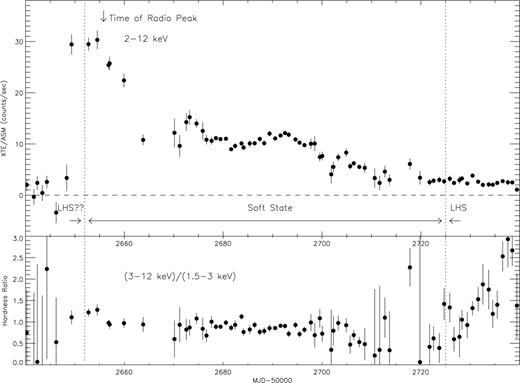

The top panel of Fig. 2 shows the 2-12 keV light curve obtained by RXTE/ASM. Each data point is the daily averaged count rate. The X-ray source rose rapidly above quiescence in 2003 January, detected for the first time on January 9 (MJD 526 48) when it was already close to its peak flux. The source was relatively hard during the initial observations but had reached the high/soft state by January 13 (MJD 526 52; Remillard et al. 2003). The X-ray light curve reached a maximum on January 15 (MJD 526 54), simultaneously with or possibly prior (as for XTE J1650-500, Corbel et al. 2004) to the radio maximum but the time resolution of the radio observations is insufficient to be sure of this.

The X-ray source made the transition to the low/hard state on MJD 527 25-6 (as observed by INTEGRAL and confirmed by RXTE; Cadolle Bel et al. 2004, J. Swank, private communication); this is indicated in Fig. 2 by the vertical dotted line. The low/hard state is typically associated with the presence of radio emission and, as expected, the radio counterpart to XTE J1720-318 was indeed detected at this time.

After January 15 the X-ray source started to fade with at least one, and possibly a number of, secondary outbursts or ‘glitches’ (using the terminology of Chen et al. 1997) during the decay. In Fig. 3 we plot the hardness ratio (HR1: 3-12 keV/1.5-3 keV) for the duration of the outburst. There is little variability and the signal-to-noise (S/N) ratio is poor but there are a number of interesting features. The source is hard at the onset of the outburst and then softens during the decline from the X-ray peak. Furthermore, the radio peak takes place after the source has started to soften. During the softer period there is some variability but, due to the S/N ratio, it is not clear whether or not there is a correlation between glitches and temporary hardening events. However, analysis of XMM-Newton and RXTE/PCA data by Cadolle Bel et al. (2004) suggests that there is little evidence for such short-term spectral variability. Following the transition to the low/hard state there is a significant increase in hardness.

4 Discussion

As has been the case for the majority of recent (i.e. observed by RXTE) X-ray transient events, the 2003 outburst of XTE J1720-318 did not simply display the initial soft spectrum and FRED light curve traditionally expected for a ‘canonical’ source, but instead showed more complex spectral behaviour. The hard state behaviour at the onset of the outburst adds support to the suggestion of Brocksopp et al. (2002, 2004) that it is this hard state behaviour that holds the key to the outburst mechanism. In particular, as the low/hard state is associated with a jet, the inclusion of the hard spectrum and jet behaviour in outburst models are of great importance. The initial low/hard state period of XTE J1720-318 was not monitored in the radio band but we were able to obtain radio observations, and detect a radio source, during the later low/hard state period.

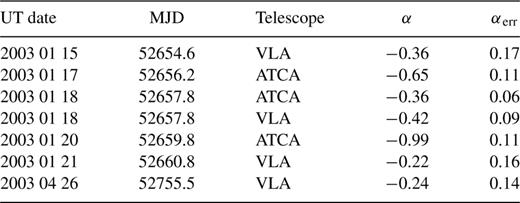

The inset plot in the bottom panel of Fig. 2 shows the early radio light curve on an expanded time axis. During the first and last epochs shown in this inset panel the 4.9- and 8.5-GHz fluxes are in good agreement with each other, suggesting the presence of at least some partially self-absorbed emission. The intervening epochs of data (obtained at two frequencies simultaneously) show a discrepancy between the two frequencies, indicating that the material responsible for the radio emission had expanded and become optically thin. We list the spectral indices (α, where S_ν∝^a) in Table 2 and plot them in Fig. 4. It is clear from Fig. 4 that the radio source becomes significantly optically thin on two separate occasions (MJD 526 56, 526 59), the optical depth increasing during the intervening epoch, suggesting that there were actually two ejection events. This is common in X-ray transient events and a sequence of radio ejections have been observed in all sources for which sufficient monitoring has taken place (Brocksopp et al. 2002 and references therein). When the source reappears during the low/hard state it again has a flat spectrum, as we would expect for this state (e.g. Fender 2001).

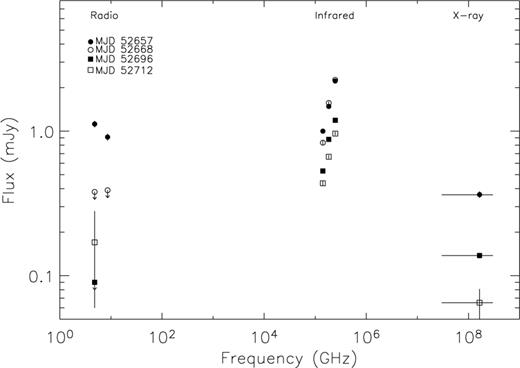

In Fig. 5 we plot the broad-band spectrum for the four epochs of contemporaneous radio and infrared data (Nagata et al. 2003); RXTE also obtained data points during three of these epochs. We assume E(B-V) = 2.43 (T. Nagata, private communication), account for reddening of the infrared data using Cardelli, Clayton & Mathis (1989) and convert the brightness values to flux densities using Bessel, Castelli & Plez (1998). We further assume that 1 Crab = 75 RXTE/ASM count s⁻¹= 1.06 mJy (Levine et al. 1996). By the time of these plotted epochs the X-ray source had made the transition to a soft state and this is reflected in the spectrum. The radio spectrum (MJD 526 57) is relatively steep and optically thin (although still partially self-absorbed relative to some of the other epochs in Fig. 4) whereas the infrared data are showing a clear excess above the radio flux densities. This is very different from the low/hard state spectra in Brocksopp et al. (2004), Fender (2001) and Markoff, Falcke & Fender (2001) where the infrared emission appears to be dominated by the jet synchrotron spectrum; in particular the spectral turnover between self-absorbed and optically thin synchrotron emission has been detected in the near-infrared in GX 339-4 (Corbel & Fender 2002). Instead, the infrared emission of XTE J1720-318 during these epochs appears to be dominated by the accretion disc and/or irradiated companion star in agreement with the disc instability model (e.g. Lasota 2001).

The X-ray/radio behaviour over the course of the outburst bears a number of similarities to XTE J1859+226. Following the initial low/hard state, which in both sources lasted days, the radio and soft X-rays reached a peak quasi-simultaneously; in the case of XTE J1859+226 there was a hard X-ray peak prior to this. Similarly XTE J1720-318 reaches a soft X-ray peak approximately coincidentally with (or just before) the radio peak; indeed Fender, Belloni & Gallo (2004) suggest that the radio peak and soft X-ray peak are closely related (see also Corbel et al. 2004 who reach a similar conclusion). The steady jet of the initial low-hard state is thought to persist through the period of spectral softening and give way to an optically thin radio ejection just after the soft X-ray peak.

After the initial maximum of XTE J1859+226, it was the hard X-rays that were more closely linked with the radio behaviour. As the X-ray source decayed from outburst it underwent a series of temporary hardenings, superimposed on a general softening, and each of these hardenings was associated with a new radio ejection (Brocksopp et al. 2002). While the S/N ratio of the hardness ratio is poor, XTE J1720-318 also appears to show some level of both intensity and spectral variability during its decay, including at least two glitches. Comparison with other sources such as XTE J1859+226, GRO J1655-40 and XTE J1550-264 (Brocksopp et al. 2002 and references therein) might suggest that simultaneous radio ejections would have been expected. Given that both glitches and radio ejections are associated with temporary hardenings in these other sources it is tempting to suggest that they are all different manifestations of a jet event. Unfortunately the XTE J1720-318 data do not allow us to confirm this, perhaps due to inadequate S/N ratio and/or time resolution. However, the data of Nagata et al. (2003) do indeed show simultaneous X-ray/infrared events that coincide with radio non-detections. Again, this may be due to the S/N ratio and time resolution or it may confirm previous suggestions that some glitches may be events taking place in the accretion disc (e.g. Lasota 2001) and independently of the jet. We also note that, contrary to XTE J1720-318, the three sources listed above were in the very high state (or steep power-law state) at the time of the simultaneous glitches/ejections; it is probable that the spectral state of the accretion disc is significant in determining whether or not ejections take place (e.g. Fender et al. in preparation).

5 Conclusions

We have presented radio observations of the 2003 outburst of the X-ray transient XTE J1720-318. The radio source was unresolved and reached a peak of ∼5 mJy. Study of the spectral index showed that, while the source was optically thin throughout, there was some significant variability which we interpret as partially self-absorbed emission at the onset of two discrete ejection events. Following a period of non-detection, the radio source switched on again contemporaneously with the transition to the low/hard state. The broad-band spectrum showed that the infrared emission was significantly brighter than the radio synchrotron spectrum; we suggest that the infrared emission was dominated by the accretion disc and/or irradiation of the companion star as expected for a ‘soft’ X-ray transient event. The variability during the decay was reminiscent of that of XTE J1859+226; in the case of XTE J1859+226 this variability was interpreted as a sequence of jet ejections. This emphasizes the need for high S/N ratio X-ray hardness and radio monitoring during the ‘glitches’ which are often observed superimposed on the decay of the X-ray source.
