Antisense transcription is associated with expression of metal resistance determinants in Cupriavidus metallidurans CH34 Open Access

Abstract

Cupriavidus metallidurans is able to thrive in metal-rich environments but also survives metal starvation. Expression of metal resistance determinants in C. metallidurans was investigated on a global scale. Cupriavidus metallidurans was challenged with a MultiTox metal mix specifically designed for the wildtype strain CH34 and its plasmid-free derivative AE104, including treatment with ethylenediamintetraacetate (EDTA), or without challenge. The sense and antisense transcripts were analyzed in both strains and under all three conditions by RNASeq. A total of 10 757 antisense transcripts (ASTs) were assigned to sense signals from genes and untranslated regions, and 1 319 of these ASTs were expressed and were longer than 50 bases. Most of these (82%) were dual-use transcripts that contained antisense and sense regions, but ASTs (16%) were also observed that had no sense regions. Especially in metal-treated cells of strains CH34 and AE104, up- or down-regulated sense transcripts were accompanied by antisense transcription activities that were also regulated. The presence of selected asRNAs was verified by reverse transcription polymerase chain reaction (RT-PCR). Following metal stress, expression of genes encoding components of the respiratory chain, motility, transcription, translation, and protein export were down-regulated. This should also affect the integration of the metal efflux pumps into the membrane and the supply of the energy required to operate them. To solve this dilemma, transcripts for the metal efflux pumps may be stabilized by interactions with ASTs to allow their translation and import into the membrane. Alternatively, metal stress possibly causes recruitment of RNA polymerase from housekeeping genes for preferential expression of metal resistance determinants.

Graphical Abstract

The transenvelope pump ZniCBA was upregulated under metal-starvation conditions and an antisense RNA was involved in regulation of this process. This suggests a possibly novel function of these efflux systems.

Open in new tabDownload slide

Introduction

The transition metal contents of environments can vary over a wide range of concentrations and metal composition, not only for essential-but-toxic cations such as zinc, cobalt, and copper cations, but also for toxic-only ones such as the cadmium cation [1]. The beta-proteobacterium Cupriavidus metallidurans strain CH34 has an outstanding ability to thrive in environments rich in metals, for instance, auriferous soils or zinc-rich deserts, but it can also handle zinc starvation conditions [2–5]. Besides its bacterial chromosome, C. metallidurans contains a chromid and two large plasmids. Its metal resistance determinants are required for resistance to metals (Table 1): zinc (znt), cadmium (cad), nickel and cobalt (cnr), cobalt (dme), copper (cus, cop, sil, cop₂, cup), lead (pbr), silver (sil), mercury (mer_1-4), chromate (chr, chr₂), arsenic (ars), and finally to cobalt, zinc, cadmium (czc). Many of these determinants were acquired by horizontal gene transfer and are located on the two plasmids, the chromid and genomic islands, which are part of the four replicons. The plasmid-free derivative AE104 of C. metallidurans contains only the chromosomal and chromid-encoded determinants (znt, cad, mer₃, ars, dme, cop₂, cup, chr₂), leading to a metal resistance level comparable to that of Escherichia coli [1, 2, 6].

Resistance to toxic concentrations of transition metal ions is based on transport and redox-reactions. Zn(II), Cd(II), Pb(II), Ni(II), and Co(II) are exported from the cytoplasm by members of the protein transporter protein families P-type ATPases (ZntA, CadA, CzcP, and PbrA; [7–9]), CDF (CzcD, DmeF, FieF; cation diffusion facilitator family; [10, 11]) or others (CnrT, AtmA) into the periplasm and from there by three-component trans-envelope efflux complexes composed of RND, MFP, and OMF (resistance-nodulation-cell division, membrane fusion, outer membrane factors; [12–15]) members to the outside, for instance, CzcCBA or CnrCBA. For copper resistance, inner membrane efflux by P-type ATPases (CupA and CopF) and trans-envelope efflux by CusCBA and SilCBA is supplemented by periplasmic oxidation of Cu(I) to the less toxic Cu(II) by components of the cop or cop₂ determinants [16, 17]. Furthermore, Hg(II) is reduced to the volatile Hg(0) oxidation state, arsenate is reduced to arsenite, which is exported, and chromate is also exported from the cell [18–21].

We aim to understand how all these transport systems, metal-binding proteins, one- and two-component regulatory systems and sigma factors interact to maintain transition metal homeostasis in C. metallidurans. To gain more insight into the regulation of expression of metal-resistance determinants, we here followed up on the preliminary evidence that antisense RNAs might be involved in cus and cop₂ regulation [22]. Therefore, we examined the possible involvement of antisense RNAs (asRNA) in regulation of metal homeostasis on a large scale using RNASeq-dependent transcriptome analysis with C. metallidurans CH34 wildtype and its plasmid-free variant AE104, under high, ambient, and low-metal conditions. We could demonstrate that antisense activities exist in C. metallidurans, which are co-up-regulated along with their cognate sense transcripts under metal stress in the case of most metal resistance determinants examined. Evidence for the existence of involvement of antisense activities in metal resistance of C. metallidurans is the first step to understand this process on the systems level. The second step, involving the influence of asRNAs on the copy number of the gene products of the associated sense mRNA, will be revealed in a subsequent publication [23]. In these two papers, we provide evidence for the existence and biological role of asRNAs in the regulation of metal-cation homeostasis in C. metallidurans.

Results

Challenging cells with metal cations

The transcriptomes of C. metallidurans CH34 and its plasmid-free derivative AE104 were analyzed by RNASeq in non-challenged cells, and under metal starvation and metal-stress conditions. It was anticipated that under these circumstances, the totality of the metal resistance determinants in C. metallidurans should be up-regulated. To exponentially growing cells, we added a 3.35 mM CH34-specific (n = 7) and a 1 mM AE104-specific MultiTox metal mix (n = 7) along with the separate addition of 50 µM ethylenediamintetraacetate (EDTA) to both strains (n = 4), or where no addition (n = 5) was made. The EDTA concentration used was not toxic to the cells but yielded a 90% Zur-dependent up-regulation of the gene encoding the zinc importer ZupT that was a clear indication for a zinc starvation condition [24–27]. The cells were used for RNASeq, as well as for determination of their metal content using ICP-MS (inductively-coupled plasma mass spectrometry, Table 2).

As expected, challenging the cells with MultiTox metal mixes increased the cellular content of the metals that were components of the mixture. Treatment with 50 µM EDTA decreased the cellular content of Co, Ni, Cu, and Zn in strain CH34. This demonstrated that the EDTA concentration used was sufficient to mediate metal starvation conditions. When confronted with the AE104-specific MultiTox metal mix, the cellular content of Cr, Co, Ni, and Zn was lower in AE104 compared to CH34 cells, which was probably caused by the lower metal ion concentrations in the AE104- compared to the CH34-specific MultiTox mix. The IC₅₀ of the strain-specific metal mixture used for the respective strains indicated that CH34 could tolerate more cell-bound metal cations than its plasmid-free derivative AE104 (Table 2). The cellular content of the metals that were not part of the metal mix did not change, with the exception of a lower Mo content in metal-chased cells of strain CH34. Homeostasis of these metals was, therefore, not affected by the metal mix or by EDTA addition.

Antisense activities exist in C. metallidurans

Using the RNASeq data, the program TraV Mac [28] was used to calculate the transcript abundances as NPKM values for all genes, 5′ and 3′ untranslated regions (5UTR, 3UTR), free and antisense transcripts (FT, AST) for strain CH34 and AE104, for all three conditions and for biological repeats. The transcripts were assigned to 6 841 annotated features for genes and RNAs 1 670 5UTRs, 1 691 3UTRs, and 10 757 ASTs (Supplementary Material M1, Supplementary material Table S1), and 385 FTs were found. The sense transcripts were named according to the number of the associated Rmet locus tag, the FTs and ASTs to the position of their first nucleotide, DNA strand and replicon (Supplementary Results). Only 1 391 ASTs and 12 FTs exhibited an abundance (NPKM, nucleotide activities per kilobase of exon model per million mapped reads) of NPKM > 10 and in the case of the ASTs a length of >50 bp (Tables S2 and S3).

It is important to note and detailed in the Supplement, an annotated AST may represent a discrete RNA molecule or a bin, a group of overlapping RNA molecules with some of them serving in total or in part as antisense RNA with respect to transcripts from the other DNA strand: an AST as annotated was a bin containing at least one transcript with an antisense region.

Most (82%) of the ASTs were “dual-use” transcripts or bins (Table S4), composed of at least one part or subgroup that was an antisense transcript for annotated features on the other DNA strand and in a least one other part or subgroup a sense transcript. Another 16% of the ASTs did not contain a portion that was a sense transcript. With the algorithm used, only few free transcript activities were found in non-challenged CH34 cells. In contrast, antisense transcription activities were found that covered the complete sense transcripts of genes with respect to their 5UTRs and 3UTRs. The majority of these antisense activities was of a small size, or were of low abundance. Nevertheless, antisense transcription activities clearly existed in C. metallidurans cells (Supplementary Results) in response to metal challenge.

The ASTs were associated with sense transcripts, genes, 5UTRs, and 3UTRs (Supplementary Material M2). There was no association of long ASTs to CMGIs (catabolic metabolic chromosomal islands, [29, 30], Fig. S1). No connection was found between the antisense abundance and usage of rut (Rho utilization) sites for loading of the “open-donut”-shaped ATP-dependent Rho factor for transcription-translation coupling [31–33] by termination (Supplementary Material M3, Supplementary Results, Figs. S2 and S3).

The 10 179 sense transcripts (genes, 3UTRs, 5UTRs) in untreated cells of C. metallidurans were sorted into groups of up- or down-regulated sense signals (>2, <0.5) with up- or down-regulated antisense signals (>2, <0.5; Table 3), for instance up–up, up–down, or up–not genes with the sense transcript being up-regulated and the antisense transcript up-, down- or not regulated, respectively. In the comparison of EDTA-treated CH34 cells with control cells even more than half of the signals did not change in their abundance of sense or antisense transcript. In CH34 cells treated with the MultiTox metal mix, 1 066 sense signals were up- and 1222 sense signals were down-regulated. About half as many sense signals were up- (565), or down-regulated (670) in the comparison of metal-mix-treated AE104 with CH34 cells. The number of changes in the other comparisons was lower, between 127 and 448 sense signals (Supplementary Results).

In all comparisons, more than half of the up- or down-regulated signals for sense transcripts were not accompanied by a change in abundance of the associated antisense signal (Table 3). In the comparison of metal-mix-treated CH34 with non-challenged cells (CH34_M_0), about 25% of the up-regulated sense transcripts were associated with an up-regulated antisense transcript, while about 9% were associated with a down-regulated antisense transcript. About 17% of the down-regulated sense transcripts in this comparison were associated with a down-regulated antisense transcript, and about 9% with an inversely regulated and up-regulated antisense transcript. These percentages were much lower in the other comparisons, with the exception of the comparison of metal mix-treated AE104 with CH34 cells (M_A_C, Table 3).

Treatment of C. metallidurans with a toxic metal mix had a strong impact on the transcriptome of this bacterium, changing 22% of the sense transcripts. In contrast, only 4% of the sense transcripts were changed in their regulation after EDTA treatment. In the comparison between AE104 and CH34 cells, 6.5% of the sense transcripts were different in the unchallenged cells, while 5% were differentially regulated in EDTA-challenged and, again, 14% in metal-challenged cells.

There was an enrichment of antisense activities in metal-challenged cells compared to other cells: Genes, 3UTRs, or 5UTRs differentially expressed following metal stress were often accompanied to a disproportionately high level by regulated antisense activities. This enrichment suggested a function for these antisense transcripts in the metal resistance response of C. metallidurans.

The complete results concerning the identification and association of the ASTs in C. metallidurans is provided in the “Supplementary Information” section.

Transcriptional network in C. metallidurans CH34 cells after treatment with the MultiTox metal-mix

A total of 407 annotated genes (Table 4) among the 1 066 sense transcripts (Table 3) were up-regulated in the CH34_M_0 comparison (Supplementary Material M2). The remaining up-regulated transcript abundances were associated with 3UTRs and 5URTs. The 10 most strongly up-regulated (>300-fold, Table 4) genes after metal shock included 7 metal resistance genes, 1 transposase, 1 gene encoding a sensor histidine kinase, and 1 encoding an uncharacterized protein, both of unknown function (Table 4). All were accompanied by up-regulated antisense activities (Supplementary Material M2). The following 18 genes (>100-fold up-regulated) included 17 metal resistance genes plus 1 encoding a peptidase and 14 genes with up-regulated antisense activities. The majority of the most strongly up-regulated genes encoded metal resistance factors and were accompanied by up-regulated antisense activities. As the quotient of up-regulation decreased, genes encoding product with other functions became more prominent and the ratio of genes that were not accompanied by up-regulated antisense activities increased.

All active metal resistance determinants in CH34 were up-regulated following treatment with the MultiTox metal mix (Supplementary  Material M2), which confirms the findings of previous gene array data [34]. Most determinants that encoded RND-driven trans-envelope efflux systems, or components thereof (czc, czc₂, cnr, zni/zne, nimC, cus, sil), were accompanied by antisense transcription activities (Table 5). Especially the sense transcripts of the major metal resistance determinants (czc, cnr, cop, cup, chr and ars) were accompanied by up-regulated antisense activities while recessive determinants (nre/ncc, hmv, hmz) were not. This strengthened our premise of the importance of the antisense activities for full regulatory function of the active and dominant metal resistance determinants. In comparison, the cus and cop₂ determinants that were not plasmid-encoded were accompanied by down-regulated or unregulated antisense transcripts (Table 6, Figs. S4 and S5). Plasmid-encoded metal resistance genes appear consistently to have an associated up-regulated antisense transcript in addition to the up-regulated sense transcript.

All plasmid-encoded czc genes were up-regulated and accompanied by up-regulated antisense activities (Supplementary  Material M2, Supplementary Results). A similar interaction network of up-regulated sense transcripts and antisense activities after metal shock was also observed for other metal resistance determinants, for instance, the interrupted “ancient” czc₂ region adjacent to zntA on the chromid. For the cobalt-nickel resistance determinant cnr on plasmid pMOL28, the antisense activities may also interact with adjacent genes outside of the metal-resistance determinants and in the case of cnr this was with the adjacent chromate-resistance determinant. Other metal resistance determinants, such as chr, chr₂, and ars, were also up-regulated after metal stress and were accompanied in the case of most genes by up-regulated antisense activities (Supplementary  Results).

These data demonstrate that following metal stress, metal resistance determinants are up-regulated, as anticipated, and that in most but not all cases this up-regulation is paralleled by an up-regulation of an associated antisense activity (Table 5). A similar pattern was exhibited by genes encoding phosphate uptake by the PtsABC transporter, iron-cluster and glutathione biosynthesis, and the gig genes (for “gold-induced”). In these cases, the respective gene products were needed to protect the cells against damage caused by the high concentration of toxic metals. An antisense activity that reduces expression of genes encoding such important proteins would be counterproductive. This suggests that for metal resistance genes, antisense transcripts may interact with sense transcripts to stabilize them. Alternatively, the asRNAs might be involved in synchronize gene expression to yield the optimal ratio of the subunits of protein complexes or those of different proteins of a resistance system.

Genes down-regulated following metal stress

Among the down-regulated 654 genes (<0.08-fold; only annotated genes expressed in non-challenged CH34 cells were counted, Table 4), the most strongly down-regulated ones included two TonB-dependent outer membrane receptors and a general porin. No gene was accompanied by any change in the potential antisense activities.

The next gene-set with a lower down-regulation quotient included genes involved in hydrogenase synthesis, in motility, respiratory chain and translation complexes (Supplementary Results, Supplementary Material M2, Fig. 1). Not only were the genes for the membrane-bound hydrogenase down-regulated after metal shock, but also the atp genes encoding the F₁F₀-ATPase, most nuo genes encoding the NADH-quinone oxidoreductase, cox genes for cytochrome c oxidase, cyo genes encoding a cytochrome o ubiquionol oxidase (initially annotated as cytochrome c oxidase) and app, cyd and cyo genes encoding other respiratory chain components. This indicated that metal shock resulted in a down-regulation in the synthesis of most membrane-bound proteins involved in energy conservation from the generation of the proton motive force to the synthesis of ATP (Fig. 1, OxPhs).

While the chemotaxis genes were only mildly down-regulated following metal shock, the flh/flg and the fla/fli genes encoding components required for synthesis of flagella were all down-regulated (Supplementary Results, Fig. 1, Flag). Most genes of the tricarboxylic acid cycle (TCA), which provided NADH for the respiratory chain as well as anabolic metabolites (Fig. 1, TCA), were unchanged in expression with a mild down-regulation in expression of the genes for the membrane-bound succinate dehydrogenase. After metal shock, expression of the genes encoding enzymes for the degradation of gluconate to the level of acetyl-CoA and those for the synthesis of amino acids, including genes required for their associated tRNAs, were changed little, except that the initial input reactions (gntT, gntK, edd) for carbon from gluconate and nitrogen via the ATP-dependent GlnA-GltDB enzymes were down-regulated. This may decrease the overall flow of metabolites from gluconate to amino acids loaded to their tRNAs (Fig. 1, Supplementary Results).

The genes for the ribosomal proteins were all down-regulated ∼0.4-fold (0.13- to 0.79-fold, down-regulation of an antisense activity covering the genes encoding 25 ribosomal proteins, Fig. 1). Expression of the genes encoding the translational initiation factors was mildly down-regulated, while that of the genes encoding the elongation factors was more strongly down-regulated. Regarding the genes whose products are involved in protein export, expression of ffh and ftsY encoding membrane integration via the signal recognition particle was not down-regulated but expression levels of all genes for the general secretion pore were, including the leader peptidases and YidC, with the exception of secA. This indicates that the energy-consuming translation and protein export by the general secretion pathway were down-regulated following metal shock (Fig. 1).

Compared to the genes for the ribosomal proteins, no gene for subunits of the DNA polymerase III or the other DNA polymerases were down-regulated in their expression. DNA replication and repair processes were thus unimpaired. In contrast (Table 7), the genes encoding the RNA polymerase core enzyme, the nus and gre factors, rho and the major house-keeping sigma factor rpoD₁ were all down-regulated between 0.34- and 0.79-fold (mean value 0.55-fold), with the exception of rpoZ (mildly up-regulated 1.4-fold). For rpoB, rpoC, nusG, greA, and rpoD₁, this was accompanied by an up-regulation of the associated antisense activity and for rpoA and nusB with a down-regulation. Among the genes encoding the alternative sigma factors, expression of rpoH, rpoN, rpoQ, and cnrH was up-regulated, with cnrH showing a 360-fold up-regulation of its antisense activity; expression of rpoS was unaffected. Only the gene encoding chemotaxis and motility sigma factor FliA was down-regulated (Table 7). Not only the translation but also the general transcription activity of metal-shocked C. metallidurans cells was down-regulated, possibly to conserve energy by decreasing the energy-intensive process of protein biosynthesis.

In total, treatment with multiple metal cations of C. metallidurans CH34 led to an up-regulation of metal resistance determinants and in most cases these were accompanied by an associated up-regulation of antisense activities. These determinants encode a multitude of membrane-bound metal efflux systems. Simultaneously, the genes for the F₁F₀ ATPase and respiratory chain components are down-regulated, which counterintuitively should reduce the amount of available energy to the cell. Consequently, high energy-consuming processes such as motility, transcription, translation, and protein export are down-regulated, perhaps to retain sufficient energy to ensure synthesis of the efflux systems. These processes also lead to a higher competition between the efflux systems, F₁F₀-ATPase and the respiratory chain components for protein export capacity by the general secretion system (Fig. 1, Supplementary  Results for more details).

Other comparisons

The up-regulated genes (>5-fold) identified in C. metallidurans after treatment with EDTA (CH34_E_0 comparison) were difficult to interpret in terms of roles in metal-limitation (most strongly regulated genes shown in Table 4), except for possibly the five-fold up-regulation of groS encoding a chaperonin, indicating possible problems with protein folding under this stress. Similarly, the top 10 of the 63 down-regulated genes (≤0.23-fold) also did not yield many insights (Table 4). Among the genes for transport proteins (Table 8), only zupT was up-regulated (1.63-fold). None of the genes for the siderophore biosynthesis cluster downstream of the sigma factor genes rpoI was up- or down-regulated so that the EDTA-treated cells appeared to retain sufficient iron supply by the siderophore produced in the EDTA-trated cells at the same level as in the control cells (Supplementary Material M2, “Transport”). This was supported by the unchanged amount of iron in these cells (Table 2). Except for zntA, cadA, and czcD, none of the genes for efflux systems, which were up-regulated following metal shock, was down-regulated in EDTA-treated cells. The “anabolic” Cu(I)-exporting P-type ATPase genes rdxI and ctpF and the Co(II) exporter gene dmeF were not up-regulated following metal stress, but the ctpF antisense activity was strongly up-regulated (15-fold) under metal stress. There was little change in the expression of the genes encoding components of the metal transportome of the inner membrane under conditions of metal starvation, except for the down-regulation of zntA, cadA, and czcD genes (Table 8). With the exception of the TonB-dependent Rmet_0123, the already present metal transportome plus some Zur-dependent up-regulation of zupT and the cobW1 cluster was sufficient for C. metallidurans to survive EDTA-mediated metal starvation. In contrast to metal resistance determinants that counteracted metal shock, no “starvation-resistance” determinants seemed to exist for non-iron transition metals in C. metallidurans, except the Zur regulon. Moreover, no expression change for the sigma factors was observed (Table 7) with the exception of up-regulation of the antisense activities for the plasmid-encoded cnrH.

In the comparison of non-challenged cells of the plasmid-free strain AE104 to the wild-type strain CH34, expression of only 15 genes was up-regulated (Q > 2, D > 1, gene annotated) and that of 5 genes was down-regulated. Expression of the genes for the metal efflux and uptake systems was not different in both strains (Table 8). With a few exceptions, the plasmid-encoded metal resistance determinants had little impact on cells living under non-challenging conditions.

When metal-challenged AE104 and CH34 cells were compared, 305 genes were up-regulated and 159 genes were down-regulated in AE104 compared to CH34 (Table 4). A total of 230 of the 305 genes up-regulated in AE104 was down-regulated (Q < 0.7) in metal-shocked CH34 cells. Included is a variety of genes that were down-regulated in the comparison of metal-shocked CH34 compared to untreated CH34 cells: 75% of the up-regulated genes in AE104 nearly reached the same transcript abundance in metal-stressed AE104 cells as in non-challenged CH34 cells. This means that the plasmid-encoded metal resistance determinants were responsible for the energy shortfall and its consequences in strain CH34.

In 38 cases, genes already up-regulated in metal-stressed CH34 cells were expressed at an even higher abundance in metal-stressed AE104 cells. These were components of the chromosomal or chromid-encoded metal resistance determinants cus, cop₂ (Table 6), and especially mer, which was up-regulated already 4000-fold in CH34 and now again additionally 2-fold in AE104 when the plasmid-encoded mer determinants were absent (Supplementary Material M2). In AE104 cells, with the exception of the gene encoding the response regulator HmzR, no component of the recessive RND-driven trans-envelope systems was up-regulated above the level determined for metal-challenged CH34 cells. Clearly, these systems did not compensate for the plasmid-encoded systems. There was also no change in the expression of the genes for the metal uptake systems, with one exception: pitA was 0.34-fold down-regulated in metal-challenged CH34 cells and 2.44-fold up-regulated in metal-challenged AE104 cells (Table 8), nearly reaching the abundance of the transcript in un-challenged CH34 cells. The antisense activity of corA₁ was 50-fold up-regulated in metal-challenged AE104 cells.

Comparing the abundances of the efflux systems in metal-challenged AE104 to non-challenged AE104 control cells, the genes zntA, cadA, cupA, and atmA were up-regulated approximately 18-, 5-, 53-, and 1.5-fold, respectively. The differences in the degree of up-regulation between CH34 and AE104 cells agreed with the lower concentrations of the challenging metals (Table 2). Despite the lower concentration of challenging metal ions and the absence of the plasmid-encoded metal resistance determinants, sufficient zinc, copper, and cadmium reached the cytoplasm of strain AE104 to yield a ZntR-, CadR-, and CupR-dependent up-regulation of zntA, cadA, and cupA, respectively. There was no change in the expression of the genes encoding sigma factors but an up-regulation of the genes encoding the RNAP-associated proteins NusG and GreA was determined. The antisense activities of three sigma factor genes were down-regulated (rpoD₁ for the main housekeeping sigma factor, rpoJ, rpoO) and two were up-regulated (rpoN, rpoM). No genes were found that were not expressed in metal-challenged CH34 cells but, which were expressed in metal-challenged AE104 cells. No additional genes whose products might have compensated for loss of the plasmid-encoded metal resistance determinants, for instance, in recessive RND-encoding determinants. Due to the lower concentration of the challenging metals used, the genes of non-plasmid-encoded resistance determinants were even less well up-regulated in strain AE104 compared to the wildtype, CH34. This agrees with the observation that strain AE104 simply loses metal resistance when the plasmids pMOL30 and pMOL28 are lost [6].

Finally, in the comparison between metal-starved AE104 and CH34 cells, expression of only seven genes was up-regulated in the comparison between EDTA-treated AE104 and CH34 cells (Table 4). There was no change in the sense transcripts or antisense activities for the genes encoding the metal uptake or efflux systems (Table 8), the porins, the TonB-dependent receptors except Rmet_0123 or the ABC transport systems. However, changes in the antisense activities were noted (Supplementary Material M2). The only noted expression changes concerning genes encoding the RNAP and its sigma factors were changes in the expression of antisense activities for some sigma factors. The antisense activities for rpoN, which had been up-regulated in the comparison between metal-shocked cells, was down-regulated in the comparison between EDTA-treated cells, while the antisense transcript associated with rpoP displayed the inverse response. The sense or antisense transcript for rpoO was unchanged in CH34 cells but its antisense showed a metal-dependent titration pattern, being completely absent in the comparison between metal-treated cells, 0.25-fold down-regulated in non-challenged cells and 0.33-fold down-regulated in EDTA-treated cells. This indicated that antisense transcripts may be involved in control of the expression of sigma factor genes in C. metallidurans.

Independent evidence for the existence of asRNAs

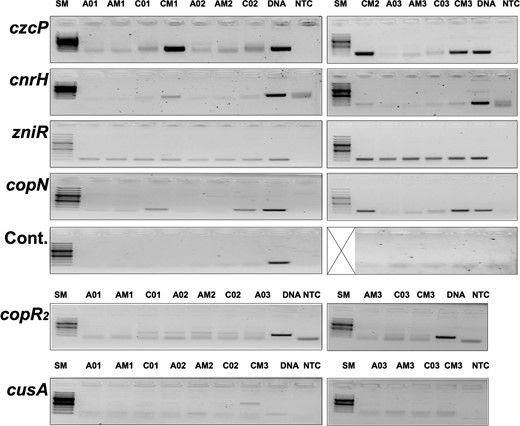

Six genes were selected to verify the existence of asRNAs by RT-PCR (Fig. 2). These were the genes encoding the P_IB4-type ATPase CzcP, the sigma factor CnrH, the response regulators ZniR and CopR₂, the copper resistance CopN and the RND protein CusA. Moreover, transcriptional start sites (TSS) were determined as published [22] using RNAs from the same cells that were used for the RNASeq experiments.

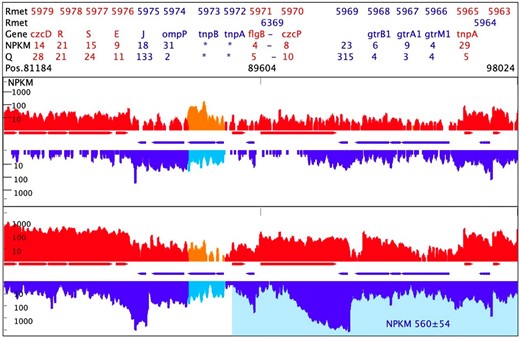

In the case of the czcP gene, antisense transcription was up-regulated 76-fold from an initial NPKM value of 7.33 ± 0.21 to 560 ± 54 (Fig. 3, Table 9, Table S5). This up-regulation was mirrored by the RT-PCR experiment (Fig. 2). The intensity of the czcP-asRNA signal was in all three determinations stronger than the DNA control but barely visible when RNA from unchallenged cells of C. metallidurans CH34 was used. Since czcP is part of the czc resistance determinant on plasmid pMOL30, no czcP-asRNA-signals could be identified using RT-PCR with RNA from the plasmid-free strain AE104. Faint bands visible here were at the position and intensity of the negative no-template control (Fig. 2, NTC). The annotated asRNA in metal-challenged CH34 cells initiated 8,854 bp downstream of the 3′ end of the 3URT of czcP and continued up to 790 bp upstream of the 5UTR of this gene. In contrast, non-challenged CH34 cells contained two shorter asRNAs with low intensity (Table 9, Table S5).

Three transcriptional start sites were found upstream of czcP (Table 9). Two of them in the new determination and here identified in metal-challenged CH34 cells. One reached only a score of 46 ± 7 in these cells and was located 1,240 bp upstream of the 5UTR of czcP, the other was within the 5UTR 51 bp upstream of the czcP gene. This TSS possessed a score of 1,202 ± 179 in metal-challenged cells. A third TSS was only 10 bp apart and 41 bp upstream of czcP, with a score of 2,639 ± 271 in metal-challenged CH34 cells. The respective promoter was classified as a non-RpoD promoter [22]. A large number of TSS existed for the antisense direction, both previously identified [22] and newly identified ones, some of which were associated with the RpoD promoter model, others not (Table 9, Table S5). Many of them were up-regulated in metal-challenged CH34 cells. There was no TSS directly upstream of the long, and strongly expressed, czcP-antisense transcript. The closest upstream TSS was 1,891 bps away and not found in metal-challenged CH34 cells. While two promoters were clearly responsible for czcP transcription in metal-challenged CH34 cells, the ASTs associated with czcP were the sum of many transcriptional events on the respective other DNA strand, leading to a group of overlapping transcripts (Table 9, Table S5, Fig. 3). The czcP-associated ASTs comprised a bin, but, nevertheless, the existence of czcP-associated asRNAs could be clearly demonstrated by RT-PCR (Figs 2 and 3).

The results for the cnrH gene were reminiscent of those for the czcP gene, but the signals in the RT-PCR experiments were much weaker. RT-PCT signals were visible when the RNA was derived from metal-challenged CH34 cells, very weak when from non-challenged CH34 cells, and absent in the case of AE104 cells because cnrH is located on plasmid pMOL28 (Fig. 2). One promoter was responsible for cnrH transcription, one cnrH-asRNA was annotated in metal-challenged cells and a shorter and weakly scoring asRNAs in non-challenged cells (Table 10, Table S5). The cnrH-asRNA initiated within the cnrC gene and extended across cnrYXH with a length of 12,994 bps. As for czcP, no clear TSS could be associated with this cnrH-asRNA, but a variety of transcriptional initiation events occurred in the direction that was antisense to cnrH. As in the case of czcP, the ASTs were bins of transcripts rather than discrete asRNAs but cnrH-specific asRNAs were within this bin.

Antisense transcripts could be verified for the chromid-encoded zniR gene in RNA from all cells, metal-challenged and not challenged CH34 and AE104 cells, with only minor differences in the band intensities (Fig. 2). As in the case of cnrH and czcP, RNA from metal-treated CH34 cells contained a longer and more abundant asRNA than RNA from non-treated CH34 cells. One TSS could be assigned to the sense transcription of zniR but no TSS to the zniR-asRNAs. A TSS was located 2,618 bp upstream of the start position of the asRNA in metal-treated CH34 cells and thus is probably not responsible for its transcription.

The presence of an asRNA for the plasmid-encoded copN gene could be demonstrated in RNA from metal-challenged CH34 cells and with lower intensity in RNA from non-treated CH34 cells. Signals were absent when the RNA came from cells of the plasmid-free strain AE104 (Fig. 2). Several promoters upstream of copN were up-regulated in metal-challenged CH34 cells and were likely responsible for copN transcription, or that of the genes copR₁ and copS upstream of copN (Fig. S4). As in the other cases, the annotated asRNA from metal-challenged CH34 cells had a higher abundance and was longer than the two asRNAs from non-challenged cells. Several promoters in the antisense direction were up-regulated in metal-challenged CH34 cells but none was identified directly upstream of the start position of the asRNA up-regulated in metal-challenged CH34 cells.

Only faint RT-PCR signals were associated with asRNAs for the chromid-encoded copR₂ and cusA genes. This agreed with the observation that, in contrast to the plasmid-encoded genes, these two determinants, which are not plasmid-encoded, were accompanied by down-regulated or unregulated antisense transcripts (Table 6). In metal-challenged CH34 cells, the copR₂-asRNA had a higher abundance and was longer compared to the asRNA from non-challenged cells (Table S5, Fig. S4). The abundances for both copR₂-RNAs were comparably low, which explains the weak signals in the RT-PCR experiment.

The pattern for cusA was different from that of the other five genes (Table S5, Fig. S5). In RNA from non-challenged CH34 cells, a large 6,794 bp asRNA with a low abundance of NPKM = 35 ± 5 extended across several genes in the sense direction, including cusA. In non-challenged cells, an asRNA with a 2-fold higher abundance of NPKM = 66.7 ± 7.1 initiated 24 bp upstream of the asRNA from metal-challenged cells, but extended across a shorter distance of 4,202 bps, ending within cusA, 828 bps from the start of the 3 kb cusA open reading frame (ORF). A second asRNA followed but had a very low abundance of only NPKM = 4.7 ± 0.6. As in the case of the other five genes, no TSSs could be associated with the asRNAs but several within the annotated asRNA region were identified, with many of them up-regulated after metal treatment in C. metallidurans strain CH34 (Table S5). More details concerning the changes in the sense and antisense transcripts in all these comparisons, especially in the transcriptome of the cop₂ and cus copper resistance determinants, are provided in the Supplementary Information section.

The RT-PCR experiments gave independent evidence for the existence of asRNA for the six example genes. While one or more TSSs indicated the presence of promoters that were responsible for sense transcription of these genes, no TSSs were found directly upstream of the annotated ASTs. The annotated ASTs were obviously bins of transcripts, including the respective asRNAs. The transcription initiation events on the respective other DNA strand were probably not terminated but extended instead as antisense transcripts into the region of the ORF of the gene under consideration.

Discussion

The sense of antisense

The RNASeq technology has allowed the identification of a multitude of interacting RNA molecules in the bacterial cell. Starting with a few examples 40 years ago [35], now non-coding, small regulatory, and antisense RNAs seem to be widely distributed [36–40]. Non-coding RNAs (ncRNAs) different from tRNAs and rRNAs can be cis- or trans-acting ncRNAs [36]. The trans-acting ncRNAs act upon one or several genes at a distance. Cis-acting ncRNAs exist as long antisense RNAs (asRNAs) spanning several genes, which may even vary between the sense and the antisense orientation, or shorter antisense RNAs that may overlap with other RNAs at the 5′ end, the 3′ end or may be located internally between or within the ORFs of genes [37]. The excludon concept [41] defines “excludons” as a genomic locus encoding a long asRNA that spans divergent operons encoding products with related or opposing functions. The “dual-use” RNAs identified in C. metallidurans adds to the accumulating evidence for this concept. RNAs may start as sense mRNA, extend as asRNA into 5′ parts or parts of the ORFs of adjacent genes on the other DNA strand and may even become sense RNAs again.

Such pervasive transcription may have numerous consequences. Sense and asRNA may form double stranded RNA that may lead to co-degradation by RNAseIII or stabilization of the sense RNA due to inhibition of RNAse E decay. Moreover, the asRNA or the synthesis of it by transcription may lead to promoter exclusion with respect to another RNA, collision of RNA polymerases (RNAP), or a “sitting-duck”, removal of an RNAP that has not yet escaped from the promoter [38]. An asRNA could serve as a “sponge” to titrate its sense RNA, cause termination or interfere with translation initiation. These mechanisms are especially useful for homeostasis and stress response conditions because the sense-antisense interaction defines a low-cost energetic mechanism to mediate a threshold of the response or allows fine-tuning of the expression of several genes [38, 39]. Sudden stress conditions require an immediate response to protect the cell. A rapid expression of a variety of genes needs control of the temporal fine-tuning, regulation of the various gene products and even that of the subunits of hetero-multimeric protein complexes. Additionally, expression of the multitude of the housekeeping genes has to be adapted to synchronize their function with those of the stress defenders. This explains why the largest number of regulated ASTs appears in C. metallidurans under metal-shock conditions (Table 3). Due to the method used [28], these ASTs may represent a discrete transcript or a bin of transcripts from the region annotated as “AST”, so that the asRNA could be an independent molecule, part of an RNA containing both sense and antisense functions, or a member of a group of transcripts from the respective region.

Only 1,319 ASTs with an abundance of NPKM > 10 and a length >50 bp were found in the C. metallidurans transcriptome, while the total number of ASTs was 10 757. This could be explained with transcription noise [42]. On the other hand, studies on the transcriptome of Staphalococcus aureus suggest that hidden asRNAs may sponge-up their sense RNAs, leading to RNAseIII-dependent degradation [43] and subsequently to appearance of small asRNAs in the transcriptome as products of this process. Such a process may be involved in fine-tuning of gene expression but also in global regulatory processes such as RNA degradation or transcription-dependent DNA repair [37]. If such a process exists in C. metallidurans, even low abundance asRNAs should have a direct influence on the resulting copy numbers of the respective gene products because they signal the existence of hidden asRNAs.

In bacteria, transcription occurs in the nucleoid, which is located in a defined region in the middle of the cytoplasm [44, 45]. The small ribosomal subunit is also present within the nucleoid [46, 47], so that one “leader” ribosome may bind immediately to the transcribing RNA polymerase, forming an “expressome” protein complex [48, 49]. This allows regulatory mechanisms such as attenuation [50]. The majority of the ribosomes are located at the border between the nucleoid and the remaining cytoplasm, so that for strong gene expression events, the respective genes have to move to the surface of the nucleoid [51]. This has also the advantage of short diffusion distances for nucleoside triphosphates for transcription including GTP for translation, and amino acids for synthesis of the amino-acylated tRNAs for protein synthesis by the ribosome.

In this way, a sense mRNA may be immediately covered by one ribosome or more. Should that not be the case, the Rho factor can bind to rut (Rho utilization) sites at the mRNA and follow it toward the transcribing RNA polymerase (RNAP). When it reaches the RNAP, transcription is terminated [32, 33]. Rho enforces coupling of transcription and translation and decreases the probability of the occurrence of unoccupied single stranded RNA. Although the small ribosomal subunit may be present within the nucleoid [46, 47], internal sense RNAs could be produced before Rho was able to act but could not be translated due to a lack of ribosomes within the nucleoid. Interaction with an asRNA could be useful to decide the fate of these RNAs, co-degradation or stabilization until a ribosome appears. On the other hand, asRNA-mediated co-degradation could be an important catalytic mechanism to recycle the RNA components from already translated mRNAs at the border between nucleoid and cytoplasm [37].

Simultaneous transcription of both DNA strands in the sense and antisense direction may lead to head-on collision of the transcribing RNAPs. The number of RNAPs in the C. metallidurans cell is about 5,000 [52]. About 10% of the RNAP is usually actively transcribing [53]. With 6,000 genes in C. metallidurans [2] giving 12 000 when the antisense events on the respective opposite DNA strand are included and 500 actively transcribing RNAPs, the probability of a gene or antisense transcript for being actively transcribed is 4.17% and thus the head-on collision probability (4.17%)² = 0.17%. Head-on collisions should be rare events, occurring only in strongly expressed genes with strong antisense transcription. On the other hand, head-on collisions may also occur at a long distance [38] so that this mechanism cannot be excluded.

Antisense activities were up-regulated for most metal-resistance genes in metal-shocked C. metallidurans CH34 cells. In 696 cases, metal shock resulted in the up- or down-regulation of asRNAs in CH34 cells (Table 3). These numbers were comparable numbers to results from Pseudomonas aeruginosa. Here, of 4,993 genes with asRNAs, 298 had an asRNA differentially regulated under various environmental conditions with 186 associated with an up- or down-regulated sense transcript [54]. Interestingly, 45 genes in this bacterium, each with an antisense transcript, were modulated by alternative sigma factors. Cupriavidus metallidurans possesses a variety of alternative sigma factors but studies with mutants and gene arrays did not yield a clear picture of their specific physiological functions [55]. These sigma factors may just modulate gene expression by initiation of antisense transcription and, as shown here, asRNAs might regulate expression of genes encoding sigma factors and anti-sigma factors. This would lead to a new level of regulatory processes. External signals may control the release of a sigma factor from its membrane-bound antis-sigma factor. These may subsequently bind to the RNA polymerase to form the respective holoenzyme, which initiates transcription of interacting sense, antisense RNAs and trans-acting RNAs. These RNAs may interact to modulate gene expression, including those for other sigma factors.

In metal-shocked C. metallidurans cells, genes involved in translation, transcription, tRNA synthesis and energy conservation were down-regulated after 10 min (Fig. 1). Following metal shock, expression of the genes for metal efflux pumps was induced. The resulting proteins may compete with those for the F₁F₀ ATPase and respiratory chain components for space in the inner membrane and for the approximately 1 000 proteins required for protein export and membrane insertion, mainly SecY, Ffh for the signal recognition particle, the receptor FtsY and the alternative insertion pathway YidC [56]. Due to the limited protein export capacity, this competition may lead to a down-regulation of gene expression for those encoding the F₁F₀ ATPase and respiratory chain components (Fig. 1), either in the long or the short term. In the long term, a higher demand for energy to drive the metal efflux pumps in combination with the decreased ability to conserve energy as ATP or proton motive force would result in some degree of energy starvation. As a solution to this problem, systems with a high energy demand are also down-regulated, e.g. genes encoding components of the motility and protein synthesis apparatuses. It should be noted that down-regulation of all these components is much stronger in metal-shocked CH34 cells compared to metal-shocked AE104 cell, so that the plasmid-encoded large trans-envelope efflux pumps CzcCBA and CnrCBA may be responsible for space and export competition and dealing with a subsequent mild ‘energy crisis’. Being able to survive in the presence of high zinc, cobalt and nickel concentrations is a resource-intensive problem for C. metallidurans CH34. This also explains the presence of asRNA in these plasmid-encoded metal resistance determinants, which may prevent an overshooting expression of these genes.

Alternatively to this scenario, a rapid onset of metal shock needs the immediate expression of defense genes so that RNA polymerases are titrated away from their usual house-keeping promoters. The RNA for this study was isolated 10 min after metal shock was initiated because the mRNA for proteins involved in metal resistance appeared after 2–20 min in E. coli or C. metallidurans following metal shock [57, 58], while RNA abundance decreased after this time period. During this short time period, decreased expression of ribosomal and other house-keeping genes may not have resulted in a strong decrease of the abundance of the respective gene products. Should the number of these housekeeping proteins remain low after a longer period, this would indicate that the production of the defense systems causes a continual burden to the cell. Should there be a comparable small effect on the abundance of the housekeeping proteins, this would indicate that upon metal shock, expression of the housekeeping genes was repressed to allow recruitment of the RNA polymerase, ribosomes, and protein export capacity for expression of the defense gene with a subsequent recovery of the cells. The observation that the response regulator CzcR of a czc determinant in P. aeruginosa is required to regulate expression of flagellar genes suggests direct control of energy-consuming cellular function by metal resistance genes [59]. In agreement with this assumption, metal shock did not result in an overall global decrease of expression of the housekeeping genes, but instead for only selected groups of them, and only in the plasmid-containing strain CH34. Production or operation of the plasmid-encoded metal resistance systems, e.g. the CzcCBA and CnrCBA transenvelope efflux complexes may have resulted in a down-regulation of the described groups of housekeeping genes to allow their translation and membrane-insertion. Proteomics may reveal whether the production or the operation of these factors was the main reason for the observed effects.

A change in expression in the gene for the starvation sigma factor RpoS was not observed under metal-shock conditions (Table 7), which would mean that the observed effect was not a starvation response. On the other hand, a number of regulatory circuits affect translation of the rpoS-mRNA and stability of the protein [60], so that a starvation response cannot be fully excluded without consideration of proteomic data.

In some respects, pervasive transcription from both DNA strands and the formation of transient double-stranded RNAs could be a relic of the ancient past. DNA as the information-storage macromolecule likely evolved at a later stage in evolution of the last common ancestor LUCA [61] and interestingly, nucleus-like structures are still appearing during viral replication in bacteria [62]. In a time before DNA, RNA might have been the main genetic storage material and DNA may have subsequently evolved as chemically stable form to allow horizontal gene transfer. Single-stranded RNA folds into hairpins as secondary and more complicated tertiary conformations, for instance, the rRNAs in the translating ribosome [63]; however, folded RNA is probably difficult to use as mRNA. Consequently, the function of an antisense RNA could be to prevent folding of an mRNA and keep it accessible for translation. Evolvement of RNAse III subsequently diverged the asRNA world into those possessing recognition sites for this enzyme, leading to co-degradation, and those which bind and protect their sense RNAs. All these elements of the bacterial transcriptome seem to be needed to allow a rapid but synchronized and balanced response to stress conditions such as a metal shock.

Materials and methods

Bacterial strains and growth conditions

Plasmids and C. metallidurans strains in this study were strain CH34 wild type and its plasmid-free derivative AE104 that lacks pMOL28 and pMOL30 [6]. Tris-buffered mineral salts medium [6] containing 2 g sodium gluconate/L (TMM) was used to cultivate these strains aerobically with shaking at 30°C. Analytical grade salts of cation chlorides, potassium chromate, and potassium arsenate were used to prepare 1 M stock solutions, which were sterilized by filtration. Tris-buffered media were solidified by incorporating 20 g agar/l.

A previously used multi-metal mix [27] had been used to challenge C. metallidurans CH34 and AE104 simultaneously with several transition metal cations. This MultiTox metal mix was optimized for the transcriptome determination because the previously used mix did not address the different toxicities of the individual metals. Moreover, it did not discriminate between the more metal sensitive strain AE104 and its wild-type CH34, and did not contain arsenate, chromate, or mercury. For the optimization of the CH34- and AE104-specific MultiTox metal mixes, the IC₅₀ values for the respective metals were again determined for C. metallidurans CH34 and AE104. Based upon these, strain-specific metal mixes were designed that contained the challenging ions in concentrations proportional to their IC₅₀ values and the IC₅₀ of this strain-specific mix was finally determined. The resulting IC₅₀ value for the CH34-specific MultiTox metal mix was 3.35 mM, composed of 461 µM Zn(II), 241 µM Cu(II), 1,503 µM arsenate, 0.37 µM Hg(II), 19 µM chromate, 15 µM Cd(II), 761 µM Ni(II), and 347 µM Co(II). Strain AE104 was challenged with 1,000 µM of its specific MultiTox mixture comprised of 5 µM Zn(II), 120 µM Cu(II), 849 µM arsenate, 0.18 µM Hg(II), 7 µM chromate, 3 µM Cd(II), 9 µM Ni(II), and 7 µM Co(II)). These MultiTox metal mixes should lead to a comparable toxicity of each metal in the cells of the strains CH34 and in AE104, and lead to an up-regulation of all metal resistance determinants present in both strains.

Inductively-coupled plasma mass spectrometry

Cells were incubated in TMM up to early stationary phase at 30°C and with shaking at 200 rpm, diluted 20-fold into fresh TMM medium and incubation continued at 30°C for 24 h. Cells were diluted 50-fold into fresh medium and incubation continued at 30°C at 200 rpm until 100 Klett units were reached, which was before the mid-exponential phase of growth. Where indicated, MultiTox metal mix or EDTA were added, and incubation was continued at 30°C and at 200 rpm until 150 Klett units were reached. Ten milliliters of the cells were harvested by centrifugation, washed twice with 50 mM Tris-HCl buffer (pH 7.0) containing 10 mM EDTA at 0°C and suspended in 50 mM Tris-HCl buffer (pH 7.0). For ICP-MS analysis, HNO₃ (trace metal grade; Normatom/PROLABO) was added to the samples to a final concentration of 67% (w/v) and the mixture mineralized at 70°C for 2 h. Samples were diluted to a final concentration of 2% (w/v) nitric acid. Indium and germanium were added as internal standards at a final concentration of 1 ppb and 10 ppb, respectively. Elemental analysis was performed via ICP-MS using a Cetac ASX-560 sampler (Teledyne, CETAC Technologies, Omaha, Nebraska), a MicroFlow PFA-100 nebulizer (Elemental Scientific, Mainz, Germany) and an ICAP^TM-RQ ICP-MS instrument (Thermo Fisher Scientific, Bremen) operating with a collision cell and flow rates of 4.5 ml x min⁻¹ of He/H₂ (93%/7% [64]), with an Ar carrier flow rate of 0.76 l x min⁻¹ and an Ar make-up flow rate at 15 l x min⁻¹. An external calibration curve was recorded with ICP-multi-element standard solution XVI (Merck) in 2% (v/v) nitric acid. The sample was introduced via a peristaltic pump and analyzed for its metal content. For blank measurement and quality/quantity thresholds, calculations based on DIN32645 TMM were used. The results were calculated from the ppb data as atoms per cell as described [27].

Determination of Rho-utilization sites

The program RhoTermPredict was used to predict all possible rut sites in the genome of C. metallidurans CH34 using the gene bank entry CH34.gbk. This program gives for each possible rut site the DNA sequence, the downstream sequence and a list of one or more conserved sequence motifs with a score between 6 and 15 for each set of conserved motifs [65]. The rut sites were denominated for each replicon and DNA strand depending on the order of the start position, the “+” or “−” strand and the replicon number from “2” for the chromosome to “5” for plasmid pMOL28. For each rut site, the score of the best conserved sequence motif was noted. As the next step, the rut sites were assigned to a gene if they were located within or downstream of its ORF. For each gene, the number 5 was subtracted from each rut site and all the resulting values for each gene were summarized to give a rut probability per gene (Supplementary Material M2 and M3).

RNA isolation

Cupriavidus metallidurans strains CH34 and AE104 were cultivated to a turbidity of 120 Klett units. EDTA was added at 50 µM for both strains, and 3.35 mM MultiTox metal mix specific for CH34, 1 mM for AE104, or no addition was made. After a further 10 min incubation with shaking at 30°C, cells were rapidly harvested at RT and stored at −80°C. Total RNA was isolated with RNeasy Plus Mini Kit (Qiagen, Hilden, Germany) according to the manufacturer's instruction. One DNase treatment was performed. To exclude experimental artifacts resulting from DNA contamination, only RNA was used that did not generate products in several PCR reactions with chromosomal- and plasmid-designed oligonucleotide primers. RNA concentration was determined photometrically, and RNA quality was checked on formamide gels [66] and measured as RNA integrity number on an Agilent 2100 Bioanalyzer (Agilent Technologies, Waldbronn, Germany). Three biological repeats were done per strain and condition.

Determination of the transcriptome

RNASeq was performed by Vertis Biotechnology AG (Freising, Germany). The program TraV (Mac) [28] was used to calculate the NPKM values for all genes, 5′ and 3′ untranslated regions (5UTR, 3UTR), free and antisense transcripts (FT, AST) for all strains (CH34, AE104), conditions (no addition, EDTA, metal mixes), and biological repeats. Gene bank accession CH34.gbk served as the basis for annotation and contains the replicons CP000352, 3, 4, and 5 corresponding to the chromosome, chromid, plasmid pMOL30, and pMOL28, respectively. The NPKM values were the transcript abundances of annotated features such as genes for proteins and RNAs. The 5UTR and 3UTR indicated continued transcription directly adjacent to the annotated features. The constraint for FT were transcripts outside of annotated features neither on the positive nor negative DNA strand. AST was finally similar to FT but required an annotated feature on the other DNA strand [28]. ASTs were thus uninterrupted transcript abundances that continued into, or across, regions that contained annotated features on the other DNA strand.

The 10 179 sense transcripts (genes, 3UTRs, 5UTRs) in untreated cells of C. metallidurans CH34 were listed according to the associated Rmet locus tag with the mean NPKM value and deviation of the three biological repeats, associated antisense transcript, mean NPKM value plus deviation of the AST signal and the ratio of the mean NPKM values of the sense and antisense transcript “S/AS”. These contained the values for ORFs, 3UTRs, and 5UTRs. Moreover, the sense signals were associated with operons as described [55], the rut score, the KEGG orthology [67, 68], and description of the gene product (Supplementary Material M2). In five comparisons, the ratios of the sense, antisense, and S/AS values were calculated. These were the comparisons metal-challenged to non-challenged CH34 cells (CH34_M_0), EDTA-challenged to non-challenged CH34 cells (CH34_E_0), comparison of non-challenged AE104 to CH34 cells (0_AE104_CH34), and the same for metal- (M_AE104_CH34) and EDTA-(E_AE104_CH34) challenged cells (Supplementary Material M2). All significant differences (D > 1) with ratios below 0.5 or above 2 were noted. This comparison allowed to identify the sense transcripts regulated under metal stress or starvation, in strain AE104 differently compared to the wild- type CH34, compare this regulation with that of the associated antisense transcript and assign everything to a metabolic pathway via the KEGG orthology system.

The signals for the genes were named according to the Rmet locus tag of the respective gene, for instance “NPKM_6315” as signal for locus tag Rmet_6315, which is the parA gene of plasmid pMOL28. The 5′ and 3′ untranslated regions were named according to their directly adjacent downstream gene as “5UTR” and “3UTR” signals, respectively. The free and antisense transcripts were “FT” or “AST”, followed by the position of the first base, “−” or “+” for the DNA strand and the number 2, 3, 4, or 5 that identified the replicon, for instance “AST_39 425 + 5” starts at position 39 425 on the “+”-strand of replicon CP000355 or plasmid pMOL28. Following the naming, the mean values and deviations of the NPKM values of the three biological repeats were calculated for all data points, genes, UTRs, FTs, and ASTs. Since the annotation of the CH34 genome has changed many times in the last years, the “Rmet” locus tags were used to allow comparability with older data.

To identify overlaps between the ASTs and the sense transcripts from genes and UTRs, the ASTs, 5UTRs, 3 UTRs, and annotated ORFs were sorted in the order of the increasing start (DNA “+” strand) or decreasing (DNA “−” strand) stop position. In this way, “Cont”-ASTs were identified that directly continued a sense transcript of the ORF of a gene (distance up to 15 bp from the position of the last bp of the stop codon allowed but was 1 is most cases). All other ASTs were annotated as “FREE”. These started within a gene or UTR and this overlap was noted, or they started outside of an annotated region of a sense transcript. After bridging regions without regions of annotated sense transcripts, some ASTs continued into other annotated regions of sense transcripts further downstream.

To assign ASTs as an antisense transcript specifically to a sense transcript, the ASTs were also listed in the order of the start and stop position of the annotated sense transcripts on the other DNA strand. An AST was assigned to a gene or UTR, if it stopped, started or ran across a sense region. In this way, for each gene or UTR: (i) A mean value and deviation of the sense NPKM values was obtained; (ii) If present, an associated AST with its FREE, Cont, or overlapping feature with respect to the transcripts on the same DNA strand could be identified; (iii) The NPKM mean value and deviation of the AST were defined; and (iv) The ratio of the sense and antisense NPKM values S_AS was determined. These results were obtained for both strains and their three different growth conditions, CH34_0 without metal shock, CH34_M shocked with its strain-specific metal mix, CH34_E treated with EDTA, and again the analogous conditions for strain AE104, AE104_0, AE104_M, AE104_E.

In the final comparison, the sense and antisense NPKM values for two strains or conditions were compared. The Q ratios were calculated for the sense, antisense NPKM values and the S_AS values. The D values (absolute difference of the mean values divided by the sum of the deviations) were also calculated. A value was considered as significant if ((Q > 2 or Q ≤ 0.5) and D > 1). The comparisons were CH34_M_0 (metal shock divided by non-shocked cells), CH34_E_0 (EDTA or not), 0_AE104_CH34 (difference of the strains under standard growth conditions), M_AE104_CH34 (cells shocked with their specific metal mix), and E_AE104_CH34 (comparison of the EDTA-treated cells). Finally, all gene and UTR loci with their respective “Rmet” locus tags were assigned to their predicted operons, the KEGG orthology and a description of the gene products.

RT-PCR

For the RT reaction, 1 µg of total RNA and 0.1 µg hexamer or gene-specific primers were incubated at 65°C for 5 min and snap-cooled on ice. After addition of 0.5 mM each of dATP, dGTP, dTTP and dCTP, 20 mM DTT, and 100 U of reverse transcriptase (superscript II) in reaction buffer (Thermo Fisher Scientific, Germany) reverse transcription proceeded for 10 min at room temperature, followed by 1 h at 42°C. After finishing the RT reaction, the enzyme was inactivated at 70°C for 10 min. One microliter of the resulting cDNA was amplified by PCR with 0.2 µM of each primer and 1 U of Taq-Polymerase (Roche Diagnostics GmbH, Mannheim, Germany). A no-template control and a no-RT (negative) control were performed under identical conditions as for the target genes. The primer sequences are in Table S6.

Statistics

Students’ t-test was used but in most cases the distance (D) value, D, has been used several times previously for such analyses [69–71]. It is a simple, more useful value than Student's t-test because non-intersecting deviation bars of two values (D > 1) for three repeats always means a statistically relevant (≥95%) difference provided the deviations are within a similar range. At n = 4, significance is ≥97.5%, at n = 5 ≥ 99% (significant) and at n = 8 ≥ 99.9% (highly significant).

Acknowledgement

We thank Gary Sawers for critically reading this manuscript, Grit Schleuder for skillful technical assistance and for organizing our strain collection for nearly 30 years.

Funding

Funding for this work was provided by the Deutsche Forschungsgemeinschaft (Ni262/19 and Ni262/20).

Data availability

RNASeq data were deposited as BioProject PRJNA753702.
