Revealing the hierarchy of processes and time-scales that control the tropic response of shoots to gravi-stimulations Open Access

Abstract

Gravity is a major abiotic cue for plant growth. However, little is known about the responses of plants to various patterns of gravi-stimulation, with apparent contradictions being observed between the dose-like responses recorded under transient stimuli in microgravity environments and the responses under steady-state inclinations recorded on earth. Of particular importance is how the gravitropic response of an organ is affected by the temporal dynamics of downstream processes in the signalling pathway, such as statolith motion in statocytes or the redistribution of auxin transporters. Here, we used a combination of experiments on the whole-plant scale and live-cell imaging techniques on wheat coleoptiles in centrifuge devices to investigate both the kinematics of shoot-bending induced by transient inclination, and the motion of the statoliths in response to cell inclination. Unlike previous observations in microgravity, the response of shoots to transient inclinations appears to be independent of the level of gravity, with a response time much longer than the duration of statolith sedimentation. This reveals the existence of a memory process in the gravitropic signalling pathway, independent of statolith dynamics. By combining this memory process with statolith motion, a mathematical model is built that unifies the different laws found in the literature and that predicts the early bending response of shoots to arbitrary gravi-stimulations.

Introduction

Plants have developed the ability to sense their inclination relative to the local vertical orientation as defined by the vector of gravitational acceleration g, and to adjust their shape accordingly, a process called gravitropism. The main gravity sensor of plants is located in specialized cells called statocytes, in which starch-filled plastids (statoliths) are found (Moulia and Fournier, 2009; Morita, 2010). Statoliths are denser than the surrounding cellular fluid and sediment at the bottom of the cell. When the plant is inclined, statoliths flow along the direction of gravity and trigger signalling processes, which induce the bending of the organ. A widely accepted step in this process is the creation of an auxin asymmetry between the upper and the lower part of the organ, which mediates differential growth and results in the bending of the plant. This asymmetric distribution, which is observed for shoots and roots (Harrison and Masson, 2008; Rakusová et al., 2011; Brunoud et al., 2012; Band et al., 2012), seems to be driven by the redistribution of auxin transporters (PIN proteins) along the statocyte membranes (Friml et al., 2002; Rakusová et al., 2011). However, the different steps and temporal sequences of the gravitropic signalling pathway from the initial intracellular perception by the statoliths to the growth-induced bending of the plant remain largely unknown (Su et al., 2017).

One way to address these questions involves investigating the macroscopic bending kinematics of the plant in response to different temporal and intensity patterns of gravi-stimulation (Hart, 1992; Moulia and Fournier, 2009). So far two kinds of experiments have been reported in the literature, corresponding to two different stimuli. The first involves permanently inclining the base of the plant at different angles relative to gravity. The response, defined as the bending velocity, is found to vary with the sine of the initial inclination of the plant shoot, θ_init, (for reviews see Sachs, 1887; Larsen, 1969; Iino et al., 1996; (Moulia and Fournier, 2009; Pouliquen et al., 2017). This relationship, known as the ‘sine law’, is at the origin of the ‘starch-statolith weight model’, which proposes that the sensor acts as a force sensor that is sensitive to the pressure exerted by weight of the statoliths on the lateral membrane of the statocyte (Perbal and Perbal, 1976; Galland, 2002; Leitz et al., 2009). In a recent study, Chauvet et al. (2016) tested this hypothesis using centrifuge experiments to disentangle the effect of the direction (i.e. the angle between the initial inclination of the plant shoot and the gravity vector) and the intensity of the gravity vector on the plant shoot response. They showed that the plant response is proportional to sin(θ_init) and not to g_eff × sin(θ_init). This insensitivity to the effective gravity, g_eff, reported for land angiosperms has also been observed for characean green algae (Limbach, 2005). The gravity sensor in plants thus works as a clinometer and not as a force sensor, thereby falsifying not only the ‘statolith pressure hypothesis’ but also the alternative ‘protoplast pressure hypothesis’ (for a more complete argument see Pouliquen et al., 2017). These observations support an alternative ‘position sensor hypothesis’, in which the relevant parameter triggering the signal pathway is the position of the statoliths within the statocytes (Strohm et al., 2014; Pouliquen et al., 2017).

The second type of macroscopic experiments have focused on the establishment of a ‘dose–response’ by applying transient stimuli. Experiments have been carried out either in microgravity conditions (Perbal and Driss-Ecole, 1994; Brown et al., 1995; Driss-Ecole et al., 2008), where the plant is transiently exposed to different values of g_eff for a time ∆t using a centrifuge before gravity is switched again to zero, or in ground-based experiments using clinostats to compensate for the effects of Earth gravity on the statolith sedimentation and hence to suppress gravisensing (Larsen, 1957; Shen-Miller, 1970; Caspar and Pickard, 1989; Kiss et al., 1989; Galland et al., 2004). In all these experiments, the gravitropic response is usually quantified by a ‘dose–response’ curve, where the dose refers to the amount of the stimulus perceived by the sensor during the exposure time. For gravisensing, the dose is defined as g_eff × ∆t (Hart, 1992; Perbal et al., 2002), although the quantification method of the response has differed between studies. The major purpose of these dose–response studies has been the determination of a sensitivity threshold, i.e. the minimum dose required to produce a response (Brown et al., 1995; Perbal et al., 2002). This is why they have been conducted under a range of low-gravity intensities.

This body of experimental work is difficult to amalgamate into a unified framework. Indeed, the observation of a ‘dose–response’ showing a response proportional to the intensity of gravity, g_eff, in transient inclination experiments is in apparent contradiction to the ‘sine law’ obtained for a permanent inclination, with the latter showing that the response does not depend on gravity. Within the ‘position sensor hypothesis’, Pouliquen et al. (2017) have proposed that these two response laws could actually represent two different regimes of the same underlying process, depending on the duration of the stimulation compared to an intrinsic time-scale of the signalling pathway. They proposed that this intrinsic time-scale could be determined by the time taken by the statoliths to move in the statocytes in response to a gravitropic stimulus. During a permanent inclination, the final position of the statoliths is the same whatever the intensity of the gravity and only depends on the angle of inclination, which could explain why g_eff does not appear in the ‘sine law’. However, the amount of time necessary for statoliths to move and reach their final position is expected to depend on the intensity of g_eff. If the duration of the stimulus, ∆t, is too short, statoliths may not have time to reach their final equilibrium position; the response is then expected to be a function of the displacement of the statoliths, which should depend on both ∆t and g_eff.

The objective of the present study was to test the hypothesis of a crucial role of the time-scale for collective statolith motion by studying on the same system (wheat coleoptiles) both the tropic response of the plants and the motion of the statoliths when the plant is submitted to permanent or transient stimuli. The comparison between the observations at the two scales revealed a more complex scenario than initially anticipated, in which the gravitropic response is controlled by a whole hierarchy of time-scales, and not only by the avalanche time of the statoliths. Based on these observations, we have developed a mathematical model that extends previous kinematic models for plant gravitropism (Bastien et al., 2013, 2014; Dumais, 2013) to unsteady stimuli. This model enables the shoot responses to arbitrary gravi-stimulation to be predicted and unified within a single framework.

Materials and methods

Plant material and culture conditions

Seeds of wheat (Triticum aestivum cv Demeter) were used for all experiments. For experiments at the plant scale, seeds were each individually glued at the top of one side of a small plastic box (35×25×10 mm). The boxes were open at the top and filled with cotton wool. The germ of the seed was pointing down toward the cotton wool to ensure an initial straight coleoptile. For experiments at the cell scale, around 30 seeds were dispersed in a plastic container (323×63 mm) with random orientation. In both sets of experiments, the seeds were placed in a humidification chamber located in a dark room with controlled temperature (24 °C). Experiments were carried out when the coleoptiles reach a size of ~1.5–2.5 cm (about 4 d after germination).

It should be noted that at this stage the cell division is over. Reports in the literature indicate that cell division ceases very early when the coleoptile is ~3 d old and with a size that ranges from 9 mm (Lu et al., 2006) to 17 mm (Wright, 1961). Therefore, in all our experiments, the growth and differential growth involved only cell expansion. Bastien et al. (2013, 2014) also showed that at this stage the distribution of the relative elemental growth rate along the growth zone of the coleoptile is steady, so that both the elongation rate and the size of the elongation zone are steady.

Experimental set-up at the plant scale: transient inclination at different gravity levels

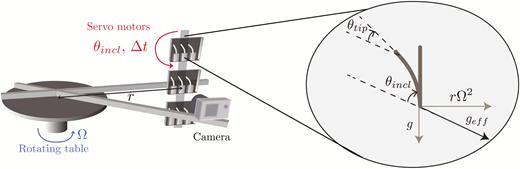

The experimental set-up used to study the response to transient stimuli is illustrated in Fig. 1. Three small chambers (110×110×30 mm) were fixed on a rotating table (Shimpo RK-3E, Shimpo Kyoto Japan). Each chamber contained three coleoptiles and was attached to a servomotor to precisely control their orientation. The whole set-up was placed inside a dark room at a temperature of 24 °C. The rotating table was put in rotation at Ω=1 rotations s^–1 to create centrifugal acceleration equivalent to three times the Earth’s gravity (i.e. g_eff=3g) at the location of the chambers, or it remained static for experiments at g_eff=1g. A camera (Nikon D200) was fixed in front of the three chambers and was synchronized with a flash. The camera shutter and the servomotors controlling the inclination of the chambers were monitored using an open-source microcontroller (Arduino; https://www.arduino.cc/). Before experiments, three wheat coleoptiles in their small boxes were placed in each chamber (Fig. 1). A time sequence of inclination angles was then uploaded to the microcontroller memory (see Results). The sequence started with a resting period (~6 h) when the coleoptiles were aligned with the effective gravity (vertical for g_eff=1g but inclined when g_eff=3g), followed by a stimulation period ∆t when an inclination angle θ_incl was imposed, and finally the coleoptiles were re-aligned with the direction of the effective gravity. Time-lapse images are taken every hour during the resting period and the frequency was increased by the microcontroller to one image every 5 min once the stimulation had started. For each ∆t, the responses of several coleoptiles (between 9–27) were analysed.

Live-cell imaging of the motion of statolith at different gravity levels

To observe the dynamics of the statoliths, a small longitudinal slice (a few millimetres long) was manually cut at the apex of the coleoptile using a razor blade (Fig. 2a). The slice was done at the sharper edge of the coleoptile where the vascular tissue is located and along which the statocytes are positioned. Up to four slices were then enclosed in a small cavity made in polydimethylsiloxane (PDMS) fixed to a microscope slide (Fig. 2a). The cavity was filled with a solution of D-sorbitol (0.2 mol l^–1) and closed with a cover slide, which ensured an in vivo state for several hours. For experiments at g_eff=1g, a bright-field microscope (Leica DM 2500P) equipped with a camera (Nikon D300) was tilted on its side so that the stage plane aligned with the direction of gravity (Fig. 2b). When the stage rotated the statoliths moved in the focal plane of the microscope and time-lapse images were taken to follow their motion. For experiments at g_eff=3g, a very compact microscope (NM1 Newton microscope) equipped with a small camera (GoPro Hero 4) was used and placed on the same rotating table as described above (Fig. 2c). The inclination of the microscope was controlled by a servomotor through the Arduino microcontroler. In both set-ups, the procedure to analyse the statolith dynamics was the same. The sample was kept fixed for several minutes with the cells aligned with the direction of gravity (vertical at 1g and aligned with g_eff at 3g on the rotating table) in order to let the statoliths sediment at the bottom of the cell and form a pile. Observing sedimentation is an efficient way to select cells that act as statocyte cells, by selecting only the ones containing statoliths denser than the intercellular medium. A sudden inclination was then applied using the rotating stage and acquisition of data commenced.

Image analysis

In the plant-scale experiments, the spatio-temporal responses of the coleoptiles were measured using the same software that was developed and described by Chauvet et al. (2016). The topological skeleton of coleoptile was first extracted and then analysed to compute the response of the coleoptile length over time, L(t) and of the tip angle, θ_tip(t) (Fig. 1), defined as the spatial mean inclination of the skeleton at the tip over a length equal to two mean coleoptile diameters. This inclination was measured relative to the direction of the local gravity (vertical at g_eff=1g and inclined at g_eff=3g). For experiments at the cell scale, the bright-field microscopy images are analysed using a specific Python script and the scikit-image library (van der Walt et al., 2014). The outlines of the statocyte cells were first delineated manually (Fig. 3a). For each selected cell, the image was then cropped along the cell outline and a local minimum filter with a size of about one statolith diameter was applied inside the cell such that the pile of sedimented statoliths appeared as a uniform black area. This area was finally extracted using a contour-finding algorithm based on a gray-scale threshold level (Fig. 3b). To quantify the motion of the statolith pile inside the cell, the angle of the pile free surface relative to horizontal, Ψ, was computed (Fig. 3c).

Theoretical model

We developed a mathematical model to describe the spatio-temporal responses of a shoot subjected to an arbitrary gravi-stimulation. We have followed previous kinematic models, and first describe the relationship between the rate of change of the curvature, C, of the shoot and the differential elongation rate $Δε˙$ between the top and the bottom faces of the shoot in response to the gravi-stimulation:

where R is the radius of the shoot and is assumed uniform, and τ_growth is the growth time equal to the inverse of the mean elongation rate $ε˙$ (i.e. $τgrowth=1/ε˙$⁠) of the stem (Moulia and Fournier, 2009). This equation is derived from the simplification of a more general model accounting for growth-induced motions of the cell wall materials along the tropic growth response (for the complete derivation see Bastien et al., 2014). This simplification holds when (i) the time-scale of the tropic bending is small compared to the time-scale of the cell elongation-induced displacement, and (ii) the size of the growth zone is steady and the growth zone spatially coincides with the tropic response zone. In our experiments, the bending of the coleoptile was fast (~1 h) compared to cell elongation growth (τ_growth ~17 h), and the growth zone of the coleoptile coincides with the tropic bending zone.

In a series of studies Bastien et al. (2013, 2014) assumed that the relative differential growth was controlled by the sum of a gravitropic signal G_s and of a proprioception signal P_r:

with the gravitropic signal being proportional to the sine of the inclination A of the stem relative to the vertical, $Gs=−β_sin(A)$ where $β_$ is the gravitropic sensitivity, and the proprioception being proportional to the curvature $C,Pr=−γ¯CR$⁠, where $γ~$ is the proprioceptive sensitivity. Bastien et al.’s model (AC model) described the spatio-temporal kinematics of shoots subjected to permanent inclinations and the possible overshoot from the vertical, which is controlled by the relative importance of the gravitropic sensitivity and of the proprioception. However, the AC model cannot capture the dose–response under transient inclination as applied in our study, as the gravitropic signal is assumed to respond instantaneously to the shoot angle A. Here, we extend this model using the ‘position sensor hypothesis’ (Pouliquen et al., 2017), which stipulates that the relevant parameter controlling the gravitropic signal is the position of the statolith pile within the cell. In addition, we assume that the position of the statoliths is not instantaneously transcribed into differential growth, but that the gravitropic signal results from an integration process of the statolith position with a memory time and a delay. The new model, termed A-SD-M (for angle–statolith dynamic–memory), thus contains two additional ingredients, namely the displacement of the statoliths and the integration process, which are described below.

Statolith avalanche

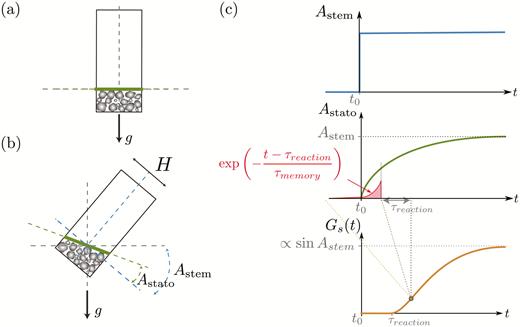

When the stem is inclined (Fig. 4b), the pile formed by the dense statoliths at the bottom of the cell moves like an avalanche of grains and the dynamics are characterized by the evolution over time of the pile inclination A_stato(t) relative to the cell inclination A_stem. In contrast to a classical granular medium, we assume that the pile after the avalanche returns to the horizontal and presents a free surface perpendicular to the gravity vector. This absence of a repose angle is suggested by experimental observations (Bérut et al., 2018) and is discussed in Pouliquen et al. (2017). The dynamics are described by a viscous relaxation of the pile towards the horizontal position, leading to the following equation:

τ_aval is the characteristic duration of the avalanche and is quantitatively estimated from experimental observations. A typical response curve of the free surface angle A_stato following a sudden inclination of the stem is shown in Fig. 4c. A theoretical expression of τ_aval is derived by assuming that the dynamics are controlled by the balance between the gravitational driving force Mg_eff sin(A_stato –A_stem), where M is the buoyancy-free mass of the statolith pile (proportional to the density difference ∆ρ between the starch and the water), and a viscous force proportional to ηH².d(A_stato)/dt (Guyon et al., 2015), where η is the viscosity of the intracellular fluid and H is the typical thickness of the pile. The scaling of the avalanche duration is then given by:

Where α is a pre-factor that may depend on other dimensionless parameters such as the aspect ratio of the statolith pile or the number of statoliths. Note that the avalanche duration τ_aval is inversely proportional to the gravity intensity g_eff, meaning that it increases when gravity decreases.

The gravitropic signal

We next assume that the gravitropic signal G_s controlling the differential growth on the two faces of the inclined stem is linked to the position of the statoliths, A_stato, by an integrative process. Specifically, we assume that the gravitropic signal at time t is given by the integral of the sine of the angle of the statoliths A_stato(t´<t) over a memory time τ_memory after a global time delay τ_reaction. The decay function associated with the memory process, i.e. the kernel of the integral, is chosen to be exponential for the sake of simplicity. Mathematically, the expression of the gravitropic signal is written as:

where β is a constant. After a derivation for time, eqn (5) can be written as:

The typical response of G_s following a sudden inclination is shown in Fig. 4c.

The final A-SD-M model

To finalize the model, we assume that eqns (1), (2), (3), and (6) apply at each location of the stem indexed by the curvilinear abscissa s, the local curvature being related to the stem angle by C(s,t)=∂A_stem(s,t)/∂s (Moulia and Fournier, 2009; Bastien et al., 2013). The response of a stem to an arbitrary time-dependent inclination applied at its base A_stem(0,t) is then given by the following set of four differential equations:

where the proprioception term is neglected, as we are interested only in describing situations where curvatures are small. This set of equations was solved numerically using a Python script based on a finite difference scheme.

Calibration

In order to quantitatively compared the predictions of the model with the experimental measurements, the parameters needed to be calibrated. Some were directly obtained from the experimental measurements. The elongation rate, and thus the growth duration τ_growth, and the radius R were measured in the experiments and the following values were used: τ_growth=1200 min (ε = 8.4×10^–4 min^–1), and R=0.8 mm. The avalanche duration τ_aval was obtained by fitting the observed experimental response of the angle of the statolith piles with an exponential, giving τ_aval=1.04 min for g_eff=1g. The reaction time τ_reaction was given by the minimum time recorded before a response was observed, which was found to be 13 min. Finally, the parameter β and the integration time τ_memory were chosen equal to 0.8 and 13 min, respectively, to correctly fit the dose–response curves.

The different regimes predicted by the A-SD-M model for the gravitropic response to transient inclinations at various values of g_eff

In this study, we were interested in the response of a coleoptile inclined over a duration ∆t at an angle θ_incl before being returned to the vertical. Within certain limits, predictions can be made from the theoretical model described above, and these are discussed below.

To measure the response from data obtained from our experiments, we used the gravitropic sensitivity $β~$ (Bastien et al., 2014; Chauvet et al., 2016), defined as the dimensionless speed of variation of the tip angle:

where dθ_tip/dt is the maximum slope during the first increase phase of the tip angle, <dL/dt> is the averaged growth velocity of the coleoptile, and L and R are the length and the radius of the coleoptile, respectively. $β~$ has been shown to be independent of the angle of inclination, of the elongation growth rate, and of the size of the organ (Bastien et al., 2013, 2014). We used the A-SD-M model to derive asymptotic solutions to predict how $β~$ depends on the duration of the inclination ∆t and on the parameters of the model. According to A-SD-M, the reaction time τ_reaction, the memory time τ_memory, and the growth time τ_growth were constant and independent of the experimental conditions, with τ_memory<<τ_growth. However, both τ_aval, which depends on the gravity conditions, and the duration of inclination ∆t can be varied. To derive theoretical solutions, we first assume that the curvature can be approximated by C≈θ_tip/L as the initial response displays homogeneous curvature rates; (Chauvet et al., 2016), and eqn (7) can be written at the tip with s=L:

with τ*_growth = τ_growthR/βL. Different cases can be considered depending on the values of τ_aval and ∆t compared to τ_memory and τ*_growth.

1st case τ_aval << τ_memory << τ*_growth.

The avalanche is very rapid compared to the integration process and to the growth time, which from eqn (9) implies that for s=L: A_stato(L,t) ≈ A_stem(L,t) ≈ θ_incl.

If ∆t >> τ_memory, the integration process is fully saturated during the inclination, meaning from eqn (8) that G_s(L,t) ≈ βA_stato(L,t) ≈ βθ_incl. From eqn (12) and the definition of $β~$⁠, it can be shown that in this case $β~≈β$⁠, meaning that the gravisensitivity is independent of the duration of the inclination. In this case, we recover the classical ‘sine law’ used in the AC model.

If ∆t << τ_memory, an estimate of the gravitropic signal is given by eqn (8): G_s(L,t) ≈ (∆t/τ_memory)βθ_incl, which together with eqn (12) implies that $β~≈β(Δt/τmemory)$⁠.

2nd case τ_memory << τ_aval << τ*_growth.

The avalanche is much slower than the integration process but faster than the bending of the plant. Equation (8) implies that G_s ≈ βA_stato.

If ∆t >> τ_aval, the statolith pile has time to relax to the horizontal and eqn (9) implies that A_stato ≈ A_stem ≈ θ_incl and again the gravitropic sensitivity defined by eqn (11) is given by $β~≈β$⁠.

If ∆t << τ_aval, eqn (9) gives an estimate of the statolith pile angle $Astato≈(Δt/τaval)θincl$⁠, implying that $β~≈β(Δt/τaval)$⁠.

3rd case τ_memory << τ*_growth << τ_aval.

The typical time of bending is small compared to the relaxation time of the statolith pile to the horizontal, implying that A_stato remains very small. At the tip, eqn (9) can be approximated by dA_stato/dt(L,t) ≈ A_stem(L,t)/τ_aval ≈ θ_tip/τ_aval. Because the integration process is very rapid, the gravitropic signal (eqn 8) is given by G_s ≈ βA_stato. By differentiating eqn (12), it is found that the response of the tip angle with time obeys the following differential equation:

Knowing that just after inclination, θ_tip(t=0) = θ_init and dθ_tip/dt = 0, a solution is

This implies that

Knowing that $β~=τ*growthβ(dθtip/dt)max$⁠, the following expressions are obtained for $β~$⁠:

if $Δt≪τgrowth∗τaval$⁠, then $β~≈β(Δt/τaval)$⁠.

If $Δt≫τgrowth∗τaval$⁠, the time response of dθ_tip/dt being sinusoidal, then the maximum is obtained when the sinus is equal to one. This implies that $β~≈β(τgrowth∗τaval)$⁠.

From the different analytical limits derived in this section a phase diagram can be plotted showing the different regimes of the gravitropic response of a plant submitted to transient inclination (see below).

Results

The gravitropic response to transient inclinations follows a dose–response relationship

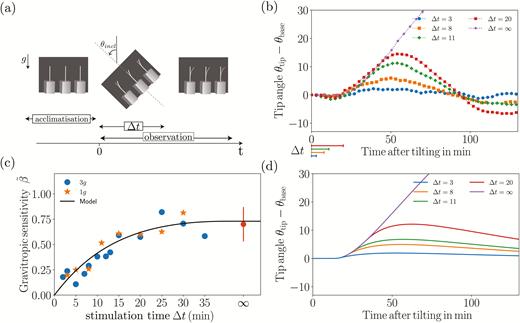

We first present results concerning the responses of wheat coleoptiles subjected to transient inclinations at θ_incl = 45° over a time duration ∆t ranging from 2–35 min before being returned to the vertical (Fig. 5a). The response of θ_tip(t)–θ_base(t) averaged over the set of coleoptiles plotted for different values of ∆t at a gravity intensity g_eff=1g (no rotation of the table) is shown in Fig. 5b. The inclination at the base θ_base(t) is simply equal to zero before and after the inclination, and equal to θ_incl (45°) during the transient inclination. For each curve, the initial time t=0 corresponds to the beginning of the transient inclination, and the duration of the inclination is indicated on the graph by the segments below the axis. All the curves in Fig. 5b follow the same trend. First, after the inclination is imposed, there is always a delay of about 15 min before any bending motion is observed. After this delay, the tip angle increases, meaning that the plant bends in the direction opposite to that of the inclination. The tip angle then reaches a maximum before decreasing and returning to zero after a few oscillations. Increasing the duration of inclination ∆t increases the initial speed of bending and the maximum value reached by the tip angle.

The gravitropic sensitivity $β~$ defined by eqn. (11) (Fig. 5c) first increased with the inclination duration ∆t before reaching a plateau, the value of which corresponded to $β~$ measured when a permanent inclination was applied (∞ on the graph).

Interestingly, a gravitropic response was observed in our experiments as soon as ∆t was not zero, despite the reaction time. Therefore, no sensitivity threshold or minimum ‘presentation dose’ was observed in our system.

The dose–response relationship is independent of the gravity intensity under Earth and hypergravity conditions

In microgravity, the gravitropic dose has been shown to be proportional to both the duration of stimulation ∆t and the gravity intensity. To check the validity of this law, experiments were carried out at a higher level of gravity intensity using a rotating table set-up (Fig. 1). In Fig. 5c the circles show the gravitropic sensitivity $β~$ as a function of the inclination duration ∆t for an effective gravity g_eff=3g. Surprisingly, data fall on the same curve as for g_eff=1g. Therefore, in contrast with the dose–response reported in microgravity, no influence of the effective gravity on the gravitropic sensitivity was observed.

Avalanche dynamics of the statolith piles in response to statocyte inclination

Our observation of a gravitropic response that was proportional to the stimulation time but independent of the gravity intensity questions the link between the dose–response relationship and the statolith dynamics proposed by Pouliquen et al. (2017) (see Introduction). Indeed, it would be expected that the motion of the statoliths should depend on the gravity intensity. To address this issue, we have observed the motion of statoliths in wheat coleoptile statocytes in response to inclination (see Figs 2 and 3).

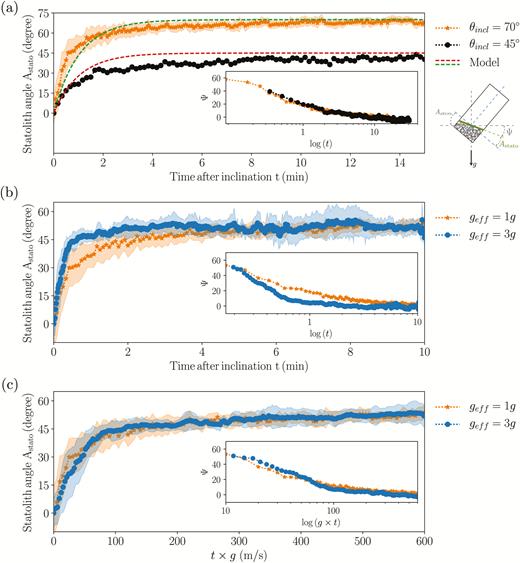

The time evolution of the statolith angle A_stato (defined as the angle between the free surface of the statolith pile and the small side of the cell) averaged over several cells (typically 10) for an initial inclination of the sample of either 70° or 45° are shown in Fig. 6a. As soon as the inclination was imposed, the statoliths started to flow in a coherent manner along the cell wall, with no noticeable delay. A_stato increased within few minutes from zero to its final value equal to A_stem, the inclination angle imposed to the system, meaning that the free surface of the statolith pile relaxed to the horizontal (Fig. 6a). A more careful analysis revealed that these dynamics of relaxation were characterized by two regimes (Bérut et al., 2018). First, the free surface rapidly moved and reached an angle of about Ψ=10° from the horizontal in about 2 min (Fig. 6a inset); the free surface of the statolith pile then crept slowly and came back to the horizontal in about 20 min with logarithmic dynamics. Interestingly, the two dynamics obtained for the two different initial inclinations (70° and 45°) could be superimposed if the 45° curve was shifted so that its initial time coincided with the time when the avalanche at 70° reached 45° (Fig. 6a inset). This suggests that the dynamics of the statolith avalanches are controlled by the viscous drag of the surrounding cytoplasm rather than by inertial effects. This is also consistent with the low value of the Reynolds number for this flow: Re = ρUL/η ≈ 10^–6, where ρ is the density of the cytoplasm (≈10³ kg m^–3), U is the maximal statolith avalanche velocity (≈10 µm min^–1), L is the statolith pile size (≈20 µm), and η is the cytoplasm viscosity (≈10 mPa-s) (Bérut et al., 2018).

The time-scale of the statolith avalanche is controlled by the gravity intensity

In order to investigate the influence of the gravity intensity on the avalanching process, cell preparations were observed using a specialized set-up (see Methods). The avalanche dynamics at g_eff=1g and g_eff=3g are compared in Fig. 6b for the same initial inclination relative to the direction of the effective gravity vector. The dynamics of both were characterized by an initial rapid avalanche regime followed by a slow creeping motion, with the transition being sharper at 3g than at 1g. The main difference was apparent in the time scale. The avalanche at higher gravity intensity was faster, as expected from physical arguments (see ‘Statolith avalanche’ in the Methods).

According to eqn (4), the avalanche duration τ_aval should be three times longer at g_eff=1g than at g_eff=3g. To confirm this prediction, we plotted the change of the pile angle, Ψ, as a function of g_eff×t (Fig. 6c). The two curves corresponded, thus showing that the typical time-scale of the avalanche dynamics is inversely proportional to the gravity intensity: τ_aval ∝ 1/g_eff.

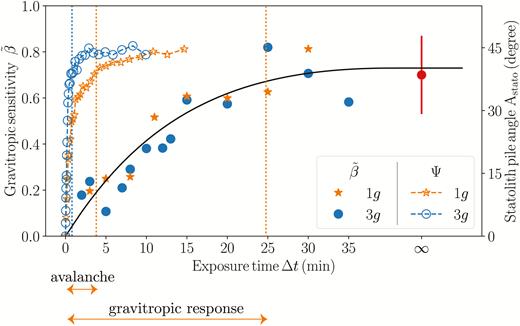

Evidence of a memory process independent of the dynamics of the statoliths

The time response of the statolith avalanche at the cellular level and the gravitropic dose–response at the whole-plant level can now be compared on the same plot (Fig. 7). For both gravity conditions g_eff=1g and g_eff=3g, the avalanche time appeared to be much shorter than the typical response time of the dose curve. This meant that for all the transient inclinations investigated (∆t between 2–20 min), the statolith piles had time to reach their final position well before the end of the stimulus (τ_aval < ∆t for all experiments). The increase of the gravitropic response with the stimulation time reported here therefore cannot be attributed to a limited excursion of the statoliths during ∆t, as suggested by Pouliquen et al. (2017). This suggests that the observed dose-like behaviour was due to another limiting process along the signalling pathway that integrates the initial signal induced by displacement of the statoliths, thus providing the system with a memory (Baldwin et al., 2013).

A mathematical model based on a hierarchy of time-scales predicts the dose–response relationship

Our experiments both at the plant scale and at the cellular level showed that the gravitropic response to various transient inclinations and gravity levels was controlled by at least four different time scales. The longest is set by the growth rate of the plant and is given by $τgrowth=1/ε˙$ (~1200 min; see Methods). The shortest time-scale is the statolith avalanche duration, τ_aval, which was ~2 min, as deduced from our in situ observations of the statolith dynamics. However, the analysis of the response to transient inclinations highlighted two other time scales. First, a reaction time scale τ_reaction (or delay) of about 15 min between the first stimulation and the first bending response, during which no bending was observed. Second, a new memory time scale τ_memory of about 20 min, independent of the statolith dynamics, as evidenced from the gravitropic dose–response relationship that was observed during transient inclination. From this set of information, we constructed a mathematical model that we term A-SD-M (angle-statolith dynamic-memory) to predict the bending response of shoots to arbitrary gravitropic stimulations (see eqns 7–10 in the Methods). It extends previous kinematic models of gravitropism (e.g. Bastien et al., 2014) by taking into account the coupling between (i) the statolith dynamics at the cellular level controlled by the avalanche time, τ_aval, (ii) the gravitropic signal obtained from integration of the position of the statoliths during the time τ_memory with a delay τ_reaction, and (iii) the change of curvature of the shoot in response to the gravitropic signal and controlled by the growth time, τ_growth (see Methods for full details). We focus on the early bending period that is dominated by the gravitropic response, and other processes such as proprioception have been omitted.

The predictions of the model for g_eff=1g are presented in Fig. 5d, in which the time response of the tip angle is plotted for a transient inclination at 45° and various stimulation periods ∆t that correspond to the experiments (Fig. 5b). During the first phase of the process, the model predictions quantitatively matched the experiments, with the same initial resting time controlled by τ_reaction followed by an increase of the tip angle up to a maximum. The second phase, when the tip angle decreased and the plant returned to vertical, was slower in the model than in the experiment, but for this long-term response it is likely that proprioception was no longer negligible (Bastien et al., 2014), thus requiring additional terms to be added to the model. Here, we focus on the gravitropic sensitivity $β~$⁠, calculated from eqn (11) in which dθ_tip/dt, the maximum slope of the tip angle as a function of time, is estimated from Fig. 5d. The prediction of the model for various stimulation periods ∆t is given in Fig. 5c (continuous line) together with the experimental measurements (symbols). The model fits well to the experimental data and reproduces both the increase and saturation of the response when the inclination duration ∆t is larger than the memory time τ_memory.

A phase diagram to unify the gravitropic response under hypo- and hypergravity conditions

The A-SD-M model thus predicted the gravity-independent dose–response relationship observed in our experiments under Earth and hypergravity conditions. An important question is whether the same model can also predict and explain the gravity-dependent dose–response that is observed for hypogravity conditions (Perbal and Driss-Ecole, 1994; Brown et al., 1995; Driss-Ecole et al., 2008). In the model, the gravity intensity comes into play only in the avalanche time, τ_aval, which is proportional to 1/g_eff (the three other time-scales, τ_growth, τ_memory, and τ_reaction, are assumed to be controlled by biochemical processes independent of gravity). Decreasing gravity is then equivalent in the model to increasing the avalanche time scale. To understand the model prediction in hypogravity conditions, we systematically varied the avalanche time in the simulations. For each value of τ_aval, the inclination period ∆t can be varied, and a phase diagram can be constructed in the plane (τ_aval, ∆t) showing the different gravitropic response laws predicted (see Methods for calculation details).

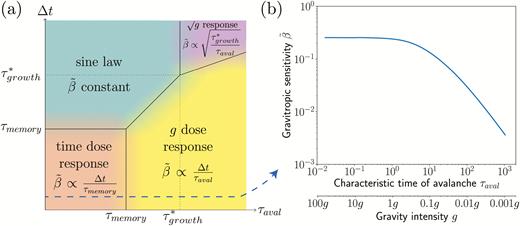

The phase diagram (Fig. 8) revealed the existence of four different regimes depending on the relative values of τ_aval and ∆t compared to τ_memory and τ_growth (τ_reaction plays a minor role in the gravitropic sensitivity as its influence is only to delay the response). The first regime was obtained when both τ_aval and the stimulation period ∆t were smaller than τ_memory (orange zone in Fig. 8). Within this range of parameters, a dose–response relationship independent of the gravity intensity was predicted by the model, with $β~∝Δt/τmemory$⁠. This regime typically corresponds to the experimental conditions of our current study, i.e. transient tilting experiments in Earth or hypergravity conditions. The second regime was obtained when $τaval<τgrowth$ and the stimulation period $Δt>Max|τmemory,τaval|$ (blue region). In this regime, the inclination stimulus can be considered as permanent. The integration process is fully saturated and the statolith avalanche motion is finished, implying that the gravitropic response depends on neither the inclination period ∆t nor the gravity, but instead only depends on the inclination angle. This regime typically corresponds to the sine law response to steady inclination as studied by Chauvet et al. (2016). The third regime was observed when the avalanche time τ_aval was longer than both the memory time τ_memory and the stimulation period ∆t (yellow region). During the stimulation period, the integration process is saturated but the movement of the statoliths is not yet completed (Pouliquen et al., 2017). In this case, the gravitropic response is also a dose–response relationship, but now the response depends on the gravity intensity: $β~∝Δt/τaval∝geff/Δt$⁠. This regime is compatible with experiments in low-gravity conditions, where a g_eff-dependent dose–response relationship has been observed (for the wheat coleoptiles studied here, $τaval>τmemory$ means that g_eff < 0.1g). The fourth regime predicted by the model corresponded to $τaval>τgrowth$ and $Δt>(τavalτgrowth)$ (purple region). In this case, the gravitropic response is independent of ∆t but depends on the gravity intensity $β˜∝(τgrowth\τaval)∝geff$ This last regime, which is controlled by the growth time and observed at very low levels of gravity and for long stimulation periods, has, to our knowledge, never been explored (for the wheat coleoptiles studied here, τ_aval > τ_growth means g_eff < 10^–3g).

The A-SD-M model therefore enables to unify the three main kinds of gravitropic responses reported here and in the literature: (1) the gravity-independent dose–response relationship observed here for transient stimuli under Earth and hypergravity conditions; (2) the gravity-independent sine law observed for very long or steady stimuli reported as by Chauvet et al. (2016); and (3) the classical gravity-dependent dose response discussed in the microgravity literature. In particular, for short stimuli (∆t<τ_memory), the model predicts that the transition between a ∆t dose–response and a g_eff∆t dose–response relationship occurs when the statolith avalanche time is increased, i.e. when the gravity intensity is decreased. This transition is illustrated in Fig. 8b, where the sensitivity is independent of g_eff when it is high and decreases linearly when it is low. The transition occurs when the avalanche time becomes longer than the memory time, i.e. when the slowest process in the signalling pathway is no longer the memory process and instead becomes the dynamics of the statolith avalanche.

Discussion and conclusions

Despite much progress in recent years (Strohm et al., 2012; Baldwin et al., 2013; Toyota and Gilroy, 2013; Pouliquen et al., 2017; Taniguchi et al., 2017), the spatio-temporal sequence of events that relates the early detection of gravity by the statoliths in the statocyte cells to the macroscopic gravitropic response of the plant, as well as to the molecular factors involved, is still not well understood. In this study on wheat coleoptiles, we used a combination of plant-scale experiments and live-cell imaging techniques on rotating devices in order to investigate both the kinematics of shoot bending induced by transient inclinations and the dynamics of the statoliths inside the statocytes during the inclination for different levels of gravity intensity. We then rationalized our experimental results into a new mathematical model, the A-SD-M model, that takes into account the statolith avalanche dynamics, a reaction time, the tropic growth process, and a novel memory-integration process. Once calibrated, the A-SD-M model quantitatively reproduced the experimental measurements of the response to transient inclination of the coleoptiles under both Earth and hypergravity conditions.

We developed a framework for predicting the early bending response of shoots to arbitrary gravistimulation, based on the time-scale of the new memory-integration process and on the time-scale of the movement (avalanche) of the statoliths. This framework can be represented as a phase diagram of the different gravisensing regimes predicted by the A-SD-M model as a function of the intensity and duration of the stimulus (Fig. 8a). This phase diagram enables us to unify within the same framework the gravitropic response to unsteady (dose–response) and steady (sine law) stimulations, from microgravity to hypergravity conditions.

Our study thereby enables to reconcile two classical laws found in the plant gravitropism literature, namely the gravity-independent sine law in response to steady inclinations and the gravity-dependent dose–response relationship reported for transient stimulations in microgravity. The key ingredient lies in the existence of an intrinsic time-scale in the gravitropic signalling pathway that filters the temporal variations of the imposed stimulation. Previously, we hypothetized that this intrinsic time-scale could be set by that of the statolith avalanche, which varies in inverse proportion to the gravity intensity (Pouliquen et al., 2017). However, our novel experiments under Earth and hypergravity conditions partially falsified this explanation. In addition, these experiments revealed a new gravity-independent dose–response relationship with a time scale τ_memory that was much longer than that of the statolith avalanche, indicating the existence of a more complex scenario. We therefore had to introduce a novel hypothesis that involves a memory process that integrates the initial signal induced by statolith displacement. Under Earth and hypergravity conditions, the integrative-memory process is dominant, whereas it disappears as the gravity intensity becomes very small and the time for avalanche completion τ_aval becomes larger than τ_memory (Fig. 8a).

Overall, our study highlights the importance of the time-scale hierarchy, from statolith motion to differential growth-induced bending, to predict the response of plants to arbitrary gravitropic stimulations. Key assumptions in the model are the introduction of the memory time-scale τ_memory, which buffers the initial signal induced by statolith displacement, and the introduction of a reaction time-scale τ_reaction, which postpones the response. Our results show the two processes to be independent of the gravity intensity and thus they cannot be attributed to the dynamics of the statoliths. Therefore, their origin has to be located in the downstream molecular signalling pathway.

The existence of a delay, or reaction time τ_reaction has previously been discussed in the literature, but only rarely. Iino et al. (1996) found a reaction time for rice coleoptiles of ~30 min, similar to that estimated for maize roots by Nelson and Evans (1986). This is longer than our estimate of τ_reaction = 13 min found in our current study, but it remains in the same order of magnitude (as our estimate was the minimum time before a response was observed and not the mean time). The underlying process behind the reaction time has not yet been determined. Our study shows that it should not affect the amplitude of the signal but simply postpone it through its propagation. Auxin transport and the typical time for the onset of the lateral gradient could be a candidate for this delay. Philippar et al. (1999) reported a delay of ~10 min for the gradient to be created in coleoptiles, which is close to our measured τ_reaction. An alternative explanation could be a mechanosensitive transient inhibition of the elongation growth when the coleoptile bends under its own weight after tilting. The mechanosensing of applied bending strains has been shown to transiently stop elongation growth, a response that belongs to the thigmomorphogenetic syndrome (Moulia et al., 2015). However, our experiments with simultaneous recording of the elongation growth and the gravitropic response tend to rule out this explanation (Fig. 2; see Chauvet et al., 2016). A final candidate mechanism, and probably the most likely, comes from accounting for the time for the events downstream of the auxin signalling to take place in the elongation cells. Whatever the origin of this reaction time, its importance to the overall response dynamics should not be overstated. Indeed, τ_reaction only plays a minor role in the gravitropic sensitivity as it simply introduces a constant time delay in the response.

Of more importance is our demonstration of an integration process associated with τ_memory, and independent of gravity, which filters the signal induced by the statoliths. The relocation of auxin efflux carriers (PIN proteins) could be a potential candidate for this process. Some of these PINs, (PIN3, PIN4, and PIN7) are involved in the gravisensing response, as shown by studies on mutants (Friml et al., 2002; Rakusová et al., 2011). Observations using a fluorescent reporter of PIN3 have shown that its repartitioning along the cell membrane in roots and in shoots changes rapidly after statolith displacement (Friml et al., 2002; Rakusová et al., 2011; Baldwin et al., 2013). The resulting asymmetric distribution of fluorescent PIN3 appears few minutes (~2 min) after gravistimulation and continues to evolve for more than 20 min (Friml et al., 2002), as shown by the augmentation of the concentration of endosomes containing PIN3 in roots (Kleine-Vehn et al., 2010). The time-scale of the relocalization is thus compatible with our observations in the dose–response curve, meaning that this cumulative process could be a good candidate for the underlying mechanism. Should this be the case, our study would reveal a novel function for PIN3 relocalization, namely its capacity to filter and buffer transient and fluctuating stimuli (such as those provided by large gusts of wind) through integration. However, a better quantification of the temporal dynamics of the PIN relocation processes using live-cell imaging methods would be necessary in order to reach a firm conclusion.

Finally, our study contributes to predictive approaches in computational biology. First, our approach can be extended to mutants or transgenics plants. For example, studying starchless mutants would be of interest to explore the phase diagram predicted by our theory. With the motion of the statoliths being slower in these mutants due to a lower density, the avalanche time may become higher than the memory time-scale under Earth gravity, thus mimicking microgravity conditions. Second, from a modelling point of view, our mathematical model could be extended to include the proprioception (following Bastien et al., 2013, 2014) and hence to provide an integrative model of gravitropic control with a direct phenomenological cellular basis for the sensory mechanisms. But much still remains to be determined about the sensors and the signalling pathway involved in plant proprioception.
