Defining the causes for Fontan circulatory failure in total cavopulmonary connection patients

Abstract

OBJECTIVES

This study aims to identify the causes of failure in Fontan patients with a total cavopulmonary connection.

METHODS

We conducted a comprehensive review of all patients who underwent a total cavopulmonary connection procedure at our centre between 1988 and 2023, aiming to identify and analyse the factors contributing to Fontan failure (defined as mortality, heart transplantation, Fontan takedown, protein-losing enteropathy, plastic bronchitis or New York Heart Association Functional Classification class III or IV).

RESULTS

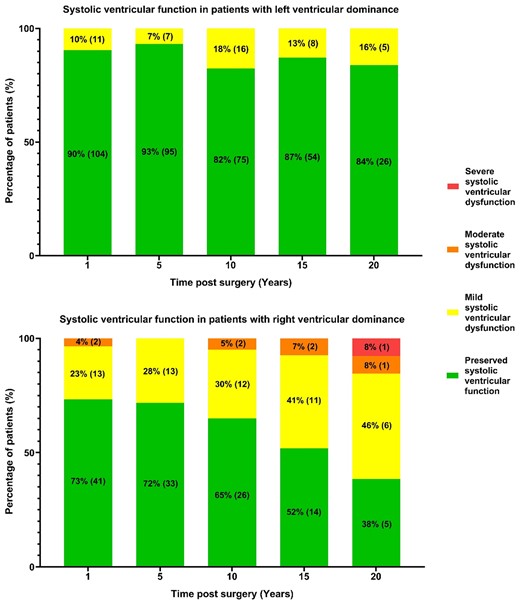

The study included 217 patients (median age at time of Fontan completion 3.7 years) with a median follow-up of 12.7 years (interquartile range 7.2–17.7). Systolic ventricular function decreased significantly over time in patients with right ventricular dominant morphology (P = 0.002), while systolic ventricular function remained stable in patients with left ventricular dominant morphology. Fontan failure occurred in 24 patients, with estimated freedom from Fontan failure rates of 97.7% [95% confidence interval (CI), 95–99] at 1 year, 93.9% (95% CI, 89–97) at 15 years and 77.2% (95% CI, 65–86) at 20 years of follow-up. Systolic ventricular dysfunction was the most common cause of failure (29%), followed by atrioventricular valve regurgitation (16.7%), a high pulmonary vascular resistance (16.7%), restrictive pathophysiology (16.7%) and obstruction (12.5%). Patients with right ventricular dominance developed most often systolic ventricular dysfunction, while patients with left ventricular dominant morphology developed most often restrictive pathophysiology or a high pulmonary vascular resistance.

CONCLUSIONS

Approximately 10% of patients experienced Fontan failure within 15 years postoperatively. Patients with right ventricular dominance experienced progressive decline due to systolic dysfunction, while those with left ventricular dominance exhibited failure due to restrictive pathophysiology or high pulmonary vascular resistance.

Open in new tabDownload slide

INTRODUCTION

The Fontan procedure has revolutionized the palliative treatment of patients with a functional single ventricle [1]. Consecutive innovations in surgical techniques and postoperative management have greatly improved outcome, with a reported 95% survival at 10 years postoperatively for those patients with an extracardiac conduit total cavopulmonary connection (TCPC) [2, 3]. Despite the improvements in outcomes, Fontan patients still face significant challenges. Approximately one-third of adult Fontan patients are estimated to be living with a failing Fontan circulation [2, 4], necessitating a deeper understanding of the underlying mechanisms of Fontan failure. ‘Fontan failure’ is a variably defined term used to describe those patients with severe complications resulting in clinical deterioration. This term encompasses a heterogeneous group of patients with distinct underlying mechanisms of failure, including structural lesions of the Fontan pathway (e.g. conduit or pulmonary artery stenosis), atrioventricular valve (AVV) regurgitation, systolic ventricular dysfunction, high pulmonary vascular resistance (PVR) and the development of restrictive pathophysiology [5–10].

Defining the different causes of failure in Fontan patients who have undergone TCPC is essential for guiding individualized treatment plans. This retrospective study aims to analyse a group of patients who have undergone TCPC to shed light on the various causes of failure and provide insights into improving the management of this complex patient population.

PATIENTS AND METHODS

Ethics statement

Study approved by Institutional Review Board (UZ/KU Leuven Ethics Committee; S68932; 30/04/2024). Individual consent waived due to retrospective design and anonymity.

Participant selection

This study included all patients who underwent Fontan completion with an extracardiac or intracardiac conduit TCPC at the University Hospital Leuven, Belgium, between November 1988 and May 2023. The patients were identified through a search of the surgical database, and data were collected through retrospective chart review.

Institutional policy regarding Fontan strategy

Our surgical management for Fontan procedures has evolved over time. Currently (Era II: 1996–2024), we perform bidirectional cavopulmonary anastomosis at 6 months, followed by the Fontan procedure at 3 years or 15 kg. We use 18–20 mm extracardiac conduits with 4.5 mm fenestration and postoperative aspirin therapy for all patients. This approach differs from our earlier practice (Era I: 1988–1995), which involved single-stage procedures for older patients, the use of intracardiac conduits, and no routine fenestration. Due to these significant differences in patient characteristics and surgical techniques, we have stratified our patient cohort into these 2 eras.

Definition and assessment of Fontan failure

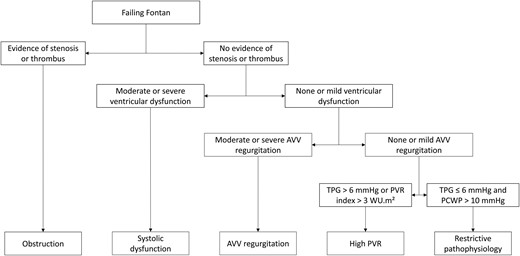

Fontan failure was characterized as symptomatic insufficiency of TCPC circulation resulting in one or more of the following events: death, heart transplantation, Fontan takedown, protein-losing enteropathy (PLE) or plastic bronchitis, or New York Heart Association Functional Classification (NYHA) class III or IV at last follow-up. The underlying causes of failure were categorized as follows: Fontan obstruction, AVV regurgitation, systolic ventricular dysfunction, high PVR and restrictive pathophysiology. A flowchart (Fig. 1) was created to define and classify these causes of Fontan failure, prioritized by assumed occurrence order because they can coincide and mutually influence each other. Obstruction was defined as any indication of anatomical obstruction, such as stenosis or the presence of a thrombus. Systolic ventricular dysfunction was characterized as at least moderately reduced ventricular function. AVV regurgitation was categorized as moderate or severe. High PVR and restrictive pathophysiology were defined as a transpulmonary gradient (TPG) exceeding 6 mmHg or a PVR index exceeding 3 WU·m² and as low TPG and ventricular filling pressures exceeding 10 mmHg, respectively [11].

Medical records of failing Fontan patients were reviewed, including echocardiography reports (ventricular function and AVV regurgitation severity) and cardiac catheterization data (TPG and signs of obstruction). Two investigators (J.V.P. and B.M.) independently assessed failure causes, reaching consensus on discordant cases.

Data analysis

Continuous data are reported as median values with interquartile ranges (IQRs), while discrete data are presented as frequency (percentage). P-values < 0.05 were considered statistically significant, all P values being 2-sided. Clark’s Completeness Index was used to calculate the follow-up completeness. Complete case analyses were performed. A Friedman test was conducted to assess differences in ventricular function over time among patients with right ventricular (RV) and left ventricular (LV) dominance. Freedom from Fontan failure and transplant-free survival functions were generated by the Kaplan–Meier method. Additionally, we assessed the linearized risk of Fontan failure. All statistical analyses were performed using IBM SPSS statistics version 29 (IBM corp., Armonk, NJ, USA) and GraphPad Prism version 10.1.0 (Dotmatics, Boston, MA, USA).

RESULTS

Patient cohort

Of 236 TCPC patients, 217 were included in the analysis (19 excluded due to Fontan conversion procedures). 18 patients were operated on during Era I (1988–1995) and 199 during Era II (1996–2024). Table 1 presents the demographic and clinical characteristics of the patient population. Most patients (60.8%) had a systemic LV. Tricuspid atresia accounted for a quarter of the patients, while 17% had a double inlet LV, 14% had a double outlet RV, and 10% were hypoplastic left heart patients. The median age at Fontan completion was 3.7 years (IQR, 3.2–4.7). A fenestration of the conduit was created during the TCPC operation in 190 patients (88.5%), and 28 (12.9%) still had an open fenestration at the last follow-up. The median follow-up duration was 12.7 years (IQR, 7.2–17.7) and completeness of follow-up for the cohort was 91.0%. In Fontan patients with RV dominance, RV function significantly decreased over time (P = 0.002), whereas in patients with LV dominance, LV function did not show a significant decrease during the follow-up period (P = 0.441) (Fig. 2).

Fontan failure

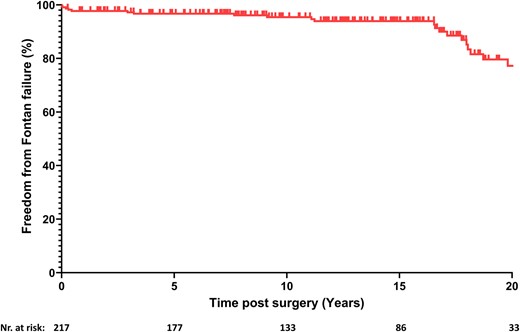

A total of 24 patients (11.1%) experienced failure of the Fontan circulation (Table 2). The linearized risk of Fontan failure in our cohort is approximately 0.851% per year. The estimated freedom from Fontan circulatory failure was 97.7% (95% CI, 95–99) at 1 year and 77.2% (95% CI, 65–86) at 20 years of follow-up (Fig. 3). Seven patients (3.2%) died during the follow-up period. In Era I, 2 deaths occurred in the early postoperative period. Era II saw 5 late deaths, occurring after 2, 4 and 6 months, and after 3 and 18 years. Five patients (2.3%) underwent heart transplantation, one after 2 months and the others after 6, 11, 12 and 17 years. The estimated transplant-free survival was 98.1% (95% CI, 95–99) at 1 year and 87.2% (95% CI, 76–93) at 20 years of follow-up. Eight patients (3.7%) developed PLE after a median of 6.1 years (IQR, 3.3–15.4). One patient (0.5%) developed plastic bronchitis 14 years after Fontan completion.

Causes of failure

The different causes of failure observed in the study are summarized in Table 3. The leading cause of failure was systolic ventricular dysfunction, which was responsible for 7 cases. This was trailed by AVV regurgitation, high PVR, and restrictive pathophysiology, each accounting for 4 cases, and obstruction, which accounted for 3 cases. In 2 patients with late Fontan failure, the specific cause of failure could not be determined because no catheterisation data were available. Patients with obstruction experienced early postoperative failure, due to thromboembolic events or critical stenosis, leading to mortality in the early postoperative period. AVV regurgitation was associated in all cases with complete atrioventricular canal defects and either biventricular morphology or RV morphology, with only one patient surviving at last follow-up. All patients with systolic ventricular dysfunction had RV dominance while most patients with restrictive pathophysiology had LV dominance. Additionally, all patients with restrictive pathophysiology developed PLE, and one patient required cardiac transplantation due to PLE.

DISCUSSION

Despite the reported favourable survival outcomes associated with TCPC, there remains a significant risk of late failure of the Fontan circulation. Consequently, there is also an anticipated rise in the number of Fontan patients experiencing circulatory failure [12]. The specific pathophysiological pathways leading to failure in TCPC patients are not yet fully understood. Understanding these mechanisms is crucial for guiding treatment strategies, facilitating personalized management and developing preventive measures.

Our study projects Fontan failure in approximately 10% of TCPC patients within 15 years postoperatively, and 25% beyond 25 years. A recent study involving 163 extracardiac conduit TCPC patients, reported 90% freedom from Fontan failure within 15 years postoperatively [13]. Contrastingly, the Australia and New Zealand Fontan Registry, which includes older surgical strategies, showed lower freedom from Fontan failure rates: 83% at 15 years and 56% at 25 years [2, 13].

When we categorized the patients based on the cause of failure, we observed that over 10% of them experienced early failure due to obstruction. Implementing early surgical or catheter intervention strategies to optimize the Fontan circulation and alleviate these obstructions could potentially prevent failure during the immediate postoperative period and enhance survival rates. In our study, we did not observe any instances of late Fontan failure in patients that could be directly linked to obstructions. This may be attributed to our institution's proactive approach towards managing any narrowing within the Fontan connections in symptomatic and asymptomatic patients [14].

Systolic ventricular dysfunction was the main cause of failure in the majority of failing Fontan patients (29%). This finding is consistent with a recent study that observed a significant decrease in ejection fraction among patients with Fontan failure compared to those without [15]. Furthermore, all failing Fontan patients with systolic ventricular dysfunction in our study had RV dominance. This is not surprising, as previous research has shown that patients with systemic RV are prone to systemic ventricular dysfunction [16]. The morphology of the dominant ventricle plays also a crucial role in the clinical outcomes in the late stages following Fontan palliation and is associated with a 2.38-fold greater risk factor for mortality compared to LV dominance [17]. Our study confirmed a higher incidence of RV dominance in patients with failing Fontan physiology compared to LV dominance. Moreover, in Fontan patients with RV dominance, we observed a gradual decline in systolic ventricular function, with at least mild impairment in 35% after 10 years and 48% after 15 years. The potential effectiveness of standard heart failure medication for delaying or preventing ventricular dysfunction and avoiding Fontan failure in patients with RV dominance remains uncertain [18, 19]. Following Fontan failure with systolic ventricular failure, mechanical circulatory support with a ventricular assist device [20] or heart transplantation [21] is crucial in reducing morbidity and mortality.

There is also a concerning trend of progressive decline in AVV function following the Fontan procedure, which may ultimately result in Fontan failure [15, 22]. Our study identified AVV regurgitation in 4 of the failing Fontan patients as the causes of failure. This finding contrasts with the results of a recent study by King et al., who reported a higher incidence of Fontan failure with AVV failure (21.2%) in a cohort of 1199 patients. King et al.’s [23] study also highlighted the independent risk factor of RV dominance for AVV failure, which increased the risk of AVV failure by more than 2-fold. In our study, we have also observed that most failing Fontan patients with AVV regurgitation exhibited RV dominance. However, it is crucial to note that all patients in our study had complete atrioventricular canal defects, suggesting that the development of AVV failure in our patients is related to a morphological AVV dysfunction, rather than RV failure. The effectiveness of reoperation in preventing or reversing Fontan failure in this specific patient population is still unclear, given the challenges associated with valve repair or replacement. Menon et al. [24] reported that one-third of patients who underwent AVV surgery following Fontan palliation died within 5 years of the procedure.

High PVR has long been considered the critical bottleneck of the Fontan circulation, determining cardiac output by limiting preload reserve [25]. Recent research suggests that an increase in PVR is rarely observed and that is not the leading cause of Fontan failure [15]. Interestingly, our study also attributed Fontan failure due to high PVR to only 4 patients. These patients could potentially benefit from pulmonary vasodilators, although their effectiveness is often limited and varies greatly between patients [26]. Traditionally, elevated PVR was considered a contraindication to heart transplantation. However, emerging literature on PVR suggests that heart transplantation is also a viable option for patients with pulmonary hypertension [27]. Unlike patients with systolic ventricular dysfunction who require a ventricular assist device, these patients can potentially benefit from the implantation of a cavopulmonary assist device [28].

Our previous research demonstrated that restrictive pathophysiology can be a crucial cause of Fontan failure [7]. In the Fontan circulation, chronic preload deprivation of the systemic ventricle is associated with a decrease in ventricular compliance. This leads to poor ventricular filling and a progressive decline in cardiac output. Among adults with Fontan palliation and restrictive pathophysiology, an isolated elevation of ventricular end-diastolic pressure is often the only significant finding from cardiac catheterization [29]. We observed restrictive pathophysiology in approximately 20% of failing Fontan patients. Another recent study found that 31% of failing Fontan patients had diastolic dysfunction [15]. It is unclear if the restrictive pathophysiologic changes in these patients are reversible and if gradually increasing ventricular preload could restore restrictive pathophysiology. Preload optimization could be achieved through various mechanisms, such as pharmacologically reducing PVR, improving cardiovascular fitness, creating a fenestration to introduce a right-to-left shunt, or implanting a cavopulmonary assist device [30, 31].

The strengths of this study lie in its extensive scope, spanning over a 30-year period and encompassing a large group of patients. This long-term analysis provides a comprehensive understanding of the causes of Fontan failure. Furthermore, the collective discussion of all patients in the heart team and the consistency of this team over the 30-year duration ensures a unified approach to patient care and decision-making, adding to the robustness of the study.

Limitations

Study limitations include its retrospective, single-institution design and long timeframe with evolving management practices. The influence of these factors on long-term outcomes and the prevalence of various causes of failure could not be evaluated in this retrospective study. Moreover, accounting for these factors would be challenging due to the heterogeneity of the study population. Furthermore, the qualitative assessment of ventricular function and AVV function through echocardiography has inherent limitations. The echocardiographic evaluation was conducted under resting conditions, which may not reflect ventricular dysfunction or AVV regurgitation that may manifest during exercise. The causes of failure were classified retrospectively based on clinical impressions. These predefined causes of failure were retrospectively determined from medical records and prioritized based on their assumed order of occurrence, potentially introducing misclassification bias. Additionally, our study could not directly assess ventricular relaxation and compliance, hence restrictive pathophysiology was defined by an unobstructed circulation, absence of AVV regurgitation, normal systolic function, and a low TPG with increased ventricular filling pressures. Consequently, it is plausible that our study underestimates the true extent to which restrictive pathophysiology contributes to Fontan failure.

CONCLUSION

The findings of our study indicate that approximately 10% of patients who underwent TCPC Fontan palliation are projected to experience Fontan failure within a 15-year timeframe. Our research identified 5 distinct causes leading to failure and revealed that the group of failing Fontan patients is heterogeneous, with individuals distributed evenly among these causes. Among those with RV dominance, there was a progressive decline in ventricular function, with systolic dysfunction being the primary cause of late Fontan failure. Conversely, patients with LV dominance exhibited failure due to restrictive pathophysiology or high PVR. Moving forward, comprehensive multi-institutional studies are necessary to thoroughly characterize the patient characteristics associated with each cause of failure. This will facilitate the development of algorithms aimed at guiding personalized prophylactic or curative management strategies, thereby potentially delaying or preventing the adverse outcomes observed in Fontan patients.

FUNDING

This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.

Conflict of interest: none declared.

DATA AVAILABILITY

The datasets generated during and/or analysed during the current study are available from the corresponding author on reasonable request.

Author contributions

Joeri Van Puyvelde: Conceptualization; Data curation; Formal analysis; Investigation; Methodology; Project administration; Visualization; Writing—original draft; Writing—review & editing. Filip Rega: Writing—review & editing. Werner Budts: Writing—review & editing. Alexander Van De Bruaene: Writing—review & editing. Bjorn Cools: Writing—review & editing. Marc Gewillig: Writing—review & editing. Benedicte Eyskens: Writing—review & editing. Ruth Heying: Writing—review & editing. Thomas Salaets: Writing—review & editing. Bart Meyns: Conceptualization; Formal analysis; Investigation; Methodology; Supervision; Writing—review & editing.

Reviewer information

Reviewer information Interdisciplinary CardioVascular and Thoracic Surgery thanks Manan Himanshu Desai, Yukihiro Kaneko and the other anonymous reviewers for their contribution to the peer review process of this article.

REFERENCES

ABBREVIATIONS

ABBREVIATIONS

• AVV

  Atrioventricular valve


• CI

  Confidence interval


• IQR

  Interquartile range


• LV

  Left ventricular


• NYHA

  New York Heart Association Functional Classification


• PLE

  Protein-losing enteropathy


• PVR

  Pulmonary vascular resistance


• RV

  Right ventricular


• TCPC

  Total cavopulmonary connection


• TPG

  Transpulmonary gradient
