Overexpression of CmMYB15 provides chrysanthemum resistance to aphids by regulating the biosynthesis of lignin

Abstract

MYB transcription factors are widely involved in the development of and physiological processes in plants. Here, we isolated the chrysanthemum R2R3-MYB family transcription factor CmMYB15, a homologous gene of AtMYB15. It was demonstrated that CmMYB15 expression was induced by aphids and that CmMYB15 could bind to AC elements, which usually exist in the promoter of lignin biosynthesis genes. Overexpression of CmMYB15 in chrysanthemum enhanced the resistance of aphids. Additionally, the content of lignin and the expression of several lignin biosynthesis genes increased. In summary, the results indicate that CmMYB15 regulates lignin biosynthesis genes that enhance the resistance of chrysanthemum to aphids.

Introduction

Members of the MYB family, one of the largest transcription factor families in plants, have a common conserved N-terminal MYB domain consisting of imperfect amino acid repeats of ~52 amino acids¹. These members are generally divided into four classes, 1R-, R2R3-, 3R- and 4R-MYB proteins, according to the number of adjacent repeats, with the R2R3-MYB subfamily comprising one of the largest families of transcription factors in plants². MYBs have been shown to be key factors involved in vital regulatory networks that regulate physiological and biochemical processes, for instance, plant development, responses to biotic and abiotic stress³, and primary and secondary metabolism, such as flavonoid biosynthesis and phenylpropanoid metabolism^4,5.

The lignin biosynthetic pathway is among the important branches of the phenylpropanoid metabolic pathway, as lignin is the second most abundant plant biopolymer. Lignin is a major secondary cell wall component that provides mechanical support for plants and is also a chemical and physical barrier that provides defense against biotic and abiotic stress⁶. The precursors of lignin, which are phenolic compounds, can participate in plant-pathogen interaction pathways, such as that of the interaction between grapevine and Erysiphe necator⁷. A relatively high accumulation of lignin increases the strength of birch leaves, which reduces vulnerability to the autumnal moth, Epirrita autumnata⁸. Lignin enhances resistance to cell wall-degrading enzymes (CWDEs), which are produced by fungal necrotrophs, therefore preventing the diffusion of pathogen-produced toxins⁹. Enzymes participating in lignin biosynthesis include phenylalanine ammonia lyase (PAL), 4-hydroxycinnamoyl-CoA ligase (4CL), caffeoyl shikimate esterase (CSE), p-coumarate 3-hydroxylase (C3H), caffeoyl-CoA O-methyltransferase (CCoAOMT), cinnamoyl-CoA reductase (CCR), ferulate 5-hydroxylase (F5H), caffeic acid/5-hydroxyferulic acid O-methyltransferase (COMT), and cinnamyl alcohol dehydrogenase (CAD)^10,11. Analysis of promoter sequences showed that most of these genes contain one or more AC-rich elements in their promoters, except for F5H¹². Transcription factors such as MYB proteins regulate the expression of these genes by binding to AC elements. AtMYB46 activates specific pathways of secondary cell wall biosynthesis and simultaneously upregulates AtMYB85, a downstream secondary cell wall-associated transcription factor¹³. AtMYB58 and AtMYB63 specifically activate lignin biosynthetic genes, which leads to the ectopic deposition of lignin in cells that are normally unlignified⁶. Similarly, PtoMYB216, an MYB-encoding gene in Populus tomentosa, was also found to activate lignin upstream biosynthetic genes¹⁴. On the other hand, Eriobotrya japonica EjMYB1, a transcriptional activator, and EjMYB2, a repressor, have an antagonistic relationship in terms of lignification, as the activator and repressor compete with each other for interaction with AC elements¹⁵. PdMYB221 negatively regulates secondary cell wall formation by binding to the AC elements in the promoter of PdCESA8, PdGT47C, and PdCOMT2, leading to decreased lignin production¹⁶. Previous studies have indicated that several members of the MYB family regulate the synthesis of lignin. However, if other members of the MYB family are involved in lignin biosynthesis, their regulatory mechanism remains to be elucidated.

Aphids are major agricultural pests that directly cause damage to plants by depriving them of nutrients, and aphids are also vectors for viral pathogens¹⁷. Chrysanthemum (Chrysanthemum morifolium) is a valuable ornamental species that is vulnerable to Macrosiphoniella sanborni. Aphid infestations hinder not only vegetative growth but also the quality and yield of chrysanthemum flowers. Our previous studies showed that chrysanthemum has evolved a number of strategies to cope with aphid infestation, such as increased defensive enzyme activity¹⁸ and gene expression reprogramming^19,20. We previously found that CmMYB19, a chrysanthemum R2R3-MYB gene, improved the resistance of chrysanthemum to aphids by promoting the biosynthesis of lignin²¹. In the present study, we isolated chrysanthemum CmMYB15, a gene homologous to AtMYB15, and found that it played a role in lignin biosynthesis and aphid resistance by regulating several downstream genes different from CmMYB19. This study will lay a foundation for the understanding of the physical defense mechanisms of chrysanthemum when challenged by aphids.

Results

Isolation and sequence analyses of CmMYB15

CmMYB15 was isolated from ‘Nannong Xunzhang’ chrysanthemum. The CmMYB15 (KT763374) gene consists of 890 bp, with a 756 bp open reading frame (ORF) encoding a 251 amino acid polypeptide. CmMYB15 belongs to the R2R3-MYB subfamily, as it has two conserved MYB domains: an R2MYB domain between aa 16–61 and an R3MYB domain between aa 69–112 (Fig. 1a). Phylogenetic analysis indicated that this gene has 32.73% similarity with AtMYB15 (Fig. 1b).

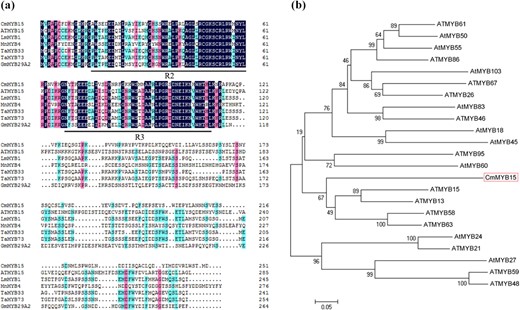

Putative peptide sequences of CmMYB15 and other MYB proteins

CmMYB15 is localized to the cell nucleus

To determine the subcellular localization of CmMYB15, 2 × 35S::CmMYB15-GFP and a negative control, 2 × 35S::GFP, were separately transformed into onion epidermal cells. GFP signals were detected in the nucleus of the cells transformed with 2 × 35S::CmMYB15-GFP, indicating that CmMYB15 was nuclear localized. The GFP signal was detected in both the cytoplasm and nucleus of the cells transformed with 2 × 35S::GFP (positive control) (Fig. 2).

Transcriptional activation of CmMYB15 and the binding ability of CmMYB15 with AC elements

Yeast harboring pGBKT7-CmMYB15, or a pCL1 positive control, grew well on SD/His^-/Ade^- medium and turned blue on the SD/His^-/Ade^- medium with X-α-gal. The negative control transformed with pGBKT7 was unable to grow on the SD/His^-/Ade^- medium (Fig. 3a), indicating that CmMYB15 has transcriptional activation activity. A yeast one-hybrid assay showed that cells transformed with pHISi-AC-I, pHISi-AC-II or pHISi-AC-III and its corresponding mutated form pHISi-mAC grew well on SD/His^-/Ura^- medium but not on medium with 25 mM 3-amino-1,2,4-triazole (3-AT) (Fig. 3b). Bait Y1H cells (those harboring AC elements or a mAC element) transformed with pGADT7-CmMYB15 could grow on SD/His^-/Ura^-/Leu^- medium. In contrast to cells expressing pHISi-mAC, cells expressing pHISi-AC-I, pHISi-AC-II, or pHISi-AC-III could grow on medium supplemented with 25 mM 3-AT (Fig. 3b), suggesting that CmMYB15 could bind all three types of AC elements.

Transcriptional activation activity analyses of CmMYB15 and the DNA-binding assay of AC elements with CmMYB15

The gene CmMYB15 is highly expressed in leaves and stems and is induced by aphid infestation

The expression of CmMYB15 was detected in the root, stem and leaf tissues of ‘Nannong Xunzhang’. CmMYB15 had the lowest abundance in the roots, while it was highly expressed in the leaves and stems. The expression levels in the stems and leaves were 8.63 times and 15.79 times the level in the roots, respectively (Fig. 4a). In response to aphid infestation, the expression level of CmMYB15 in the aphid-infested plants was 6.84 times greater than that in the control plants at 3 h. During 3 h to 12 h after aphid infestation, the expression level of CmMYB15 remained significantly higher than that of the control. The expression level of CmMYB15 was affected by mock puncture except at −2 h, 12, and 24 h; however, the changes in the expression level of CmMYB15 in response to puncture were much less drastic than those in response to infestation by aphid (Fig. 4b).

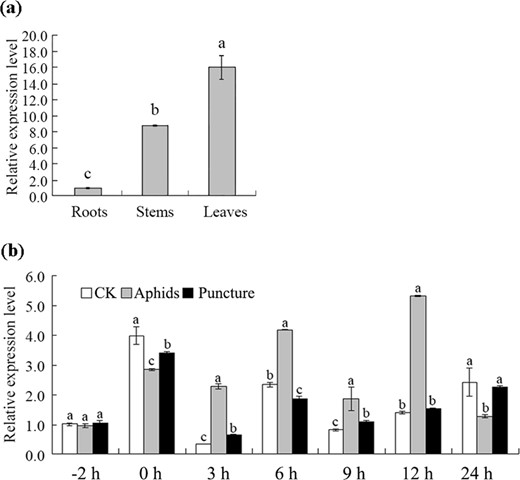

Expression of CmMYB15 in different organs of chrysanthemum plants and under aphid and puncture treatment, as revealed by quantitative real-time PCR

Overexpression of CmMYB15 inhibited the population of aphids on chrysanthemum

Putative CmMYB15 overexpression lines were identified by PCR using HptII primers (Fig. 5a), and the transcriptional level of CmMYB15 was measured by qRT-PCR using CmMYB15-specific primers (Fig. 5b). Two independent transgenic lines, CmMYB15-ox3 and CmMYB15-ox4, which presented a higher gene expression level of CmMYB15, were selected for additional aphid resistance assays. The aphids were more widely distributed on the WT plants than on transgenic lines at 21 days after infestation (Fig. 5c). At 11 days after infestation, the number of aphids began to increase rapidly in the control group (WT) plants and reached an average of 270.83 aphids per plant, while the number of aphids on the CmMYB15-ox3 and CmMYB15-ox4 plants were, on average, 153.45 and 236.80 per plant on day 21 (Fig. 5d). CmMYB15-overexpressing plants had a lower average multiplication rate (MR) of 30.69 for CmMYB15-ox3 and 47.36 for CmMYB15-ox4 in comparison to the WT MR of 54.17. Compared to the WT plants, the overexpression lines had higher average inhibition rates (IRs). The IRs for CmMYB15-ox3 and CmMYB15-ox4 in comparison to WT were 43.34% and 12.57%, respectively (Table 1).

The aphid resistance of wild-type chrysanthemum and CmMYB15-overexpressing chrysanthemum

Overexpression of CmMYB15 enhanced the lignin content and expression of lignin biosynthesis genes

The acetyl bromide procedure²³ was used to analyze the lignin content of two CmMYB15 overexpression lines. The lignin content of CmMYB15-ox3 and CmMYB15-ox4 was 6.56% and 6.27% respectively, while the lignin content of the WT was 5.97% (Fig. 6a).

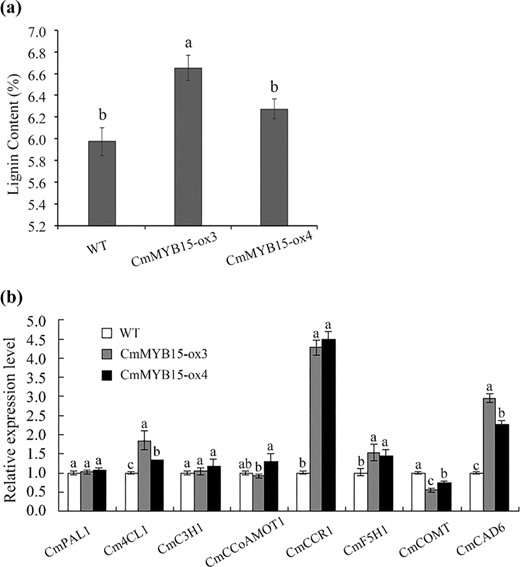

The lignin content and expression levels of lignin biosynthesis genes in CmMYB15-overexpressing plants

The expression levels of genes in the lignin biosynthesis pathway, including CmPAL1, Cm4CL1, CmC3H1, CmCSE, CmCCoAMOT1, CmCCR1, CmF5H1, CmCOMT, and CmCAD6, were also quantified. The expression levels of Cm4CL1, CmCCR1, CmF5H1, and CmCAD6 were higher in the overexpression plants than in the WT plants; among these, compared to the other genes analyzed, the expression of CmCCR1 and CmCAD6 increased significantly (Fig. 6b).

Discussion

CmMYB15 is a MYB transcription factor

MYB transcription factors, which are widely distributed in plants, play an important role in regulating a variety of processes in plants¹. MYBs act as transcription activators or repressors to regulate the transcription of downstream genes. Of all the divisions of plant MYB proteins, including 4R-MYB, 3R-MYB, R2R3-MYB and MYB-related types, R2R3-MYB proteins account for the majority²⁴. Most R2R3-MYB and 3R-MYB subfamilies in Arabidopsis are divided into 16 groups with different functions, such as involvement in stress responses, primary and secondary metabolism, lignin biosynthesis or wall deposition, cell wall thickening, cell differentiation or embryogenesis, the cell cycle, anther development, stomatal development and meristem formation^3,25. Previously, only a few MYB transcription factors in chrysanthemum had been isolated and analyzed. Among them, chrysanthemum CmMYB1 is a repressor that reduces the lignin content and represses flavonoid synthesis in Arabidopsis²⁶. Chrysanthemum CmMYB2 enhances the salinity and drought stress of Arabidopsis; additionally, the ABA sensitivity and flowering period of plants is affected by this MYB²⁷. Chrysanthemum CmMYB6 was found to be involved in anthocyanin biosynthesis²⁸. In this study, a new MYB family gene in chrysanthemum, CmMYB15, was isolated. Sequence analysis showed that CmMYB15 contains two conserved MYB domains, which are typical of R2R3-MYB genes. Cluster analysis showed that CmMYB15 is closely related to AtMYB15, AtMYB13, AtMYB58, and AtMYB63. These genes are thought to belong to a group related to stress responses²⁹. In addition, CmMYB15 was found by GFP localization analysis to be expressed in the cell nucleus, which is expected given its role in transcriptional activation.

Overexpression of CmMYB15 enhanced aphid resistance in chrysanthemum

Plants are commonly exposed to many forms of abiotic and biotic stresses during growth. In response to these stresses, plants have evolved various defense mechanisms. MYBs are involved in the response to abiotic stress, including salt, drought, and high or low temperature^30–32. For example, AtMYB20 can enhance salt tolerance³³, while AtMYB73 suppresses salt overly sensitive (SOS) genes and is a negative regulator of salt responses³⁴. Several MYBs, such as AtMYB74 and AtMYB88, participate in both salt and drought stress responses^35–37. AtMYB15, a homologous gene of CmMYB15, enhances drought and salt tolerance by improving sensitivity to abscisic acid, but it weakened the freezing tolerance of Arabidopsis by suppressing the expression of CBF1/DREB1, which activated cold-responsive genes^38,39. On the other hand, the Fagopyrum tataricum MYB gene FtMYB15 enhances the synthesis of anthocyanins and proanthocyanidins, which help resist abiotic stress⁴⁰. Similarly, SlMYB75 in tomato also contributes to the accumulation of anthocyanins and participates in several stresses responses⁴¹.

At present, the MYBs involved in the response to biotic stresses such as pathogen attack and pest feeding have received increased amounts of attention. By promoting the biosynthesis of salicylic acid, AtMYB96 induces pathogen resistance in Arabidopsis⁴². The role of MYBs in insect defense has been recognized; for example, AtMYB102 is expressed locally at the feeding sites of Pieris rapae in damaged leaves, which then activates the expression of defense-related genes and cell wall modification genes⁴³. Overexpression of AtMYB12 in Nicotiana tabacum enhances the expression of phenylpropanoid pathway genes and the accumulation of flavonols, especially rutin, consequently leading to insect resistance³¹. In the present study, CmMYB15 was significantly induced by aphid infestation. CmMYB15-overexpressing plants exhibited a lower average multiplication rate and higher average inhibition ratio of aphids, in which CmMYB15-ox3 lines, which presented a relatively high expression of the CmMYB15 gene, showed a higher IR than CmMYB15-ox4 lines, which presented relatively low CmMYB15 expression. These results indicated that CmMYB15 contributed to the resistance of chrysanthemum to aphids.

CmMYB15 enhanced aphid resistance by increasing lignin synthesis

When faced with phytophagous pests, plants can enhance their physical structures and alter their secondary metabolites to hinder the invasion of pests or inhibit pest growth and reproduction. Research in rice (Oryza sativa) has demonstrated that three MYB genes, MYB30, MYB55, and MYB110, which are induced by pathogen infestation, are involved in plant primary immunity (known as a microbe-associated molecular pattern) by specifically inducing monolignol pathway genes⁴⁴. In Arabidopsis, recent research has demonstrated that AtMYB102 promotes ethylene (ET) biosynthesis by upregulating ET biosynthesis pathway genes and increases the susceptibility of plants to aphids⁴⁵. Phloem-based defense (PBD) regulated by ethylene (ET) and MYB transcription factors is a mechanism that has been studied substantially in plants with specific regard to how plants are resistant to insects such as aphids. Sieve-specific phloem proteins (PP) can plug sieve pores and prevent aphids feeding on the phloem, which is a physical plant defense mechanism⁴⁶. In wheat (Triticum aestivum), TaMYB19, TaMYB29, and TaMYB44 act as coregulators of PBD, which is activated by the infestation of English grain aphids via crosstalk with the ethylene signaling pathway⁴⁶. Three Arabidopsis mutants, atmyb15, atmyb38, and atmyb44, are susceptible to aphid infestation due to the disruption of ethylene signaling⁴⁷, with AtMYB44 playing a dominant role in activating EIN2-affected defense, an ethylene signaling regulation defense mechanism, to control resistance to the green peach aphid Myzus persicae Sulzer. This defense requires ethylene-induced resistance involving the PBD response^48–50. However, the mechanism of AtMYB15 in aphid resistance has not been further studied. Recently, it was determined that AtMYB15 regulates the biosynthesis of G-lignin to promote defense-induced lignification in Arabidopsis in response to pathogens, with AtMYB15 interfering with flg22, the bioactive epitope of bacterial flagellin⁶. Our previous study showed that CmMYB19, an aphid stress response gene, promoted lignin synthesis and resistance to aphids²¹. Here, we found that CmMYB15, a member of the MYB family, also enhanced aphid resistance and lignin synthesis. However, different sets of lignin genes were induced downstream in CmMYB19- and CmMYB15-overexpressing plants. Cm4CL1 and CmCCR1 were induced in both CmMYB19 and CmMYB15 overexpression plants, while CmF5H1 and CmCAD6 were induced only in the CmMYB15 overexpression plants. CmPAL1, CmC4H, CmHCT and CmCCoAOMT1 were enhanced by overexpression of CmMYB19²¹; however, the expression level of CmMYB19 was relatively little affected by CmMYB15 (Fig. S1), suggesting that the regulatory mechanisms of lignin biosynthesis of CmMYB15 and CmMYB19 were different from each other to some extent. We suppose that CmMYB15 might mainly regulate the synthesis of lignin monomers and that CmMYB19 might contribute to the very upstream steps of lignin biosynthesis and the assembly of lignin monomers; this speculation should be validated in our ongoing research.

Yeast assays showed that CmMYB15 was able to bind to the AC elements in promoter regions of some lignin pathway genes, suggesting a role for CmMYB15 in the activation of lignin pathway genes. However, whether the elevation of genes involved in lignin biosynthesis is directly or indirectly regulated by CmMYB15 is not currently known. In conclusion, increasing CmMYB15 expression could lead to changes in lignin content, thereby enhancing the aphid resistance of chrysanthemum, which provides much promise for improving physical defense to aphids.

Materials and methods

Plant materials

‘Nannong Xunzhang’ (aphid resistant) and ‘Jinba’ (aphid susceptible) chrysanthemum plants were obtained from the Chrysanthemum Germplasm Resource Preserving Centre (Nanjing Agricultural University, China). The plants were grown under conditions of 25 °C and 100 μmol m⁻² s⁻¹, with a 16/8 h light/dark photoperiod.

Gene isolation and sequence analysis

Total RNA from ‘Nannong Xunzhang’ chrysanthemum was isolated using RNAiso Plus Reagent (TaKaRa, Japan). First-strand cDNA was synthesized by M-MLV reverse transcriptase (TaKaRa, Japan). The cDNA fragments of CmMYB15 were amplified using Phusion High-Fidelity DNA Polymerase (ThermoFisher, USA) with gene-specific primers (Supplementary Table S1) based on the transcriptome data of ‘Nannong Xunzhang’²⁰. 3′-RACE (3′-random amplification of cDNA ends) and 5′-RACE were then performed to obtain the full-length cDNA as described previously²¹. The ORF of CmMYB15 was amplified using the gene-specific primers CmMYB15-F/R (Supplementary Table S1).

The homologous sequences of CmMYB15 were retrieved and analyzed using online BLAST tools from the NCBI (National Center for Biotechnology Information, USA). The sequences of MYB proteins were aligned using DNAMAN and Muscle software. A phylogenetic tree of CmMYB15 with its homologs in Arabidopsis was constructed using MEGA 7.0 with the maximum likelihood method (bootstraps = 1000).

Subcellular localization of CmMYB15

The ORF of CmMYB15 was ligated into the vector pENTR1A using Kpn I and Xho I restriction enzymes to generate a pENTR1A-CmMYB15 vector. A pMDC43-CmMYB15 vector driven by the 2 × 35S promoter was then constructed via recombination of pENTR1A-CmMYB15 with pMDC43-GFP using LR Clonase II enzyme mix (Invitrogen, USA). By particle bombardment (PDS-1000; Bio-Rad, USA), the plasmid DNA of pMDC43-CmMYB15 was transformed into onion epidermal cells⁵¹. The GFP signal of the transformed cells was detected by laser scanning confocal microscopy (LSCM, Leica, Germany) after an overnight dark incubation at 22 °C on Murashige and Skoog (MS) medium.

Yeast one-hybrid assay for the transcriptional activation activity and binding of AC cis-elements by CmMYB15

To detect the transcriptional activity of CmMYB15, pGBKT7-CmMYB15 was constructed via recombination using pENTR1A-CmMYB15 as the donor vector and pGBKT7 as the destination vector with the aid of LR Clonase II enzyme mix (Invitrogen, USA). pGBKT7-CmMYB15, pGBKT7 (an empty vector, as the negative control) and a positive control (pCL1) were transformed separately into Y2H competent cells (Clontech, USA) containing the GAL4/UAS system. The transformed cells were cultured as described previously²¹.

To identify whether CmMYB15 could bind AC elements, a yeast one-hybrid assay was performed using the Matchmaker Gold Yeast One-Hybrid Library Screening System (Clontech, USA) according to the manufacturer's protocol. Three forms of AC elements, i.e., AC-I (ACCTACC), AC-II (ACCAACC) and AC-III (ACCTAAC), are available thus far⁵². Therefore, the fragments containing three tandem repeat AC elements, AC-I (5′-TCCACCTACCTCCACCTACCTCCACCTACCCC-3′), AC-II (5′-TCCACCAACCCCTCCACCAACCCCTCCACCAACCCC-3′), and AC-III (5′-TCCACCTAACTCCACCTAACTCCACCTAACCC-3′), respectively, and their mutated form, mAC (5′-TCCAAATATTTCCAAATATTTCCAAATATTCC-3′), were assembled into a pHISi vector at the EcoR I and Xba I restriction enzyme cutting sites. The plasmids were transformed into a Y1H Gold line after linearization by an Apa I restriction enzyme. The binding assay was performed as described previously²¹.

Gene expression analysis by quantitative real-time PCR (qRT-PCR)

To analyze the expression profiles of CmMYB15 in different tissues, the roots, the fourth internode of the stem and the third fully expanded leaf counted from the apex were harvested from ‘Nannong Xunzhang’.

To dissect the expression profiles of CmMYB15 in response to aphid infestation, aphid infestation was performed as described by Xia et al.²⁰. The time point when aphids were infested was defined as −2 h; thus, 0 h refers to 2 h after infestation. To mimic piercing by an aphid, a puncture treatment was performed on the third leaf of another group of plants as described previously⁵¹. A group of untreated plants served as the control (CK). All the treated leaves were covered by transparent and ventilated petri dishes¹⁹. For RNA isolation, leaves from each treatment were harvested from three individual plants at −2, 0, 3, 6, 9, 12, and 24 h. The aphids were removed when the leaves were harvested. Each test included three biological replicates.

qRT-PCR was performed using SYBR Premix Ex Taq II (TaKaRa, Japan) according to the manufacturer's instructions. The gene Elongation Factor 1α (CmEF1α, KF305681) was used as the reference gene⁵³. The qRT-PCR data were analyzed using the 2^{− ΔΔCT} method⁵⁴.

Overexpression of CmMYB15 in ‘Jinba’ chrysanthemum

To identify the function of CmMYB15, pMDC43-2 × 35S::CmMYB15 was transformed into Agrobacterium tumefaciens strain EHA105 using the freeze-thaw method. Information on the in vitro regeneration of ‘Nannong Xunzhang’ chrysanthemum is not available; thus, a CmMYB15-overexpressing ‘Jinba’ chrysanthemum was produced by Agrobacterium-mediated transformation as described previously⁵⁵. Hygromycin-resistant shoots were rooted on MS medium containing hygromycin B, and the putative transgenic plants were identified by PCR using HptII primer pairs (Supplementary Table S1). The expression levels of CmMYB15 in the putative overexpression lines and wild-type (WT) plants were measured using the primer pair CmMYB15-qF/qR (Supplementary Table S1).

The resistance of CmMYB15-overexpressing chrysanthemum plants to aphid

Two independent overexpression lines were used for an aphid resistance assay according to the methods of Hu et al.⁵⁶. Transgenic plants and WT ‘Jinba’ plants at the 6–8-leaf stage were used for aphid resistance assays. The infestation of aphids was performed according to the method of Li et al.⁵⁵. Each infestation assay contained ten plants with three biological replications. The number of aphids was counted every 2 days. The average multiplication rate (MR) and average IR of the aphid population were calculated based on the aphid data counted over 21 days²¹.

The determination of lignin content and expression levels of lignin biosynthesis genes in CmMYB15-overexpressing plants

The fourth internode of the overexpressing lines and WT ‘Jinba’ plants at the 14-to-16-leaf stage was sampled, dried and ground. The lignin content was analyzed using the acetyl bromide procedure. The samples were prepared following the description by Foster et al.²³ The absorbance at 280 nm was determined using a microplate reader. The lignin content was then determined using the formula %ABSL = [abs × (2 ml × 100%)]/[(15.69 × 0.539 cm) × weight], where abs (absorbance) represents the average absorbance of 3 reads.

The fourth internode of the overexpressing lines and ‘Jinba’ plants at the 14-to-16-leaf stage was harvested. The expression of lignin biosynthesis genes, including CmPAL1, Cm4CL1, CmC3H1, CmCSE, CmCCoAMOT1, CmCCR1, CmF5H1, CmCOMT, and CmCAD6, was measured by qRT-PCR as mentioned above using the primers listed in Supplementary Table S1.

Statistical analysis

Tukey's multiple range test (P < 0.05) and one-way analysis of variance were performed to determine the significance of the data. SPSS v19.0 was used for all statistical analyses.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (Grant No. 31672192), the Program for Key Research and Development, Jiangsu, China (Grant No. BE2017318), the National Key Research and Development Program of China (2018YFD1000402), and the Fundamental Research Funds for the Central Universities (KJQN201812).

Author contributions

C.A., L.S., and S.C. conceived and designed the experiments. C.A., L.S., and X.D. performed the experiments. C.A., L.S., Y.W., and Y.Z. analyzed the data. A.S., J.J., Z.G., W.F., and F.C. contributed the reagents/plant materials/analysis tools. C.A. and S.C. wrote the manuscript. All authors read and approved the manuscript.

Conflict of interest

The authors declare that they have no conflict of interest.
