Genome Sequencing of a Gray Wolf from Peninsular India Provides New Insights into the Evolution and Hybridization of Gray Wolves Open Access

Abstract

The gray wolf (Canis lupus) is among the few large carnivores that survived the Late Pleistocene megafaunal extinctions. Thanks to their complex history of admixture and extensive geographic range, the number of gray wolf subspecies and their phylogenetic relationships remain poorly understood. Here, we perform whole-genome sequencing of a gray wolf collected from peninsular India that was phenotypically distinct from gray wolves outside India. Genomic analyses reveal that the Indian gray wolf is an evolutionarily distinct lineage that diverged from other extant gray wolf lineages ∼110 thousand years ago. Demographic analyses suggest that the Indian wolf population declined continuously decline since separating from other gray wolves and, today, has exceptionally low genetic diversity. We also find evidence for pervasive and mosaic gene flow between the Indian wolf and African canids including African wolf, Ethiopian wolf, and African wild dog despite their current geographical separation. Our results support the hypothesis that the Indian subcontinent was a Pleistocene refugium and center of diversification and further highlight the complex history of gene flow that characterized the evolution of gray wolves.

Introduction

The gray wolf (Canis lupus) first appears in the fossil records of Eurasia and North America some 500,000 years ago (Nowak 1979) and later diversified into more than 37 named subspecies (Wilson and Reeder 2005). Numerous morphological and genomic analyses of gray wolves have presented a complex and sometimes contradictory view of their evolutionary history (Leonard et al. 2007; Sinding et al. 2018; Smeds et al. 2019; Loog et al. 2020). For example, analyses of mitochondrial DNA have revealed a lack of strong haplotype structure among populations across the Northern hemisphere (Thalmann et al. 2013; Loog et al. 2020), whereas nuclear genomic analyses have identified distinct lineages in Eurasia and North America (Fan et al. 2016; Gopalakrishnan et al. 2018). These studies have also revealed widespread admixture among domestic dogs, gray wolves, and other species in the genera Canis and Cuon (Freedman et al. 2014; Fan et al. 2016; Gopalakrishnan et al. 2018; Pilot et al. 2019). This evolutionary history of dynamic long-distance dispersal, population replacements, and cross-species gene flow has complicated efforts to understand both how gray wolf populations are related to each other and the location, origin, and timing of dog domestication (Koepfli et al. 2015; Perri et al. 2021).

Among the least studied populations of gray wolves are those that inhabit the Indian subcontinent. Early taxonomists described two species endemic to this region: the Himalayan wolf, Canis laniger (Hodgson 1847), found in the highland regions of the Tibetan Plateau and eastern Kashmir, and the Indian wolf Canis pallipes (Sykes 1831), distributed within the arid/semi-arid lowland plains of peninsular India. Since these first descriptions, Himalayan and Indian wolves have been reclassified as subspecies within the gray wolf complex, Canis lupus chanco and C. l. pallipes, respectively (Allen 1938). The current range of C. l. pallipes extends from the eastern Mediterranean region of western Asia eastward to peninsular India, where several isolated populations are reported (Nowak 1995; Jhala 2003).

Genetic studies using mitochondrial and nuclear markers have shown that the Himalayan wolf is distinct from other gray wolf populations (Aggarwal et al. 2007; Ersmark et al. 2016; Werhahn et al. 2017, 2018). Similarly, Indian wolves are morphologically, behaviorally, and genetically distinct from other wolf subspecies (Aggarwal et al. 2003; Sharma et al. 2004; Aggarwal et al. 2007). Compared with other wolves, Indian wolves are smaller in size (18–22 kg) with less and relatively shorter hair that is light brown in color with black hair tips (fig. 1A). Indian wolves are also among the most threatened canid subspecies in the world, with an estimated population size of ∼2,000–3,000 individuals (Jhala 2003).

More recently, relationships among gray wolves have been analyzed using whole-genome sequences. In one study examining admixture among gray wolves and domestic dogs (Fan et al. 2016), a wolf presumed to originate from India but lacking precise locality information (NCBI accession: SRS661487) clustered with wolves from Iran and Israel, which together were grouped within a larger cluster of gray wolves from Eurasia. This result was, however, at odds with earlier phylogenetic analyses based on mitochondrial sequences that suggested that Himalayan wolves and wolves from peninsular India are the earliest branchings and most divergent lineages among all gray wolf populations, with Indian wolves diverging from other lineages ∼270–400 thousand years ago (ka) (Aggarwal et al. 2003; Sharma et al. 2004; Aggarwal et al. 2007). To resolve this inconsistency, additional analyses using wolf samples of unambiguous provenance are necessary, in particular as the complex history of admixture among canids can lead to discordance among individual gene trees (mitochondrial and nuclear) and the population/species tree (Degnan and Rosenberg 2009; Toews and Brelsford 2012).

Here, we address this by generating and analyzing a high-coverage nuclear and mitochondrial genome from a male Indian wolf captured for a radio-telemetry study in Velavadar Blackbuck National Park, Gujarat State, in western India (Jhala 2003), which we call IW01. IW01 had the morphological traits (supplementary fig. S1, Supplementary Material online) and mitochondrial sequence of a typical Indian peninsular wolf (Sharma et al. 2004). We analyze IW01 in conjunction with previously published genomic data from gray wolves sampled from Eurasia and North America (supplementary table S1, Supplementary Material online), including SRS661487, the wolf mentioned above whose precise origins remain ambiguous. We find strong evidence that IW01, along with Himalayan/Tibetan wolves, comprise lineages that are basal to all other gray wolves in both mitochondrial and nuclear phylogenies. Reconstruction of demographic histories also reveals that IW01 has a distinct effective population size trajectory compared with other wolves. Finally, we uncover evidence of historical admixture between IW01 and several canid lineages from Africa despite their current geographical separation, as well as gene flow between the domestic dog + gray wolf clade and these African canids. Our analyses indicate, however, that despite this history of admixture, the Indian wolf lineage has been evolving in isolation from other gray wolf lineages for around 110 thousands years.

Results and Discussion

Genome Sequencing and Mitochondrial Phylogeny

We extracted genomic DNA from IW01 using a whole blood sample collected in 1995. We prepared four pair-end sequencing libraries from which we sequenced 93.5 G nucleotide bases. We mapped sequencing reads to the domestic dog CanFam3.1 reference genome assembly, which yielded a 30.7-fold coverage genome for IW01. In addition, we de novo assembled the mitochondrial genome from IW01 to 2,557-fold coverage. From this whole mitochondrial genome, we extracted the cytochrome b and 16S rRNA gene sequences, which we used to estimate a phylogeny including IW01 and previously published mitochondrial data from Indian and other gray wolves for which full mitochondrial genomes were unavailable. Maximum-likelihood trees based on these two genes place IW01 in a previously reported clade containing other wolves from peninsular India that, along with Himalayan/Tibetan wolves, is basal to Holarctic gray wolves and domestic dogs (supplementary fig. S2, Supplementary Material online).

Using published raw read data, we also de novo assembled mitochondrial genomes of wolves putatively originating from India (SRS661487) and Iran (SRS661488), both of which lack precise locality information (Fan et al. 2016). We aligned these to a data set of 36 previously published mitochondrial genomes representing different Eurasian and North American gray wolf populations, including one Tibetan wolf and one Himalayan wolf, domestic dogs, and other species belonging to the genera Canis, Cuon, and Lycaon. As with the single gene analyses, IW01 was basal to all Holarctic gray wolves but inside the clade containing the Himalayan and Tibetan wolves, and distant from the SRS661487 (India) and SRS661488 (Iran), which cluster within the clade comprising Holarctic wolves and domestic dogs (fig. 1C).

Phylogenetic Relationship between the Indian Wolf IW01 and Other Gray Wolves

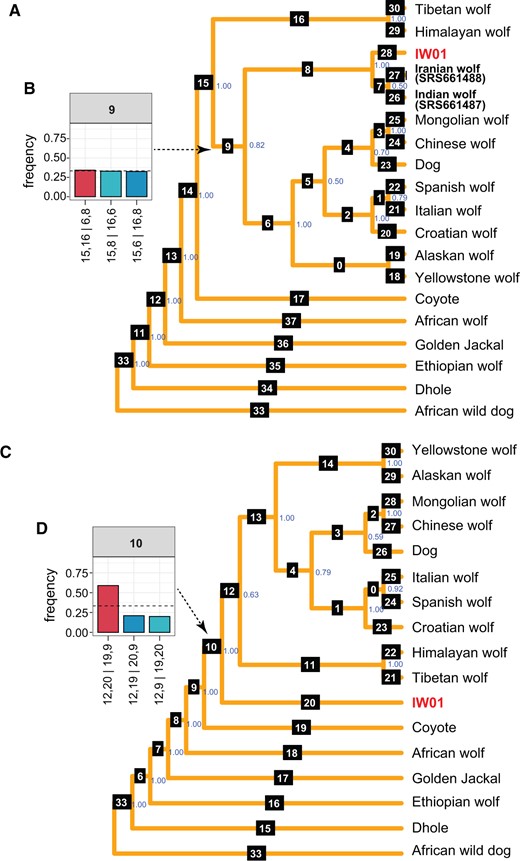

We combined gene trees estimated from 5,000 randomly selected 20-kb regions across the nuclear genomes of IW01 and 18 other canids and reconstructed a species tree using ASTRAL-III (Zhang et al. 2018). As observed previously (Koepfli et al. 2015; Gopalakrishnan et al. 2018), the African wolf and golden jackal are basal to the coyote and gray wolf clades (fig. 2A and B), and the Ethiopian wolf is an outgroup to the golden jackal. Domestic dogs and East Asian gray wolves formed a clade sister to European gray wolves, but with low support (fig. 2A and supplementary fig. S3A, Supplementary Material online). Quartet frequencies of gene trees comprising domestic dog, East Asian wolf, and European wolf were similar (supplementary fig. S3A, Supplementary Material online). When IW01, SRS661487 (India), and SRS661488 (Iran) are included in the ASTRAL tree, these three lineages form a well-supported clade basal to North American and Eurasian wolves following the split of Himalayan and Tibetan wolves, the latter of which comprises the earliest diverging lineage in the gray wolf/domestic dog clade (fig. 2A). This result is inconsistent with the phylogenetic tree presented in Fan et al. (2016), based on a supermatrix analysis of genome-wide SNP data that do not account for gene tree discordance. In Fan et al. (2016), SRS661487 and SRS661488 fall in the clade with European wolves, as they do in our mitochondrial phylogeny (fig. 1C). When we estimated the ASTRAL tree excluding IW01, SRS661487, and SRS661488 cluster with European wolves (supplementary fig. S4, Supplementary Material online) as in Fan et al. (2016). When the ASTRAL tree includes IW01 but excludes SRS661487 and SRS661488, IW01 falls basal to all gray wolves and the domestic dog, including the Himalayan and Tibetan wolf clade, with strong support (fig. 2C and D, panel 10). However, the placement of the Himalayan/Tibetan wolf clade has low support (supplementary fig. S3B, Supplementary Material online), suggesting that the phylogenetic relationship among IW01, Himalayan/Tibetan wolf, and the domestic dog + gray wolf clade is not well resolved, possibly due to incomplete sorting and/or gene flow among these lineages.

To further explore the placement of IW01, we aligned the high-coverage nuclear genomes from IW01, a Tibetan wolf, a Chinese wolf, and a dhole and divided the alignment into 250-kb, 500-kb, and 1-Mb nonoverlapping segments, and then estimated maximum-likelihood phylogenetic trees for each segment. The most commonly observed topology, which accounted for 48–57% of windows, placed IW01 as basal to the Tibetan wolf and the Chinese wolf (supplementary fig. S5, Supplementary Material online).

Given that the most commonly observed topology placed IW01 as basal to Tibetan wolves, which previously estimated contained as much as 39% ancestry from a deeply divergent “ghost” lineage (Wang et al. 2020), it is possible that all or some component of the ancestry of IW01 is also from this “ghost” lineage. To test this, we constructed a neighbor-joining tree using only genomic segments characterized as of “ghost” origin in Himalayan and Tibetan wolves (Wang et al. 2020). Similar to the mitochondrial tree (fig. 1C), IW01 and Himalayan/Tibetan wolves formed two distinct clades in this analysis, with the latter clade basal to other gray wolves, including IW01, with high bootstrap support (supplementary fig. S6, Supplementary Material online). These results suggest that IW01 is not the possible source of the “ghost” lineage ancestry. Instead, the “ghost” lineage is likely basal to IW01.

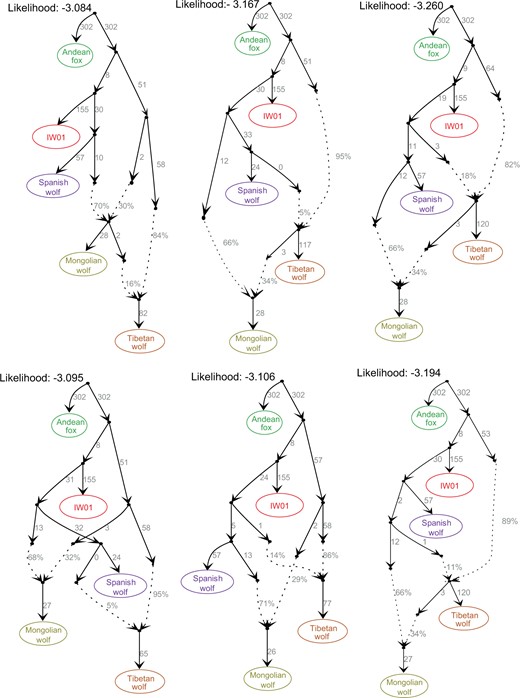

Finally, we modeled the genetic makeup and phylogenetic assignments of IW01 using admixture graphs. Because this analysis is based on genotype calls, we prioritized genomes with sequence coverage over 10-fold. In agreement with the above analyses, our data fit the graph models (no f4 outliers) in which IW01 is assigned to a lineage basal to Eurasian gray wolves and shows no signals of admixture with other gray wolf populations (fig. 3). Our results also indicate Tibetan wolves have admixed ancestry that is perhaps derived from ancient hybridization between a lineage basal to IW01 and Eurasian gray wolves. Interestingly, this analysis suggests that the Mongolian wolf is also admixed (fig. 3), with the majority of its ancestry coming from European wolves, and the remainder from a lineage connecting them to Himalayan/Tibetan wolves. Previous studies have suggested that the range of Himalayan/Tibetan wolves was probably expanded across much of Mongolia and Northwest China (Sharma et al. 2004), although these wolves maintain different distributions and represent distinct genetic lineages today (Werhahn et al. 2017).

Gene Flow between Indian Wolf IW01 and Other Canids

The uncertainty of the phylogenetic placement of gray wolves SRS661487 (India) and SRS661488 (Iran), as well as previous reports of admixture among canid lineages (Koepfli et al. 2015; Skoglund et al. 2015; Gopalakrishnan et al. 2018), suggest that one or more of the sampled Middle Eastern and Indian wolf lineages may have admixed ancestry. We explored genetic affinity and admixture between IW01 and other gray wolves using TreeMix (Pickrell and Pritchard 2012) and D-statistics (Green et al. 2010) by analyzing 32 nuclear genomes (supplementary table S1, Supplementary Material online). Our results support IW01 as a diverged wolf lineage basal to other Eurasian gray wolves and that SRS661487 is closely related to Iranian and European gray wolves (fig. 4 and supplementary figs. S4–S9, Supplementary Material online).

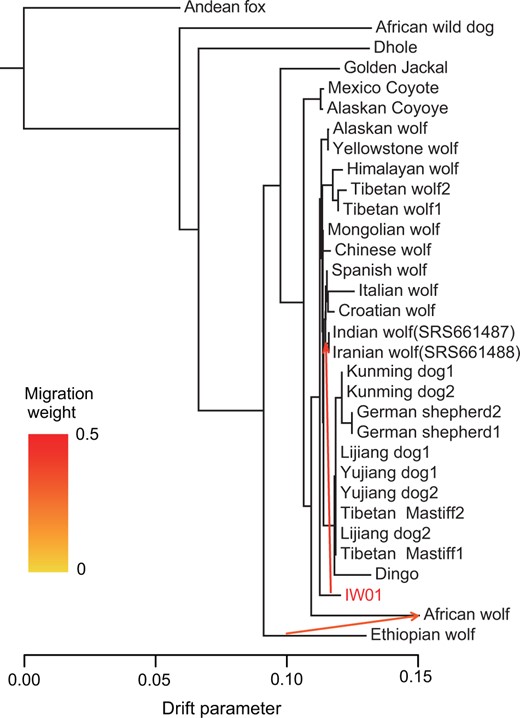

We also found evidence of gene flow between IW01 and the two wolves of suspect origin (SRS661487 [India] and SRS661488 [Iran]) (figs. 4 and 5A and B; supplementary figs. S7–S9, Supplementary Material online), as well as between IW01 and three more recently reported Iranian wolves (supplementary fig. S10, Supplementary Material online) (Amiri Ghanatsaman et al. 2020). Admixture among these lineages is expected, given the lack of reproductive barriers and any major geographic barriers separating these populations. We did not find evidence, however, of gene flow between IW01 and the Himalayan wolf. This is surprising, given the proximity of their ranges but consistent with previous findings based on mitochondrial sequences (Sharma et al. 2004) and our phylogenetic results. It is possible that differences in local adaptation between highland wolves of the trans-Himalayan and Tibetan plateau (Werhahn et al. 2018; Wang et al. 2020) versus lowland wolves of the semi-arid habitats in peninsular India, along with the small population sizes and fragmented habitat of Indian wolves may lessen chances for admixture between these lineages (Owen et al. 2002; Blinkhorn and Petraglia 2017). However, given that our analyses are currently limited to a single Indian wolf sample of known origin, additional genomes from wolves sampled across peninsular India and the Himalayan region will be required to reveal the extent of gene flow among these lineages.

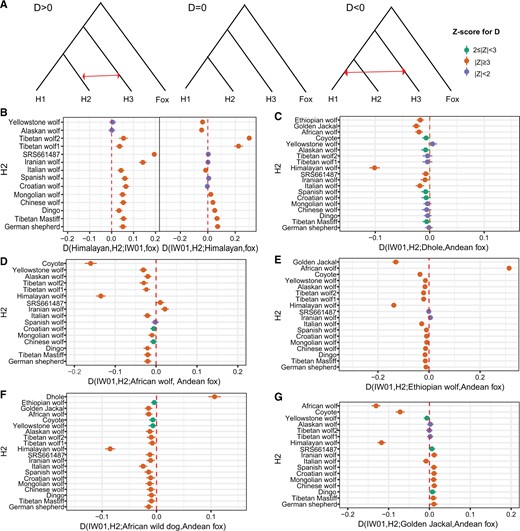

Using D-statistics, we did not find any evidence of admixture between IW01 and the Asiatic dhole when the domestic dog, East Asian wolf, Croatian wolf, Spanish wolf, or North American wolf are in position H2 (fig. 5C). However, we detected significant gene flow between IW01 and Kenyan African wolf (fig. 5D), Ethiopian wolf (fig. 5E), and African wild dog (fig. 5F). This is consistent with the recent radiation of including Lycaon, Cuon, and Canis, which has been estimated at ∼1.72 Ma in models that include the possibility of gene flow among lineages (Chavez et al. 2019). Such gene flow may have been mediated through an unknown, earlier diverging donor species (Gopalakrishnan et al. 2018). We also found evidence of gene flow between IW01 and each of three recently reported northwestern African wolves (from Senegal, Morocco, and Algeria) (Liu et al. 2018), although the proportion of shared ancestry varied among individuals sampled (supplementary tables S2 and S3, Supplementary Material online). Moreover, past gene flow has been reported in other geographically distant canid species (fig. 5E and F; supplementary table S2, Supplementary Material online), such as between Ethiopian wolf and Eurasian gray wolves and golden jackals, and between Ethiopian wolf and lineage ancestral to northwestern and eastern African wolves (Gopalakrishnan et al. 2018).

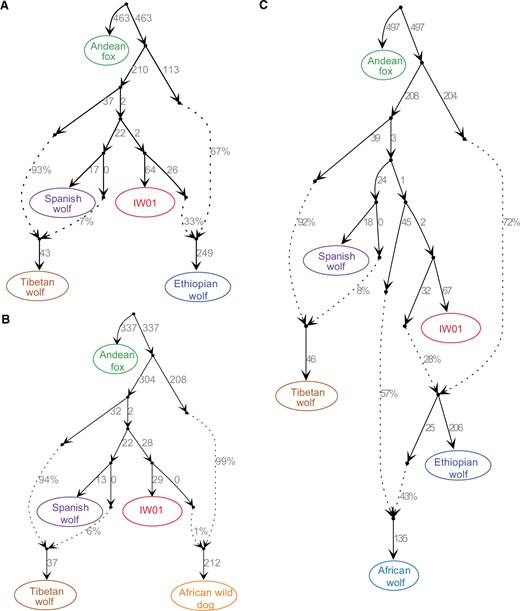

We constructed admixture graph models to further investigate admixture among IW01 and African canids. Because this analysis requires a specified graph topology for testing, it is challenging to implement this test with a large number of populations or species with histories involving complex admixture events. Following previous canid genomic studies (Sinding et al. 2018), we simplified admixture graphs by beginning with a model that includes European wolf, Tibetan wolf, IW01, and Andean fox (as an out-group), and then adding African canid species to fit all possible f4-statistics (Lipson 2020). In agreement with our D-statistics results, the fitted admixture graphs (no f4 outliers) indicated that IW01 had gene flow with the African wolf, Ethiopian wolf, and African wild dog (fig. 6 and supplementary fig. S11, Supplementary Material online). We found more gene flow between IW01 and the African wolf and Ethiopian wolf than between IW01 and with the African wild dog. Because the admixture history among gray wolf and canid species is complex, these fitted graphs reflect a parsimonious summary of our data and may not reflect the complete admixture history for these lineages.

Lastly, we applied PCAdmix (Brisbin et al. 2012) to perform local ancestry inference for IW01, with African canids, Eurasian gray wolf, and domestic dog as source populations. Although this analysis has low power and resolution to infer small tracts reflecting anciently admixed ancestry, IW01 shared some potentially admixed tracts (posterior probabilities > 0.9) with each of the three African canid species, the African wolf, Ethiopian wolf, and African wild dog (supplementary table S4, Supplementary Material online). The identified admixed tracts were short and few in number, indicative of ancient gene flow. IW01 shared the largest number and length of admixed blocks with the African wolf, followed by the Ethiopian wolf.

The above analyses support pervasive ancient gene flow between IW01 and African canids. Compared with the two wolves SRS661487 (India) and SRS661488 (Iran), IW01 shares less ancestry with African wolves and a comparable amount of ancestry with the Ethiopian wolf (fig. 5D and E). A possible explanation for this pattern is that gene flow between IW01 and African canids was mediated through Middle Eastern wolves. However, this model does not explain the shared ancestry between IW01 and African wild dogs (figs. 5F and 6; supplementary fig. S11, Supplementary Material online).

Further, our results show that Iranian wolf genomes shared a large excess of genetic ancestry with IW01 (fig. 4 and supplementary fig. S7, Supplementary Material online). This suggests that the lineage leading to IW01 may have been more widely distributed in the past, from the Indian subcontinent to the Arabian Peninsula (Sharma et al. 2004), and overlapping in range and potentially hybridizing with Middle-Eastern gray wolves and African canid lineages in the past.

Our results support the hypothesis that the Sinai Peninsula and Southwest Levant are important hubs of canid evolution, where pervasive interspecific hybridization has been detected among gray wolves, African wolves, and Eurasian golden jackals (Koepfli et al. 2015; Gopalakrishnan et al. 2018). Assemblages of Early Pleistocene mammalian fossils from the Pinjor Formation in India, including remains of at least two species of Canis, suggest paleobiogeographic linkages with African and Middle Eastern faunas (Patnaik and Nanda 2010). The connections between the faunas of India and Africa are also supported by the vertebrate fossil records from Late Pleistocene deposits in Gujurat, which includes a Canis sp. that is larger and more robust than the present-day Indian wolf (Costa 2017), and from other taxa, as Asiatic lions in India have experienced extensive gene flow with African lions (de Manuel et al. 2020), and African leopards are known to have admixed with leopards from the Middle East (Palestine region) and Central Asia (Afghanistan) (Paijmans et al. 2021). Our model is, of course, speculative, and additional data from both fossils and living animals will be helpful to understand the history of admixture among these canid lineages.

Intriguingly, D-statistics tests of allele sharing between IW01 and African canids revealed the Himalayan wolf as distinct from other wolf lineages (fig. 5C–G), leading us to hypothesize that the Himalayan wolf was less admixed. To test this, we computed D-statistics with the Himalayan wolf as H1, domestic dog and gray wolves as H2, and African wolf, Ethiopian wolf, African wild dog, or golden jackal as H3. All analyses resulted in significant positive D values (Z > 3), suggesting that the domestic dog and gray wolves also shared excess derived alleles with African canids and golden jackals (supplementary fig. S12, Supplementary Material online). This analysis provides support for the idea that present-day wolves and domestic dogs have admixed ancestries (Fan et al. 2016; Frantz et al. 2016) and that the Himalayan wolf is relatively isolated (less or unadmixed with other canids) compared with other wolves (fig. 5B).

Demographic History and Divergence Time for the IW01 and Other Gray Wolves

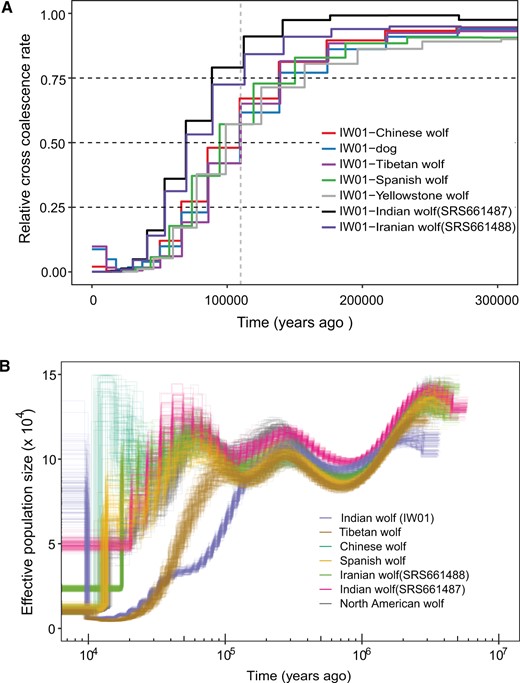

To place the evolution of IW01 in a chronological context along with other gray wolves, we calculated relative cross-coalescence rates (CCR, the ratio between the cross- and the within-coalescence rates) for each pair of populations using the multiple sequentially Markovian coalescent (MSMC) model (Schiffels and Durbin 2014), including genomes with a sequence coverage >20-fold. Using 50% CCR as a cutoff to estimate divergence time, these analyses suggest that IW01 diverged from domestic dogs and Chinese, Tibetan, European, and American wolves ∼110 ka (fig. 7A). This divergence date is much older than the previous estimates of ∼68–81 ka for divergence between the Tibetan wolf and domestic dog/East Asian gray wolves (Wang et al. 2020) and supports our phylogenetic result that IW01 is basal to the Tibetan/Himalayan wolf and domestic dog + gray wolf clade (figs. 2C and 4; supplementary figs. S5–S7, Supplementary Material online). This analysis also showed that IW01 split from SRS661487 (India) and SRS661488 (Iran) more recently, around 86 and 81 ka, respectively (fig. 7A), although these estimates will be impacted by the admixed ancestry of these three individuals (fig. 4). We estimated that SRS661487 diverged from the domestic dog and Chinese wolf ∼68–85 ka and from European wolf ∼17 ka (supplementary fig. S13, Supplementary Material online), and that SRS661487 separated from the Iranian wolf (SRS661488) ∼5.5 ka, consistent with these two samples clustering together in the phylogeny (fig. 4 and supplementary figs. S6 and S7, Supplementary Material online). Therefore, SRS661487 likely represents a gray wolf that recently descended from Middle Eastern and European wolf lineages that then admixed with the IW01 lineage, whereas IW01 is a distinct and deeply diverged lineage.

We used the pairwise sequentially Markovian coalescent (PSMC) model (Li and Durbin 2011) to reconstruct historical patterns of effective population size over time for IW01 and other gray wolves with sequencing coverage ≥20-fold (fig. 7B). Generally, all gray wolves shared similar demographic trajectories up to ∼150 ka. Thereafter, IW01 and the Tibetan wolf diverged first around 110 ka and then experienced continuous contractions in population size. Generally consistent with MSMC and PSMC, we used Coal-HMM (Mailund et al. 2011) and estimated that IW01 diverged from dogs and other gray wolves ∼130–140 ka (supplementary fig. S14, Supplementary Material online). In contrast, SRS661487 shared a similar demographic trajectory with European, Iranian, and North American wolves whose population size expanded slightly between 100 and 50 ka, which was then followed by contraction (fig. 7B). These results corroborate that IW01 and SRS661487 represent two different gray wolf lineages.

To explore the recent history of the Indian wolf population, we examined nucleotide diversity and runs of homozygosity (ROH) for IW01 and compared this with the estimates from other gray wolves. Because such analyses are sensitive to genotyping errors, we focused on genomes with sequencing coverage ≥20-fold. IW01 had a nucleotide diversity of approximately 0.00104 ± 0.00098 (mean±SD), slightly higher than that of the Tibetan wolf, but lower than that estimated for European wolves, SRS661487, the Iranian wolf (SRS661488), the Mongolian wolf, and the North American wolf (supplementary fig. S15, Supplementary Material online). IW01 had 11 blocks of ROH with a length >1 Mb, the longest of which was 1.57 Mb, whereas the Tibetan wolf had 48 blocks of ROH >1 Mb and 5 ROH >2 Mb (supplementary fig. S16, Supplementary Material online). We found that 33% of the IW01 genome and 43% of the Tibetan wolf genome were homozygous, which was higher than that observed in other gray wolves except for the Chinese wolf (supplementary fig. S16, Supplementary Material online). These results are consistent with the long-term small effective population sizes inferred in our PSMC analysis and with earlier ecological studies (Aggarwal et al. 2003, 2007; Sharma et al. 2004), and also suggest recent inbreeding.

Conclusion

Our results suggest that IW01 represents an evolutionarily distinct gray wolf lineage living in the semi-arid lowland region of the Indian subcontinent that diverged from other gray wolf populations ∼110 ka. IW01 shares ancestry with other gray wolves (SRS661487 and SRS661488) that fall within the geographic range described for C.l.pallipes. Consistent with our previous study, gray wolves from the Trans-Himalayan mountain range and Tibetan Plateau also carry deeply diverged ancestries (Wang et al. 2020). The persistence of these ancient and diverged lineages in the Indian subcontinent may be due in part to the region’s unique topography and paleoenvironmental history. Similar patterns of locally divergent lineages have been observed in Trans-Himalayan red pandas (Hu et al. 2020) and Chinese mountain cats (Yu et al. 2021). Together, these findings point to the importance of the Indian subcontinent and Trans-Himalayan region as refugia during the Pleistocene (Sharma et al. 2004; Costa 2017) that enabled the persistence of divergent lineages.

During the Pleistocene ice ages, the Indian subcontinent was dry and cold, and much of the Himalayan and Trans-Himalayan regions and southern Tibet (Owen et al. 2002) were covered by ice. Regional unglaciated refugia persisted, however, within which small populations of gray wolves may have become isolated, leading to the evolution of distinct lineages (Blinkhorn and Petraglia 2017). Our estimate of the timing of divergence between IW01 and other gray wolves coincides roughly with the end of the Last Interglacial period (Eemian), when warmer, wetter conditions occurred in the northern latitudes of Eurasia, whereas the Indian subcontinent and neighboring lower latitude regions experienced a cooler, drier climate (Pedersen et al. 2017). These paleoclimatic differences, combined with geographic isolation, may have facilitated ecological and genetic divergence of the Indian wolf lineage.

Despite the relative isolation and small population size of Indian wolves today, we find that the IW01 lineage harbors evidence of a mosaic of past gene flow with the African wolf, Ethiopian wolf, African wild dog, and western Asian gray wolves. We also find that the Himalayan wolf shares significantly less admixed ancestry with modern-day African canids (supplementary fig. S12, Supplementary Material online), which is consistent with its isolation and adaptation to the high-altitude arid environments of the Himalayan and Tibetan plateaus. It is possible that the distribution of gray wolves and African canids overlapped in the past, possibly in the Sinai Peninsula or Southwest Levant where several canid species are hypothesized to have hybridized (Gopalakrishnan et al. 2018).

Our results present a scenario of pervasive gene flow between gray wolves and other canid species, adding to the growing evidence of the important role of interspecific hybridization in the evolution of canid species and populations specifically and the role of network-linked and reticulated evolution of species more generally. Although our study is based on a single sample of precisely known provenance, our analyses of IW01 bridge a data gap for gray wolves and provide an important resource for future studies. Additional sampling of Indian wolves from other regions of peninsular India, of other wolves from across the range of C.l.pallipes, and perhaps from ancient samples will be necessary to inform the conservation of this threatened and elusive gray wolf subspecies.

Materials and Methods

IW01: Origins and Sampling

The Indian wolf (IW01; fig. 1 and supplementary fig. S1, Supplementary Material online) sequenced for this study was captured in 1995 inside Velavadar Blackbuck National Park in Gujarat state, India (latitude = 22.0438°N, longitude = 72.0202°E), for a radio-telemetry-based ecological study of the species. The wolf was captured using a rubberized-jaw McBride foot-hold trap (Minnesota) and anesthetized using Telozol (Kreeger et al. 1989). Whole blood was drawn from the brachial vein for DNA profiling and disease study. Permissions for capture and collaring were obtained from the Ministry of Environment and Forest, government of India, and from the Chief Wildlife Warden, Gujarat state. The whole blood sample was stored in alcohol at −20 °C until genomic DNA was extracted.

Genome Sequencing and Variant Calling

Four paired-end DNA sequencing libraries were prepared for IW01, resulting in a total of 311,789,040 paired-end 150-bp reads (corresponding to 93.5 Gb) generated by the M/s Xcelris Labs Ltd. Ahmedabad, Gujarat, India, using the Illumina HiSeq 2500 platform. We downloaded published genomic sequences from 30 other canid samples from the NCBI SRA (accession IDs are available in supplementary table S1, Supplementary Material online) including domestic dogs, African wild dog (Lycaon pictus), dhole (Cuon alpinus), coyote (Canis latrans), Eurasian golden jackal (Canis aureus), African wolf (Canis lupaster), Ethiopian wolf (Canis simensis), and Andean fox (Lycalopex culpaeus). We used Btrim (Kong 2011) to remove low-quality bases. Because a highly contiguous chromosome-level reference genome assembly is not yet available for the gray wolf, we aligned the remaining reads to the domestic dog CanFam3.1 reference genome (Lindblad-Toh et al. 2005) using the BWA-MEM algorithm (Li 2014) with the settings “-t 4 –M.” We processed the bam alignment by coordinate sorting, marking duplicated reads, performed local realignment, and recalibrated base quality scores using the Picard (version 1.56; http://broadinstitute.github.io/picard/, last accessed January 27, 2022) and GATK (version 3.7.0) packages (McKenna et al. 2010). We called SNPs for all samples together using the UnifiedGenotyper function in GATK. To increase the reliability of the data, SNPs were further filtered as previously described (Wang et al. 2020) using the VariantFiltration command in GATK with parameters: “QUAL < 40.0 MQ < 25.0 MQ0 ≥ 4 && ((MQ0/(1.0×DP)) > 0.1) cluster 3 -window 10.” Index, depth, and mapping statistics were computed using available tools in SAMtools v1.3.1 (Li et al. 2009).

Mitochondrial Assembly and Phylogenetic Analysis

Because no complete mitochondrial genome is available in GenBank for the Indian wolf, we performed de novo assembly of the mitochondrial genome for IW01, SRS661487 (India), and SRS661488 (Iran) using NOVOPlasty v2.7.2 (Dierckxsens et al. 2017) with a k-mer size of 31 based on whole-genome sequencing data. The domestic dog mitochondrial genome (GenBank accession:NC_002008.4) was used as a seed/reference sequence. We downloaded mitochondrial genomes for coyote, African dog, dhole, African wolf, and other gray wolves and domestic dogs from NCBI (GenBank accessions are shown in fig. 1C) and included the Tibetan and Himalayan wolf sequences from a previous study (Wang et al. 2020). A total of 39 mitogenomes were analyzed in this study. These sequences were aligned using MUSCLE v3.8.31 (Edgar 2004) and the alignments were checked manually. After removing poorly aligned and control regions, an alignment file with a length of 15,462 bp was used for phylogenetic analysis. A maximum-likelihood tree was reconstructed using RAxML v8.2.12 (Stamatakis 2014) with the GTR+G model of DNA substitution, and 1,000 bootstraps were run to assess node support.

We also downloaded previously reported mitochondrial cytochrome b and 16S rRNA sequences for Indian wolf, domestic dog, and other gray wolves from GenBank (accessions are shown in supplementary fig. S2, Supplementary Material online) and aligned and analyzed these data (554 bp for 16S rRNA and 332 bp for cytochrome b) for phylogenetic analysis using the same methods described above.

Nuclear Phylogeny Construction

We constructed phylogenetic trees using nuclear genome sequences to explore the relationship of IW01 with other gray wolves and canid species. For each canid taxon, only one sample was used. Given that domestic dogs constitute a monophyletic clade (Fan et al. 2016; Wang et al. 2016), we chose the high-coverage Dingo genome (31.3-fold; SRR7120191) to represent the domestic dog lineage. As a result, a total of 19 samples were used to construct phylogenetic trees (fig. 2A and supplementary fig. S3, Supplementary Material online). We generated a consensus genome for each sample using ANGSD v0.931 (Korneliussen et al. 2014) (-doFasta 1). Reads with a minimum mapping quality lower than 25 were discarded (-minMapQ 25). For genomes with an average sequencing depth of over or less than 10-fold, the minimum depth for each base was set to 4-fold (-setMinDepth 4) or to 3-fold (-setMinDepth 3), respectively. Additional filter parameters implemented were: -doCounts 1 -uniqueOnly 1 -nThreads 2. We selected 5,000 random regions with a length of 20 kb from across the genome of the domestic dog reference assembly and the other 18 canid taxa using the “random” function in BEDTools v2.28.0 (Quinlan and Hall 2010) (-l 20,000 -n 5,000). Sequences for each region were retrieved using the “faidx” function of SAMtools v1.3.1 (Li et al. 2009). For each region, a maximum-likelihood tree was constructed by RAxML v8.2.12 (Stamatakis 2014) with 100 bootstrap replicates using the command: raxmlHPC-PTHREADS-SSE3 -x 12,345 -k -# 100 -p 321 -m GTRGAMMAI -T 4 -s myseq.fas -f a -n myseq.ml.tre. The 5,000 gene trees were then concatenated and used as input for ASTRAL-III v5.7.5 (Zhang et al. 2018) to generate a species tree, using default parameters. We used DiscoVista (Sayyari et al. 2018) to analyze the discordance frequencies between the ASTRAL species tree and the 5,000 gene trees.

We retrieved and concatenated genotypes for 31 samples (in VCF format) within regions containing the signal of diverged origin in high-altitude wolves (Himalayan and Tibetan wolves) (Wang et al. 2020), and converted into .fas format files. A neighbor-joining tree was constructed using the mega-cc tool (Kumar et al. 2012) in MEGA7 (Kumar et al. 2016) and nodal support was evaluated with 1,000 bootstrap replicates. Lastly, following (Wang et al. 2020), we split four high-coverage genomes from the Chinese wolf, IW01, Tibetan wolf, and dhole into 250-, 500-, and 1,000-kb windows across autosomes and constructed phylogenies for each window using TreeMix v1.13 (Pickrell and Pritchard 2012) with dhole as the outgroup. The frequency of each topology was calculated using APE v5.5 (Popescu et al. 2012).

PSMC Analysis

We used the PSMC model to infer historical demographic trajectories for the sampled gray wolves (Li and Durbin 2011). We only analyzed genomes with coverage >20-fold to ensure the accurate calling of heterozygotes (Nadachowska-Brzyska et al. 2016), although some studies used low coverage genomes with false negative rate corrections (Kim et al. 2014; Hawkins et al. 2018). A diploid consensus sequence for each individual was generated using the “mpileup” command of the SAMtools package (v1.3.1) (Li et al. 2009) with the option “-C50.” Variants with less than about 1/3 (“-d” option) or over two times (“-D” option) of average read depth were marked as missing and excluded from consensus sequence assignment. Sequences with consensus quality lower than 20 were also filtered out. The program “fq2psmcfa” from the PSMC package was used to convert the consensus sequences into 100-bp bin-input files for PSMC. We ran PSMC with parameters “-N25 -t15 -r5 -p 4 + 25×2 + 4 + 6.” A total of 100 bootstraps were analyzed for each sample. These PSMC estimates are scaled using a generation time (g) of 3 years and a mutation rate (µ) of 4e − 9 substitutions per site per generation as used previously (Skoglund et al. 2015). This mutation rate was comparable to a recent estimation based on pedigree analysis (Koch et al. 2019).

MSMC and Coal-HMM Inference of Splitting Time

We used the multiple sequential Markovian coalescent (MSMC2) model to infer the divergence time for the domestic dog and gray wolf population pairs (Schiffels and Durbin 2014). Genotypes for all dogs and wolves were phased together using Beagle V.4.1 (Browning and Browning 2016). The MSMC input files comprising four haplotypes (two individuals) were generated as suggested by the authors using available tools from the MSMC-tool package (https://github.com/stschiff/msmc-tools, last accessed January 27, 2022). We ran MSMC for each pair of genomes using default settings and the time when the relative cross-coalescent rate was dropped to 50% as an approximate estimate of the splitting time (Malaspinas et al. 2016). For each calculation, four haplotypes were analyzed, and estimations were scaled using a generation time (g) of 3 years and a mutation rate (µ) of 4e −9 substitutions per site per generation (Skoglund et al. 2015). Similar to the PSMC analysis, we restricted this analysis to genomes with coverage >20-fold.

We also used Coal-HMM (Mailund et al. 2011), a coalescent hidden Markov model-based approach, to measure the divergence time for the Indian wolf (IW01) and dog and other wolves. We performed estimation for each population pair using 1-Mb nonoverlapping sliding window segments across each chromosome. We filtered out windows with over 10% missing rate for such analysis. We also removed results for each segment where: 1) the recombination rate was lower 0.1 or over 10 cM/Mb, 2) the ancestral effective population size below 1,000 or above 1,000,000, and 3) the split time was below 1,000 years or above 1,000,000 years.

Nuclear Diversity and ROH Analysis

Nucleotide diversity (π) (Nei and Li 1979) was calculated for each sample across the autosomes using VCFtools v0.1.13 (Danecek et al. 2011) in 50-kb sliding windows with a step of 25 kb. ROH was calculated for each sample across the autosomes using the “roh” function in the BCFtools v1.4-7-g41827a3 (Narasimhan et al. 2016) with default parameters.

TreeMix, ABBA-BABA, and AdmixtureGraph Analyses

To explore the phylogenetic relationships and admixture among gray wolves and other canid species, we also used TreeMix v1.13 (Pickrell and Pritchard 2012) to construct maximum-likelihood tree graphs by allowing gene flow. TreeMix analysis was run for all variants located on autosomes using 1,000 variants per block (-k 1,000) and allowing zero to five migrations, with Andean fox used as the outgroup.

We used the ABBA-BABA test, also known as D-statistics (Green et al. 2010) to detect the amount of allele sharing between gray wolf populations. This analysis is based on the topology (((H1, H2), H3), Outgroup) as shown in figure 5A. D = 0 suggests no gene flow between ingroup (H1 or H2) and H3; D > 0 suggests gene flow between H3 and H2; and D < 0 suggests gene flow between H3 and H1. We used the function “-doAbbababa 1” in ANGSD v0.931 (Korneliussen et al. 2014) to perform this analysis with the additional settings “-doCounts 1 -minMapQ 25 -minQ 25 -uniqueOnly 1 -nThreads 6.”

To assess the genetic makeup and relationships among IW01, gray wolves, and three African canid species (African wolf, Ethiopian wolf, and African wild dog), we constructed admixture graph models using the qpGraph tool from AdmixTools package (Patterson et al. 2012), the admixturegraph R package (Leppala et al. 2017), and qpBrute (Ni Leathlobhair et al. 2018; Liu et al. 2019). Because this analysis requires high-confidence genotype calls, we chose one sample with genome sequencing coverage over 10-fold from each population or species for constructing admixture graphs. To resolve the relationship between IW01, Himalayan/Tibetan wolves, and Eurasian gray wolves, we tested all possible graph models to fit all possible f4-statistics. The phylogenetic tree based on “ghost” admixed sequences and mitochondrial genomes from Himalayan or Tibetan wolves showed that the “ghost” lineage was basal to IW01. Therefore, we considered graphs in which Himalayan or Tibetan wolves were modeled as a product of admixture with one source from the lineage basal to IW01. To investigate the admixture between IW01 and African canids, we constructed admixture models starting with three populations (IW01, European wolf, and Himalayan or Tibetan wolf) and the fitted graph was then used as the base model in which we successively added each of the three African canid species.

Local Ancestry Inference

To identify potential admixed tracts along each chromosome in IW01, we performed local ancestry inference using PCAdmix (Brisbin et al. 2012). We used phased genotypes as mentioned above as input, with IW01 designated as an admixed population and each of the African canid species, domestic dog, and Eurasian gray wolves as source populations. We performed two independent runs using 20 (default by the software) and 40 SNPs per window (“-w” parameter), respectively. The identified regions with posterior probabilities >0.9 were considered as potentially admixed.

Supplementary Material

Supplementary data are available at Genome Biology and Evolution online.

Acknowledgments

We thank the research communities for making their genomic data public, which makes this study possible. We also thank Y. Shah for the Indian wolf photos, and Robert Wayne for helpful discussions. This project was supported in part by DST-INSPIRE Faculty funding awarded to M.T. (04/2016/002246).

Author Contributions

M.T., Y.J., and B.S. conceived the idea and designed the research project. B.S., Y.J., K.-P.K., and R.E. G. supervised the analysis. M.-S.W., M.T., and S.W. performed the analysis with inputs from H.-M. C. and S.-S. D. Y.J., M.T., and Y.S. provided and coordinated genome sequencing of wolf sample IW01 within India. M.-S.W., M.T., and B.S. drafted the manuscript. B.S., Y.J., K.-P. K., M.-S.W., and M.T. revised the manuscript with input from all authors. Analysis of the Indian wolf sampled from western Gujarat, including sequencing and data analysis, was undertaken in India. Z.-X.L. submitted sequenced genome to NCBI. All authors read and improved the manuscript.

Data Availability

The genome sequencing raw reads were deposited in the NCBI-SRA database, under Bio-Project accession: PRJNA714797.
