De Novo Genome Assembly of the Meadow Brown Butterfly, Maniola jurtina Open Access

Abstract

Meadow brown butterflies (Maniola jurtina) on the Isles of Scilly represent an ideal model in which to dissect the links between genotype, phenotype and long-term patterns of selection in the wild - a largely unfulfilled but fundamental aim of modern biology. To meet this aim, a clear description of genotype is required. Here we present the draft genome sequence of M. jurtina to serve as a founding genetic resource for this species. Seven libraries were constructed using pooled DNA from five wild caught spotted females and sequenced using Illumina, PacBio RSII and MinION technology. A novel hybrid assembly approach was employed to generate a final assembly with an N50 of 214 kb (longest scaffold 2.9 Mb). The sequence assembly described here predicts a gene count of 36,294 and includes variants and gene duplicates from five genotypes. Core BUSCO (Benchmarking Universal Single-Copy Orthologs) gene sets of Arthropoda and Insecta recovered 90.5% and 88.7% complete and single-copy genes respectively. Comparisons with 17 other Lepidopteran species placed 86.5% of the assembled genes in orthogroups. Our results provide the first high-quality draft genome and annotation of the butterfly M. jurtina.

The meadow brown butterfly (Maniola jurtina, NCBI:txid191418) is a member of the nymphalid subtribe Satyrini. It is an important model organism for the study of lepidopteran ecology and evolution and has been extensively studied by ecological geneticists for many years (Dowdeswell et al. 1949; Dowdeswell 1961; Ford 1965). Found across the Palearctic realm it primarily habituates in grasslands, woodland rides, field-margins and can even be found in overgrown gardens.

The species displays marked sexual dimorphism. Females are more colorful than males and have large upper-wing eyespots (Figure 1). It also exhibits considerable quantitative variation in the sub-marginal spot pattern of its wings (Brakefield and van Noordwijk 1985) and therefore represents an ideal model in which to dissect the links between genotype, phenotype and long-term patterns of selection in the wild (Baxter et al. 2017) - a largely unfulfilled but fundamental aim of modern biology. This draft genome and corresponding annotations will offer a core resource for ongoing work in lepidopterans and other arthropods of ecological importance.

Materials and Methods

Sampling and sequencing

Adult meadow brown (Maniola jurtina) butterflies were collected from multiple fields (Isles of Scilly, Cornwall) in June 2012, anesthetized by refrigeration for 2 hr and then killed by subsequent freezing. High molecular weight genomic DNA was isolated from whole body (pooled, excluding wings) of five individual females using the genomic-tip 100/G kit (Qiagen, Hilden, Germany) supplemented with RNase A (Qiagen, Hilden, Germany) and Proteinase K (New England Biolabs, Hitchin, UK) treatment, as per the manufacturer’s instructions. DNA quantity and quality were subsequently assessed using a NanoDrop-2000 (Thermo Scientific, Loughborough, UK) and a Qubit 2.0 fluorometer (Life Technologies). Molecular integrity was confirmed using pulse-field gel electrophoresis.

Illumina data (100bp paired-end) was generated using standard Illumina protocols for a 250-500 bp PE library and multiple mate-pair libraries ranging between 180 to 7k bp (Table S1). 20 kb PacBio libraries were generated and size-selected following the manufacturers recommended protocols and sequenced on 18 SMRT cells of the RSII instrument. Finally, long reads (longest read 300Kb) were obtained using the Oxford Nanopore Technologies MinION platform (R7.4) (Table S2). Illumina, PacBio and MinION library preparation and sequencing were performed by the Exeter Sequencing Service, University of Exeter.

Genome assembly

The genome characteristics of M. jurtina were estimated using a k-mer based approach implemented in GenomeScope (Vurture et al. 2017). Short-read Illumina reads were quality filtered and subjected to 19-mer frequency distribution analysis using Jellyfish -v2.2.0 (Marçais and Kingsford 2011).

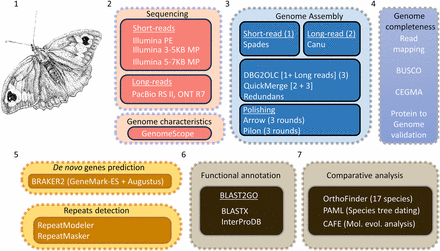

Genome assembly was performed by adopting a novel hybrid approach (Figure 2). Paired-end Illumina reads were trimmed and filtered for quality values using Trim Galore -v0.4.2 (Krueger 2016) and assembled using Spades -v3.9.1 (Bankevich et al. 2012). Long reads obtained from MinION were mixed with PacBio reads and assembled using Canu -v1.3.0 (Koren et al. 2017). The short-read assembly was further assembled along with long-reads using DBG2OLC -v20160205 (Ye et al. 2016). Canu and DBG2OLC assemblies were later merged using QuickMerge -v0.3.0 (Chakraborty et al. 2016) and redundancy reduction, scaffolding and gap closing were carried using Redundans -v0.14c (Pryszcz and Gabaldon 2016). The draft assembly was polished using arrow (part of the genomicconsensus package in PacBio tools) -v2.3.2 (Pacific Biosciences of California), which exclusively mapped long PacBio reads against the draft assembly using the BLASR pipeline (Chaisson and Tesler 2012). The draft assembly was also polished with the Illumina short-reads using Pilon -v1.23.0 (Walker et al. 2014).

Evaluation of the completeness of the genome assembly

The completeness of the draft genome was assessed by mapping raw short and long reads against the assembly. BUSCO (Benchmarking universal single-copy orthologs) -v3.0.2 (Simão et al. 2015) and CEGMA (Core Eukaryotic genes mapping approach) -v2.5.0 (Parra et al. 2007) were used to check genomic completeness of the assembly. In the case of BUSCO, Arthropoda and Insecta gene sets were compared against the assembly. We also assessed the completeness of this assembly by aligning complete genomes of M. jurtina genome against H. melpomene and B. anynana (a close relative) using Mummer -v3.1.0 (Kurtz et al. 2004).

Genome annotation

Before predicting gene models, the genome of M. jurtina was masked for repetitive elements using RepeatMasker -v4.0.7 (Smit 2013–2015). RepeatModeler -v1.0.11 (Smit 2008–2015) was used to model the repeat motifs and transposable elements. Repeats originating from coding regions were removed by performing a BLAST search against the B. anynana proteins. Sequence with hits at E-value > 1e^-10 were filtered out. The RepBase -v24.05 library was then merged with the repeats predicted by RepeatModeler and used to mask the M. jurtina genome. Protein coding genes were predicted using GeneMark-ES -v4.3.8 (Lomsadze et al. 2005) and AUGUSTUS -v3.3.0 (Stanke and Morgenstern 2005) implemented in the BRAKER -v 2.1.2 (Hoff et al. 2016) pipeline using species-specific RNA-seq alignments as evidence. Publicly available M. jurtina RNA-seq datasets (SRR3724201, SRR3724266, SRR3724269, SRR3724271, SRR3724198, SRR3724196, SRR3724195, SRR3721773, SRR3721752, SRR3721684, SRR3721695) were downloaded from NCBI and mapped individually against the repeat masked genome using STAR -v2.7.1 (Dobin et al. 2013). The bam files from individual samples were then combined using custom scripts and then fed into BRAKER. Functional annotation of the de-novo predicted gene models was carried out using homology searches against the NCBI nr database and Interpro database using BLAST2GO -v5.2.5 (Gotz et al. 2008).

Comparison to other Lepidopteran species

To characterize orthology and investigate gene family evolution across Lepidoptera, the final annotation set of M. jurtina was compared to 17 other genomes including a dipteran (Drosophila melanogaster), and a trichopteran (Limnephilus lunatus) as outgroups. The proteomes of Amyelois transitella v1.0, B. anynana v1.2, Bombyx mori v1.0, Calycopis cecrops v1.1, Chilo suppressalis v1.0, Danaus plexippus v3.0, Heliconius melpomene v2.0, Junonia coenia v1.0, Limnephilus lunatus v1.0, Melitaea cinxia, Operophtera brumata v1.0, Papilio polytes v1.0, Phoebis sennae v1.1, Plodia interpunctella v1.0, Plutella xylostella v1.0 were downloaded from Lepbase. OrthoFinder -v1.1.8 (Emms and Kelly 2018 preprint) was used to define orthologous groups (gene families) of genes between these peptide sets.

Phylogenetic tree construction and divergence time estimation

Phylogenetic analysis was performed using 39 single-copy orthologous genes, conserved among 17 species, using OrthoFinder. Additionally, OrthoFinder generated a species tree where D. melanogaster was used as the outgroup. The species tree was rooted using the STRIDE -v1.0.0 (Emms and Kelly 2017) algorithm implemented in OrthoFinder. MCMCTREE, as implemented in PAML -v4.9e (Yang 2007), was then used to estimate the divergence times of M. jurtina with approximate likelihood calculation. For this, the substitution rate was estimated using codeml by applying root divergence age between the Diptera, Lepidoptera and Trichoptera as 350 MY (Kjer et al. 2015). This is a simple fossil calibration of 350 MY for the root. The estimated substitution rate was the per site substitution rate for the amino acid dataset and used to set priors for the mean substitution rate in Bayesian analysis. As a second step, the gradient (g) and Hessian (H) of branch lengths for all 17 species were also estimated. Finally, the tree file with fossil calibrations, the gradient vector and hessian matrices file and the concatenated genes alignment information were used in the approximate likelihood calculation. The parameter settings of MCMCTREE were as follows: clock = 2, model = 3, BDparas = 110, kappa_gamma = 6 2, alpha_gamma = 11, rgene_gamma = 9.09, and sigma2_gamma = 1 4.5. Finally, Gene family evolution across arthropods was investigated using CAFE -v3.0 (De Bie et al. 2006). Scripts used for the analysis of genomic data are available at: https://github.com/kumarsaurabh20/Maniola_jurtina_genome_sequencing

Analysis of spot pattern related genes

To test whether any genes involved in wing or spot -pattern formation across Lepidoptera were identifiable in the current Maniola assembly, we first performed a wide literature search on PubMed (https://www.ncbi.nlm.nih.gov/pubmed/) using the keywords Lepidoptera, butterfly, wing, spot, pattern, gene and then manually filtered through the results to generate a list of candidate genes (Table 1 and Table 3).

jurtina genome properties

This includes a selection of regulators possibly responsible for pattern variation (APC, Naked cuticle), transcription factors linked with eyespot patterning (Distal-less, Dll, and Engrailed, En), along with other transcription regulators such as Apterous and DP. Additionally, we considered poik (HM00025), also known as cortex, Optix, Doublesex, Hox, Vermilion and black (pigment synthesis) along with the Ecdysone receptor (EcR) involved in wing pattern plasticity.

NCBI esearch and efetch tools were used to filter (NOT partial NOT hypothetical NOT uncharacterized), and query individual spot pattern proteins across Lepidoptera using both, full and abbreviated protein names where available (Table 3; total 1347 homologs) and then these proteins were queried against the Maniola genome using Exonerate -v2.2.0 (Slater and Birney 2005) protein2genome model with the following customised options –refine region–score 900–percent 70 -S FALSE –softmasktarget TRUE –bestn 1–ryo \”>%ti (%tab - %tae) coding (%tcb - %tce) cds_length (%tcl)\n%tcs\n”.

Data availability

The raw sequencing data and genome assembly have been deposited at the NCBI SRA database under the BioProject PRJNA498046 and genome accession number VMKL00000000. Blast results, annotation and proteome associated with this manuscript are available at https://zenodo.org/record/3352197. Scripts used for the analysis of genomic data are available at: https://github.com/kumarsaurabh20/Maniola_jurtina_genome_sequencing. Supplemental material available at FigShare: https://doi.org/10.25387/g3.11594187.

Results and Discussion

Genome assembly

Sequencing of short-read libraries, both paired-end and mate-pairs, produced 317.1 million read pairs with an average insert size of 524.8 bp. Analysis of the unimodal 19-mer histogram with a coverage peak at 17x suggested an expected genome size of 576 MB (see Materials and Methods). Note here, that although the genome size estimated via this method is strongly dependent on the sequencing read-depth, based on the genome size of the most closely related species Bicyclus anynana (475 Mb), this estimate does not seem inordinate. The estimated heterozygosity rate was in the range of 1.89–1.93% (Table S3) and the genome was comprised of approximately 76% repetitive elements that are likely to contain units of highly repetitive W chromosome as the samples used in this study were all female (Table S3). We next performed a de novo genome assembly using a hybrid approach (see Materials and Methods). Spades assembly using multiple k-mer values produced 53,043 scaffolds having a total length of 319.9 Mb and N50 of 48.073 Kb. Long-read library sequencing produced 18.08 Gb (total 2398917 reads greater than 1000 bp) of data giving 21.7x overall sequencing coverage (Table S2). Canu assembled 10,463 contigs with N50 of 32.9 Kb. To further improve genome contiguity, we used DBG2OLC which is based on a hybrid approach of using both long- and short-reads. This assembly resulted in 46,361 short-read polished contigs with N50 of 60.26 kb which is an improvement of 12Kb over Spades assembly. In view of the recent developments in the hybrid assemblers, we further explore combining DBG2OLC assembly with long-read only Canu assembly using Quickmerge, an approach known to achieve high genomic contiguity with modest long- and short-read sequencing coverage. Merging of two assemblies with Quickmerge produced 30,457 contigs with a further improved N50 of 92.57 Kb. The assembly size, however, in Quickmerge step (762.9 Mb) surpassed the expected genome size of 576 Mb. To remove the alternate haplotypes from the assembly and reduce the inflated genome size, we added a redundancy removal step by using Redundans. This step improved the N50 by removing haplotypes and reducing the total assembly size. The final genome assembly comprised 618 Mb with 36.9 GC% and N50 of 214Kb (Table 2). Detailed assembly properties are given in Table 1 and Table S4.

Different assembly versions, data, software used and summary statistics

Evaluation of the completeness of the genome assembly

To evaluate the completeness of the genome assembly, we first mapped raw short and long reads against it. The percentage of aligned reads ranged from 94 to 95% using paired-end and mate-paired short reads. Then we assessed the gene completeness using BUSCO and CEGMA. About 90.5% and 88.7% total BUSCO genes were identified in the Arthropoda and Insecta sets respectively. Additionally, 91% CEGMA genes, both complete and partials, were successfully found in the assembly (Table S5 and S6). The number of matches found between M. jurtina and B. anynana, after whole genome alignment, were significantly more as compared to H. melpomene. The genome size of H. melpomene (∼250 MB) is smaller than B. anynana (∼475 MB). Therefore many M. jurtina genomic sequences ended up with no hits.

Genome annotation

Annotation of the M. jurtina genome was carried out using the BRAKER pipeline. 11 publicly available datasets (See Material and Methods) were downloaded from NCBI totalling 116.4 million single-end transcriptomic reads. To predict genes, the reads were aligned against the M. jurtina assembly. BRAKER pipeline resulted in 38,101 genes after removing low quality genes with fewer than 50 amino-acid and/or exhibiting premature termination. In the final gene set, mean gene length, mean CDS length, mean intron length and exon number per gene were 4,144 bp, 976 bp, 921 bp and 5 respectively (Table S7). Approximately 34,263 out of 38,101 genes (90%) of the predicted genes could be assigned functional annotation based on BLAST searches against the non-redundant protein database of NCBI and InterPro.

Comparison to other Lepidopteran species

For comparative genomics analysis, we analyzed the orthologous gene relationships among several species (see Materials and Methods and Table S8). The combined gene count of these species was 349,442 of which 86.5% were assigned to 15,064 orthogroups. 50% of all genes were in orthogroups with 23 or more genes and were contained in the largest 4439 orthogroups. There were 2915 orthogroups with all species present and 39 of these consisted entirely of single-copy genes. A total of 216 gene families were specific to M. jurtina compared to 627 and 1716 in butterfly and moths respectively (Figure 3A).

Phylogenetic tree construction and divergence time estimation

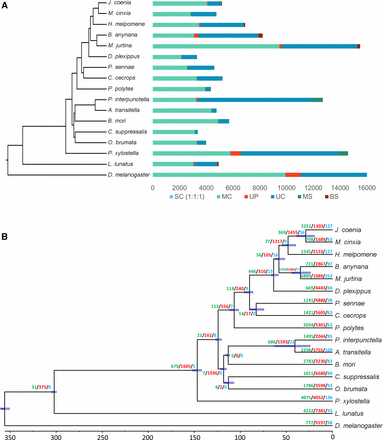

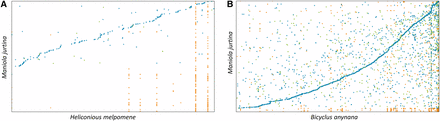

The phylogenetic analysis showed that M. jurtina is more closely related to B. anynana than to H. melpomene or M. cinxia. The divergence time between M. jurtina and B. anynana was estimated to be around 34 MYA and that between M. jurtina and H. melpomene is estimated as 57 MYA (Figure 3B and see Table S9 for divergence time calibrations). Whole genome alignments, using Mummer -v3.1.0 (Kurtz et al. 2004) between M. jurtina – B. anynana and M. jurtina - H. melpomene were also performed to confirm this relatedness (Figure 4). In the dated phylogeny, the most species rich family Nymphalidae has remained stable and diverged from Papilionidae around 90 MY ago. This age is also supported by previously published butterfly phylogenies (Wahlberg et al. 2013; Espeland et al. 2018).

Analysis of gene family evolution

CAFE models the evolution of gene family size across a species phylogeny under a ML birth–death model of gene gain and loss and simultaneously reconstructs ML ancestral gene family sizes for all internal nodes, allowing the detection of expanded gene families within lineages. We ran CAFE on our matrix of gene family sizes generated by OrthoFinder and modeled their evolution along the dated species tree. Genes involved in binding, metabolism and transport of natural or synthetic allelochemicals are particularly found to be rapidly evolving in M. jurtina (Figure 3B).

Analysis of spot pattern related genes

Dowdeswell, Fisher and Ford first studied the island-specific wing-spot patterns in M. jurtina on the isles of Scilly (Dowdeswell et al. 1949), and this work was continued for more than 20 years (reviewed in (Ford 1965)). Their major findings, which became a cornerstone of ecological genetics, have been re-visited and largely re-confirmed with contemporary data (Baxter et al. 2017). Patterns of wing-spot polymorphism have remained unchanged on some islands over 60 years and there is some evidence of genetic differentiation across the Scillies (Baxter et al. 2017). Nonetheless, much remains to be done to better understand the underlying genetics of spot pattern variation in this species.

Butterfly wing patterns have long been suggested to be polygenic (Beldade and Brakefield 2002) and recent evidence from B. anynana (very closely related to M. jurtina) has confirmed this to be the case and strongly suggested that 10-11 different genomic regions may be involved in eye-spot number variation (Rivera-Colón et al. 2018 preprint) and see (Monteiro and Prudic 2010).

Protein to genome matches were found for 20 out of the 30 candidate genes (Table 3). We further cross checked this by creating a blast database of the 1347 homolog spot pattern related proteins from Lepidoptera and then searching the homologs within the M. jurtina proteome for matches. This resulted in over 1500 matches (see Table S10).

Candidate wing spot patterning genes obtained from a literature search are listed in column 1. Column 2 has the number of annotated orthologs across Lepidoptera in our NCBI protein database search using the full gene name as listed and alternate names (comma separated). Column 3 presents the number of proteins per gene that matched in our Exonerate workflow

Specific experiments now need to be undertaken to further test candidate genes and their possible roles in wing-spot polymorphism, and to revisit other findings from Ford and co-workers (reviewed in (Ford 1965)) in the iconic Scillies study system.

Concluding remarks

Here we present a high-quality draft assembly and annotation of the butterfly M. jurtina. The assembly, along with the cross-species comparisons and elements of key spot-pattern genes will offer a core genomic resource for ongoing work in lepidopterans and other arthropods of ecological importance.
