The association between coronary graft patency and clinical status in patients with coronary artery disease Free

Abstract

The concept of a direct association between coronary graft patency and clinical status is generally accepted. However, the relationship is more complex and variable than usually thought. Key issues are the lack of a common definition of graft occlusion and of a standardized imaging protocol for patients undergoing coronary bypass surgery. Factors like the type of graft, the timing of the occlusion, and the amount of myocardium at risk, as well as baseline patients’ characteristics, modulate the patency-to-clinical status association. Available evidence suggests that graft occlusion is more often associated with non-fatal events rather than death. Also, graft failure due to competitive flow is generally a benign event, while graft occlusion in a graft-dependent circulation is associated with clinical symptoms. In this systematic review, we summarize the evidence on the association between graft status and clinical outcomes.

Variables modulating the interaction between graft occlusion and clinical status.

Open in new tabDownload slide

Introduction

The classic concept of a direct and close association between coronary artery graft patency and clinical status is intuitive and biologically plausible. However, the relationship is more complex and variable than generally thought. In this review, we summarize the evidence of the association between coronary graft patency and clinical status in patients with coronary artery disease. A systematic review of the literature was performed by a medical librarian; the search strategy, study selection methods, and the PRISMA flowchart are provided in the Supplementary material online (Supplementary material online, Table S1 and Figure S1).

Incidence, mechanisms, and timing of graft failure

The incidence of graft failure varies for the different types of conduits. At 5 years, failure rates of 17.5% for the saphenous vein graft (SVG), 2.3% and 13.5% for the left and right internal thoracic artery (LITA and RITA), respectively, and 9.4% for the radial artery (RA) have been reported.^{1  ,  2} Ten-year failure rates are 39% for SVG, 15% for LITA, 20–25% for RITA, and 11–15% for the RA.^{3  ,  4}

The pathophysiology of graft failure varies in different postoperative periods, being mainly due to acute thrombosis within the first postoperative month, intimal hyperplasia in the 1st year, and atherosclerosis thereafter (Figure 1).¹

Early failure is predominantly due to technical factors (anastomotic defect, kinking), competitive flow, haemodynamic factors,⁵ or hypercoagulability.⁶ Intimal hyperplasia is an adaptive process that starts at the anastomotic site and is generally self-limited, but in some cases, can become generalized and lead to graft occlusion.⁷ Atherosclerosis in bypass grafts is accelerated compared with native coronary arteries and has distinctive morphologic features such as a concentric and diffuse pattern and a poorly defined fibrous cap at high risk for rupture.⁸

The different mechanisms lead to failure with different time courses: technical failure and thrombosis usually cause acute occlusion, while failure due to intimal hyperplasia and atherosclerosis occurs over a longer period of time.

Different types of bypass conduits have different histologic characteristics of failure, with fibrous hyperplasia being more common in arterial grafts and atherosclerosis in SVGs. Sex and other baseline clinical characteristics,⁹ pharmacological interventions, such as the use of anti-platelets and lipid-lowering therapy,^{10  ,  11} and even genetic variants¹² may affect the risk of graft failure.

Current guidelines recommend that early graft failure is treated by either percutaneous interventions or reoperation, based on the Heart Team decision, while percutaneous interventions are preferred to treat late graft failure.¹³

The issues with graft patency studies

Invasive angiography has traditionally been used for patency studies, but we now have evidence that computed tomography angiography has very high sensitivity and specificity in assessing coronary grafts¹⁴ and will likely become the new standard. The use of intravascular imaging techniques adds important anatomic information and may help in identifying the mechanism responsible for graft failure.¹⁵

A key factor complicating the analysis of graft patency studies is the lack of a universal definition of graft failure and of graft patency. Although in recent years, the three-level Fitzgibbon classification (grade A: excellent graft with unimpaired runoff; grade B: stenosis reducing calibre of proximal or distal anastomoses or trunk to <50% of the grafted coronary artery; grade O: occlusion)¹⁶ has been adopted by several groups, many investigators have used different scales with heterogeneous definitions.¹⁷

Another key issue is that from graft patency studies one can determine only when graft occlusion was visualized, but not when occlusion occurred. In trying to establish a causal relationship between graft failure and clinical events, it is key to know that graft failure came first and the event thereafter.

Other important complicating factors are differences in the completeness and timing of follow-up in the published series.¹⁷ Graft patency studies inherently suffer from survivor bias. In most observational series, imaging of grafts is reserved for symptomatic patients introducing a major selection bias. It has been shown that reported graft failure rates are higher in studies including only symptomatic patients.¹⁸ Even in randomized controlled trials, incomplete follow-up is common because of new medical complications or consent withdrawal. It has been shown that patients who decline late angiography have different baseline risk profiles than patients with imaging follow-up.¹⁹ While analytic options to address incomplete follow-up exist,²⁰ they have not been consistently applied.

When femoral access and use of angiography were the norm, the selection criteria for graft patency studies excluded patients with vascular and renal disease. This limitation is less relevant today, but it applies to most of the published evidence. An important consideration is patient age—older patients represent a large proportion of patients undergoing surgical revascularization but because of their shorter survival and higher comorbidities are under-represented in patency studies.

Another important confounding factor is related to the functional severity of the grafted coronary vessel.²¹ Functional data have shown that when the indication to revascularization is based on angiography alone, up to 20% of the grafted target vessels do not have flow-limiting stenosis.^{22  ,  23} The consequent chronic native competitive flow is a strong risk factor for occlusion for arterial grafts, and among them the RA is more affected than the internal thoracic artery^{24  ,  25} (Figure 2). However, graft occlusion due to competitive flow is a different event than graft occlusion from other causes. In the IMPAG trial, arterial graft failure was mainly due to competitive flow and was not associated with clinical events.²⁴ SYNTAX-LE MANS was an angiographic sub-study of the SYNTAX trial evaluating the patency of bypass grafts in patients with left main disease, a situation at high risk of competitive flow: no correlation between adverse events at 15-month follow-up and graft failure was found.²⁶

The likely reason behind this finding is that the implantation of a bypass graft creates a separate coronary inflow, parallel to the native circulation. If the latter is dominant and the graft fails from competitive flow, there is no reduction in distal perfusion and, thus, no clinical events associated with graft failure. In contrast, with percutaneous interventions and stent thrombosis, there is a sudden reduction of the only flow source that generally results in clinical events.

The completeness of revascularization and the number of grafts implanted, as well as the viability of the myocardial area served by the graft are other important modulators of the association of graft occlusion with clinical events (Graphical abstract).

In addition, some of the factors that affect graft patency, such as renal failure and diabetes, also affect progression of native coronary disease, and clinical outcomes may be driven by the latter rather than the former.

Finally, it must be noted that the majority of patency studies date back to the era of the introduction of coronary surgery and may not represent current surgical practice (Table 1).^{16  ,  26–38}

Studies supporting an association between graft patency and clinical outcomes

In one of the first angiographic series of coronary artery bypass graft surgery (CABG), Winer et al.  ³⁹ performed postoperative angiography in 67 patients and found that angina improvement and graft patency were highly correlated. Bourassa et al.  ²⁸ described a close association between graft patency and survival in 600 CABG cases and Knatterud et al.³³ in a sub-analysis of the POST CABG study showed that SVG failure was associated with adverse clinical events, including death.

Fitzgibbon et al.¹⁶ in a study of more than 5000 grafts found that graft patency was inversely associated with the need for reoperation and directly associated with survival. In an analysis from the Duke Cardiovascular Databank on 1243 patients, graft failure was associated with death, myocardial infarction (MI), or repeat revascularization.³⁴

In a study of 1296 CABG patients, Lytle et al.  ³¹ found that at 7-year follow-up, patients with SVG stenosis occurring within 5 years of surgery and patients with no SVG stenosis had similar outcomes, but when the stenosis occurred in the SVG to the left anterior descending artery (LAD), survival was significantly reduced and the adverse event rate increased.

Shavadia et al.  ³⁶ in a provincial angiographic database from Alberta found that LITA-to-LAD failure, but not SVG failure to non-LAD targets was associated with reduced long-term survival.

Loop et al.  ⁴⁰ found a significant association of decreased mortality and all cardiac endpoints with the use of the LITA compared with the SVG to graft the LAD, and postoperative angiography revealed significantly higher patency of the arterial conduit. A small randomized trial found similar results: improved cardiac event-free survival at 10 years in patients who received LITA vs. the SVG to graft the LAD, and improved patency of the arterial graft.⁴¹

In the PREVENT IV trial, graft failure was associated with an increased risk of revascularization, but not of death or MI and the association was consistent for venous and arterial grafts.³⁵ Of note, most of the revascularizations were performed within 2 weeks of the protocol-mandated angiography, suggesting that the event rate may have been inflated due to the imaging protocol.

In the RAPS trial, the risk of adverse events was significantly higher in patients with graft stenosis.³⁸ An individual patient-level meta-analysis of six angiographic trials comparing RA with SVG found a reduction in graft occlusion and in the composite of death, MI, or repeat revascularization at 5 years in the RA arm.⁴² An association between graft patency and stress test performance was reported by Korpilahti et al.⁴³ in 1999.

The use of cholesterol-lowering medications and of anti-thrombotic or anti-platelet therapy reduced SVG occlusion and improved outcomes in several trials, but the causal relation between patency and outcomes is unclear due to the effect of the medications on the native coronary circulation.^{11  ,  44  ,  45}

Studies showing no association between graft patency and clinical outcomes

Robert et al.  ²⁷ in a study of 72 CABG patients found that at long-term follow-up, angina recurrence was mainly due to progression of native disease rather than graft occlusion. Achuff et al.⁴⁶ described symptomatic and functional improvement in 7 out of 12 patients with all grafts occluded and Benchimol et al.  ⁴⁷ did not find any association between clinical status and graft patency in a small series of 32 patients.

Hoel et al.  ⁴⁸ in a study of 90 patients found no association between graft patency and MI and Huikuri et al.  ³² in a study of 339 patients showed that graft patency was not associated with survival at 5-year follow-up.

In the ROOBY trial, LAD status, but not graft patency, was associated with patient-reported angina 1 year after CABG.⁴⁹

In the acute postoperative setting, Brindis et al.  ³⁰ showed that the majority of the cases of perioperative MI after CABG were not associated with graft occlusion and Aintablian et al.⁵⁰ did not find an association between graft status after surgery and postoperative appearance of new Q waves. A systematic review of the results of emergency angiography in patients with perioperative MI following CABG found that graft failure was not the cause of the acute event in 37.9% of the cases.⁵¹

Possible reasons for the described discrepancy among studies

While there is no clear-cut explanation for the reported discrepancy among studies, several factors need to be taken into account. Many of the series that show no association between graft failure and symptoms are from an era when it was common to graft any stenosis >50% in any target vessel; graft failure due to flow competition or limited run-off in small target vessels (both situations at low risk of clinical events) were likely more common in these series. In addition, routine postoperative imaging was used more commonly in the older series, while the more contemporary studies may suffer from a higher selection bias, with only symptomatic patients referred for imaging.

Effect of surgical grafting on native coronary circulation

Saphenous vein graft grafting has been shown to accelerate progression of the proximal native stenosis to occlusion in many studies.^52–54 However, the use of arterial grafts is not associated with native stenosis progression and seems to have a protective effect on the distal coronary circulation (Table 2).^{52  ,  55–58} While the mechanisms of this effect are speculative, it is possible that the local anti-inflammatory and antithrombotic molecules that prevent atherosclerosis in arterial grafts may exert a protective effect on the native coronary bed.

Conclusions and practical implications

The association between graft patency and clinical status is complex and highly variable (Graphical abstract).

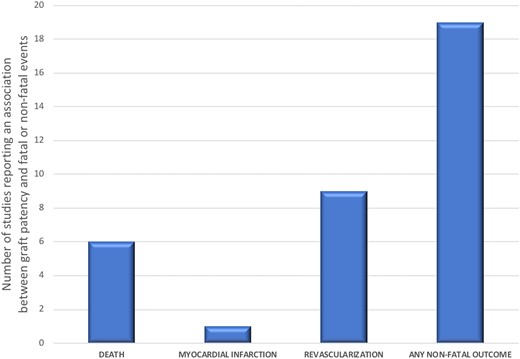

Overall, the number of studies that support an association between graft occlusion and clinical events (mostly non-fatal) is higher than the number of studies that refute it (Figure 3). An important exception is graft failure from competitive flow that is usually asymptomatic.

Based on our data, one should conclude that the role of routine imaging follow-up after CABG appears limited. In addition, the incidental finding of asymptomatic graft failure in a CABG patient should not prompt re-intervention. Our finding of a variable association between graft status and clinical events has also implications for the design of future CABG trials: the assessment of clinical outcomes alone may underestimate the effect of interventions aimed at modifying graft patency and, for this reason, the use of patency as a surrogate or secondary outcome should be considered.
